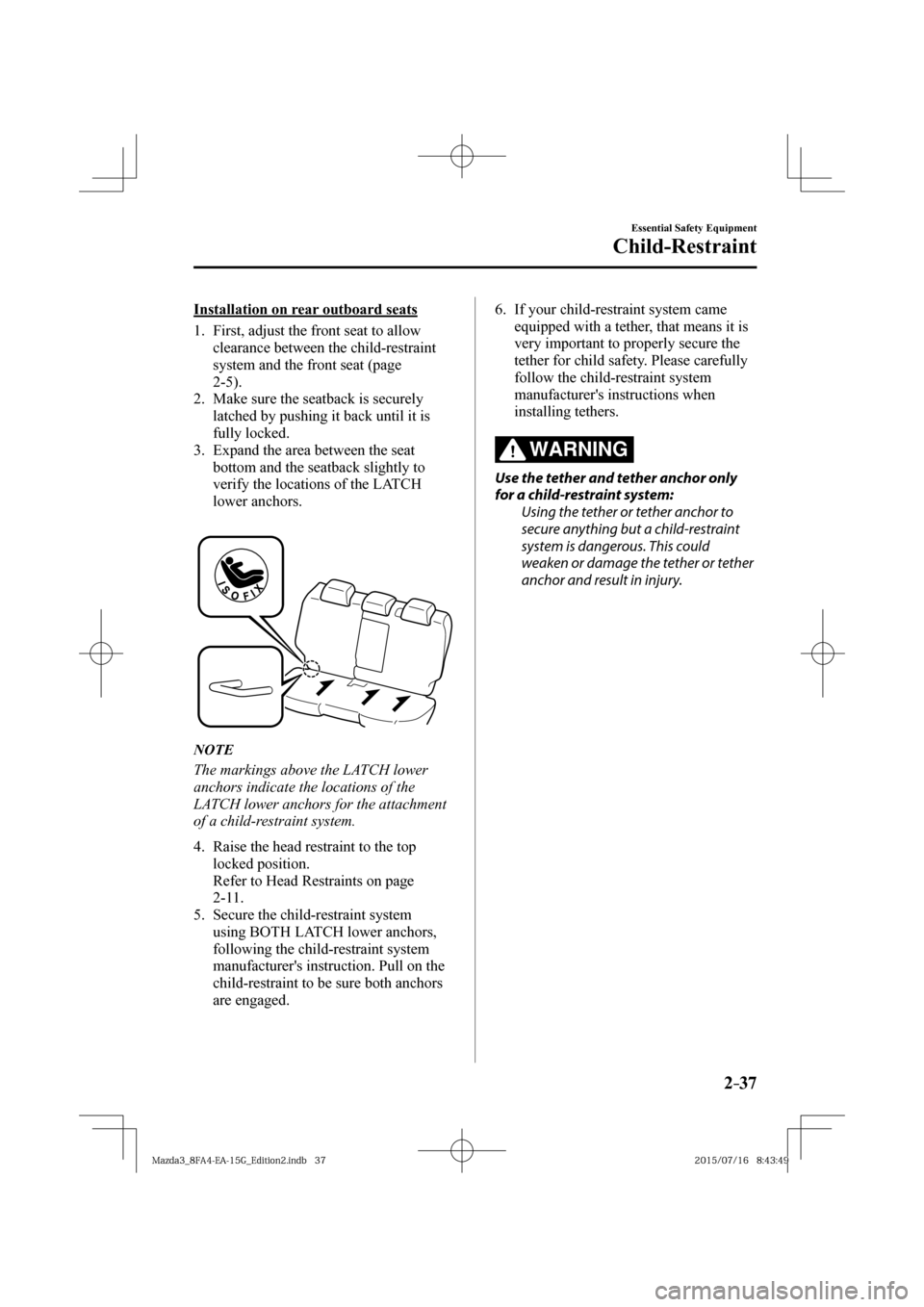

Page 51 of 600
2–37
Essential Safety Equipment
Child-Restraint
Installation on rear outboard seats
1. First, adjust the front seat to allow
clearance between the child-restraint
system and the front seat (page
2-5 ).
2. Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
3. Expand the area between the seat
bottom and the seatback slightly to
verify the locations of the LATCH
lower anchors.
N O T E
The markings above the LATCH lower
anchors indicate the locations of the
LATCH lower anchors for the attachment
of a child-restraint system.
4. Raise the head restraint to the top
locked position.
Refer to Head Restraints on page
2-11 .
5. Secure the child-restraint system
using BOTH LATCH lower anchors,
following the child-restraint system
manufacturer's instruction. Pull on the
child-restraint to be sure both anchors
are engaged. 6. If your child-restraint system came
equipped with a tether, that means it is
very important to properly secure the
tether for child safety. Please carefully
follow the child-restraint system
manufacturer's instructions when
installing tethers.
WARNING
Use the tether and tether anchor only
for a child-restraint system:
Using the tether or tether anchor to
secure anything but a child-restraint
system is dangerous. This could
weaken or damage the tether or tether
anchor and result in injury.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 52 of 600
2–38
Essential Safety Equipment
Child-Restraint
Always route the tether strap between
the head restraint and the seatback:
Routing the tether strap on top of
the head restraint is dangerous. In a
collision the tether strap could slide off
the head restraint and loosen the child-
restraint system. The child-restraint
system could move which may result in
death or injury to the child.
Anchor bracket
Tether strap(4-Door)
Tether strap
Forward
(5-Door)
Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the child-
restraint system moves it could result
in death or injury to the child.
Installation on rear center seat
The LATCH lower anchors at the center
of the rear seat are much further apart
than the sets of LATCH lower anchors
for child-restraint system installation at
other seating positions. Child-restraint
systems with rigid LATCH attachments
cannot be installed on the center seating
position. Some LATCH equipped child-
restraint systems can be placed in the
center position and will reach the nearest
LATCH lower anchors which are 443 mm
(17.4 in) apart. LATCH compatible child-
restraint systems (with attachments on
belt webbing) can be used at this seating
position only if the child-restraint system
manufacturer's instructions state that the
child-restraint system can be installed to
LATCH lower anchors that are 443 mm
(17.4 in) apart. Do not attach two child-
restraint systems to the same LATCH
lower anchor. If your child-restraint
system has a tether, it must also be used
for your child's optimum safety.
The procedure for installation on the rear
outboard seats is the same.
LATCH lower anchor location
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 53 of 600
2–39
Essential Safety Equipment
Child-Restraint
WARNING
Always route the tether strap between
the head restraint and the seatback:
Routing the tether strap on top of
the head restraint is dangerous. In a
collision the tether strap could slide off
the head restraint and loosen the child-
restraint system. The child-restraint
system could move which may result in
death or injury to the child.
Anchor bracket
Tether strap(4-Door)
Tether strap
Forward
(5-Door)
Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the child-
restraint system moves it could result
in death or injury to the child.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 54 of 600
2–40
Essential Safety Equipment
SRS Air Bags
*Some models.
Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include different types of air bags.
Please verify which kinds of air bags are equipped on your vehicle by locating the
“SRS AIRBAG” location indicators. These indicators are visible in the area where the air
bags are installed.
The air bags are installed in the following locations:
y The steering wheel hub (driver air bag)
y The front passenger dashboard (front passenger air bag)
y The outboard sides of the front seatbacks (side air bags) *
y The front and rear window pillars, and the roof edge along both sides (curtain air bags) *
Vehicles with the Front Passenger Occupant Classi ¿ cation System have a sensor which
detects an impending roll-over accident.
The air bag supplemental restraint systems are designed to provide supplemental protection
in certain situations so seat belts are always important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
y Keep the occupant from being thrown into an in À ating air bag.
y Reduce the possibility of injuries during an accident that is not designed for air bag
in À ation, such as rear impact.
y Reduce the possibility of injuries in frontal, near frontal or side collisions or roll-over
accidents that are not severe enough to activate the air bags.
y Reduce the possibility of being thrown from your vehicle.
y Reduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
y Hold the driver in a position which allows better control of the vehicle.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 55 of 600
2–41
Essential Safety Equipment
SRS Air Bags
If your vehicle is also equipped with a front passenger occupant classi ¿ cation system,
refer to the Front Passenger Occupant Classi ¿ cation System (page 2-56 ) for details.
If your vehicle is equipped with a front passenger occupant classi ¿ cation system, the front
passenger air bag deactivation indicator light illuminates for a speci ¿ ed time after the
ignition is switched ON.
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-22 ).
Carefully consider which child-restraint system is necessary for your child and follow
the installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
WARNING
Seat belts must be worn in air bag equipped vehicles:
Depending only on the air bags for protection during an accident is dangerous. Alone,
air bags may not prevent serious injuries. The appropriate air bags can be expected to
infl ate only in the fi rst accident, such as frontal, near frontal or side collisions or roll-over
accidents that are at least moderate. Vehicle occupants should always wear seat belts.
Children should not ride in the front passenger seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be hit
by a deploying air bag and be seriously injured or even killed. A sleeping child is more
likely to lean against the door and be hit by the side air bag in moderate collision to the
front-passenger side of the vehicle. Whenever possible, always secure a child 12 years and
under on the rear seats with an appropriate child-restraint system for the child's age and
size.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 56 of 600
2–42
Essential Safety Equipment
SRS Air Bags
Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates. The
child-restraint system can be hit by a deploying air bag and moved violently backward
resulting in serious injury or death to the child.
Do not sit too close to the driver and front passenger air bags:
Sitting too close to the driver and front passenger air bag modules or placing hands or
feet on them is extremely dangerous. The driver and front passenger air bags infl ate with
great force and speed. Serious injuries could occur if someone is too close. The driver
should always hold onto only the rim of the steering wheel. The front seat passenger
should keep both feet on the fl oor. Front seat occupants should adjust their seats as
far back as possible and always sit upright against the seatbacks with seat belts worn
properly.
Sit in the center of the seat and wear seat belts properly:
Sitting too close to the side air bag modules or placing hands on them, or sleeping up
against the door or hanging out the windows is extremely dangerous. The side and
curtain air bags infl ate with great force and speed directly expanding along the door
on the side the car is hit. Serious injury could occur if someone is sitting too close to the
door or leaning against a window, or if rear seat occupants grab the sides of the front
seatbacks. Give the side and curtain air bags room to work by sitting in the center of the
seat while the vehicle is moving with seat belts worn properly.
Do not attach objects on or around the area where driver and front passenger air bags
deploy:
Attaching an object to the driver and front passenger air bag modules or placing
something in front of them is dangerous. In an accident, an object could interfere with air
bag infl ation and injure the occupants.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 57 of 600
2–43
Essential Safety Equipment
SRS Air Bags
Do not attach objects on or around the area where a side air bag deploys:
Attaching objects to the front seat in such a way as to cover the outboard side of the
seat in any way is dangerous. In an accident the object could interfere with the side
air bag, which infl ates from the outboard side of the front seats, impeding the added
protection of the side air bag system or redirecting the air bag in a way that is dangerous.
Furthermore, the bag could be cut open releasing the gas.
Do not hang net bags, map pouches or backpacks with side straps on the front seats.
Never use seat covers on the front seats. Always keep the side air bag modules in your
front seats free to deploy in the event of a side collision.
Do not attach objects on or around the area where a curtain air bag deploys:
Attaching objects to the areas where the curtain air bag activates such as on the
windshield glass, side door glass, front and rear window pillars and along the roof edge
and assist grips is dangerous. In an accident the object could interfere with the curtain
air bag, which infl ates from the front and rear window pillars and along the roof edge,
impeding the added protection of the curtain air bag system or redirecting the air bag in
a way that is dangerous. Furthermore, the bag could be cut open releasing the gas.
Do not place hangers or any other objects on the assist grips. When hanging clothes,
hang them on the coat hook directly. Always keep the curtain air bag modules free to
deploy in the event of a side collision or roll-over accident.
Do not touch the components of the supplemental restraint system after the air bags
have infl ated:
Touching the components of the supplemental restraint system after the air bags have
infl ated is dangerous. Immediately after infl ation, they are very hot. You could get burned.
Never install any front-end equipment to your vehicle:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar, bull
bar, push bar, or other similar devices), snowplow, or winches, is dangerous. The air bag
crash sensor system could be aff ected. This could cause air bags to infl ate unexpectedly,
or it could prevent the air bags from infl ating during an accident. Front occupants could
be seriously injured.
Do not modify the suspension:
Modifying the vehicle suspension is dangerous. If the vehicle's height or the suspension is
modifi ed, the vehicle will be unable to accurately detect a collision or roll-over accident
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 58 of 600
2–44
Essential Safety Equipment
SRS Air Bags
To prevent false detection by the air bag sensor system, heed the following:
¾ Do not use tires or wheels other than those specifi ed for your Mazda:
Use of any tire or wheel other than those specifi ed for your Mazda (page 9-10 ) is
dangerous. Use of such wheels will prevent the vehicle's accident detections system
from accurately detecting a collision or roll-over accident resulting in incorrect or
unexpected air bag deployment and the possibility of serious injuries.
¾ Do not overload your vehicle:
Overloading your vehicle is dangerous as it could prevent the air bag crash sensor
system from accurately detecting a collision or roll-over accident resulting in incorrect
or unexpected air bag deployment and the possibility of serious injuries. The gross axle
weight rating (GAWR) and the gross vehicle weight rating (GVWR) for your vehicle are
on the Motor Vehicle Safety Standard Label on the driver's door frame. Do not exceed
these ratings.
¾ Do not drive the vehicle off -road:
Driving your Mazda off -road is dangerous because the vehicle has not been designed
to do so. Driving the vehicle off -road could prevent the air bag crash sensor system
from accurately detecting a collision or roll-over accident resulting in incorrect or
unexpected air bag deployment and the possibility of serious injuries.
Do not modify a front door or leave any damage unrepaired. Always have an
Authorized Mazda Dealer inspect a damaged front door:
Modifying a front door or leaving any damage unrepaired is dangerous. Each front
door has a side crash sensor as a component of the supplemental restraint system. If
holes are drilled in a front door, a door speaker is left removed, or a damaged door is left
unrepaired, the sensor could be adversely aff ected causing it to not detect the pressure
of an impact correctly during a side collision. If a sensor does not detect a side impact
correctly, the side and curtain air bags and the front seat belt pretensioner may not
operate normally which could result in serious injury to occupants.
Do not modify the supplemental restraint system:
Modifying the components or wiring of the supplemental restraint system is dangerous.
You could accidentally activate it or make it inoperable. Do not make any modifi cations
to the supplemental restraint system. This includes installing trim, badges, or anything
else over the air bag modules. It also includes installing extra electrical equipment on or
near system components or wiring. An Authorized Mazda Dealer can provide the special
care needed in the removal and installation of front seats. It is important to protect the air
bag wiring and connections to assure that the bags do not accidentally deploy, and that
the front passenger occupant classifi cation system and the seats retain an undamaged
air bag connection.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 59 of 600
2–45
Essential Safety Equipment
SRS Air Bags
Do not place luggage or other objects under the front seats:
Placing luggage or other objects under the front seats is dangerous. The components
essential to the supplemental restraint system could be damaged, and in the event of
a side collision, the appropriate air bags may not deploy, which could result in death
or serious injury. To prevent damage to the components essential to the supplemental
restraint system, do not place luggage or other objects under the front seats.
Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components:
Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a trained
Authorized Mazda Dealer can fully evaluate these systems to see that they will work in
any subsequent accident. Driving with an expended or damaged air bag or pretensioner
unit will not aff ord you the necessary protection in the event of any subsequent accident
which could result in serious injury or death.
Do not remove interior air bag parts:
Removing any components such as the front seats, front dashboard, the steering wheel
or parts on the front and rear window pillars and along the roof edge, containing air bag
parts or sensors is dangerous. These parts contain essential air bag components. The air
bag could accidentally activate and cause serious injuries. Always have an Authorized
Mazda Dealer remove these parts.
Properly dispose of the air bag system:
Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury could result. Have an
Authorized Mazda Dealer safely dispose of the air bag system or scrap an air bag
equipped vehicle.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 60 of 600
2–46
Essential Safety Equipment
SRS Air Bags
N O T E
y If it becomes necessary to have the components or wiring system for the supplementary
restraint system modi ¿ ed to accommodate a person with certain medical conditions in
accordance with a certi ¿ ed physician, contact an Authorized Mazda Dealer, refer to
“Customer Assistance (U.S.A.)” (page 8-2 ).
y When an air bag deploys, a loud in À ation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the texture of the air bags may cause
light skin injuries on body parts not covered with clothing through friction.
y Should you sell your Mazda, we urge you to tell the new owner of its air bag systems
and that familiarization with all instructions about them, from the Owner's Manual, is
important.
y This highly-visible label is displayed which warns against the use of a rear-facing child-
restraint system on the front passenger seat.
(Except Mexico)
(Mexico)
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
