Page 8 of 600
1–2
Pictorial Index
Interior Overview
Interior Equipment (View A)
Door-lock knob ..................................................................................................... page 3-18
Turn and lane-change signal ................................................................................. page 4-46
Lighting control..................................................................................................... page 4-40
Wiper and washer lever ......................................................................................... page 4-47
DSC OFF switch ................................................................................................... page 4-65
Tire pressure monitoring system set switch ........................................................ page 4-126
LDWS switch ........................................................................................................ page 4-83
AFS OFF switch.................................................................................................... page 4-76
BSM OFF switch .................................................................................................. page 4-91
Headlight leveling switch...................................................................................... page 4-44
Outside mirror switch............................................................................................ page 3-32
Door-lock switch ................................................................................................... page 3-16
Power window lock switch ................................................................................... page 3-37
Power window switches ........................................................................................ page 3-35
The equipment and installation position varies by vehicle
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 11 of 600
1–5
Pictorial Index
Interior Overview
Interior Equipment (View C)
Seat belts ............................................................................................................... page 2-13
SRS air bag............................................................................................................ page 2-40
Bottle holder ........................................................................................................ page 5-139
Overhead lights ................................................................................................... page 5-135
Moonroof switch ................................................................................................... page 3-38
Sunvisor .............................................................................................................. page 5-134
Vanity mirror ....................................................................................................... page 5-134
Rearview mirror .................................................................................................... page 3-33
Glove compartment ............................................................................................. page 5-140
Parking brake ........................................................................................................ page 4-59
Cup holders ......................................................................................................... page 5-138
Front seat ................................................................................................................. page 2-5
Center console ..................................................................................................... page 5-141
Rear seat .................................................................................................................. page 2-8
The equipment and installation position varies by vehicle
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 12 of 600
1–6
Pictorial Index
Exterior Overview
(4-Door)
Hood ...................................................................................................................... page 6-24
Windshield wiper blades ....................................................................................... page 6-34
Moonroof .............................................................................................................. page 3-38
Doors and keys ...................................................................................................... page 3-13
Fuel- ¿ ller lid ......................................................................................................... page 3-29
Wheels and Tires ................................................................................................... page 6-43
Exterior lights ........................................................................................................ page 6-47
Trunk lid ................................................................................................................ page 3-21
Antenna ................................................................................................................. page 5-16
Child safety locks .................................................................................................. page 3-19
Outside mirror ....................................................................................................... page 3-32
The equipment and installation position varies by vehicle
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 13 of 600
1–7
Pictorial Index
Exterior Overview
(5-Door)
Hood ...................................................................................................................... page 6-24
Windshield wiper blades ....................................................................................... page 6-34
Moonroof .............................................................................................................. page 3-38
Doors and keys ...................................................................................................... page 3-13
Fuel- ¿ ller lid ......................................................................................................... page 3-29
Wheels and Tires ................................................................................................... page 6-43
Exterior lights ........................................................................................................ page 6-47
Rear window wiper blade ..................................................................................... page 6-35
Liftgate .................................................................................................................. page 3-21
Antenna ................................................................................................................. page 5-16
Child safety locks .................................................................................................. page 3-19
Outside mirror ....................................................................................................... page 3-32
The equipment and installation position varies by vehicle
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C

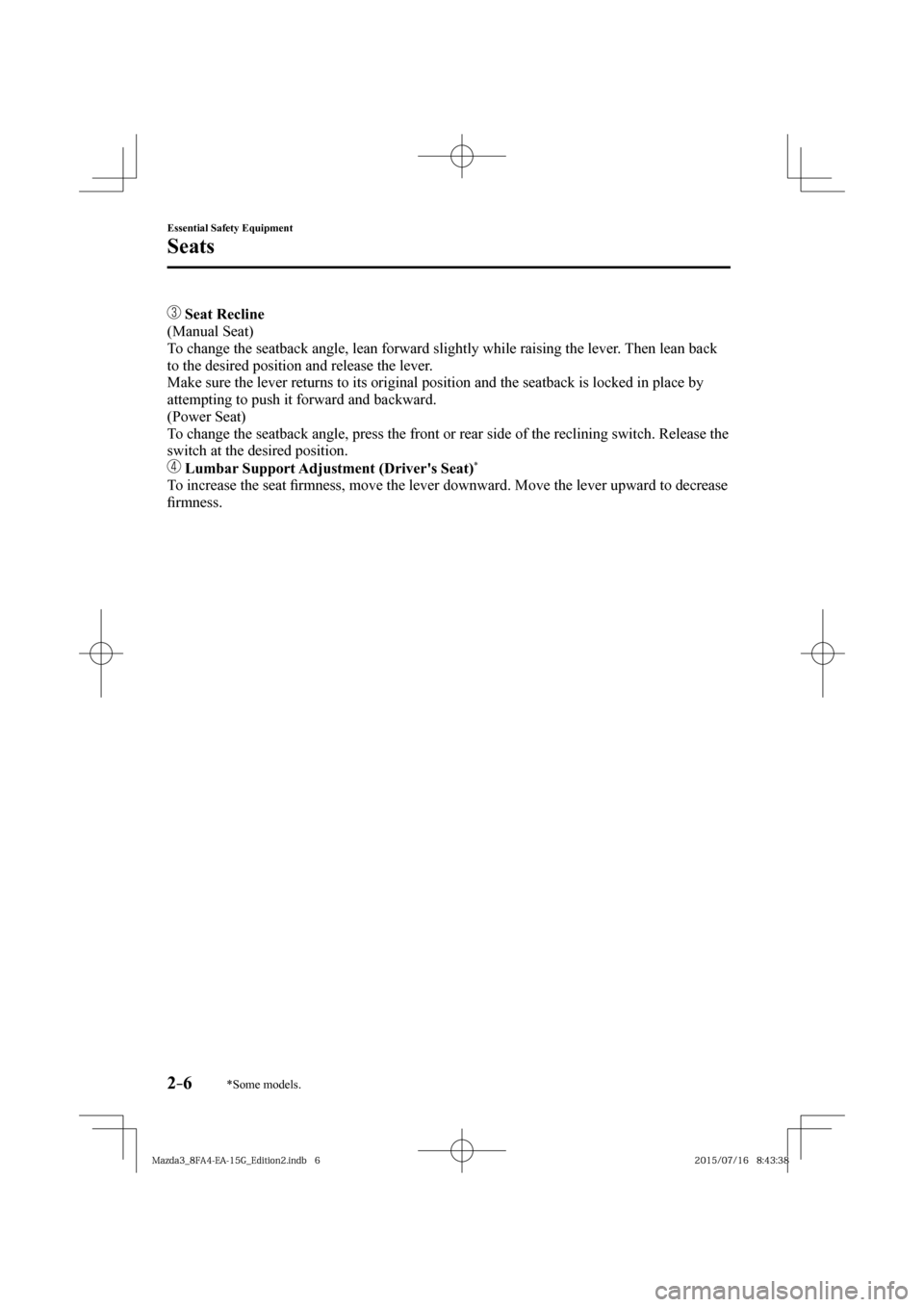

Page 20 of 600
2–6
Essential Safety Equipment
Seats
*Some models.
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release the
switch at the desired position.
Lumbar Support Adjustment (Driver's Seat) *
To increase the seat ¿ rmness, move the lever downward. Move the lever upward to decrease
¿ rmness.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 21 of 600
2–7
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch to illuminate
the indicator light while the ignition
is switched ON. The mode changes as
follows each time the seat warmer switch
is pressed.
OFF
High
Mid
Low
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.
¾ Infants, small babies, elderly
people, and physically challenged
people
¾ People with delicate skin
¾ People who are excessively fatigued
¾ People who are intoxicated
¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
N O T E
y If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
y Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.
y The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 31 of 600
2–17
Essential Safety Equipment
Seat Belt Systems
Seat Belt Warning Systems
If it detects that the occupant seat belt
is unfastened, the warning light or beep
alerts the occupant.
Refer to Warning/Indicator Lights on page
4-20 .
Refer to Seat Belt Warning Beep on page
7-36 .
Front Seat Belt
Pretensioner and Load
Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.
Pretensioners:
When a collision is detected, the
pretensioners deploy simultaneously with
the air bags.
For vehicles with the front passenger
occupant classi ¿ cation system, the
pretensioners deploy simultaneously
with the air bags when a roll-over is also
detected.
For deployment details, refer to the SRS
Air Bag Deployment Criteria (page
2-53 ).
The seat belt retractors remove slack
quickly as the air bags are expanding.
Any time the air bags and seat belt
pretensioners have ¿ red they must be
replaced.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-20 .
Refer to Air Bag/Seat Belt Pretensioner
System Warning Beep on page 7-35 .
(With Front Passenger Occupant
Classi ¿ cation System)
In addition, the pretensioner system for
the front passenger, like the front and side
passenger air bag, is designed to only
deploy in accordance with the total seated
weight on the front passenger seat.
For details, refer to the front passenger
seat weight sensors (page 2-56 ).
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 32 of 600
2–18
Essential Safety Equipment
Seat Belt Systems
Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and
can activate in any accident mode with
suf ¿ cient occupant movement.
Even if the pretensioners have not ¿ red,
the load limiting function must be checked
by an Authorized Mazda Dealer.
WARNING
Wear seat belts only as recommended in
this owner's manual:
Incorrect positioning of the seat
belts is dangerous. Without proper
positioning, the pretensioner and
load limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to "Fastening the seat belts"
(page 2-16 ).
Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended:
Always have an Authorized Mazda
Dealer immediately inspect the seat
belt pretensioners and air bags after
any collision. Like the air bags, the seat
belt pretensioners and load limiters
will only function once and must be
replaced after any collision that caused
them to deploy. A seat belt with an
expended pretensioner or load limiter
is still better than wearing no seat
belt at all; however, if the seat belt
pretensioners and load limiters are not
replaced, the risk of injury in a collision
will increase.
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices
is dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants or repairers
could be seriously injured.
Properly dispose of the pretensioner
system:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury
could result. Have an Authorized
Mazda Dealer safely dispose of
the pretensioner system or scrap a
pretensioner system equipped vehicle.
N O T E
y The pretensioner system may not
operate depending on the type of the
collision. For details, refer to the SRS
Air Bag Deployment Criteria (page
2-53 ).
y Some smoke (non-toxic gas) will
be released when the air bags and
pretensioners deploy. This does not
indicate a ¿ re. This gas normally has
no effect on occupants, however, those
with sensitive skin may experience
light skin irritation. If residue from
the deployment of the air bags or the
pretensioner system gets on the skin
or in the eyes, wash it off as soon as
possible.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 35 of 600
2–21
Essential Safety Equipment
Seat Belt Systems
Do not use an improper extender:
Using a seat belt extender that is for
another person or a diff erent vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the particular
vehicle and seat. NEVER use the
extender in a diff erent vehicle or seat.
If you sell your Mazda, do not leave
your seat belt extender in the vehicle. It
could be used accidentally by the new
owner of the vehicle. After removing
the seat belt extender, discard it. Never
use the seat belt extender in any other
vehicle you may own in the future.
Do not use an extender that is too long:
Using an extender that is too long is
dangerous. The seat belt will not fi t
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Do not use the extender or choose
one shorter in length if the distance
between the extender's buckle and the
center of the user's body is less than 15
cm (6 in).
Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected
to the buckle without using the seat
belt is dangerous. When the seat belt
extender is connected to the driver's
seat belt buckle (or front passenger's
seat belt buckle), the SRS driver's (or
front passenger's) air bag system will
determine that the driver (or front
passenger) is wearing the seat belt
even if the driver (or front passenger)
is not wearing it. This condition could
cause the driver's (or front passenger's)
air bag to not activate correctly and
result in death or serious injury in the
event of collision. Always wear the seat
belt with the seat belt extender.
Do not use the seat belt extender when
installing a child-restraint system on the
front or rear passenger seat:
Using a seat belt extender to fasten
a child-restraint system on any seat
is dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use
a seat belt extender.
N O T E
When not in use, remove the seat belt
extender and store it in the vehicle. If the
seat belt extender is left connected, the
seat belt extender might get damaged
as it will not retract with the rest of the
seat belt and can easily fall out of the
door when not in use and be damaged. In
addition, the seat belt warning light will
not illuminate and function properly.
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
Page 36 of 600
2–22
Essential Safety Equipment
Child-Restraint
Child-Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for speci ¿ c requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer
to the center of the vehicle in the outboard seats, and towards the buckle on the right if the
child is seated on the center seat.
Statistics con ¿ rm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system should NEVER be used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
(With Front Passenger Occupant Classi ¿ cation System)
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger seat weight sensors work as a part of the supplemental restraint system. This
system deactivates the front passenger front and side air bags and also the front passenger
seat belt pretensioner system when the front passenger air bag deactivation indicator light
illuminates.
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to "Front passenger seat weight sensors" (page 2-56 ).
. B [ E B @ ' " & " ( @ & E J U J P O J O E C . B [ E B @ ' " & " ( @ & E J U J P O J O E C
