▼Fuse Panel Description
Fuse block (Engine compartment)
No. FUSE RAT-
ING PROTECTED COMPONENT
F1 ――
F2 20 A Windshield wiper de-icer
*
F330 A Engine control system
F4 20 A S-VT
F5 40 A Engine control system
F6 ――
F7 20 A Fuel pump
Maintenance and Care
Owner Maintenance
6-42*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

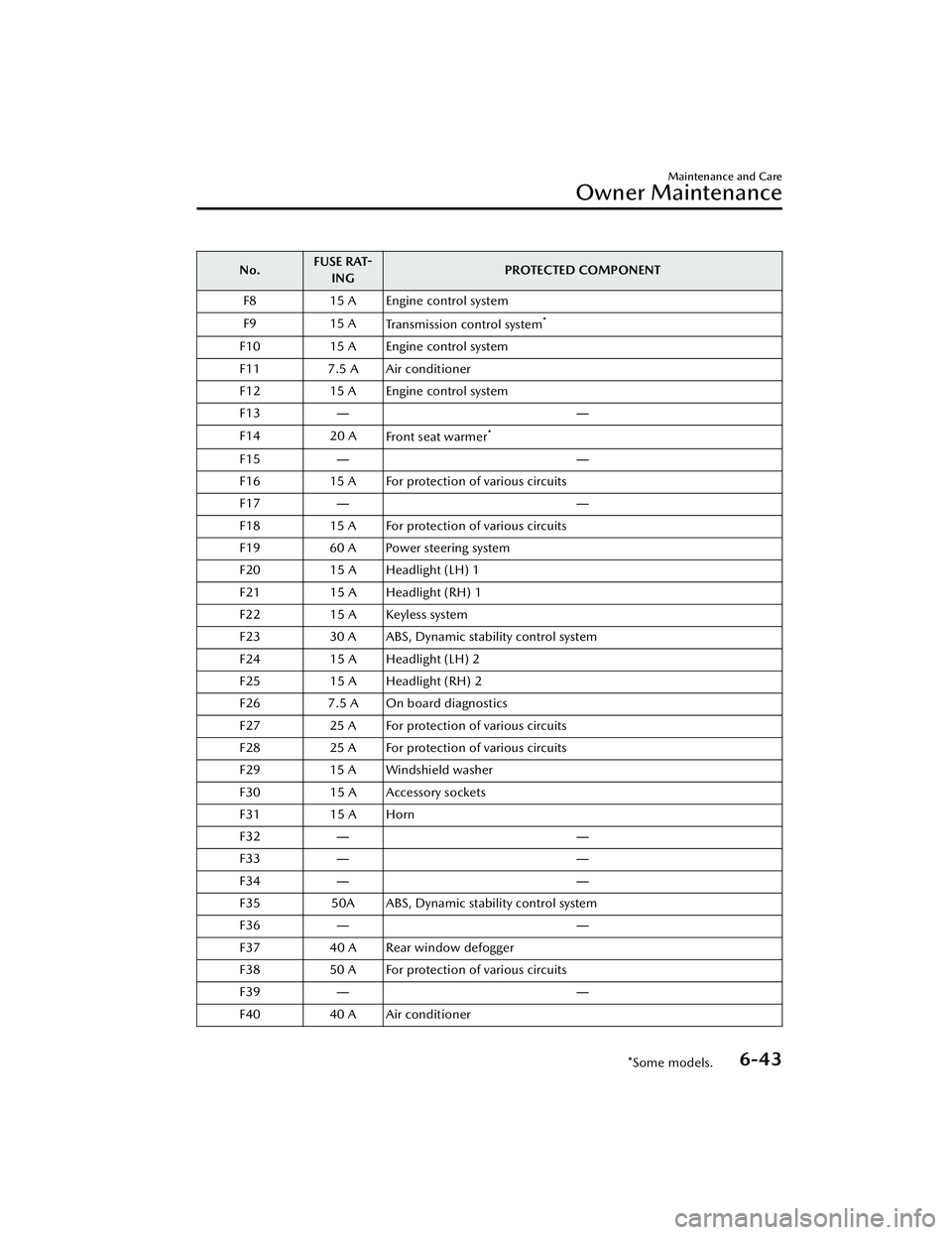

No.FUSE RAT-
ING PROTECTED COMPONENT
F8 15 A Engine control system
F9 15 A
Transmission control system
*
F10 15 A Engine control system
F11 7.5 A Air conditioner
F12 15 A Engine control system
F13 ――
F14 20 A
Front seat warmer
*
F15 ――
F16 15 A For protection of various circuits
F17 ――
F18 15 A For protection of various circuits
F19 60 A Power steering system
F20 15 A Headlight (LH) 1
F21 15 A Headlight (RH) 1
F22 15 A Keyless system
F23 30 A ABS, Dynamic stability control system
F24 15 A Headlight (LH) 2
F25 15 A Headlight (RH) 2
F26 7.5 A On board diagnostics
F27 25 A For protection of various circuits
F28 25 A For protection of various circuits
F29 15 A Windshield washer
F30 15 A Accessory sockets
F31 15 A Horn
F32 ――
F33 ――
F34 ――
F35 50A ABS, Dynamic stability control system
F36 ――
F37 40 A Rear window defogger
F38 50 A For protection of various circuits
F39 ――
F40 40 A Air conditioner
Maintenance and Care
Owner Maintenance
*Some models.6-43
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

No.FUSE RAT-
ING PROTECTED COMPONENT
F41 ――
F42 20 A Windshield wipers
F43 30 A Cooling fan
*
F4430 A Starter
F45 10 A Engine control system
F46 15 A Audio
F47 15 A For protection of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room light
F51 25 A Audio
F52 10 A
Moonroof
*
F53 15 A Engine control system
F54 15 A i-ACTIVSENSE
F55 ――
F56 15 A
Electric water pump
*
Maintenance and Care
Owner Maintenance
6-44*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Fuse block (Left side)
No.FUSE RAT-
ING PROTECTED COMPONENT
F1 ――
F2 ――
F3 ――
F4 15 A Power door locks (Driver)
F5 15 A Power door locks (Passenger)
F6 ――
F7 ――
F8 ――
F9 30 A Power windows (Driver)
F10 30 A Power windows (Passenger)
F11 30 A
Power seat (Driver)
*
F12 ――
F13 15 A Audio
F14 ――
F15 15 A Liftgate lock
Maintenance and Care
Owner Maintenance
*Some models.6-45
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

No.FUSE RAT-
ING PROTECTED COMPONENT
F16 15 A Illumination
F17 10 A Brake lights
F18 10 A Reverse lights
F19 10 A Rear turn signal lights
F20 10 A Taillights
F21 10 A Taillights
F22 7.5 A
Air bag
*
F23 ――
Maintenance and Care
Owner Maintenance
6-46*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Exterior Care
▼Exterior Care
The paintwork on your Mazda
represents the latest technical
developments in composition and
methods of application.

Environmental hazards, however, can
harm the paint's protective properties,
if proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent
them.
Etching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle
emissions drift into the air and mix
with rain or dew to form acids. These
acids can settle on a vehicle's
finish. As
the water evaporates, the acid
becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according
to the instructions in this section.
These steps should be taken
immediately after you suspect that acid
rain has settled on your vehicle's finish.
Damage Caused by Bird Dropping,
Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
are not removed they can eat away the
clear and color base coat of the
vehicle's paintwork.

When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and
color base coat of the vehicle's
paintwork if they are not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard,
some vehicle paint could come off
with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its
finish according to the instructions in
this section. This should be done as
soon as possible.

Bird droppings can be removed with a
soft sponge and water. If you are
traveling and these are not available, a
moistened tissue may also take care of
the problem. The cleaned area should
be waxed according to the instructions
in this section.
Insects and tree sap are best removed
with a soft sponge and water or a
commercially available chemical
cleaner.

Another method is to cover the
affected area with dampened
newspaper for 1 to 2 hours. After
removing the newspaper, rinse off the
loosened debris with water.
Maintenance and Care
Appearance Care
6-47
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Water Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt
and lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will
concentrate and harden to form white
rings. The rings can damage your
vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according
to the instructions in this section.
These steps should be taken
immediately after you find water marks
on your vehicle's finish.
Pa i n t C h i p p i n g
Occurrence
Paint chipping occurs when gravel
thrown in the air by another vehicle's
tires hits your vehicle.
How to avoid paint chipping
Keeping a safe distance between you
and the vehicle ahead reduces the
chances of having your paint chipped
by flying gravel.
NOTE
The paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
Chipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.

Follow all label and container
directions when using a chemical
cleaner or polish. Read all warnings
and cautions.
▼ Maintaining the Finish
Washing
CAUTION

Before lifting the windshield wiper
blades off the windshield, always
follow the procedure for moving the
windshield wiper blades. Otherwise,
a wiper blade, wiper arm, or the
hood could be damaged.
Refer to the Replacing Windshield
Wiper Blades (page 6-23) section for
the procedure on how to move the
windshield wiper blades to the
service position.
 When the ignition is switched ON
and the wiper lever is in the AUTO
position, the windshield wipers may
operate automatically in the
following cases:
 The area of the windshield above
the rain sensor is touched or wiped
with a cloth.
 The windshield or the rain sensor
area in the cabin is hit.
Maintenance and Care
Appearance Care
6-48
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

When the ignition is switched ON
and the wiper lever is in the AUTO
position, do not touch the
windshield or the windshield wipers
Otherwise, the windshield wipers
will operate automatically which
could catch your fingers or damage
the windshield wipers.
When removing ice or snow, or
cleaning the windshield, always
make sure the wiper lever is in the
OFF position.
 Do not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems or
damage to electrical parts.
 When washing and waxing the
vehicle, be careful not to apply
excessive force to any single area of
the vehicle roof or the antenna.
Otherwise, you could dent the
vehicle or damage the antenna.
 Make sure that the fuel-filler lid is
closed and lock the doors.
Otherwise, the
fuel-filler lid may be
forcefully opened by water pressure
causing damage to the vehicle or
fuel-filler lid.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least
once a month, with lukewarm or cold
water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here
are some examples of how scratching
could occur.

Scratches occur on the paint surface
when:
The vehicle is washed without first
rinsing off dirt and other foreign
matter.
The vehicle is washed with a rough,
dry, or dirty cloth.
The vehicle is washed at a car wash
that uses brushes that are dirty or too stiff.
Cleansers or wax containing
abrasives are used.
NOTE
Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.
Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
Rinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
Use plenty of lukewarm or cold
water and a soft cloth when washing
the vehicle. Do not use a nylon cloth.
Rub gently when washing or drying
the vehicle.
Take your vehicle only to a car wash
that keeps its brushes well
maintained.
Do not use abrasive cleansers or wax
that contain abrasives.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or
anodized aluminum parts. This may
damage the protective coating; also,
cleaners and detergents may discolor
or deteriorate the paint.
Pay special attention to removing salt,
dirt, mud, and other foreign material
from the underside of the fenders, and
make sure the drain holes in the lower
Maintenance and Care
Appearance Care
6-49
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

edges of the doors and rocker panels
are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits
can damage the finish if not removed
immediately. When prompt washing
with plain water is ineffective, use a
mild soap made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots
from forming.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected.
When using an automatic car wash
Retract the door mirrors.The automatic car wash brushes
could reduce the paint luster or
hasten paint deterioration.
When using a high water pressure car
wash
High water temperature and high
water pressure car washers are
available depending on the type of car
wash machine. If the car washer nozzle
is put too close to the vehicle, the
force of the spray could damage or
deform the molding, affect the
sealability of parts, and allow water to
penetrate the interior. Keep a sufficient
space (30 cm (12 in) or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle,
and be very careful when spraying
between gaps in doors and around
windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle
body, wax the metal trim to maintain
its luster.

1. Use wax which contains no
abrasives.
Wax containing abrasives will
remove paints and could damage
bright metal parts.
2. Use a good grade of natural wax for metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle does not need it.
▼ Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to
major repairs.
Maintenance and Care
Appearance Care
6-50
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
▼Bright-Metal Maintenance
Use tar remover to remove road tar
and insects. Never do this with a
knife or similar tool.
To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high
luster.
During cold weather or in coastal
areas, cover bright-metal parts with a
coating of wax or preservative
heavier than usual.
It would also help
to coat them with noncorrosive
petroleum jelly or some other
protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
▼ Underbody Maintenance
Road chemicals and salt used for ice
and snow removal and solvents used
for dust control may collect on the
underbody. If not removed, they will
speed up rusting and deterioration of
such underbody parts as fuel lines,
frame, floor pan, and exhaust system,
even though these parts may be coated
with anti-corrosive material.

Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try
also to do this every month.

Pay special attention to these areas
because they easily hide mud and dirt.
It will do more harm than good to wet
down the road grime without
removing it.

The lower edges of doors, rocker
panels, and frame members have drain
holes that should not be clogged.
Water trapped there will cause rusting.
WARNING
Dry
off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected.
Maintenance and Care
Appearance Care
6-51
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22
