MAZDA MODEL 5 2006 Repair Manual

Black plate (61,1)
The front passenger air bag deactivation indicator light illuminates or is off under the following conditions:Total seated weight on the front passenger seat Front passenger air bag
deactivation indicator light Front passenger front and
side air bags Front passenger seat
belt pretensioner
system
Empty (Not occupied)
*OFF OFFOFF
Less than approx. 30 kg
(66 lb) ON
OFFOFF
Approx. 42 kg (93 lb) or
more OFF
ONON
* If the front passenger seat belt is buckled, the front passenger air bag deactivation indicator light illuminates, however this does not indicate a malfunction.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition switch is turned to the ON position and does not illuminate as indicated in the
above chart, do not allow a child to sit in the front passenger seat and consult an
Authorized Mazda Dealer as soon as possible. The system may not work properly in an
accident.
WARNING
Decreasing the Total Seated Weight on the Front Passenger Seat:
When an adult or large child sits on the front passenger seat, decreasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 42 kg (93 lb) required for air bag deployment is dangerous. The front
passenger seat weight sensors will detect the reduced total seated weight condition and
the front passenger front and side air bags and seat belt pretensioner system will not
deploy during an accident. The front passenger will not have the supplementary
protection of the air bag, which could result in serious injury. Decreasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 42 kg (93 lb) could result in an air bag not deploying under the
following conditions, for example:
lA rear passenger pushes up on the front passenger seat with the feet.lLuggage or other items placed under the front passenger seat or between the front
passenger seat and driver seat that push up the front passenger seat bottom.
lThe front passenger seat occupant sits in a manner that does not place the entire
weight of the occupant on the seat such as by sitting too close to the door, grasping
the rim of the moonroof and sitting with the seatback reclined too far.
lAny accessories which might decrease the total seated weight on the front
passenger seat are attached to the front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the total seated weight on the front passenger seat is close to 30 kg (66 lb)
and they will reactivate before the weight exceeds 42 kg (93 lb).
Essential Safety Equipment
SRS Air Bags
2-47
Mazda3_8U55-EA-05G_Edition3 Page61
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (62,1)
WARNING
Increasing the Total Seated Weight on the Front Passenger Seat:
When an infant or small child sits on the front passenger seat, increasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 30 kg (66 lb) is dangerous. The front passenger seat weight sensors will
detect the increased total seated weight, which could result in the unexpected
deployment of the front passenger front and side air bags and seat belt pretensioner
system in an accident and serious injury. Increasing the total seated weight on the
front passenger seat beyond the total seated weight of approximately 30 kg (66 lb)
could result in the front passenger front and side air bags and seat belt pretensioner
system deployment in an accident under the following conditions, for example:
lLuggage or other items are placed on the seat with the child in the child-restraint
system.
lA rear passenger or luggage push or pull down on the front passenger seatback.lA rear passenger steps on the front passenger seat rails with the feet.lLuggage or other items are placed on the seatback or hung on the head restraint.lThe seat is washed.lLiquids are spilled on the seat.lThe front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
lThe front passenger seatback contacts the rear seat.lLuggage or other items are placed between the front passenger seat and driver seat.lAny accessories which might increase the total seated weight on the front passenger
seat are attached to the front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the total seated weight on the front passenger seat is close to 30 kg (66 lb)
and they will reactivate before the weight exceeds 42 kg (93 lb).
CAUTION
lTo assure proper deployment of the front air bag and to prevent damage to the sensors
in the front seat bottoms:
lDo not place sharp objects on the front seat bottoms or leave heavy luggage on
them.
lDo not spill any liquids on the front seats or under the front seats.
lTo allow the sensors to function properly, always perform the following:
lAdjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
lIf you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-30).
2-48
Essential Safety Equipment
SRS Air Bags
Mazda3_8U55-EA-05G_Edition3 Page62
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (63,1)
NOTE
lThe system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
lThe front passenger air bag deactivation indicator light may illuminate repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.
lThe front passenger air bag deactivation indicator light may illuminate for 10 seconds
if the total seated weight on the front passenger seat changes.
lIf the front passenger air bag deactivation indicator light does not illuminate after
installing a child-restraint system on the front passenger seat, install the child-restraint
system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.
Driver and front passenger buckle switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
qHow the Side and Curtain Air Bags Workí
When air bag crash sensors detect a side impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the side and curtain air bags and after the inflation, the side
and curtain air bags quickly deflate.
The side and curtain air bags will function only once. After that, the side and curtain air
bags will not work again and must be replaced. Only an Authorized Mazda Dealer can
replace the systems.
The side and curtain air bags will deploy only on the
side the vehicle receives the force of the impact.
Essential Safety Equipment
SRS Air Bags
2-49íSome models.
Mazda3_8U55-EA-05G_Edition3 Page63
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (64,1)

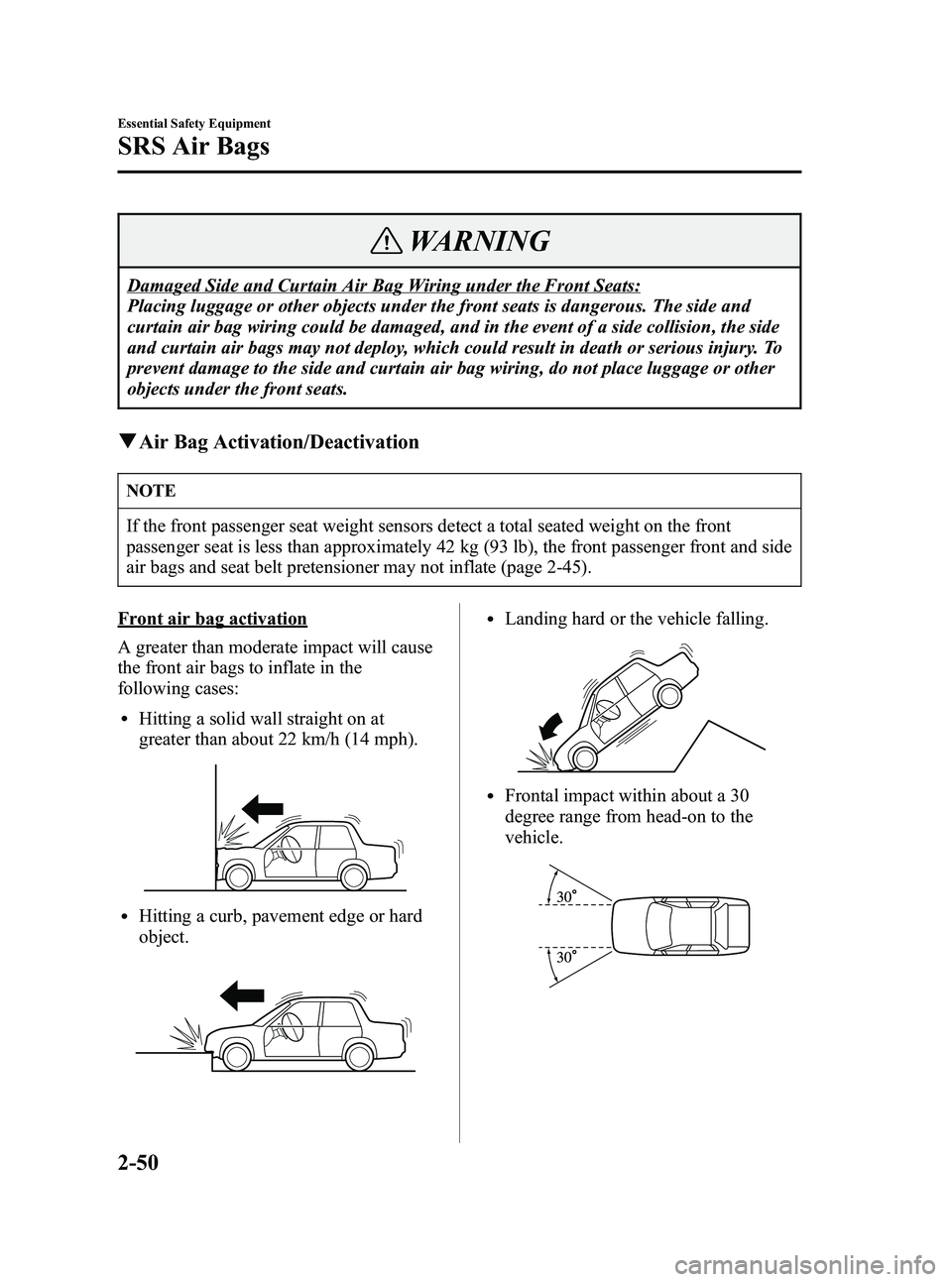

WARNING
Damaged Side and Curtain Air Bag Wiring under the Front Seats:
Placing luggage or other objects under the front seats is dangerous. The side and
curtain air bag wiring could be damaged, and in the event of a side collision, the side
and curtain air bags may not deploy, which could result in death or serious injury. To
prevent damage to the side and curtain air bag wiring, do not place luggage or other
objects under the front seats.
qAir Bag Activation/Deactivation
NOTE
If the front passenger seat weight sensors detect a total seated weight on the front
passenger seat is less than approximately 42 kg (93 lb), the front passenger front and side
air bags and seat belt pretensioner may not inflate (page 2-45).
Front air bag activation
A greater than moderate impact will cause
the front air bags to inflate in the
following cases:
lHitting a solid wall straight on at
greater than about 22 km/h (14 mph).
lHitting a curb, pavement edge or hard
object.
lLanding hard or the vehicle falling.
lFrontal impact within about a 30
degree range from head-on to the
vehicle.
2-50
Essential Safety Equipment
SRS Air Bags
Mazda3_8U55-EA-05G_Edition3 Page64
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (65,1)
lDriving into a big hole or hitting the far
side of a hole.
Limitations to front air bag activation
Depending on the severity of impact, the
front air bags may not inflate in the
following cases:
lImpacts involving trees or poles cause
severe cosmetic damage but may not
have enough stopping force to activate
the air bag.
lFrontal offset impact to the vehicle
may not provide the stopping force
necessary for air bag deployment.
lRear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not normally inflate in
the following cases:
lCollision from the rear.
lImpact to the side, but it may deploy
the side and curtain air bags.
lVehicle roll-over, may deploy the side
and curtain air bags but not the front air
bags.
Essential Safety Equipment
SRS Air Bags
2-51
Mazda3_8U55-EA-05G_Edition3 Page65
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (66,1)
Side and curtain air bag activationí
Greater than moderate impact to one side
of the vehicle (driver or passenger side
areas) will cause the side and curtain air
bags on that side to inflate, but it will not
normally deploy the front air bags.
Limitations to side and curtain air bag
activationí
Depending on the severity of impact, the
side and curtain air bags may not inflate in
the following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
and curtain air bags.
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain air
bagí
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
2-52
Essential Safety Equipment
íSome models.
SRS Air Bags
Mazda3_8U55-EA-05G_Edition3 Page66
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (67,1)

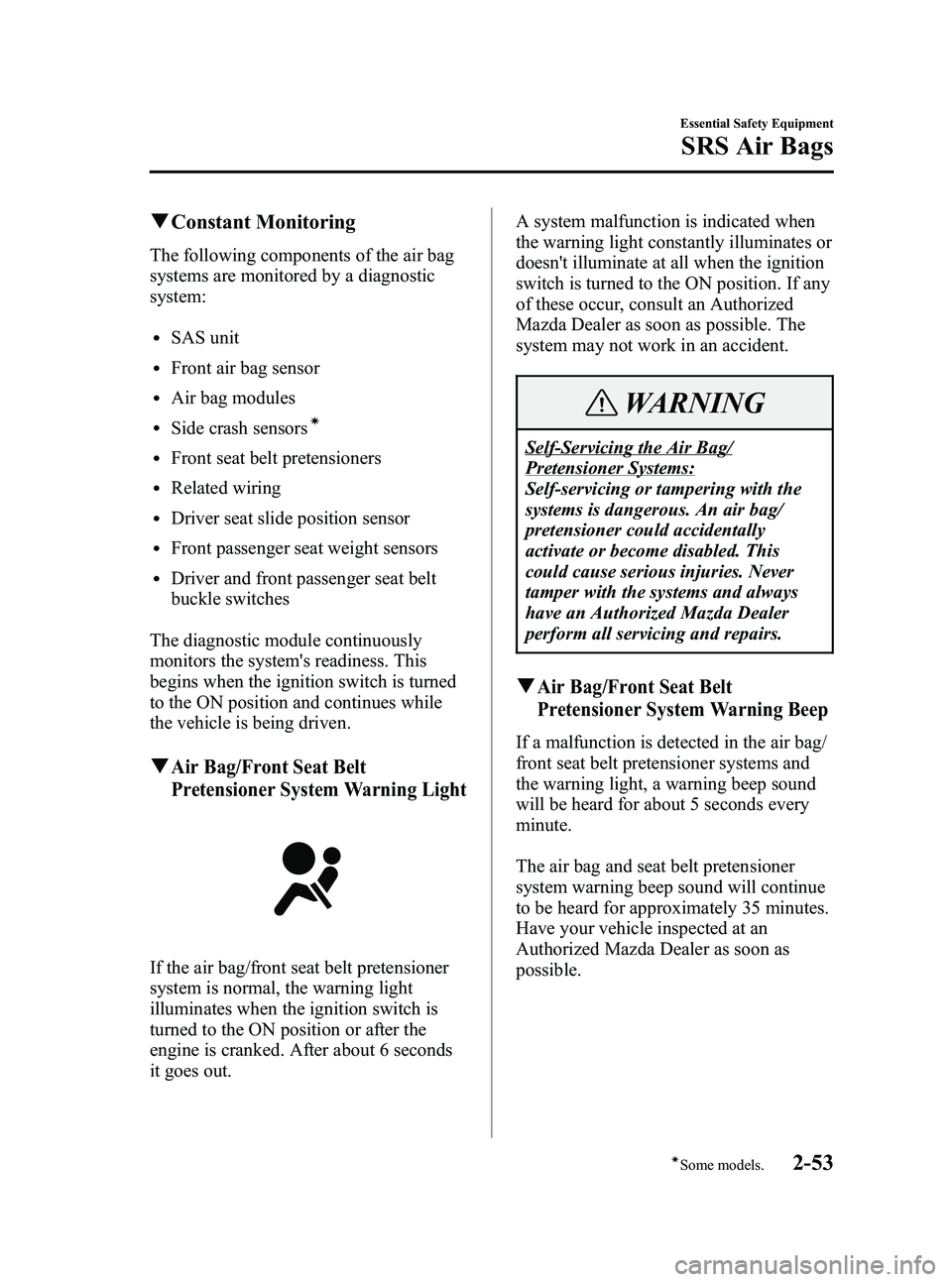

qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lFront air bag sensor
lAir bag modules
lSide crash sensorsí
lFront seat belt pretensioners
lRelated wiring
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out. A system malfunction is indicated when
the warning light constantly illuminates or
doesn't illuminate at all when the ignition
switch is turned to the ON position. If any
of these occur, consult an Authorized
Mazda Dealer as soon as possible. The
system may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Essential Safety Equipment
SRS Air Bags
2-53íSome models.
Mazda3_8U55-EA-05G_Edition3 Page67
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (68,1)
WARNING
Air Bag/Front Seat Belt Pretensioner
System Warning Beep:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system will
not deploy and this could result in
death or serious injury.
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding. Contact an
Authorized Mazda Dealer to have the
vehicle inspected as soon as possible.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to “Front passenger
seat weight sensors ”(page 2-45).
WARNING
Damaged Air Bag/Seat Belt
Pretensioner System Components:
Expended or damaged air bag or seat
belt pretensioner units must be
replaced after any collision which
caused them to deploy or damage
them. Only a trained Authorized
Mazda Dealer can fully evaluate these
systems to see that they will work in
the next accident. Driving with an
expended or damaged air bag or
pretensioner units will provide you
reduced protection in the next accident
and you could be injured or killed.
Removing Interior Parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
2-54
Essential Safety Equipment
SRS Air Bags
Mazda3_8U55-EA-05G_Edition3 Page68
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (69,1)
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance (U.S.A.) ”
(page 9-2).
Essential Safety Equipment
SRS Air Bags
2-55
Mazda3_8U55-EA-05G_Edition3 Page69
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G

Black plate (70,1)
2-56
Mazda3_8U55-EA-05G_Edition3 Page70
Tuesday, September 13 2005 10:40 AM
Form No.8U55-EA-05G
