MAZDA MODEL 5 2006 Owners Manual

49
As necessary
Although you may encounter the following problems in a route search, there is nothing
wrong with the system.
The navigation system is just a support system for the driver. The driver should always pay
attention to the traffic situation to safely make decisions. You may be unable to arrive at your
destination due to out-of-date information on a map disc. You should be especially careful
when selecting an urgent destination such as a hospital or a police station.
Route Search
Warning
?
?
?
?
?
?
?
?
It may also show roads
that are out of use due
to the opening of a new
road or for other
reasons.
The route shown only
reaches a point near
your destination if your
destination has no
direct access road or
the road is too narrow.
It may show a route
where you'll have to
make a U-turn.
The guide map may
show roads that are not
passable due to closure
in winter or for other
reasons.
It may show a
common road under
or over an elevated
road.
Destination
Road
out of
use
which
exit? Destination
Destination
Destination
Depending upon the shape of
roundabout (rotary), the guide
map may show a wrong exit.
where the route remains
unchanged after another
search.
 There may be cases
 A congested route may
be shown.
It may also show
roads that only permit
one-way traffic.
MAZDA3_Navi_EA.book Page 49 Monday, June 6, 2005 9:39 AM

50
As necessary

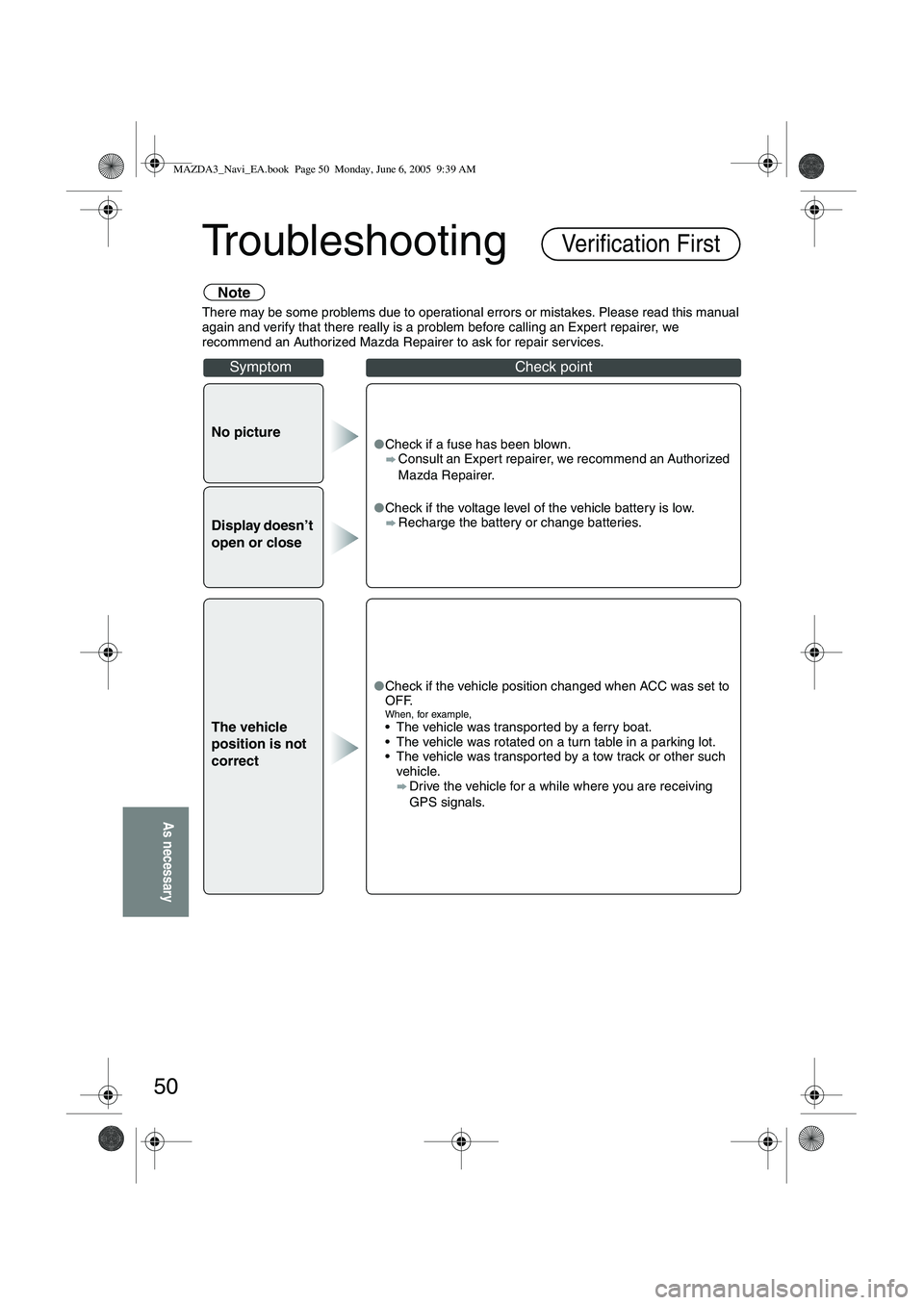

Troubleshooting
Note
There may be some problems due to operational errors or mistakes. Please read this manual
again and verify that there really is a problem before calling an Expert repairer, we
recommend an Authorized Mazda Repairer to ask for repair services.
No picture●Check if a fuse has been blown.
Consult an Expert repairer, we recommend an Authorized
Mazda Repairer.
● Check if the voltage level of the vehicle battery is low.
Recharge the battery or change batteries.
Display doesn’t
open or close
The vehicle
position is not
correct
●Check if the vehicle position changed when ACC was set to
OFF.
When, for example,  The vehicle was transported by a ferry boat.
 The vehicle was rotated on a turn table in a parking lot.
 The vehicle was transported by a tow track or other such
vehicle.
Drive the vehicle for a while where you are receiving
GPS signals.
Verification First
SymptomCheck point
MAZDA3_Navi_EA.book Page 50 Monday, June 6, 2005 9:39 AM

51
As necessary
No GPS
symbols are
displayed●GPS signals may not be received because of obstructions.
After moving the vehicle away from obstructions, the GPS
signals can be received.
The vehicle
position is not
displayed●Check if the mode is set to the current position screen.
Press
No voice
guidance
●Check if the volume control for the voice guidance has been
turned off.
● Check if the vehicle is off the route.
Repeat the route search while checking the route guide
screen.
● Check if you are driving the vehicle in the wrong direction on
the route.
Repeat the route search checking the direction of the
destination.
Buttons in the
remote control
do not beep
●Check if [Beep] is set to [Off] ( page 40).
SymptomCheck point
POS
MAZDA3_Navi_EA.book Page 51 Monday, June 6, 2005 9:39 AM

52
As necessary
Troubleshooting
Please insert a
MAP DVD.●The disc is not installed.Check if the disk is installed. If installed, check if the
installed disk is correct.
MAP DVD-Read
Error
●The disc is wet, dirty, scratched, or upside down, or the disc
cannot be played with this unit or the incorrect disk is installed.
Eject the disc and check it.The disc
installed is not
a MAP DVD.
Error Messages
Error messageSolution
MAZDA3_Navi_EA.book Page 52 Monday, June 6, 2005 9:39 AM

53
As necessary
Maintenance
■Cleaning this productUse a dry, soft cloth to wipe it.
■Cautions for cleaningNever use solvents such as benzene and thinners, they could mar the surface of the unit.
■Map discIf you require the latest map disc, consult an Expert repairer, we recommend an Authorized
Mazda Repairer.
■How to hold the disc●Do not touch the underside of the disc.
● Do not scratch the disc.
● Do not bend the disc.
● When not in use, keep the disc in the case.
■Disc Cleaning●Use a dry, soft cloth to wipe from the center outward.
■Do not leave discs in the following places:●Direct sunlight
● Near car heaters
● In dirty, dusty and damp areas
● On seats and dashboards
Care of the Product
Handling and Care of Map Discs
Label side

MAZDA3_Navi_EA.book Page 53 Monday, June 6, 2005 9:39 AM
