qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound and the
hazard warning lights will flash once. NOTE
lPressing the transmitter lock button to lock
the doors while any door is open does not
sound the horn.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
l(With theft-deterrent system)
The hazard warning lights only flash when
the theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
Refer to the theft-deterrent system on page
3-23.
NOTElAll doors and the liftgate cannot be locked
when the key is in the ignition switch.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 5 seconds
and the hazard warning lights will flash
twice.
3-4
Knowing Your Mazda
Doors and Locks
Mazda5_8Z98-EA-08F_Edition1 Page70
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (71,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
Refer to the theft-deterrent system on page
3-23.
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
q Transmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
Ø Install the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
Ø When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
Ø There is the danger of explosion if
the battery is not correctly
replaced.
Ø Replace only with the same type
battery (CR1620 or equivalent).
Ø Dispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-2).
Knowing Your Mazda
Doors and Locks
3-5
Mazda5_8Z98-EA-08F_Edition1 Page71
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (72,1)
2. Insert a screwdriver into the slot andpush the tab to remove the key from
the transmitter.
Ta b
3. Insert a screwdriver into the slot andgently pry open the transmitter.
4. Remove the battery.
5. Put in the new battery (CR1620 orequivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and snap the transmitter shut.
7. Install the key to the transmitter.
q Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
3-6
Knowing Your Mazda
Doors and Locks
Mazda5_8Z98-EA-08F_Edition1 Page72
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (73,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended: Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Transmitter
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Knob
Front doors
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Unlock Lock
Knowing Your Mazda
Doors and Locks
3-7
Mazda5_8Z98-EA-08F_Edition1 Page73
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (74,1)
To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door (pulling the door handle is
not required).
Door-lock knob
NOTE
When locking the doors using the door-lock
knob from the outside, be careful not to leave
the key inside the vehicle.
Sliding doors
To lock a sliding door from the inside,
slide the door-lock knob toward the front.
To unlock, slide it toward the back.
UnlockLock
Door-lock knob
To lock a sliding door with the door-lock
knob from the outside, slide the door-lock
knob toward the front to the lock position
and close the door (pulling the door
handle is not required).
Door-lock
knob
qPower Door Locks
Vehicle lock-out prevention
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
3-8
Knowing Your Mazda
Doors and Locks
Mazda5_8Z98-EA-08F_Edition1 Page74
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (75,1)

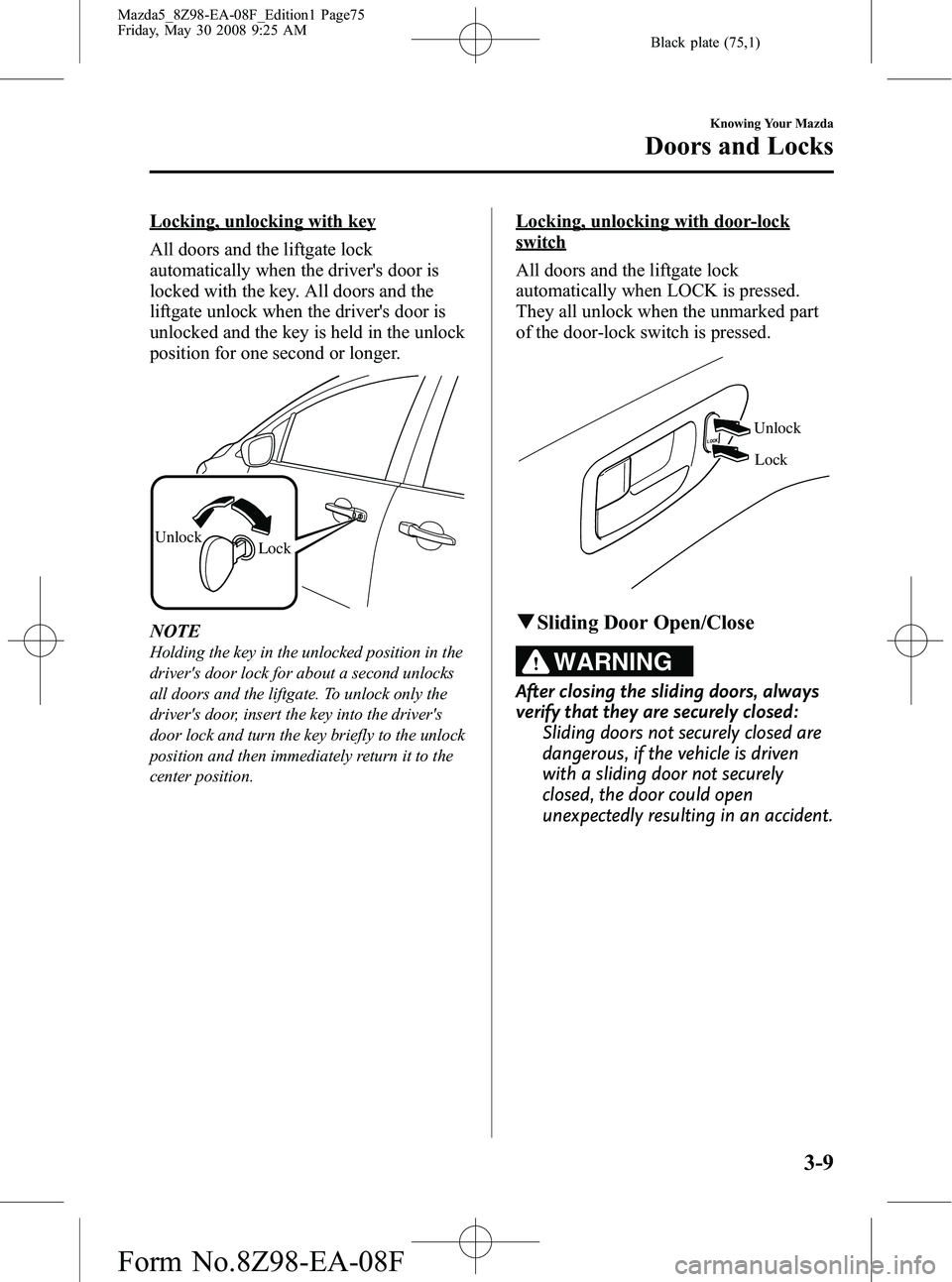

Locking, unlocking with key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key. All doors and the
liftgate unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
UnlockLock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when LOCK is pressed.
They all unlock when the unmarked part
of the door-lock switch is pressed.
Unlock
Lock
q Sliding Door Open/Close
WARNING
After closing the sliding doors, always
verify that they are securely closed:
Sliding doors not securely closed are
dangerous, if the vehicle is driven
with a sliding door not securely
closed, the door could open
unexpectedly resulting in an accident.
Knowing Your Mazda
Doors and Locks
3-9
Mazda5_8Z98-EA-08F_Edition1 Page75
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (76,1)
CAUTION
When opening/closing a sliding door,
follow the cautions below. If the
cautions are not heeded, hands, feet,
or even a head may be caught in a
door resulting in an injury.
ØUse the door handle.
Ø Keep your hands, feet, and head
away from the sliding door
openings.
Ø Make sure that there is nothing
behind the sliding doors.
Ø Keep your hands and feet away
from the sliding door rails, arms
and pillars.
Pillar
Arm
Rail Door handle
NOTE
When you leave the vehicle, stop the engine
and lock the doors. And do not put valuables
in your vehicle to prevent theft.
Opening/closing from inside
To open, pull the inner door handle
toward the back.
To close, push the inner door handle
toward the front.
Open
Close
Opening/closing from outside
Pull the outer door handle and slide the
door.
NOTE
The right sliding door cannot fully open when
the fuel-filler lid is open. Close the fuel filler
lid before opening the sliding door.
3-10
Knowing Your Mazda
Doors and Locks
Mazda5_8Z98-EA-08F_Edition1 Page76
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (77,1)
NOTE
When closing the sliding door from the fully-
opened position and from outside the vehicle,
pull the outside door handle outward to
release the latch, and slide the door toward the
front.
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
sliding doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
Unlock
Lock
q Easy Closureí
The Easy Closure system automatically
closes the doors completely from the near-
shut position.
WARNING
When closing a sliding door, always
keep hands and fingers away from the
door:
Placing hands or fingers around a
sliding door is dangerous because the
door closes automatically from the
near-shut position, which could
cause hands and fingers to be
pinched and injured.
NOTE
If a door handle is pulled while the easy
closure function is operating, the easy closure
function can be stopped.
Knowing Your Mazda
Doors and Locks
3-11íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page77
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (78,1)
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open: Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
qLocking, Unlocking with Key
The liftgate can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-8).
qLocking, Unlocking with Transmitter
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-8).
qOpening and Closing the Liftgate
Opening the liftgate
Pull up on the handle.
NOTE
The liftgate opens to a position () slightly
lower than the fully open position. To fully
open the liftgate (
), push it up around the
area indicated by the arrow. Do not apply
excessive force when pushing it up.
3-12
Knowing Your Mazda
Doors and Locks
Mazda5_8Z98-EA-08F_Edition1 Page78
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F

Black plate (79,1)

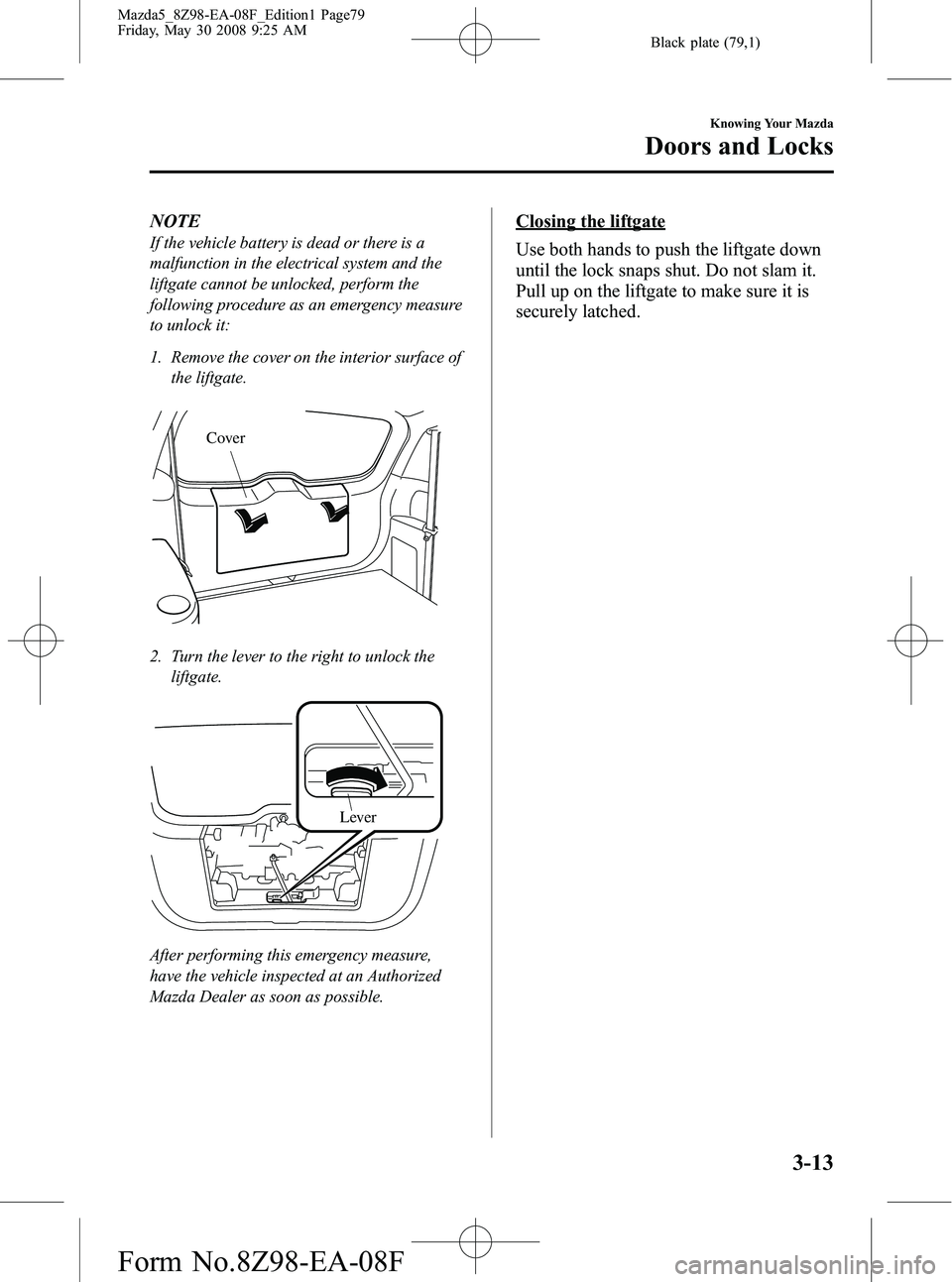

NOTE
If the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, perform the
following procedure as an emergency measure
to unlock it:
1. Remove the cover on the interior surface ofthe liftgate.
Cover
2. Turn the lever to the right to unlock theliftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
Knowing Your Mazda
Doors and Locks
3-13
Mazda5_8Z98-EA-08F_Edition1 Page79
Friday, May 30 2008 9:25 AM
Form No.8Z98-EA-08F
