MAZDA MODEL 5 2009 Owners Manual

Black plate (301,1)
Front turn signal lights/Front side-
marker lights
1. Turn the center section of the plasticretainers counterclockwise and remove
them, then partially peel back the
mudguard.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Remove the bulb by pushing it in slightly and turning it
counterclockwise.
4. Install the new bulb in the reverse orderof removal.
Side turn signal lights
1. Slide the unit as shown in the figure toremove it. 2. Disconnect the electrical connector
from the unit.
3. Install the new side turn signal unit in
the reverse order of removal.
NOTE
Bulb replacement is not possible because it is
built into the unit. Replace the unit.
Brake lights/Taillights/Rear side-
marker lights, Rear turn signal lights,
Reverse lights
1. Wrap a flathead screwdriver with a soft cloth to prevent damage to the rear
combination component and gently
insert it in the cover as shown in the
figure, and then remove the cover.
2. Turn the screws counterclockwise andremove them.
Maintenance and Care
Owner Maintenance
8-39
Mazda5_8Z98-EA-08F_Edition1 Page301
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (302,1)
3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.
Rear turn signal
lights
Reverse lights
Brake lights/Tail
lights
Bulb type
Reverse lights Rear turn signal
lights
LED type
NOTE
The LED-type bulbs for the brake lights/
taillights/Rear side-marker lights cannot be
replaced by the customer. For bulb
replacement, consult an Authorized Mazda
Dealer.
5. Install the new bulb in the reverse order of removal.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
License plate lights
1. Remove the liftgate cover.
2. Pull the socket and bulb assembly andremove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
8-40
Maintenance and Care
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page302
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (303,1)
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
Overhead light (Rear)
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Luggage compartment light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, and then remove the luggage
compartment light unit.
2. Disconnect the bulb by pulling it out.
Maintenance and Care
Owner Maintenance
8-41
Mazda5_8Z98-EA-08F_Edition1 Page303
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (304,1)
3. Install the new bulb in the reverse orderof removal.Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the passenger's
side
If the electrical system does not work,
first inspect the fuses on the passenger's
side.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off.
8-42
Maintenance and Care
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page304
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (305,1)
3. Locate the position of the suspectedfuse by using the chart inside the fuse
block cover.
4. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
5. Inspect the fuse and replace it if it'sblown.
Normal Blown
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
Maintenance and Care
Owner Maintenance
8-43
Mazda5_8Z98-EA-08F_Edition1 Page305
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (306,1)
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
8-44
Maintenance and Care
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page306
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (307,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 30 A Cooling fan
3 P.WIND
*140 A Power windows
R.BLOWER*230 A Rear blower motor
4 IG KEY1 INJ*130 A For protection of various circuits
IG KEY2*220 A ―
5 ABS-V 20 A ABS
6 ABS-P 30 A ABS
7 IG KEY2
*120 A
―
IG KEY1*240 A For protection of various circuits
8 HEATER DEICER TCM 20 A ―
9 BLOWER
*140 A Blower motor
F.BLOWER*220 A Front blower motor
10 GLOW IG KEY1*140 A For protection of various circuits
F.BLOWER*220 A Front blower motor
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A ―
Maintenance and Care
Owner Maintenance
8-45
Mazda5_8Z98-EA-08F_Edition1 Page307
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (308,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
13 CLOSER P.SLIDE LH 20 A Easy closer
í
14 CLOSER P.SLIDE RH 20 A Easy closerí
15 EHPAS 80 A Electro-Hydraulic Power Assist Steering
16 FOG 15 A Fog lightsí
17 D.LOCK 20 A Power door lock
18 P.WIND H/CLEAN 20 A Power windows
19 ETC 10 A Accelerator position sensor
20 DEFOG 25 A Rear window defroster
21 ENG+B 10 A PCM
22 STOP 10 A Brake lights
23 FUEL 20 A Fuel pump
24 HAZARD 10 A Turn signals, Hazard warning flashers
25 ROOM 15 AOverhead lights, Map lights, Luggage compartment light, For
protection of various circuits
26 ―― ―
27 MAG 10 A Magnet clutch
28 GLOW SIG
*17.5 A
―
―*2――
29 HEAD HR 10 A Headlight high beam (RH)
30 HEAD HL 10 A Headlight high beam (LH)
31 HORN 15 A Horn
32 SUN ROOF 20 A Moonroof
í
33 MIRROR BURGLAR*17.5 A Theft-Deterrent Systemí
―*2――
34 HEAD LR 15 A Headlight low beam (RH), Manual headlight levelingí
35 HEAD LL 15 A Headlight low beam (LH)
36 ENG BAR2 15 A O
2heater
37 ENG BAR 15 A Air flow sensor, Engine control system
38 INJ ENG BA 20 A Injector
39 ILLUMI 10 A Illumination
40 TAIL 10 A Taillights, Parking lights, License plate lights, For protection of
various circuits
*1 Without rear ventilation system
*2 With rear ventilation system
8-46
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8Z98-EA-08F_Edition1 Page308
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (309,1)
Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 M.DEF 7.5 A Mirror defroster
í
2―― ―
3 ENG3 20 A Ignition switch
4 P.OUTLET 15 A Accessory Socket
5 SHIFT/L 5 A AT shift
í
6 CIGAR 15 A Lighter
7 MIRROR 7.5 A Power control mirror, Audio systemí
8 A/C 10 A Air conditioner
9 F.WIP 25 A Windshield wipers and washer
10 R.WIP 15 A Rear window wiper and washer
11 ENG 5 A Main relay
12 METER 10 A Instrument cluster
13 SAS 10 A Supplemental restraint systems
14 S.WARM 15 A Seat warmer
í
15 ABS/DSC 5 A ABS
16 EHPAS 5 A Electro-Hydraulic Power Assist Steering
17 ENG2 15 A ―
18 P/W 30 A Power windows
19 P/W ――
Maintenance and Care
Owner Maintenance
8-47íSome models.
Mazda5_8Z98-EA-08F_Edition1 Page309
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F

Black plate (310,1)

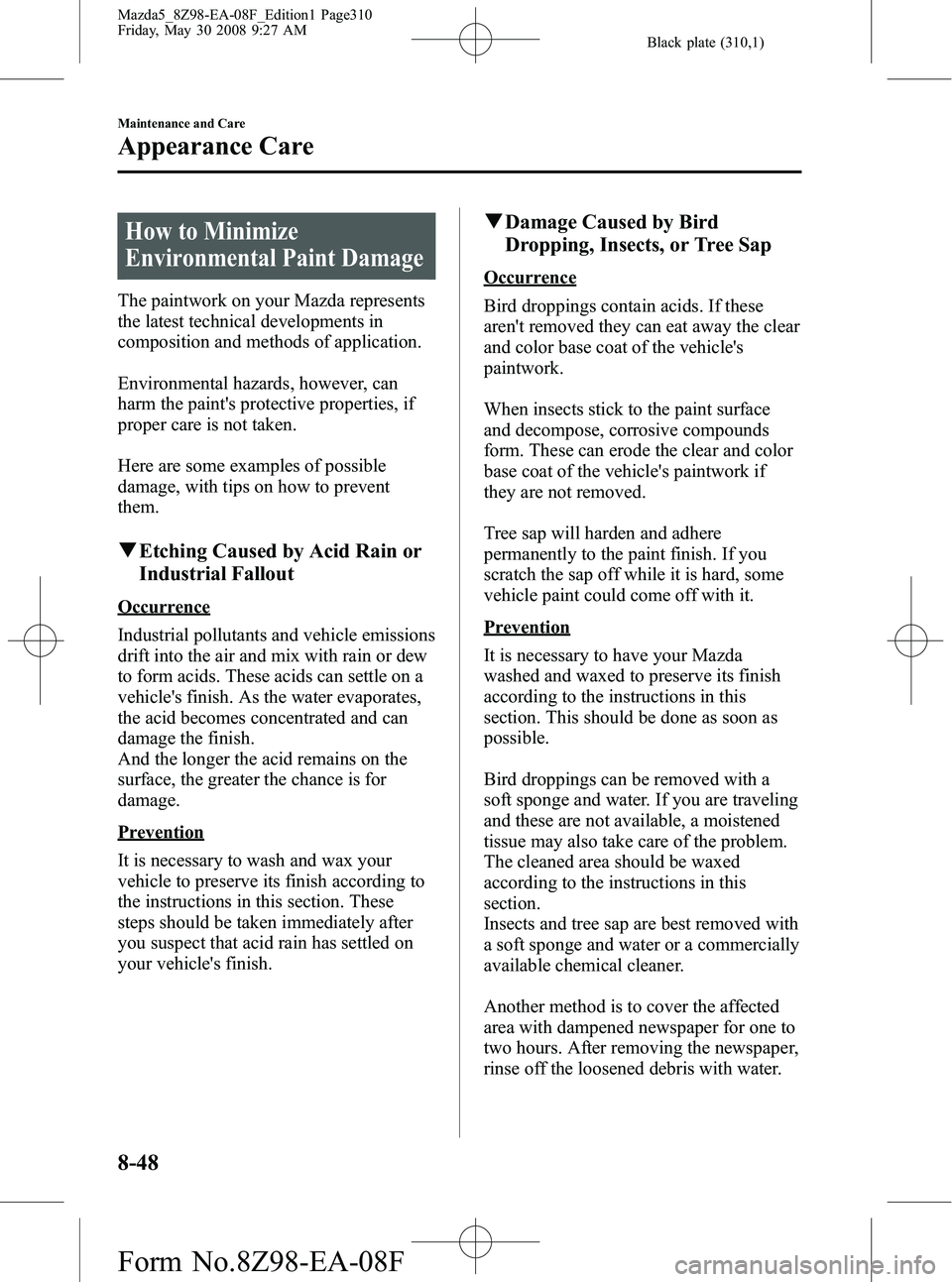

How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
8-48
Maintenance and Care
Appearance Care
Mazda5_8Z98-EA-08F_Edition1 Page310
Friday, May 30 2008 9:27 AM
Form No.8Z98-EA-08F
