Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System
This system remotely locks and unlocks
the doors and the liftgate.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-7).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
Knowing Your Mazda
Doors and Locks
3-3
Mazda5_8BR9-EA-10J_Edition3 Page81
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (82,1)
qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once. To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound and the
hazard warning lights will flash once.
The system can be set not to sound the
horn.
Refer to Personalization Features on page
10-8.
NOTE
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. However, the
hazard warning lights will not flash and the
horn will not sound.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to Theft-Deterrent System on page
3-29.
lThe hazard warning lights can be set to not
flash when the doors are locked or
unlocked.
Refer to Personalization Features on page
10-8.
lAll doors and the liftgate cannot be locked
when the key is in the ignition switch.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
3-4
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page82
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (83,1)

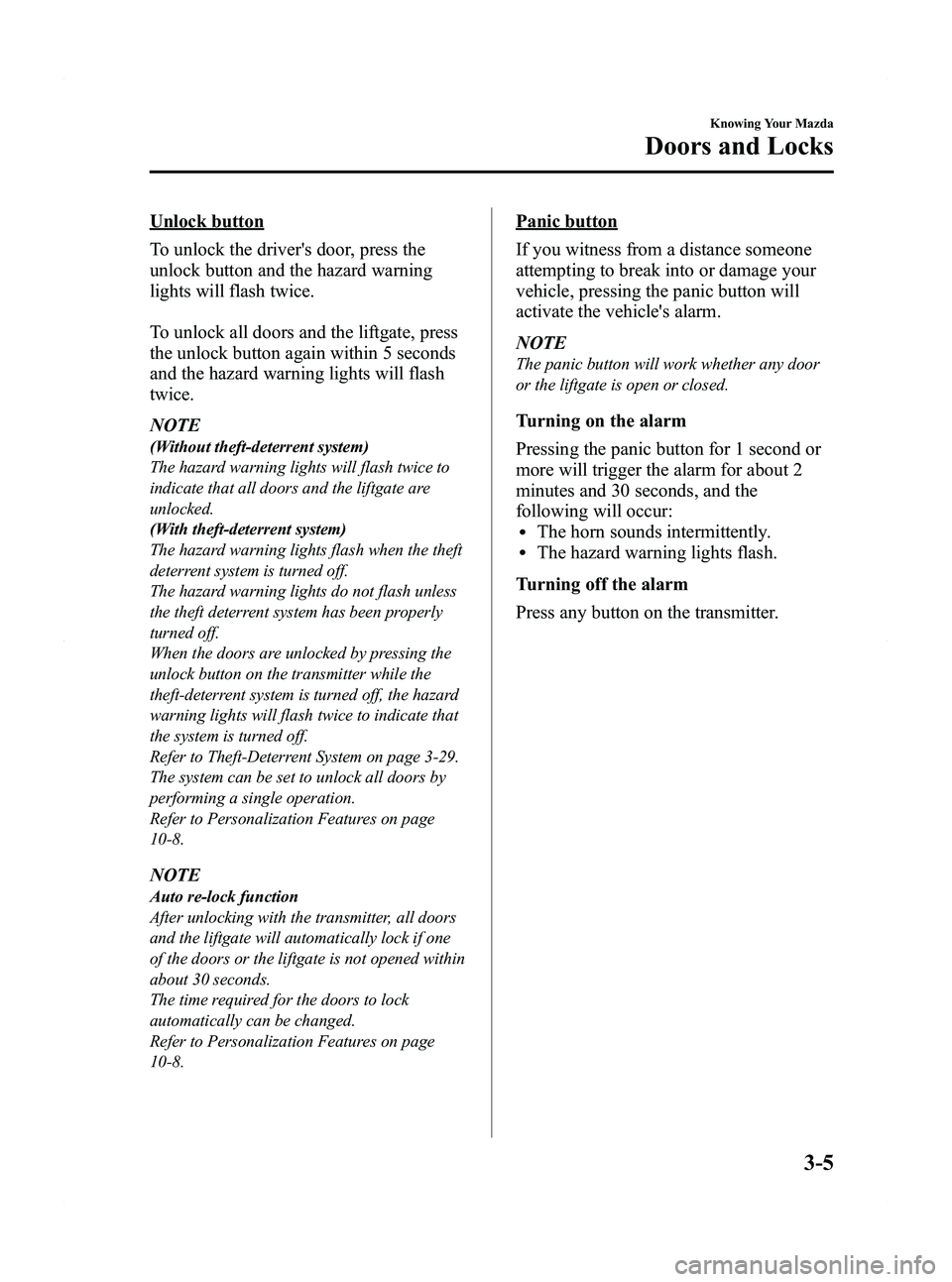

Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 5 seconds
and the hazard warning lights will flash
twice.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to Theft-Deterrent System on page 3-29.
The system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-8.
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-8.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
Knowing Your Mazda
Doors and Locks
3-5
Mazda5_8BR9-EA-10J_Edition3 Page83
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (84,1)
Declaration of Conformity
Keyless entry system
3-6
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page84
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (85,1)
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
Ø Install the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
Ø When replacing the battery, be
careful not to touch any of the
internal circuitry and electrical
terminals, bend the electrical
terminals, or get dirt in the
transmitter as the transmitter
could be damaged.
Ø There is the danger of explosion if
the battery is not correctly
replaced.
Ø Replace only with the same type
battery (CR1620 or equivalent).
Ø Dispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-2). 2. Insert a screwdriver into the slot and
push the tab to remove the key from
the transmitter.
Ta b
3. Insert a screwdriver into the slot andgently pry open the transmitter.
4. Remove the battery.
Knowing Your Mazda
Doors and Locks
3-7
Mazda5_8BR9-EA-10J_Edition3 Page85
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (86,1)
5. Put in the new battery (CR1620 orequivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and snap the transmitter shut.
7. Align the key with the transmitter as shown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
3-8
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page86
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (87,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended: Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders. After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door: Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Transmitter
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
Knowing Your Mazda
Doors and Locks
3-9
Mazda5_8BR9-EA-10J_Edition3 Page87
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (88,1)
qLocking, Unlocking with Door-
Lock Knob
Front doors
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Unlock Lock
To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door (pulling the door handle is
not required).
Door-lock knob
NOTE
When locking the doors using the door-lock
knob from the outside, be careful not to leave
the key inside the vehicle.
Sliding doors
To lock a sliding door from the inside,
slide the door-lock knob toward the front.
To unlock, slide it toward the back.
UnlockLock
Door-lock knob
To lock a sliding door with the door-lock
knob from the outside, slide the door-lock
knob toward the front to the lock position
and close the door (pulling the door
handle is not required).
Door-lock
knob
3-10
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page88
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (89,1)
qPower Door Locks
Vehicle lock-out prevention
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Locking, unlocking with key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
Unlock
Lock
NOTElHolding the key in the unlocked position in
the driver's door lock for about a second
unlocks all doors and the liftgate. To unlock
only the driver's door, insert the key into the
driver's door lock and turn the key briefly
to the unlock position and then immediately
return it to the center position.
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-8.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when LOCK is pressed.
They all unlock when the unmarked part
of the door-lock switch is pressed.
Unlock
Lock
Locking, unlocking with transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3).
q Sliding Door Open/Close
WARNING
After closing the sliding doors, always
verify that they are securely closed:
Sliding doors not securely closed are
dangerous, if the vehicle is driven
with a sliding door not securely
closed, the door could open
unexpectedly resulting in an accident.
Do not leave a sliding door open while
parked on an incline: Leaving a sliding door open is
dangerous. The door may open
unexpectedly resulting in injury.
Knowing Your Mazda
Doors and Locks
3-11
Mazda5_8BR9-EA-10J_Edition3 Page89
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J

Black plate (90,1)
CAUTION
When opening/closing a sliding door,
follow the cautions below. If the
cautions are not heeded, hands, feet,
or even a head may be caught in a
door resulting in an injury.
ØUse the door handle.
Ø Keep your hands, feet, and head
away from the sliding door
openings.
Ø Make sure that there is nothing
behind the sliding doors.
Ø Keep your hands and feet away
from the sliding door rails, arms
and pillars.
Pillar
Arm
Rail Door handle
NOTE
When you leave the vehicle, stop the engine
and lock the doors. And do not put valuables
in your vehicle to prevent theft.
Opening/closing from inside
To open, pull the inner door handle
toward the back.
To close, push the inner door handle
toward the front.
Open
Close
Opening/closing from outside
Pull the outer door handle and slide the
door.
NOTE
The right sliding door cannot fully open when
the fuel-filler lid is open. Close the fuel filler
lid before opening the sliding door.
3-12
Knowing Your Mazda
Doors and Locks
Mazda5_8BR9-EA-10J_Edition3 Page90
Monday, February 21 2011 1:44 PM
Form No.8BR9-EA-10J
