ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely ―this is
particularly important when
clearing ice and snow ―when it is
most likely that the engine is left
running. NOTE
lSwitching the auto-wiper lever from the
OFF to the AUTO position while driving at
a vehicle speed of 4 km/h (2 mph) or higher
(or after driving the vehicle) activates the
windshield wipers once, after which they
operate according to the rainfall amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (Such as ice or
matter containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, set the wiper
lever to the low speed position or high
speed position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper operation.
lIf the auto-wiper lever is left in the AUTO
position, the wipers could operate
automatically from the effect of strong light
sources, electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended that the
auto-wiper lever be switched to the OFF
position other than when driving the vehicle
under rainy conditions.
Driving Your Mazda
Switches and Controls
5-67
Mazda5_8DH4-EA-13H_Edition3 Page191
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (192,1)
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer
OFF
NOTE
With the wiper lever in the OFF or intermittent
position/AUTO position, the wipers will
operate continuously until the lever is
released.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal,
consult an Authorized Mazda Dealer.
Rear Window Wiper and
Washer
The ignition must be switched ON.
q
Rear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch Position
Wiper operation
No. Type
A Type
B
INT Intermittent
ON Normal
q Rear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
5-68
Driving Your Mazda
Switches and Controls
Mazda5_8DH4-EA-13H_Edition3 Page192
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (193,1)
Rear Window Defroster
The rear window defroster clears fog from
the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.
q Mirror Defrosterí
To turn on the mirror defrosters, switch
the ignition ON and press the rear window
defroster switch (page 5-69).
Driving Your Mazda
Switches and Controls
5-69íSome models.
Mazda5_8DH4-EA-13H_Edition3 Page193
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (194,1)
Horn
To sound the horn, press themark on
the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
5-70
Driving Your Mazda
Switches and Controls
Mazda5_8DH4-EA-13H_Edition3 Page194
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (195,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Fully Automatic Type ............................................................... 6-5
Rear Ventilation System ............................................................ 6-9
Audio System ............................................................................... 6-11 Antenna ................................................................................... 6-11
Operating Tips for Audio System ........................................... 6-12
Audio Set ................................................................................ 6-23
Audio Control Switch Operation ............................................ 6-47
AUX/USB/iPod Mode ............................................................ 6-50
Safety Certification ................................................................. 6-59
Bluetooth® Audio ....................................................................... 6-60 Bluetooth® Audio
í................................................................ 6-60
Bluetooth® Hands-Free .............................................................. 6-70 Bluetooth® Hands-Free
í....................................................... 6-70
Basic Bluetooth® Hands-Free Operation ................................ 6-74
Convenient Use of the Hands-Free System ............................. 6-79
Hands-Free Setting .................................................................. 6-85
When Bluetooth® Hands-Free Cannot be Used ..................... 6-91
Safety Certification ................................................................. 6-92
Mazda Bluetooth® Hands-Free Customer Service ................. 6-92
Interior Equipment ..................................................................... 6-93 Sunvisors ................................................................................. 6-93
Interior Lights ......................................................................... 6-93
Information Display ................................................................ 6-95
Cup Holder ............................................................................ 6-100
Bottle Holder ......................................................................... 6-101
Storage Compartments .......................................................... 6-102
Accessory Sockets ................................................................ 6-109
6-1íSome models.
Mazda5_8DH4-EA-13H_Edition3 Page195
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (196,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air mode for ventilation or
windshield defrosting. The recirculate
mode should be used when the air inside
tunnels or while in traffic jams is polluted,
or you would like to shut off outside air
for quick cooling of the interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
Your vehicle is equipped with an air filter
for the air conditioner. It is necessary to
change the filter periodically as indicated
in scheduled maintenance (page 8-4).
Consult an Authorized Mazda Dealer for
replacement of the cabin air filter.
6-2
Interior Comfort
Climate Control System
Mazda5_8DH4-EA-13H_Edition3 Page196
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (197,1)
Vent Operation
qAdjusting the Vents
Directing airflow
Side Vents
To adjust the direction of airflow, open the
vents and rotate them left and right.
Push
Center Vents
To adjust the direction of airflow, move
the adjustment knob.
KnobDial
Close
Open
NOTE
When using the air conditioner under humid
ambient temperature conditions, the system
may blow fog from the vents. This is not a sign
of trouble but a result of humid air being
suddenly cooled.
Interior Comfort
Climate Control System
6-3
Mazda5_8DH4-EA-13H_Edition3 Page197
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (198,1)

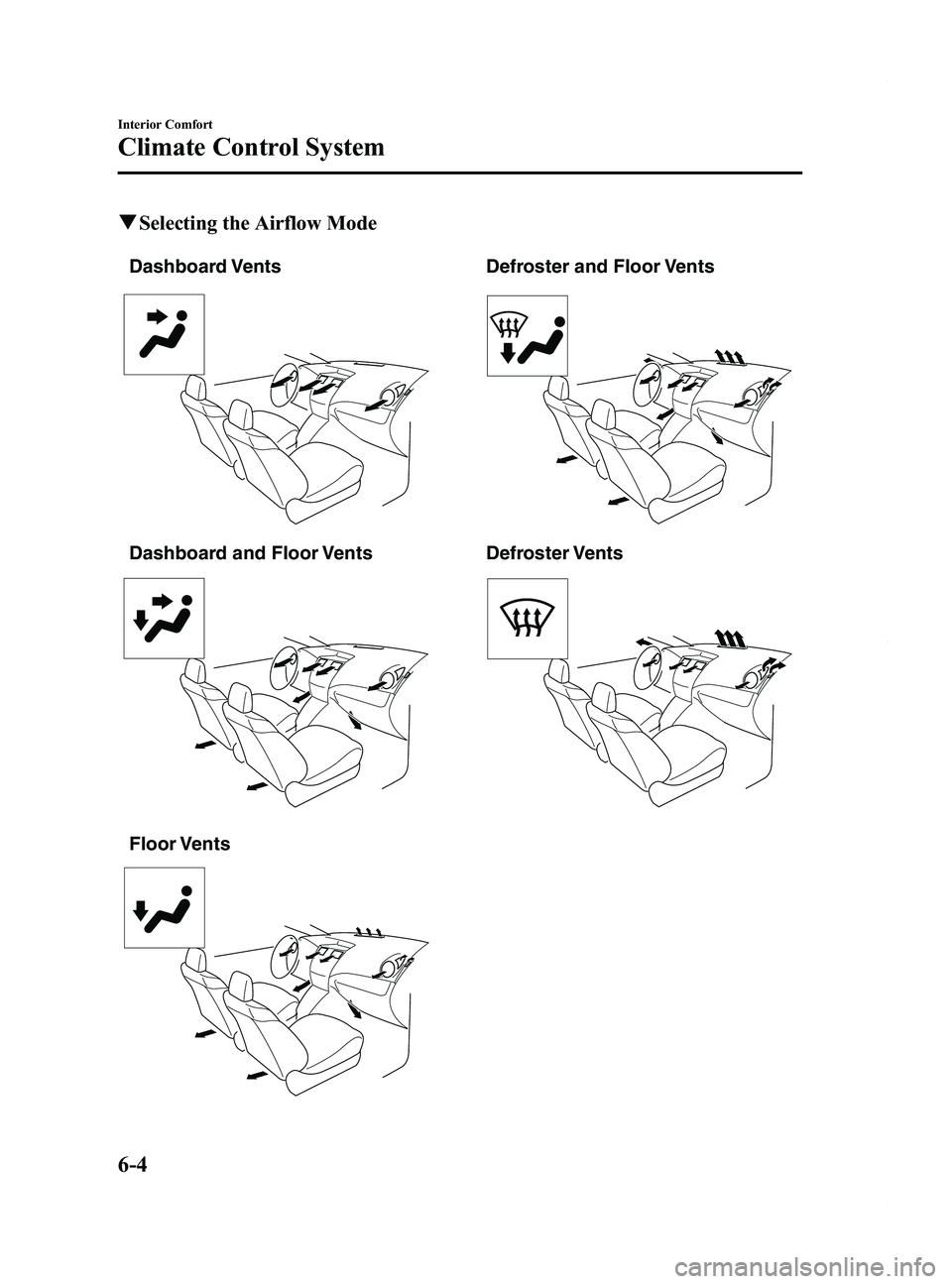

qSelecting the Airflow Mode
Floor Vents Dashboard and Floor Vents Dashboard Vents Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda5_8DH4-EA-13H_Edition3 Page198
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (199,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Auto switchMode selector switch
Temperature control dial Fan control dial Windshield defroster switch OFF switch
A/C switch
Rear ventilation control switch
Rear window defroster switch
Air intake selector
q
Control Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow mode
lOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lIf any of the following dials or switches are
operated while in AUTO control, the AUTO
switch indicator turns off.
lMode selector switchlFan control diallWindshield defroster switch
The functions for dials and switches other
than those operated in the above continue
to operate in AUTO control.
Interior Comfort
Climate Control System
6-5
Mazda5_8DH4-EA-13H_Edition3 Page199
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (200,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
ColdHot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Slow
Fast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set toposition
and the temperature control dial set at a
medium temperature, heated air is directed
to the feet and a comparably lower air
temperature will flow through the central,
left and right vents.
lTo set the air vent to, press the
windshield defroster switch.
l(U.S.A., Canada)
In the
orposition, the air
conditioner is automatically turned on and
the outside air mode is automatically
selected to defrost the windshield. In the
orposition, the outside air mode
cannot be changed to the recirculated air
mode.
A/C switch
6-6
Interior Comfort
Climate Control System
Mazda5_8DH4-EA-13H_Edition3 Page200
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H
