MAZDA MODEL 6 2004 Owners Manual (in English)

6-26
Interior Comfort
Audio System
Form No. 8R29-EA-02I
Automatic Level Control (ALC)
The automatic level control is a feature
that automatically adjusts audio volume
and sound quality according to the vehicle
speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.
The following four modes are available.
Select the desired mode.
Turn the audio control dial to select the
ALC OFF, ALC LEVEL1~3 mode. The
selected mode will be indicated.
Mode Volume change
No change
Minimum
Medium
Maximum
shuseizumi_J56J_8R29_EA_02I.book Page 26 Saturday, September 7, 2002 12:58 PM

6-27
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
shuseizumi_J56J_8R29_EA_02I.book Page 27 Saturday, September 7, 2002 12:58 PM

6-28
Interior Comfort
Audio System
Form No. 8R29-EA-02I

Operating the Radio
Radio ON
Press a band selector button ( , or
) to turn the radio on.
Band selection
Select a band by pressing the FM1 button
( ), FM2 button ( ) or AM button
().
The selected mode will be indicated. If
FM stereo is being received, "ST" will be
displayed.Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
Manual tuning dial Channel preset buttonsScan button
Auto
memory
button Band selector buttons
Seek tuning
button
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the "ST" indicator will go
out.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
shuseizumi_J56J_8R29_EA_02I.book Page 28 Saturday, September 7, 2002 12:58 PM

6-29
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
Seek tuning
Pressing the seek tuning button ( , )
will cause the tuner to seek a higher or
lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button ( ) again during this interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the desired station.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
If no stations can be tuned after
scanning operations, "A" will be
displayed.
shuseizumi_J56J_8R29_EA_02I.book Page 29 Saturday, September 7, 2002 12:58 PM

6-30
Interior Comfort
Audio System
Form No. 8R29-EA-02I

Operating the Cassette Tape Player
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and "TAPE PLAY" will be
displayed. At the end of the cassette tape,
the unit automatically reverses cassette
tape play. When is lit, the cassette
tape’s top side is playing. When is lit,
the bottom side is on.
Playing
Press the cassette tape play button
( ) to start playing when a
cassette tape is in the unit. If there isn’t a
cassette tape in the unit when the cassette
tape play button ( ) is pressed,
"NO TAPE" will flash on and off in
sequence.Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button ( ). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
Ejecting the cassette tape
Press the cassette tape eject button ( ) to
eject the cassette tape.
Cassette tape play button
Fast-forward button
Rewind
button APC button:
(next program)
(one being
played)
Cassette tape eject button
Program button
Dolby NR buttonRepeat button
shuseizumi_J56J_8R29_EA_02I.book Page 30 Saturday, September 7, 2002 12:58 PM

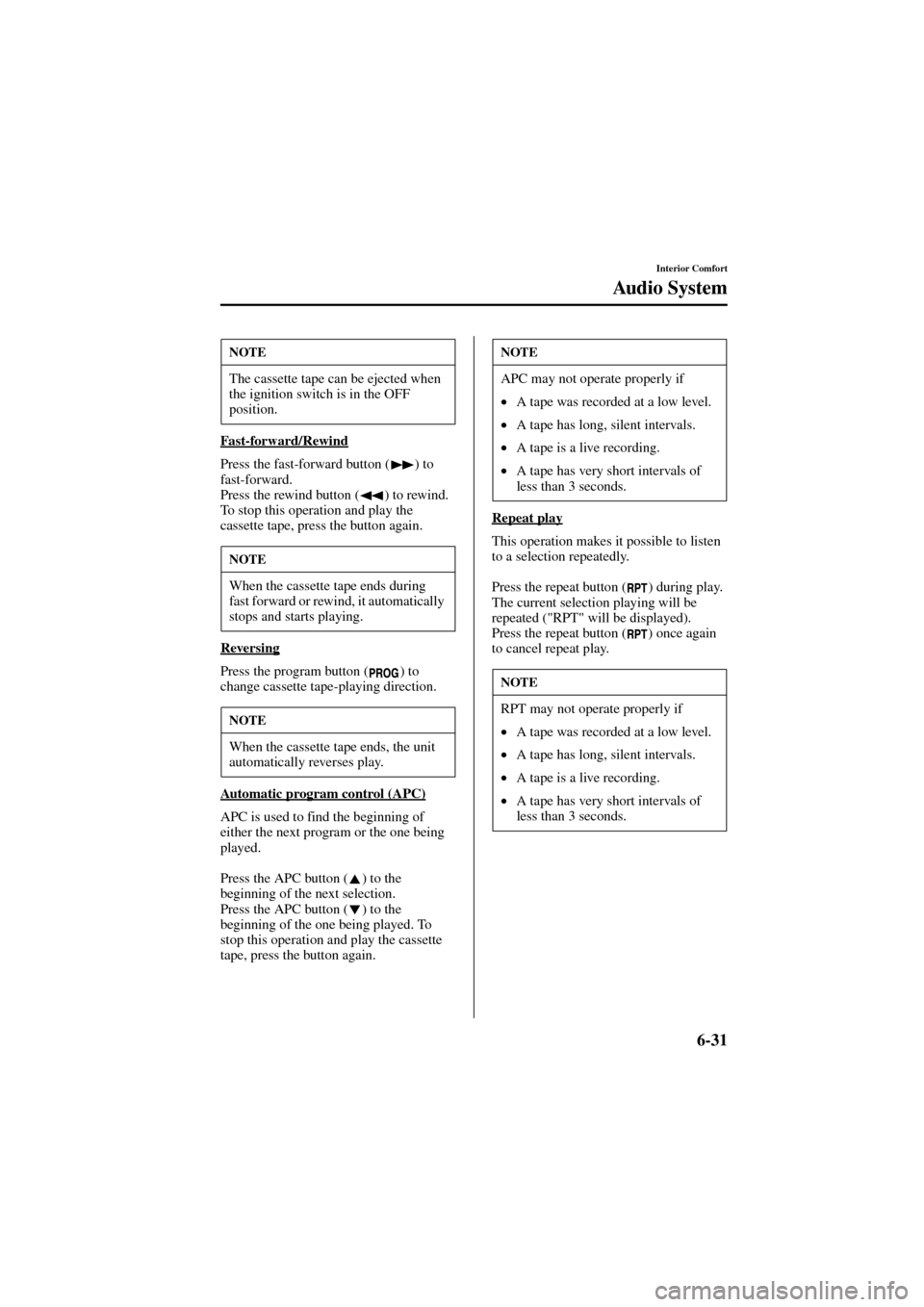

6-31
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
Fast-forward/Rewind
Press the fast-forward button ( ) to
fast-forward.
Press the rewind button ( ) to rewind.
To stop this operation and play the
cassette tape, press the button again.
Reversing
Press the program button ( ) to
change cassette tape-playing direction.
Automatic program control (APC)
APC is used to find the beginning of
either the next program or the one being
played.
Press the APC button ( ) to the
beginning of the next selection.
Press the APC button ( ) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.Repeat play
This operation makes it possible to listen
to a selection repeatedly.
Press the repeat button ( ) during play.
The current selection playing will be
repeated ("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
NOTE
The cassette tape can be ejected when
the ignition switch is in the OFF
position.
NOTE
When the cassette tape ends during
fast forward or rewind, it automatically
stops and starts playing.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
NOTE
APC may not operate properly if
•
A tape was recorded at a low level.
•
A tape has long, silent intervals.
•
A tape is a live recording.
•
A tape has very short intervals of
less than 3 seconds.
NOTE
RPT may not operate properly if
•
A tape was recorded at a low level.
•
A tape has long, silent intervals.
•
A tape is a live recording.
•
A tape has very short intervals of
less than 3 seconds.
shuseizumi_J56J_8R29_EA_02I.book Page 31 Saturday, September 7, 2002 12:58 PM

6-32
Interior Comfort
Audio System
Form No. 8R29-EA-02I

Operating the Mini Disc (MD) Player
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
Playing
Press the MD play button ( ) to
start playing when a MD is in the unit.
If there isn’t a MD in the unit when the
MD play button ( ) is pressed,
"NO DISK" will flash on and off in
sequence.
Ejecting the MD
Press the MD eject button ( ) to eject the
MD.Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.
Tr a c k s e a r c h
Press the track up button ( ) once to skip
forward to the beginning of the next track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
MD play button
Scan
button
MD slotDisplay
button Track up
button
Track down
button
Reverse
buttonFast-forward button
MD eject button
Random button Repeat buttonDisplay feed dial
shuseizumi_J56J_8R29_EA_02I.book Page 32 Saturday, September 7, 2002 12:58 PM

6-33
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again to
cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once again
to cancel random play.Changing the display
To change the display during MD play,
press the display button ( ) to advance
through each of the following displays:
Long disc or song titles
When song titles exceed 7 letters, or disc
titles exceed 10, rotate the display feed
dial ( ) to the right.
The remainder of the title will proceed
and appear on the display to the end of the
title.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.NOTE
If there is no song or disc title recorded
on the MD, "NO TITLE" will be
displayed.
Song title Track number/
Elapsed play
back timeDisc title
shuseizumi_J56J_8R29_EA_02I.book Page 33 Saturday, September 7, 2002 12:58 PM

6-34
Interior Comfort
Audio System
Form No. 8R29-EA-02I

Operating the Compact Disc (CD) Player
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
Playing
Press the CD play button ( ) to start
playing when a CD is in the unit.
If there isn’t a CD in the unit when the CD
play button ( ) is pressed, "NO DISK"
will flash on and off in sequence.
Ejecting the CD
Press the CD eject button ( ) to eject the
CD.Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.
Tr a c k s e a r c h
Press the track up button ( ) once to skip
forward to the beginning of the next track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
CD slot CD play buttonFast-forward button
CD eject button
Reverse
button
Track up
button
Track down
buttonScan
button
Random button Repeat button
shuseizumi_J56J_8R29_EA_02I.book Page 34 Saturday, September 7, 2002 12:58 PM

6-35
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again to
cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once again
to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
shuseizumi_J56J_8R29_EA_02I.book Page 35 Saturday, September 7, 2002 12:58 PM
