Information Display Functions
The information display has the following functions:
•
Clock
•
Ambient Temperature Display (Outside Temperature Display)
•
Climate Control Display
•
Audio Display
•
Display Dimmer Cancel Function
Information Display
SET button
CLOCK buttonDIMMER button
AMB button
shuseizumi_J56J_8R29_EA_02I.book Page 46 Saturday, September 7, 2002 12:58 PM

6-47
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I

Clock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLOCK button until a beep
sounds, and "12Hr" and "24Hr" will be
displayed.
2. Press the SET button to switch between
"12Hr" and "24Hr" displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK button again while
the preferred setting is flashing.
3. "Hr. ADJUST" will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLOCK button.
4. "Min. ADJUST" will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the
CLOCK button.Time resetting
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01—12:29→
12:00
12:30—12:59→
1:00
NOTE
When the SET button is released, the
seconds are reset to "00".
shuseizumi_J56J_8R29_EA_02I.book Page 47 Saturday, September 7, 2002 12:58 PM

6-48
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I

Ambient Temperature Display
When the ignition switch is in the ON
position, press the AMB button to display
the ambient temperature.

Climate Control Display
Climate control is displayed when the
climate control system is turned on (page
6-5).

Audio Display
Audio is displayed when the audio system
is turned on (page 6-23).

Display Dimmer Cancel Function
When driving at night on snowy or foggy
roads, or in other situations when the
display’s visibility is reduced due to glare
from surrounding brightness, the display
dimmer cancel function increases the
intensity of the display illumination.
The display dimmer cancel function can
be used when the headlight switch is in
the or position.
Press the DIMMER button to increase the
intensity of the display illumination.
Press the button again to return to the
previous display illumination.
NOTE
•
The displayed ambient temperature
may vary from the actual ambient
temperature depending on the
surrounding area and vehicle
conditions.
•
Press the AMB button again to
switch the display from ambient
temperature to the temperature set
for the air conditioner.
•
Press the AMB button 1.5 seconds
or more to switch the display from
Fahrenheit to Centigrade or vice
versa.
shuseizumi_J56J_8R29_EA_02I.book Page 48 Saturday, September 7, 2002 12:58 PM

6-49
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I

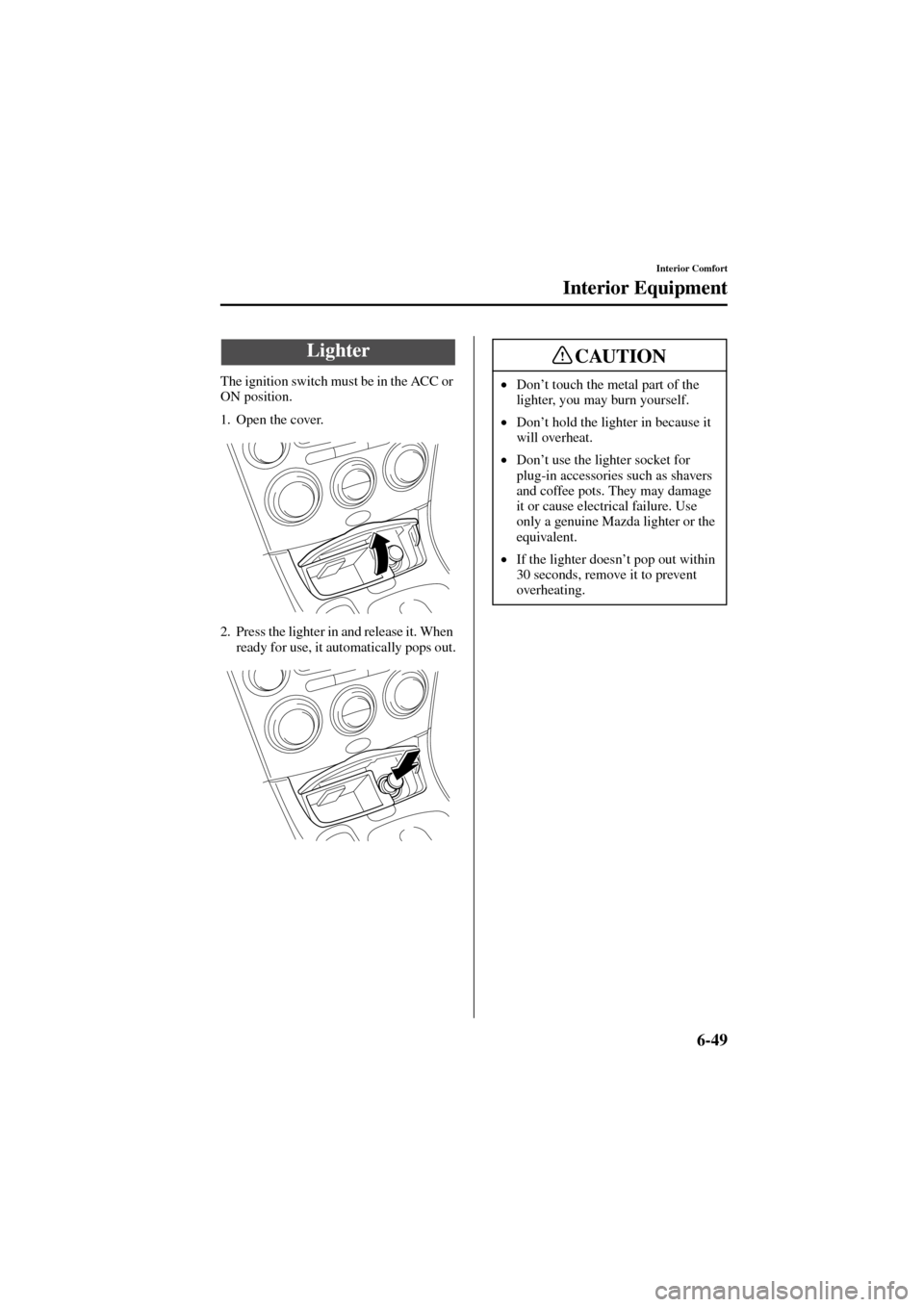

The ignition switch must be in the ACC or
ON position.
1. Open the cover.
2. Press the lighter in and release it. When
ready for use, it automatically pops out.
Lighter
•
Don’t touch the metal part of the
lighter, you may burn yourself.
•
Don’t hold the lighter in because it
will overheat.
•
Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•
If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 49 Saturday, September 7, 2002 12:58 PM

6-50
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I
To use, open the cover.
To remove, open the cover and pull up the
ashtray.
Ashtray
Don’t use the ashtray for trash. You
might start a fire.
CAUTION
Cup Holder
Using Cup Holder:Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don’t Put Anything Other Than Cups
or Drink-cans in Cup Holder:Putting objects other than cups or
drink-cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink-cans.
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
WARNING
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 50 Saturday, September 7, 2002 12:58 PM

6-51
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I

Front
To use the cup holder, open the center
console by pressing the lower center part
of its cover.

Rear
The rear cup holder is on the rear center
armrest.Bottle holders are on the inside of the
front doors.
Bottle Holder
Don’t use the bottle holders for
containers without caps. The contents
may spill when a front door is opened.
Bottle holder
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 51 Saturday, September 7, 2002 12:58 PM

6-52
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I

Overhead Console
This console box is designed to store
eyeglasses or other accessories. Push and
release to open.

Storage Pocket
To open, push the release catch down and
pull the lid downward.

Center Box with Lid
To use, pull the knob, and the lid opens
automatically.
Storage Compartments
Open Storage Boxes:Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don’t leave
combustible materials or objects which
will deform in extreme heat such as
lighters and glasses in the vehicle.
WARNING
CAUTION
Knob
shuseizumi_J56J_8R29_EA_02I.book Page 52 Saturday, September 7, 2002 12:58 PM

6-53
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I

Glove Box
To open the glove box, pull the latch
toward you.
Insert the primary key and turn it
clockwise to lock, counterclockwise to
unlock.

Center Console
To open, pull the lower release catch.Small items can be placed in the tray of
the center console lid.
To open it, pull the upper release catch.
Lock Unlock
shuseizumi_J56J_8R29_EA_02I.book Page 53 Saturday, September 7, 2002 12:58 PM

6-54
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I
The ignition switch must be in the ACC or
ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC12 V, 10 A).When placing an electrical device (e.g.
cellular phone) in the tray which is
connected with the accessory socket, pass
the plug cord through the slot in the cap.
1. Open the lid by pulling the upper
release catch.
2. Remove the tray mat.
3. Using a coin, turn the cap
counterclockwise (about 45°
from the
closed position) and remove it.
4. Open the tray by pulling the lower
release catch.
Accessory Socket
To prevent accessory socket damage or
electrical failure, pay attention to the
following;
•
Don’t use accessories that require
more than 120 W (DC12 V, 10 A).
•
Don’t use accessories that are not
genuine Mazda accessories or the
equivalent.
•
Close the cover when the accessory
socket is not in use.
•
Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery,
don’t use the socket for long periods
with the engine off or idling.
CAUTION
Cap slot, closed
Cap slot, opened
shuseizumi_J56J_8R29_EA_02I.book Page 54 Saturday, September 7, 2002 12:58 PM

6-55
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I
5. Pass the plug cord through the hole of
the tray and insert the plug in the
socket.
6. Make sure the plug cord is running
through the cap slot; reinstall the cap
and turn it clockwise (about 45°
to the
opened position).7. Set the plug cord into the slit of the tray
mat and replace the tray mat.
Plug
Plug cord
