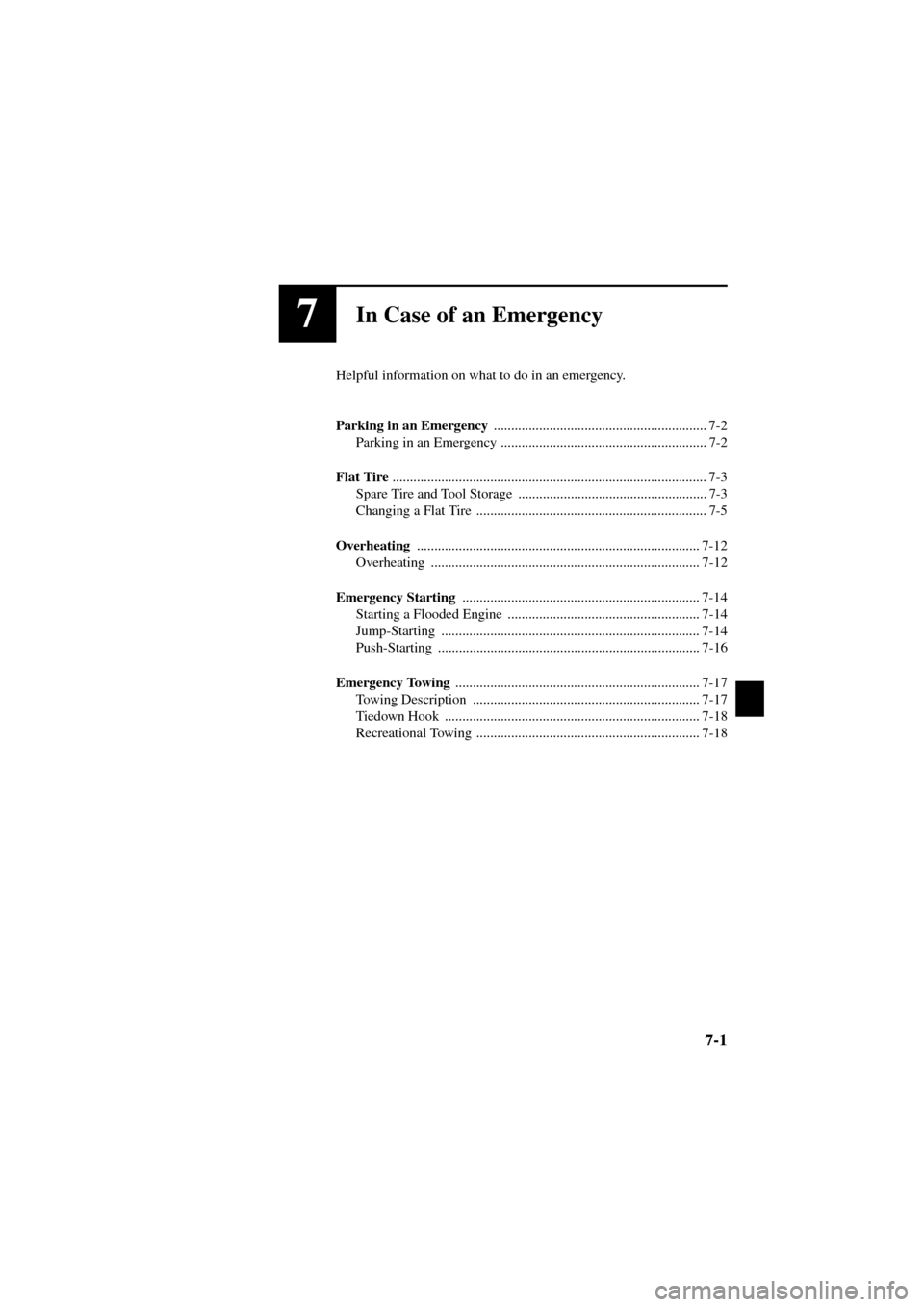

7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency
............................................................. 7-2
Parking in an Emergency ........................................................... 7-2
Flat Tire
.......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire .................................................................. 7-5
Overheating
................................................................................. 7-12
Overheating ............................................................................. 7-12
Emergency Starting
.................................................................... 7-14
Starting a Flooded Engine ....................................................... 7-14
Jump-Starting .......................................................................... 7-14
Push-Starting ........................................................................... 7-16
Emergency Towing
...................................................................... 7-17
Towing Description ................................................................. 7-17
Tiedown Hook ......................................................................... 7-18
Recreational Towing ................................................................ 7-18
shuseizumi_J56J_8R29_EA_02I.book Page 1 Saturday, September 7, 2002 12:58 PM
Page 203 of 289
7-2
In Case of an Emergency
Form No. 8R29-EA-02I
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning switch and all
four turn signals will flash at once.
Parking in an Emergency
NOTE
•
The turn signals don’t work when
the hazard warning lights are on.
•
Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher switch
shuseizumi_J56J_8R29_EA_02I.book Page 2 Saturday, September 7, 2002 12:58 PM
Page 204 of 289
7-3
In Case of an Emergency
Form No. 8R29-EA-02I
Flat Tire
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare Tire and Tool Storage
Spare tire
Jack
Lug wrench
Conventional tire
hold-down bolt
shuseizumi_J56J_8R29_EA_02I.book Page 3 Saturday, September 7, 2002 12:58 PM
Page 205 of 289
7-4
In Case of an Emergency
Flat Tire
Form No. 8R29-EA-02I
Jack
To remove the jack
1. Remove the jack container lid.
2. Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare is lighter and smaller
than a conventional tire, and is designed
only for emergency use and should be
used only for VERY short periods.
Temporary spares should NEVER be used
for long drives or extended periods.
Jack
Wing bolt
Driving with a Temporary Spare Tire on Ice or Snow:Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•
Don’t exceed 80 km/h (50 mph).
•
Avoid driving over obstacles. Also,
don’t drive through an automatic car
wash. This tire’s diameter is smaller
than a conventional tire, so the
ground clearance is reduced about
43 mm (1.7 in).
•
Don’t use a tire chain on this tire
because it won’t fit properly.
•
Don’t use your temporary spare on
any other vehicle, it has been
designed only for your Mazda.
•
Use only one temporary spare tire
on your vehicle at the same time.
WARNING
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 4 Saturday, September 7, 2002 12:58 PM
Page 206 of 289
7-5
In Case of an Emergency
Flat Tire
Form No. 8R29-EA-02I
To remove the spare tire
1. Remove the trunk board.
2. Turn the tire hold-down bolt
counterclockwise.
To secure the spare tire
Perform the removal procedure in reverse.If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
Trunk board
Lug wrench
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
•
Steering becomes difficult.
•
The vehicle begins to vibrate
excessively.
•
The vehicle pulls in one direction.
Jacking a Vehicle:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Jack:Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 5 Saturday, September 7, 2002 12:58 PM
Page 207 of 289
7-6
In Case of an Emergency
Flat Tire
Form No. 8R29-EA-02I
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a block both in front and behind
the tire.
Removing a Flat Tire
1. Pry off the wheel cover with the
beveled end of the lug wrench.NOTE
Make sure the jack is well lubricated
before using it.
NOTE
Force the end of the lug wrench firmly
between wheel and cover, or removal
will be difficult.
Align the notch on the wheel cover
with the valve stem when installing it.
Damage could occur during
installation if the wheel cover is not
properly aligned.
Lug wrench
Wheel cover
CAUTION
Tire valve
Notch
shuseizumi_J56J_8R29_EA_02I.book Page 6 Saturday, September 7, 2002 12:58 PM
Page 208 of 289
7-7
In Case of an Emergency
Flat Tire
Form No. 8R29-EA-02I
2. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don’t remove any until the tire has been
raised off the ground.
3. Place the jack under the jacking
position closest to the tire being
changed.
4. Insert the lug wrench into the jack.
Jacking position
Incorrect Jacking Position:Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn’t designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 7 Saturday, September 7, 2002 12:58 PM
Page 209 of 289
7-8
In Case of an Emergency
Flat Tire
Form No. 8R29-EA-02I
5. Turn the lug wrench clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
6. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel.Locking Lug Nuts
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it in
the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer’s
order form, which is with the registration
card.
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure to
hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don’t use a power
impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
Antitheft lug nutSpecial key
shuseizumi_J56J_8R29_EA_02I.book Page 8 Saturday, September 7, 2002 12:58 PM
Page 210 of 289
7-9
In Case of an Emergency
Flat Tire
Form No. 8R29-EA-02I
Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
2. Mount the spare tire.3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
Removing Dirt and Grime from Wheels, Hubs and Hub Bolts:When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
Don’t apply Oil or Grease to Lug Nuts, Bolts:Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
WARNING
