Page 81 of 289
3-20
Knowing Your Mazda
Form No. 8R29-EA-02I
Security System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Operation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn’t start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Immobilizer System
Changes or modifications not
expressly approved by Mazda could
void the user’s authority to operate the
equipment.
NOTE
This device complies with part 15 of
the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation. (Outside
transmissions may momentarily
interfere with the device’s operation.)
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 20 Saturday, September 7, 2002 12:58 PM

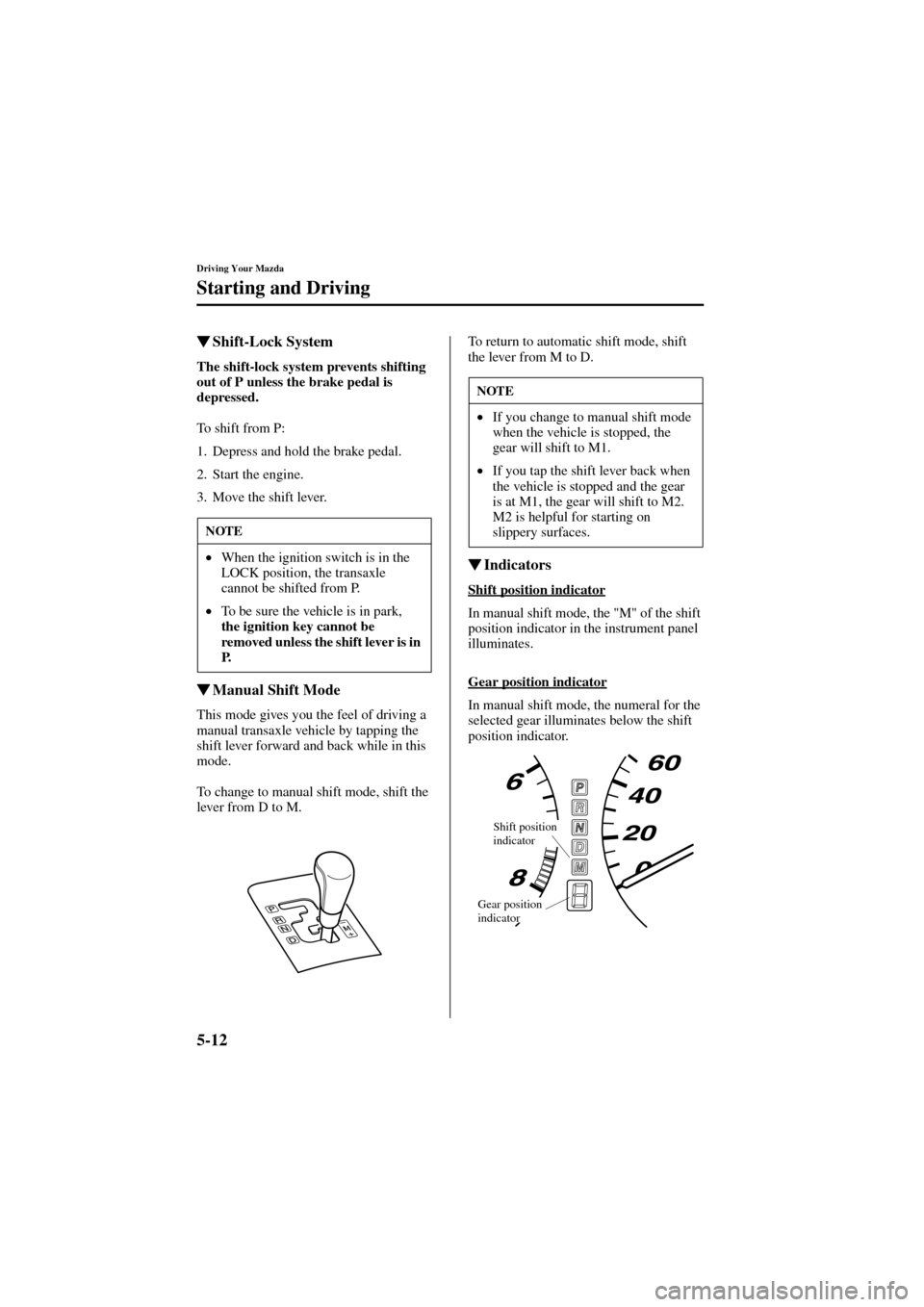

Page 111 of 289
5-12
Driving Your Mazda
Starting and Driving
Form No. 8R29-EA-02I
Shift-Lock System
The shift-lock system prevents shifting
out of P unless the brake pedal is
depressed.
To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Move the shift lever.
Manual Shift Mode
This mode gives you the feel of driving a
manual transaxle vehicle by tapping the
shift lever forward and back while in this
mode.
To change to manual shift mode, shift the
lever from D to M.To return to automatic shift mode, shift
the lever from M to D.
Indicators
Shift position indicator
In manual shift mode, the "M" of the shift
position indicator in the instrument panel
illuminates.
Gear position indicator
In manual shift mode, the numeral for the
selected gear illuminates below the shift
position indicator.
NOTE
•
When the ignition switch is in the
LOCK position, the transaxle
cannot be shifted from P.
•
To be sure the vehicle is in park,
the ignition key cannot be
removed unless the shift lever is in
P.
NOTE
•
If you change to manual shift mode
when the vehicle is stopped, the
gear will shift to M1.
•
If you tap the shift lever back when
the vehicle is stopped and the gear
is at M1, the gear will shift to M2.
M2 is helpful for starting on
slippery surfaces.
Shift position
indicator
Gear position
indicator
