MAZDA MODEL 6 2006 Owners Manual (in English)

Black plate (111,1)

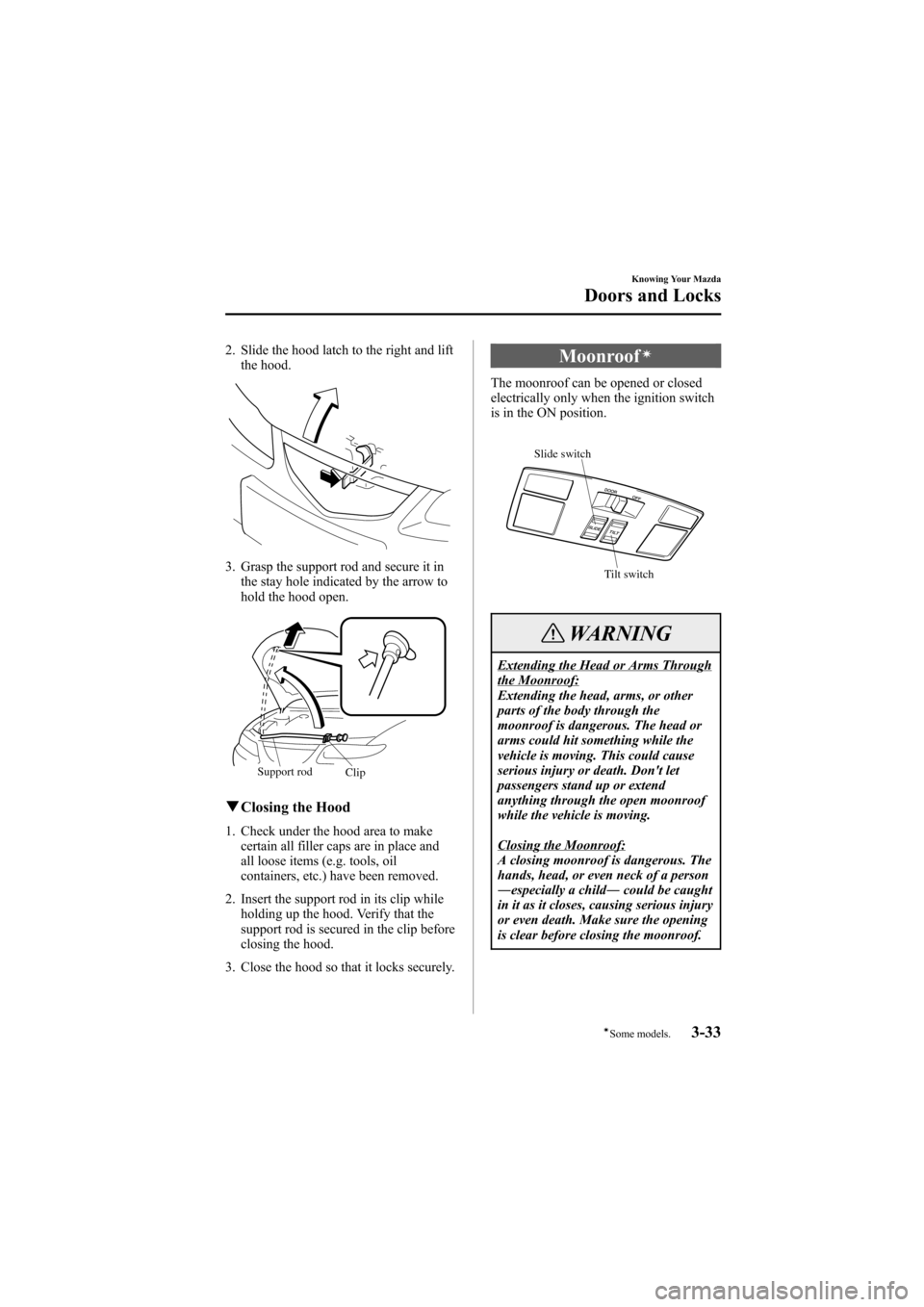

2. Slide the hood latch to the right and lift
the hood.
3. Grasp the support rod and secure it in
the stay hole indicated by the arrow to
hold the hood open.
Clip Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Tilt switch Slide switch
WARNING
Extending the Head or Arms Throughthe Moonroof:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death. Don't let
passengers stand up or extend
anything through the open moonroof
while the vehicle is moving.
Closing the Moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person
―especially a child―could be caught
in it as it closes, causing serious injury
or even death. Make sure the opening
is clear before closing the moonroof.
Knowing Your Mazda
Doors and Locks
3-33íSome models. Mazda6_8U66-EA-05F_Edition1 Page111
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (112,1)
NOTE
After washing your Mazda or after a
rain, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To tilt, push the rear of the tilt switch.
To close, push the front of the tilt switch.
Tilt up
Close
qSlide Operation
To open to any position, press the rear of
the slide switch.
To close, press the front of the slide
switch.
Open
Close
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
3-34
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page112
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (113,1)
CAUTION
The sunshade doesn't tilt. To avoid
damaging the sunshade, don't push up
on it.
Knowing Your Mazda
Doors and Locks
3-35
Mazda6_8U66-EA-05F_Edition1 Page113
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (114,1)
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
lRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
lTo avoid damage to the key, do not:
lDrop the key.lGet the key wet.lExpose the key to any kind of
magnetic field.
lExpose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.
CAUTION
When starting the engine do not allow
the following, as the engine may not
start due to the electronic signal from
the ignition key not being transmitted
correctly.
lA key ring rests on the key grip.
lMetal parts of other keys or metal
objects touch the key grip.
lSpare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key
grip.
lDevices for electronic purchases, or
security passage touch or come near
the key.
3-36
Knowing Your Mazda
Security System
Mazda6_8U66-EA-05F_Edition1 Page114
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (115,1)
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lIf the security indicator light comes
on and stays on when the ignition
switch is turned to the ON position,
the engine will not start.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the security indicator
light. If it is flashing, remove the
ignition key and wait 2 seconds or
more, then reinsert it and try starting
the engine again. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the engine
while the light is flashing you won't
be able to restart it.
Knowing Your Mazda
Security System
3-37
Mazda6_8U66-EA-05F_Edition1 Page115
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (116,1)
NOTE
lSince the electronic codes are reset
when repairing the immobilizer
system, the keys are needed. Bring
all the existing keys to an Authorized
Mazda Dealer.
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare key, in case one
is lost. If a key is lost, contact an
Authorized Mazda Dealer as soon as
possible.
lIf you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
3-38
Knowing Your Mazda
Security System
Mazda6_8U66-EA-05F_Edition1 Page116
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (117,1)
Theft-Deterrent Systemí
The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all doors,
hood, and trunk lid/liftgate/hatch are
locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
NOTE
lThe theft-deterrent system operates
with the key or the keyless entry
system transmitter.
lThe system will not function unless
it is properly armed. To properly
secure the vehicle, always make sure
all windows are completely closed
and all doors and the trunk lid/
liftgate/hatch are locked before
leaving the vehicle. Remember to
take your key and transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 25
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid/liftgate/hatch.
lOpening a door, the hood or the trunk
lid by operating an inside door-lock
knob, the hood release handle or the
trunk lid release button.If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
qHow to Arm the System
1. Remove the key from the ignition
switch.
2. Make sure the hood is closed. Close
and lock all doors and the hatch/
liftgate/trunk lid from the outside using
the key or press the lock button on
your keyless entry system transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
Close the hood and the hatch/liftgate/
trunk lid . Press the area on the door-
lock switch marked“LOCK”once.
Close all doors.
NOTE
Locking the doors with the inside door-
lock knob will not arm the system.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.
lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
Knowing Your Mazda
Security System
3-39íSome models. Mazda6_8U66-EA-05F_Edition1 Page117
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (118,1)
NOTE
The trunk lid can be opened with the
key or the transmitter even when the
system is armed. The alarm will not
come on and the system will remain
armed.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.
lOpen the trunk lid with the key.
lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized
Mazda Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove box.Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-40
Knowing Your Mazda
Security System
Mazda6_8U66-EA-05F_Edition1 Page118
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (119,1)
Steering Wheel
WARNING
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be
certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
WARNING
Convex Mirror:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
2. Depress the mirror switch in the
appropriate direction.
Outside mirrorSelector switch
Mirror switch
Knowing Your Mazda
Steering Wheel and Mirrors
3-41
Mazda6_8U66-EA-05F_Edition1 Page119
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (120,1)
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-45).
qRearview Mirror
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Manual day/night mirror
Auto-dimming mirror
NOTE
For the manual day/night mirror,
perform the adjustment with the day/
night lever in the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night DayDay/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition switch is in the
ON position.
3-42
Knowing Your Mazda
íSome models.
Steering Wheel and Mirrors
Mazda6_8U66-EA-05F_Edition1 Page120
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F
