2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-4
Rear Seat ................................................................................. 2-10
Head Restraints ....................................................................... 2-12
Seat Warmer
í......................................................................... 2-13
Seat Belt Systems ........................................................................ 2-15 Seat Belt Precautions .............................................................. 2-15
Seat Belt .................................................................................. 2-19
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-21
Seat Belt Extender ................................................................... 2-23
Seat Belt Warning Light/Beep ................................................ 2-25
Child Restraint ............................................................................ 2-27 Child Restraint Precautions ..................................................... 2-27
Installing Child-Restraint Systems .......................................... 2-31
LATCH Child-Restraint Systems ............................................ 2-37
SRS Air Bags ............................................................................... 2-41 Supplemental Restraint Systems (SRS) Precautions ............... 2-41
Supplemental Restraint System Components ......................... 2-45
How the Air Bags Work .......................................................... 2-47
2-1íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page13
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision. Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver's seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
Mazda6_8Z64-EA-08H_Edition1 Page14
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (15,1)

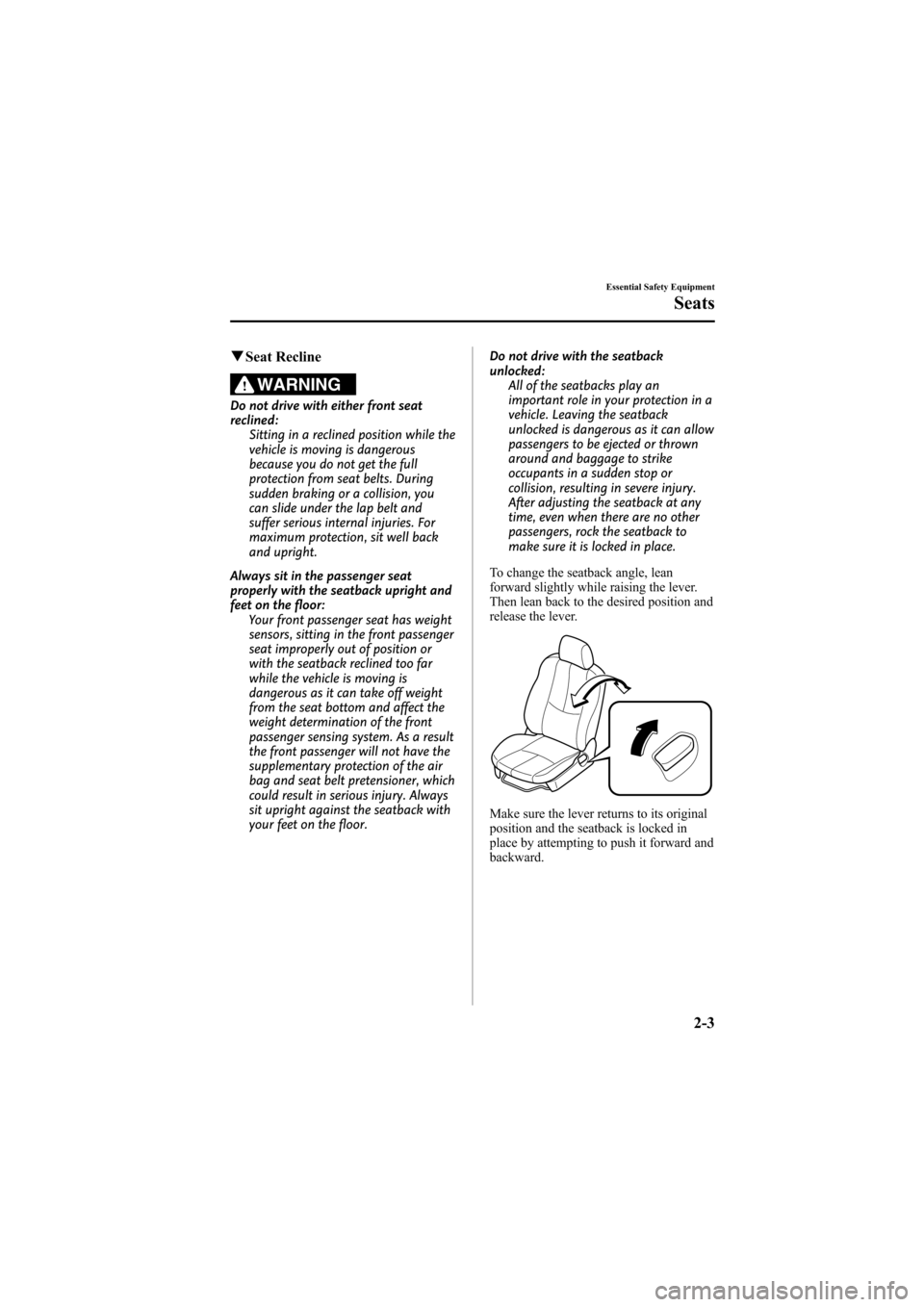

qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the passenger seat
properly with the seatback upright and
feet on the floor: Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor. Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda6_8Z64-EA-08H_Edition1 Page15
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (16,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
driver's seat bottom height can be
adjusted.
DownUp
Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
2-4
Essential Safety Equipment
Seats
Mazda6_8Z64-EA-08H_Edition1 Page16
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (17,1)
CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
Ø To prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
Ø Do not use the switch to make
more than one adjustment at a
time.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the front passenger seat
properly with the seatback upright and
feet on the floor: Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor.
Essential Safety Equipment
Seats
2-5
Mazda6_8Z64-EA-08H_Edition1 Page17
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (18,1)
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
The seat height can be adjusted by
moving the switch up or down.
qSeat Position Memory (Driver's
Seat)í
One-touch seat position programming and
activation is available on the driver's seat.
CAUTION
When activating the seat position, do
not place your hands or fingers
around the seat bottom. The seat
moves to the desired position
automatically, and if your hands or
fingers are placed around the seat
bottom, it could cause injury.
Set button
Programming of the driver's seat positions
is possible using the following functions:
lProgramming buttons 1, 2, or 3 and the
set button.
2-6
Essential Safety Equipment
íSome models.
Seats
Mazda6_8Z64-EA-08H_Edition1 Page18
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (19,1)
lOperation using the advanced key/
retractable type key
Programmed seat positions can activated
using the following functions:
lProgramming buttons 1, 2, or 3.lOperation using advanced keyless
functions/keyless entry system
NOTE
Individual seat positions can be programmed
to the three available programming buttons on
the side of the driver's seat, plus one seat
position for each advanced key/retractable
type key used with the vehicle.
Operation using the seat-side buttons
Programming
Park the vehicle in a safe location before
performing the seat position
programming. (Vehicle must be stopped)
1. Adjust the seat to the desired position. For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-5)
Height Adjustment (page 2-6)
2. Press the desired programming button 1, 2, or 3 while pressing the set button
until a beep sound is heard.
The button is programmed after a beep
sound is heard. Other buttons can be
programmed using the same procedure.
NOTE
Vehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Setting the driver's seat to a pre-
programmed position
There are two methods for setting the
driver's seat to a pre-programmed
position. For example, the type A method
can be used before sitting in the seat and
while the driver's door is open, and the
type B method can be used after getting in
the vehicle with the driver's door closed.
TYPE A
When the ignition switched off and the
driver's door is open, press the
programming button 1, 2, or 3 for the
desired seating position.
NOTE
In the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe set switch is pressed.lA programming button 1, 2, or 3 is pressed.lThe vehicle starts moving.lVehicle locking/unlocking is done using the
transmitter.
lVehicle unlocking is done by pressing the
request switch on a front door while the
advanced key is being carried.
lVehicle unlocking is done by touching the
sensor area on the backside of the front
door handle while the advanced key is
being carried.
TYPE B
When the ignition is switched ON or the
driver's door is closed, press and hold the
desired programming button 1, 2, or 3.
Essential Safety Equipment
Seats
2-7
Mazda6_8Z64-EA-08H_Edition1 Page19
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (20,1)
NOTEIn the following cases, the seat position set
function cancels:
lAny of the seat adjustment switches are
operated.
lThe set switch is pressed.lThe vehicle starts moving.
Operation using the advanced key/retractable type key
With advanced key
Lock buttonUnlock button
With retractable type key
Lock buttonUnlock button
Operation
indicator light
Programming
One seat position can be programmed into
each advanced key/retractable type key. After the following conditions have been
met, operate the seat and the advanced
key/retractable type key to program the
seat positions.
lThe ignition switched off
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
1. Adjust the seat to the desired position. For each seat position adjustment
method, refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-5)
Height Adjustment (page 2-6)
2. Press and hold the unlock button on the advanced key/retractable type key
while pressing the set button until a
beep sound is heard.
The advanced key/retractable type key
is programmed after a beep sound is
heard.
Seat position activation
With the ignition switched off, unlock the
doors using any of the following methods
and open the driver's door within about 40
seconds to set the driver's seat to a pre-
programmed position.
lPress the unlock switch on the
advanced key/retractable type key.
lTouch the sensor area on the backside
of the front door handle while the
advanced key is being carried.
2-8
Essential Safety Equipment
Seats
Mazda6_8Z64-EA-08H_Edition1 Page20
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H
