MAZDA MODEL 6 2009 (in English) Owner's Manual

Black plate (21,1)
NOTEIf any of the following occurs, the seat position
activation function cancels:
lPress the lock/unlock button while the key
is not inserted into the ignition switch or
the key slot.
lA seat adjustment switch is operated.lThe vehicle moves or starts to move.lThe selected programming button 1, 2, or 3
or the set button is pressed again.
lPress the request switch on a front door
while the advanced key is being carried.
lTouch the sensor area on the backside of
the front door handle while the advanced
key is being carried.
lThe set switch is pressed.
Erasing memory
After the following conditions have been
met, press the lock button on the
advanced key/retractable type key while
pressing the set button until a beep sound
is heard.
lThe ignition switch is in the LOCK
position
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
NOTE
Memory will also be erased if any of the
following operations are performed:
lThe advanced key/retractable type key code
has been changed.
Refer to Immobilizer System (with
Advanced Key) on page 3-50.
Refer to Immobilizer System (without
Advanced Key) on page 3-53.
lThe vehicle battery is disconnected for
vehicle maintenance or other reasons.
q Lumbar Support Adjustment
(Driver's Seat)
The amount of lumbar support can be
adjusted by rotating dial.
Essential Safety Equipment
Seats
2-9
Mazda6_8Z64-EA-08H_Edition1 Page21
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (22,1)

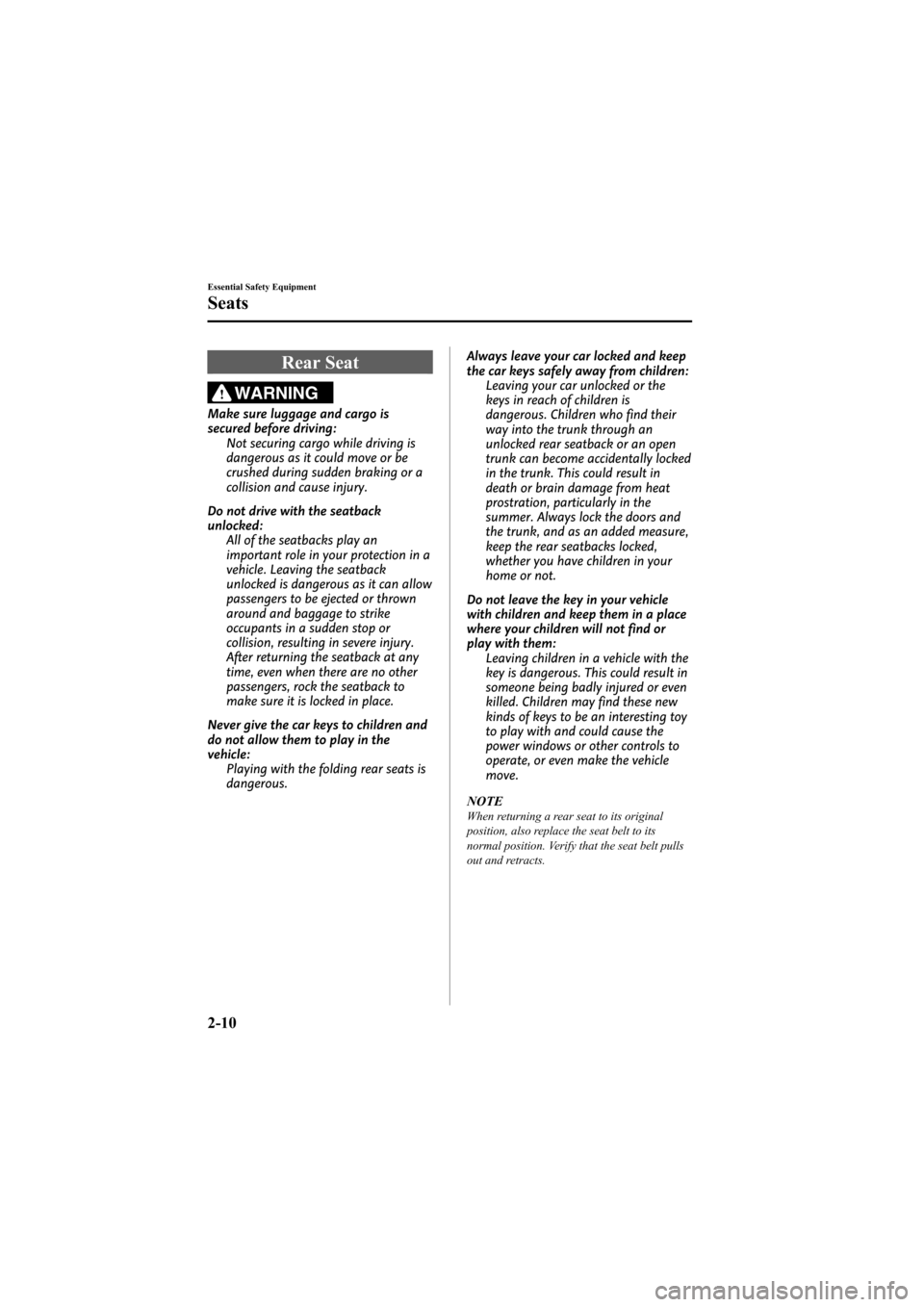

Rear Seat
WARNING
Make sure luggage and cargo is
secured before driving:Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not drive with the seatback
unlocked: All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never give the car keys to children and
do not allow them to play in the
vehicle: Playing with the folding rear seats is
dangerous. Always leave your car locked and keep
the car keys safely away from children:
Leaving your car unlocked or the
keys in reach of children is
dangerous. Children who find their
way into the trunk through an
unlocked rear seatback or an open
trunk can become accidentally locked
in the trunk. This could result in
death or brain damage from heat
prostration, particularly in the
summer. Always lock the doors and
the trunk, and as an added measure,
keep the rear seatbacks locked,
whether you have children in your
home or not.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
When returning a rear seat to its original
position, also replace the seat belt to its
normal position. Verify that the seat belt pulls
out and retracts.
2-10
Essential Safety Equipment
Seats
Mazda6_8Z64-EA-08H_Edition1 Page22
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (23,1)
qSplit-Folding Rear Seatback
The seatbacks can be folded down to
provide more space in the trunk.
To fold down the seatbacks
WARNING
Always remove the child-restraint
system from the rear seat before
operating the straps (in trunk) for the
rear seat:
Operating (pulling) the straps (in
trunk) while a rear-facing child-
restraint system is in the rear seat is
dangerous. It could cause injury to a
child seated in the child-restraint
system when the seatback suddenly
flips forward.
Make sure there is nobody in the rear
seat area before operating (pulling) the
straps (in trunk): Not checking the rear seat area for
persons before folding the seatbacks
down with the straps (in trunk) is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating (pulling) the straps
(in trunk) without checking could
cause injury to a person when a
seatback suddenly flips forward.
CAUTION
Before folding the seatbacks down
with the straps (in trunk), make sure
there is no cup in a rear cup holder.
Folding the seatbacks with the straps
(in trunk) while a cup is in the cup
holder could soil or damage the seat
bottom and seatback.
CAUTION
Be careful of the following when
using the straps (in trunk):
On a downward slope, the seatback
could flip forward faster than on a
flat surface.
1. After checking that the rear seats are clear, open the trunk and pull the straps
(in trunk) on the left and right sides of
the trunk.
2. Open the rear door and fold the rearseatbacks forward.
To return the seatbacks to the uprightposition
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks frominside the vehicle to make sure they are
locked.
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks: A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
Essential Safety Equipment
Seats
2-11
Mazda6_8Z64-EA-08H_Edition1 Page23
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (24,1)
qArmrest
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Armrest
Head Restraints
Head restraints are intended to help
protect you and the passengers from neck
injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
Front seat
2-12
Essential Safety Equipment
Seats
Mazda6_8Z64-EA-08H_Edition1 Page24
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (25,1)
Rear seatSeat Warmerí
Press the HI or LO side of the seat warmer
switch with the ignition is switched ON.
The indicator on the switch illuminates
and the seat warms up.
If a higher temperature is preferred, press
the HI side of the switch, and for a lower
temperature, press the LO side.
When not using the seat warmer, set the
switch to neutral with neither HI or LO
depressed.
Essential Safety Equipment
Seats
2-13íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page25
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (26,1)
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skinØPeople who are excessively
fatigued
ØPeople who are drunkØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Ø Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
Ø Do not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
Ø Do not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater. NOTE
Use the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
The temperature of the seat warmer cannot be
adjusted beyond High and Low because the
seat warmer is controlled by a thermostat.
2-14
Essential Safety Equipment
Seats
Mazda6_8Z64-EA-08H_Edition1 Page26
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (27,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
Essential Safety Equipment
Seat Belt Systems
2-15
Mazda6_8Z64-EA-08H_Edition1 Page27
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (28,1)

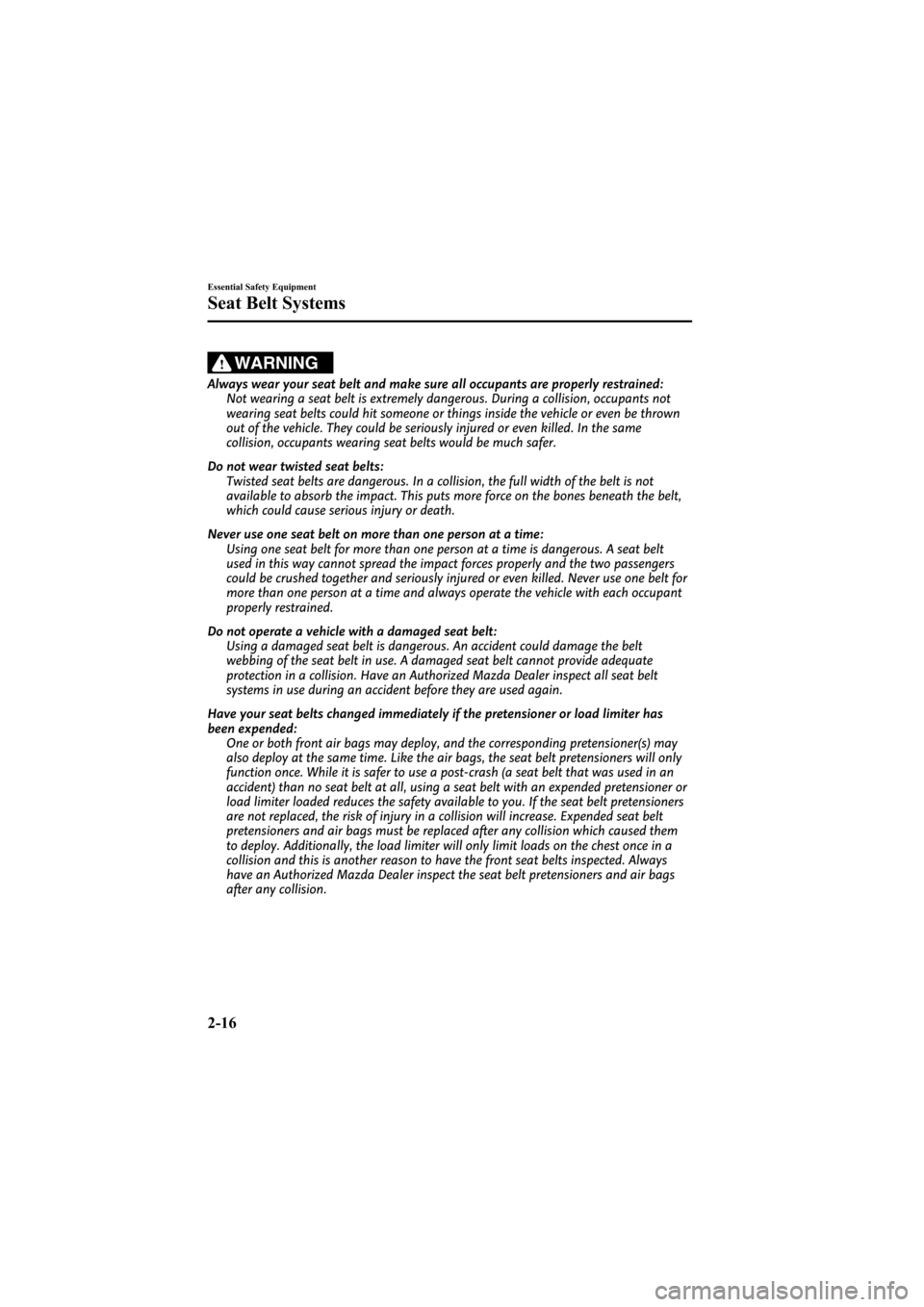

WARNING
Always wear your seat belt and make sure all occupants are properly restrained:Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended: One or both front air bags may deploy, and the corresponding pretensioner(s) may
also deploy at the same time. Like the air bags, the seat belt pretensioners will only
function once. While it is safer to use a post-crash (a seat belt that was used in an
accident) than no seat belt at all, using a seat belt with an expended pretensioner or
load limiter loaded reduces the safety available to you. If the seat belt pretensioners
are not replaced, the risk of injury in a collision will increase. Expended seat belt
pretensioners and air bags must be replaced after any collision which caused them
to deploy. Additionally, the load limiter will only limit loads on the chest once in a
collision and this is another reason to have the front seat belts inspected. Always
have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags
after any collision.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda6_8Z64-EA-08H_Edition1 Page28
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (29,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing ”(page 8-57).
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
Essential Safety Equipment
Seat Belt Systems
2-17
Mazda6_8Z64-EA-08H_Edition1 Page29
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (30,1)
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-27).
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda6_8Z64-EA-08H_Edition1 Page30
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H
