Black plate (68,1)
lThe air bags have deployed.lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition is switched ON or
does not illuminate as indicated in the
chart. For more details about this
indicator light and this chart, refer to
“Front passenger seat weight sensors ”
(page 2-47).WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components: Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that
they will work in any subsequent
accident. Driving with an expended
or damaged air bag or pretensioner
unit will not afford you the necessary
protection in the event of any
subsequent accident which could
result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as
the front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along
the roof edge, containing air bag
parts or sensors is dangerous. These
parts contain essential air bag
components. The air bag could
accidentally activate and cause
serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Dispose of the air bag properly: Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
2-56
Essential Safety Equipment
SRS Air Bags
Mazda6_8Z64-EA-08H_Edition1 Page68
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (79,1)
To unlock
Driver's door handle
To unlock the driver's door, touch the
sensor area on the inside of the driver's
door handle. A beep sound will be heard
twice and the hazard warning lights will
flash twice.
After unlocking the driver's door, unlock
all the other doors by pressing the door-
lock switch on the inside of the driver's
door.
Front passenger door handle
To unlock the doors, touch the sensor area
on the inside of a front passenger door
handle. A beep sound will be heard twice
and the hazard warning lights will flash
twice.
NOTElThe doors cannot be unlocked for about
three seconds after they are locked even if
the sensor area on the inside of either front
door handle is touched.
lGrasp either front door handle properly to
unlock the doors, and make sure it is
unlocked before opening it.
If the door handle is pulled before the door
is unlocked, the door may not open. If this
happens, lock the door and securely grasp
the door handle again to confirm that the
door is unlocked, then open the door.
lThe sensor is installed on the inside of the
front door handles. The doors cannot be
unlocked by touching any area other than
the sensor area.
lIf you grasp a front door handle while
wearing gloves, the doors may not unlock,
or they could require extra time to unlock.
lThe doors could unlock if someone is
carrying the advanced key near the front
door handle and the front door handle is
splashed with water such as by rain, or by
a car wash.
lIf your vehicle has a theft-deterrent system,
the hazard warning lights only flash when
the system is turned off.
Refer to the theft-deterrent system on page
3-55.
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-8.
lA beep sound is heard for confirmation
when the doors are unlocked using a door
handle. If you prefer, the beep sound can be
turned off.
The volume of the beep sound can also be
adjusted.
Refer to Personalization Features on page
10-8.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
Mazda6_8Z64-EA-08H_Edition1 Page79
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (80,1)
l(Auto re-lock function)
After unlocking the doors using the sensor
on the inside of the door handle, all the
doors will automatically lock if any of the
following operations are not done within
about 30 seconds. If your vehicle has a
theft-deterrent system, the hazard warning
lights will flash for confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-8.
lA door or the trunk lid is opened.lThe auxiliary key is inserted into the key
slot.
lThe push button start is in any position
except off position.
lIt may require a few seconds for the doors
to unlock after touching the sensor area on
the inside of either front door handle.
qOpening the Trunk Lid with
Request Switch
The trunk lid can be opened by pressing
the request switch on the under side of the
trunk lid above the license plate while the
advanced key is being carried.
Request switch
NOTElIf the advanced key is left in the trunk, the
trunk lid will close, however, the trunk lid
can be opened using the request switch and
the vehicle could be stolen.
lWhile the ignition is switched ON, the trunk
lid can be opened only when the vehicle is
stopped with the parking brake applied
(manual transaxle) or with the selector
lever in the P position (automatic
transaxle).
qStarting the Engine
Locking, unlocking the steering wheel
The steering wheel is locked if a door is
opened/closed/locked after the power is
turned off using the push button start
while the vehicle is stopped.
This is an automatic safety device to
protect the vehicle against theft.
The steering wheel can be unlocked by
pressing the push button start.
If the electronic steering lock warning
light is flashing and the beep sound is
heard, this indicates that the steering
wheel is not unlocked. To unlock the
steering wheel, jiggle the steering wheel
from side to side while pressing the push
button start.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda6_8Z64-EA-08H_Edition1 Page80
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (126,1)
lOpening the hood by operating the
hood release handle.
l(Without advanced key)
Switching the ignition ON without the
key.
(With advanced key)
Switching the ignition ON without
using the push button start.
lOpening the trunk lid by operating the
trunk lid release button.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by unlocking a door using the
sensor on the inside of the door handle.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
q How to Arm the System
1. Remove the key from the ignition
switch.
(With advanced key)
Press the push button start to off
position, if the auxiliary key is inserted
in the key slot, remove it.
2. Make sure the hood and the trunk lid are closed. Close and lock all doors and
the trunk lid from the outside using the
key. If you have the keyless entry
system, press the lock button on the
transmitter.
(With advanced key)
Press a request switch on the doors or
the lock button on the transmitter.
(Without advanced key)
The following method will also arm the
theft-deterrent system:
Close the hood and the trunk lid . Press
the area on the door-lock switch
marked “
”once. Close all doors.
The hazard warning lights will flash
once to indicate that the system is
armed.
The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the trunk lid
and the hood closed.
3. After 20 seconds, the system is fully armed.
3-56
Knowing Your Mazda
Security System
Mazda6_8Z64-EA-08H_Edition1 Page126
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (127,1)
NOTElThe system will disarm if one of the
following operations takes place within 20
seconds after closing the trunk lid and
locking all the doors:
lPressing the unlock button on the
transmitter.
lAny door or the trunk lid is opened.lUnlocking a door with the inside door-
lock knob.
lThe hood is opened.lThe key is inserted in the ignition switch.lThe auxiliary key inserted into the key
slot (with advanced key).
l(With advanced key)
The push button start is pressed or a
door is unlocked using the sensor on the
inside of the door handle.
lThe ignition is switched on.
To rearm the system, do the arming
procedure again.
lWhen the doors are locked by pressing the
lock button on the transmitter or using the
key while the theft-deterrent system is
armed, the hazard warning lights will flash
once to indicate that the system is armed.
lThere is nothing to sense that a window or
moonroof is open in the system, you must
confirm the windows and moonroof before
you activate the system, and be careful with
the advanced key not to open the windows
and moonroof unintentionally when
unlocking the vehicle.
q To Turn Off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
(key slot) and switch the ignition to
ON.
l(With advanced key)lUnlock a door using the sensor on
the inside of the door handle.
lThe ignition is switched on.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or using the
key while the theft-deterrent system is turned
off, the hazard warning lights will flash twice
to indicate that the system is turned off.
q To Stop the Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key or the start knob.
l(With advanced key)lPress the unlock button or press and
hold the trunk button on the
transmitter.
lUnlock a door using the sensor on
the inside of the door handle.
lThe engine is started with the push
button start.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
Knowing Your Mazda
Security System
3-57
Mazda6_8Z64-EA-08H_Edition1 Page127
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (132,1)
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lFor information regarding the 3 buttons
(,,) on the auto-dimming
mirror, refer to HomeLink Wireless Control
System (page 5-70).
lThe auto-dimmer function is canceled when
the ignition is switched ON and the shift
lever/selector lever is in reverse (R).
3-62
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda6_8Z64-EA-08H_Edition1 Page132
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (134,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.Fuel Octane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system to lose effectiveness. It
could also cause engine knocking and serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10% ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Never add cleaning agents other than those
specified by Mazda. Other cleaning agents and additives may damage the system.
Consult an Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda6_8Z64-EA-08H_Edition1 Page134
Wednesday, June 25 2008 10:3 AM
Form No.8Z64-EA-08H

Black plate (171,1)
Tire Pressure Monitoring Systemí
The tire pressure monitoring system (TPMS) monitors the pressure for each tire.
If tire pressure is too low in one or more tires, the system will inform the driver via the
warning light in the instrument panel and by the warning beep sound.
The tire pressure sensors installed on each wheel send tire pressure data by radio signal to
the receiver unit in the vehicle.
Tire pressure sensors
NOTEWhen the ambient temperature is low due to seasonal changes, tire temperatures are also lower.
When the tire temperature decreases, the air pressure decreases as well. The TPMS warning light
may illuminate more frequently. Visually inspect the tires daily before driving, and check tire
pressures monthly with a tire pressure gauge. When checking tire pressures, use of a digital tire
pressure gauge is recommended.
TPMS does not alleviate your need to check the pressure and condition of all four tires
regularly.
Driving Your Mazda
Starting and Driving
5-27íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page171
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (174,1)

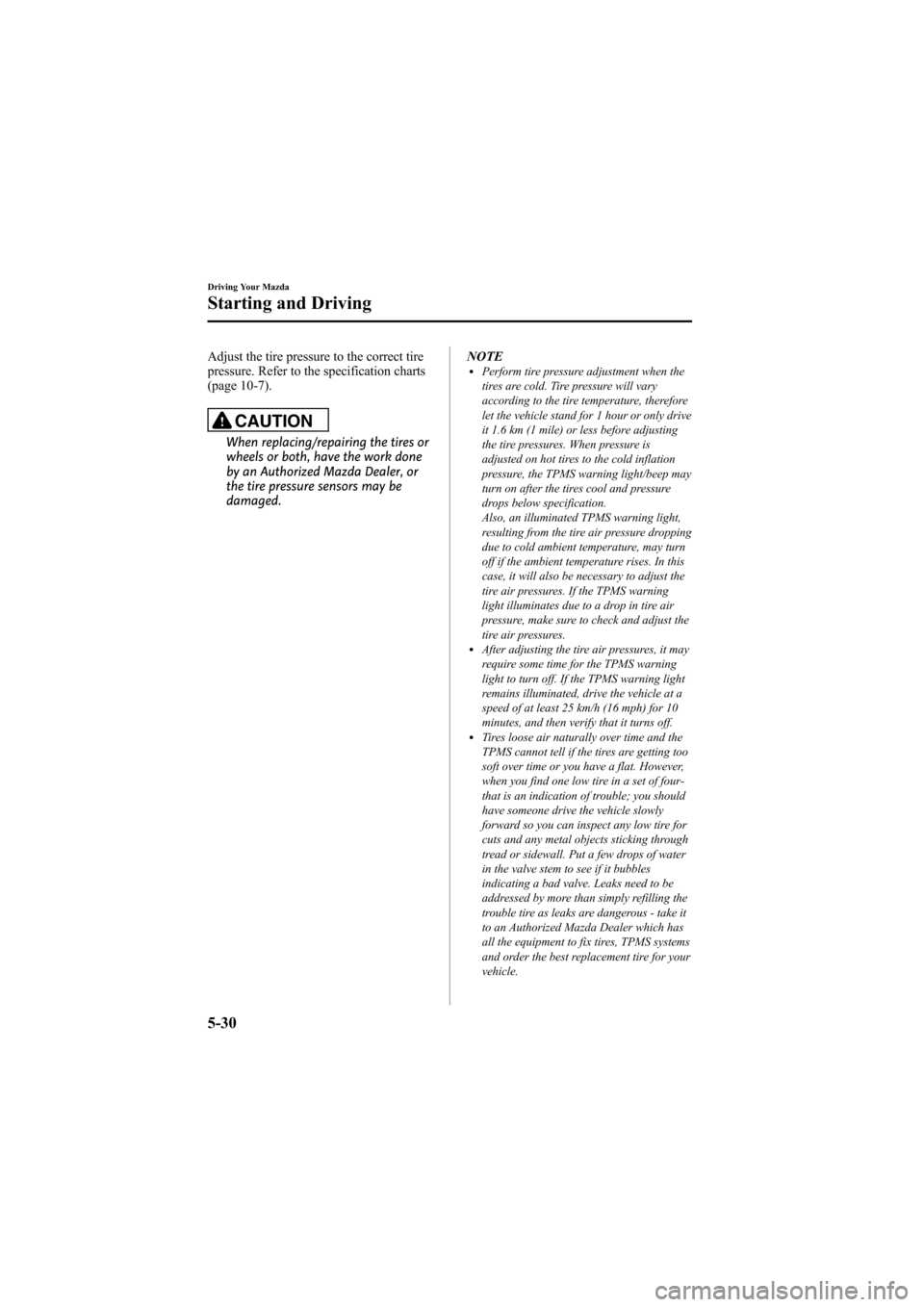

Adjust the tire pressure to the correct tire
pressure. Refer to the specification charts
(page 10-7).
CAUTION
When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.NOTE
lPerform tire pressure adjustment when the
tires are cold. Tire pressure will vary
according to the tire temperature, therefore
let the vehicle stand for 1 hour or only drive
it 1.6 km (1 mile) or less before adjusting
the tire pressures. When pressure is
adjusted on hot tires to the cold inflation
pressure, the TPMS warning light/beep may
turn on after the tires cool and pressure
drops below specification.
Also, an illuminated TPMS warning light,
resulting from the tire air pressure dropping
due to cold ambient temperature, may turn
off if the ambient temperature rises. In this
case, it will also be necessary to adjust the
tire air pressures. If the TPMS warning
light illuminates due to a drop in tire air
pressure, make sure to check and adjust the
tire air pressures.
lAfter adjusting the tire air pressures, it may
require some time for the TPMS warning
light to turn off. If the TPMS warning light
remains illuminated, drive the vehicle at a
speed of at least 25 km/h (16 mph) for 10
minutes, and then verify that it turns off.
lTires loose air naturally over time and the
TPMS cannot tell if the tires are getting too
soft over time or you have a flat. However,
when you find one low tire in a set of four-
that is an indication of trouble; you should
have someone drive the vehicle slowly
forward so you can inspect any low tire for
cuts and any metal objects sticking through
tread or sidewall. Put a few drops of water
in the valve stem to see if it bubbles
indicating a bad valve. Leaks need to be
addressed by more than simply refilling the
trouble tire as leaks are dangerous - take it
to an Authorized Mazda Dealer which has
all the equipment to fix tires, TPMS systems
and order the best replacement tire for your
vehicle.
5-30
Driving Your Mazda
Starting and Driving
Mazda6_8Z64-EA-08H_Edition1 Page174
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (175,1)
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture. Replace the
punctured tire with the temporary spare
tire (page 7-6).
NOTE
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
qSystem Error Activation
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
A system error activation may occur in
the following cases:
lWhen there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.
lWhen using the following devices in
the vehicle that may cause radio
interference with the receiver unit.
lA digital device such as a personal
computer.
lA current converter device such as a
DC-AC converter.
lWhen excess snow or ice adheres to
the vehicle, especially around the
wheels.
lWhen the tire pressure sensor batteries
are exhausted.
lWhen using a wheel with no tire
pressure sensor installed.
lWhen using tires with steel wire
reinforcement in the side walls.
qTires and Wheels
CAUTION
When inspecting or adjusting the tire
air pressures, do not apply excessive
force to the stem part of the wheel
unit. The stem part could be
damaged.
Changing tires and wheels
The following procedure allows the
TPMS to recognize a tire pressure sensor's
unique ID signal code whenever tires or
wheels are changed, such as changing to
and from winter tires.
NOTE
Each tire pressure sensor has a unique ID
signal code. The signal code must be
registered with the TPMS before it can work.
The easiest way to do it is to have an
Authorized Mazda Dealer change your tire and
complete ID signal code registration.
When having tires changed at an
Authorized Mazda Dealer
Tire pressure sensor ID signal code
registration is completed when an
Authorized Mazda Dealer changes your
vehicle's tires.
When changing tires yourself
If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
1. After tires have been changed, switch
the ignition ON, then back to ACC or
off (LOCK).
2. Wait for about 15 minutes.
Driving Your Mazda
Starting and Driving
5-31
Mazda6_8Z64-EA-08H_Edition1 Page175
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H
