Black plate (205,1)
CAUTION
ØDo not shade the light sensor by
adhering a sticker or a label on
the windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
ØThe light sensor also works as a
rain sensor for the auto-wiper
control. Keep hands and scrapers
clear of the windshield when the
ignition is switched ON as fingers
could be pinched or the wipers and
wiper blades damaged when the
wipers activate automatically. If
you are going to clean the
windshield, be sure the wipers are
turned off completely - this is
particularly important when
clearing ice and snow - when it is
particularly tempting to leave the
engine running. NOTE
lThe light may not turn off immediately even
if the surrounding area becomes well-lit
because the light sensor determines that it
is nighttime if the surrounding area is
continuously dark for several minutes such
as inside long tunnels, traffic jams inside
tunnels, or in indoor parking lots.
In this case, the light turns off if the light
switch is turned to the OFF position.
lThe timing for turning on the headlights,
other exterior lights and dashboard
illumination can be delayed by adjusting
the sensitivity of the light sensor. Consult an
Authorized Mazda Dealer regarding sensor
adjustment.
lThe sensitivity of the AUTO lights may be
changed.Refer to Personalization Features
on page 10-8.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
NOTE
If the headlights flicker, or the brightness
weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an
Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-61íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page205
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (210,1)

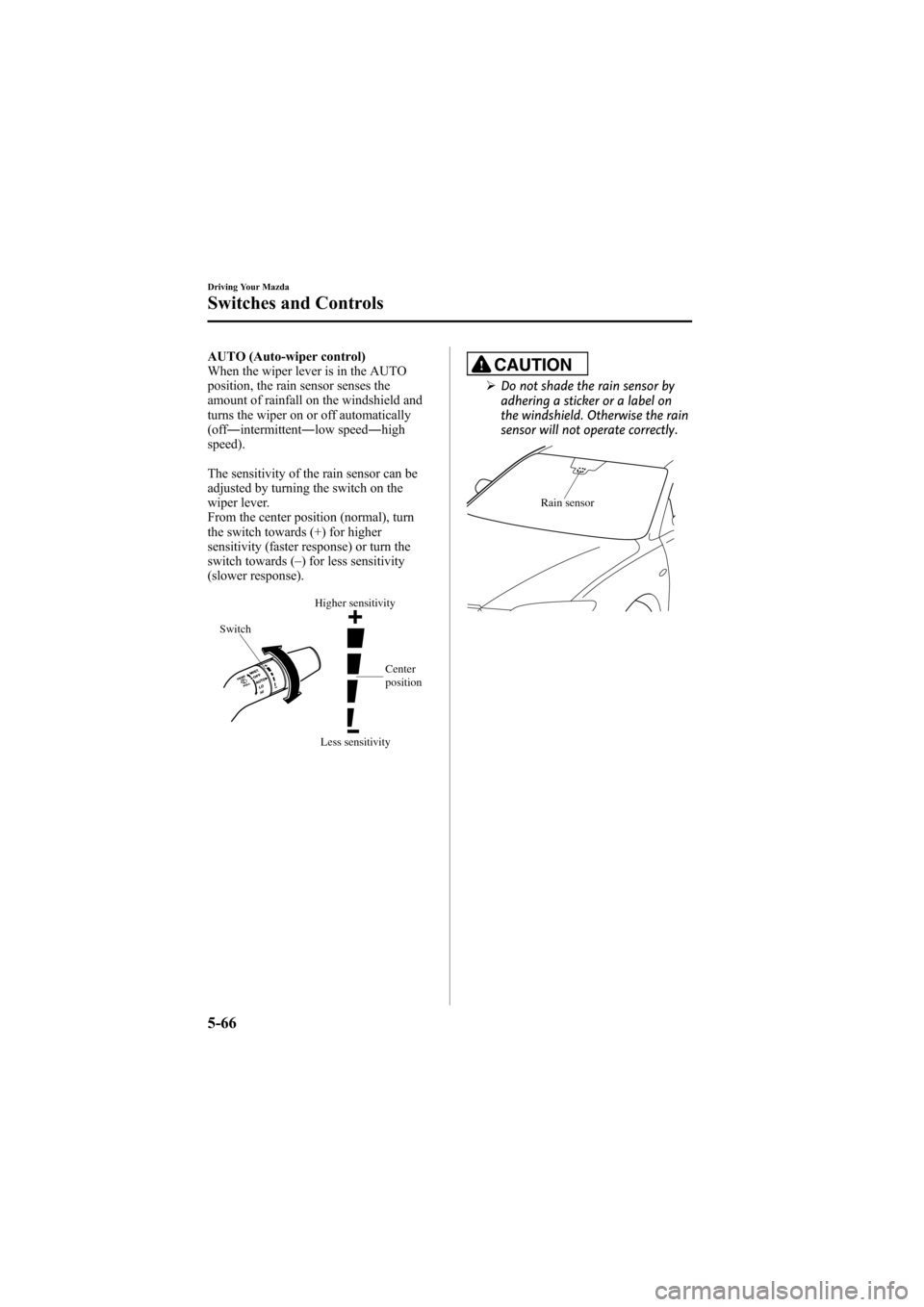

AUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off―intermittent ―low speed ―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards ( _
) for less sensitivity
(slower response).
Switch Higher sensitivity
Less sensitivity
Center
position
CAUTION
Ø Do not shade the rain sensor by
adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.
Rain sensor
5-66
Driving Your Mazda
Switches and Controls
Mazda6_8Z64-EA-08H_Edition1 Page210
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (211,1)
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Keep hands and scrapers clear of
the windshield when the ignition is
switched ON as fingers could be
pinched or the wipers and wiper
blades damaged when they
activate automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely - this is
particularly important when
clearing ice and snow - when it is
particularly tempting to leave the
engine running. NOTE
lSwitching the auto-wiper lever from the
OFF to the AUTO position while driving at
a vehicle speed of 4 km/h (2 mph) or higher
(or after driving the vehicle) activates the
windshield wipers once, after which they
operate according to the rainfall amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (e.g. ice or matter
containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, pull the wiper
lever to the low speed or high speed
position for manual operation, or remove
the ice, dirt or foreign matter by hand to
restore the auto-wiper operation.
Driving Your Mazda
Switches and Controls
5-67
Mazda6_8Z64-EA-08H_Edition1 Page211
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (233,1)
NOTElSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the outside air position is
automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows (page 6-4). Airflow amount will
be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):Using theposition with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident. NOTE
Use the temperature control dial to increase
the air flow temperature and defog the
windshield more quickly.
q
Sunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda6_8Z64-EA-08H_Edition1 Page233
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (376,1)
qReplacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
CAUTION
(With Tire Pressure Monitoring
System)
When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.
NOTE
(With Tire Pressure Monitoring System)lWhen tires with steel wire reinforcement in
the sidewalls are used, the system may not
function correctly even with a genuine
wheel.
Refer to System Error Activation on page
5-31.
lBe sure to install the tire pressure sensors
whenever tires or wheels are replaced.
Refer to Tires and Wheels on page 5-31.
If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New tread Tread wear indicator
Worn tread
You should replace it before the band is
across the entire tread.
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. Regarding the manufacturing week and
year is indicated with 4 digit.
Refer to The tire labeling on page 9-24.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
8-34
Maintenance and Care
Owner Maintenance
Mazda6_8Z64-EA-08H_Edition1 Page376
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (377,1)
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (4.2
kgf/cm
2or bar, 60 psi).
CAUTION
ØDo not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
Ø The temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
Ø The temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 8-34).
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. Regarding the manufacturing week and
year is indicated with 4 digit.
Refer to The tire labeling on page 9-24.
q Replacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fitØWheel and bearing lifeØGround clearanceØSpeedometer calibrationØHeadlight aimØBumper heightØTire Pressure Monitoring
System
Ø (With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-31.
Maintenance and Care
Owner Maintenance
8-35
Mazda6_8Z64-EA-08H_Edition1 Page377
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (396,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in
the ON position, the wipers may
move automatically in the following
cases:
Ø If the windshield above the rain
sensor is touched.
Ø If the windshield above the rain
sensor is wiped with a cloth.
Ø If the windshield is struck with a
hand or other object.
Ø If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur. Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
8-54
Maintenance and Care
Appearance Care
Mazda6_8Z64-EA-08H_Edition1 Page396
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (455,1)
SettingFunctionInitial Setting After Setting Change
Advanced keyless
entry Activates function to automatically lock doors
when leaving vehicle
(with key being carried away)
Deactivated Activated
Deactivates advanced key remaining battery
level warning light in instrument cluster Activated Deactivated
Adjusts sound volume of answer-back beep
during keyless entry system operation Low High/Deactivated
Adjusts sound volume of warning beep for
advanced keyless entry system High
Low
Chooses whether permission is given to open
trunk when advanced keys are both inside trunk
or outside vehicle Permitted Not permitted
Deactivates function that allows power supply
to turn off automatically when ignition has been
switched to ACC for a long period of time Activated Deactivated
Selects a transition pattern in which ignition
position can be switched when pressing push
button start ON> Off ON> ACC> Off
Deactivates advanced key function Activated Deactivated
Selects door unlocking method with the door
handle sensor and/or the request switch. 1. Touch the
handle, and only
the driver's door
unlocks.2. Touch the handle,
and all doors unlock./3.
Press the request
switch once to unlock
driver's door. Press
again to unlock the
rest./4. Touch the
handle to unlock
driver's door, then
press the request
switch to unlock the
rest.
The following “Personalization Features ”can be changed by customer.
Setting FunctionInitial Setting After Setting Change
Welcome sound Deactivates welcome sound function 6-28 Activated Deactivated
Personalization Features
10-9
Mazda6_8Z64-EA-08H_Edition1 Page455
Wednesday, June 25 2008 10:6 AM
Form No.8Z64-EA-08H

Black plate (458,1)
A
Accessory Socket ............................ 6-105
Add-On Non-Genuine Parts and
Accessories ....................................... 9-18
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-19
Auxiliary key .............................. 3-18
Locking, unlocking doors ............ 3-8
Opening the trunk lid with request
switch ......................................... 3-10
Operational range ......................... 3-7
Remote control function ............. 3-16
Service ......................................... 3-6
Warning and beep sounds .......... 3-19
When warning indicator/beep is
activated ..................................... 3-22
Air Bag Systems ............................... 2-41
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-7 Warning light ............................... 5-8
Appearance Care ............................... 8-52
Audio System ................................... 6-16 Audio control switch .................. 6-56
Audio set .................................... 6-27
AUX mode ................................. 6-59
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-62
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-24
Manual shift mode ..................... 5-15
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-13
Maintenance ............................... 8-31
Specifications ............................. 10-4
Beeps Electronic Steering Lock ............ 5-59
Ignition key reminder ................. 5-59
Seat belt warning beep Sounds ... 5-59
Tire inflation pressure warning
beep ............................................ 5-59
Before Starting the Engine .................. 4-5
After getting in ............................. 4-5
Before getting in .......................... 4-5
Blind Spot Monitoring
(BSM) System .................................. 5-33 BSM OFF Indicator Light .......... 5-35
BSM OFF Switch ....................... 5-36
Care of Radar Sensors ................ 5-36
Warning Light/Beep ................... 5-35
Bluetooth Audio ............................... 6-63
Bluetooth Hands-Free ....................... 6-72 Basic Bluetooth Hands-Free
Operation ................................... 6-76
Convenient Use of the Hands-Free
System ........................................ 6-79
Hands-Free Setting ..................... 6-85
Mazda Bluetooth Hands-Free
Customer Service ....................... 6-92
Safety Certification .................... 6-92
When Bluetooth Hands-Free Cannot
be Used ...................................... 6-91
Body Lubrication .............................. 8-28
Bottle Holder ................................... 6-101
Brake/Clutch Fluid ........................................... 8-22
11-2
Index
Mazda6_8Z64-EA-08H_Edition1 Page458
Wednesday, June 25 2008 10:6 AM
Form No.8Z64-EA-08H
