Black plate (182,1)
Meters and Gauges
(Black-out meter)
When the ignition is switched ON, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-39
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-39
Tachometer ........................................................................................................ page 5-40
Engine Coolant Temperature Gauge .................................................................. page 5-40
Fuel Gauge ........................................................................................................ page 5-41
Dashboard Illumination ..................................................................................... page 5-41
Outside Temperature Display ............................................................................. page 5-42
5-38
Driving Your Mazda
Instrument Cluster and Indicators
Mazda6_8Z64-EA-08H_Edition1 Page182
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (183,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Trip meter B
Press the selector
Press the selector
Trip meter A Odometer
Odometer
NOTE(Standard meter)
The odometer and trip meter can be displayed
as follows even when the ignition is switched
to ACC or off (LOCK).
The headlight switch must be in the
orposition to see the display.lDisplays for 10 minutes after the ignition is
switched to ACC or off (LOCK) from ON.
lDisplays for 10 minutes after the driver's
door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0 ”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
Driving Your Mazda
Instrument Cluster and Indicators
5-39
Mazda6_8Z64-EA-08H_Edition1 Page183
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (185,1)

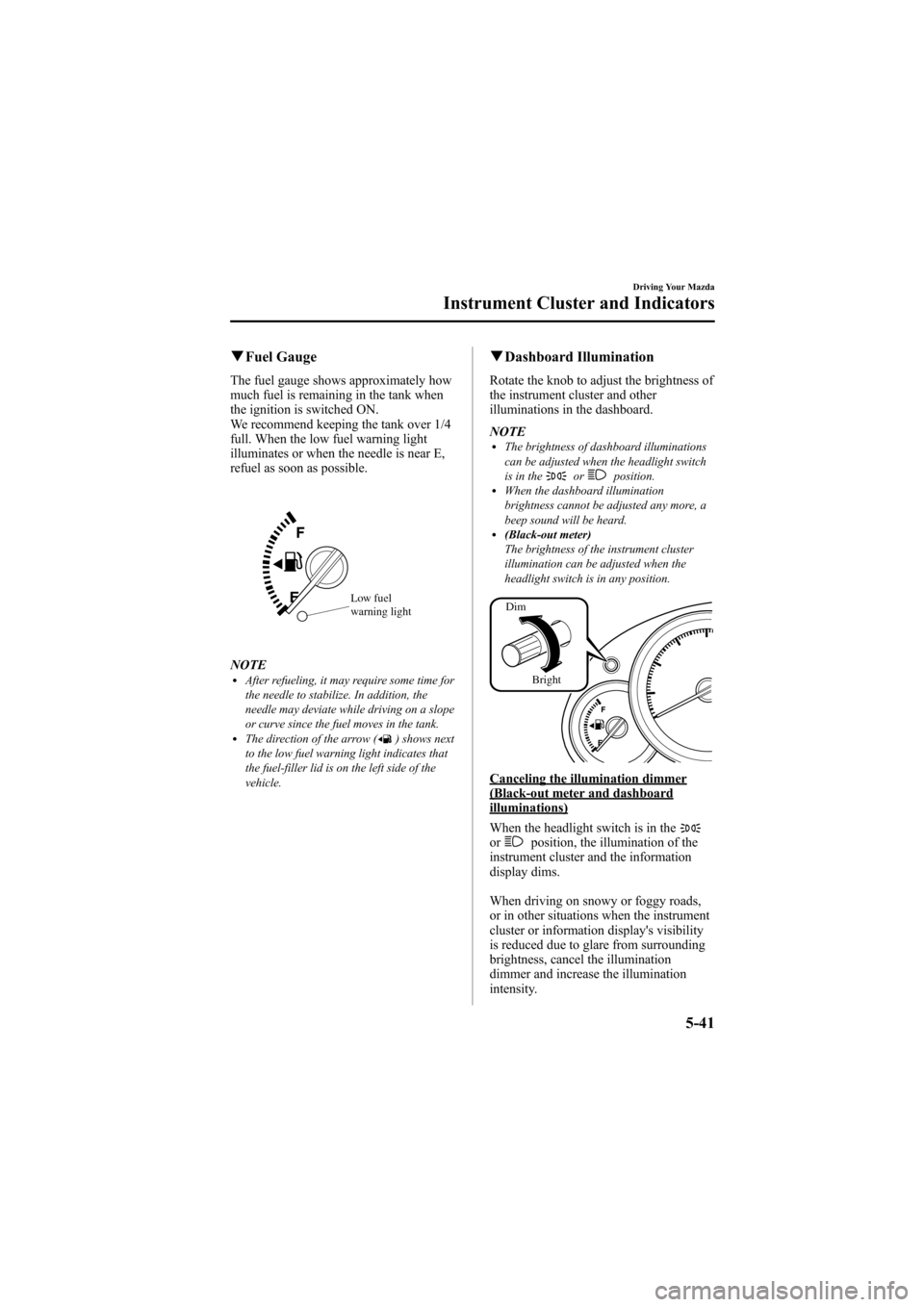

qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Low fuel
warning light
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () shows next
to the low fuel warning light indicates that
the fuel-filler lid is on the left side of the
vehicle.
q Dashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
l(Black-out meter)
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Dim
Bright
Canceling the illumination dimmer(Black-out meter and dashboardilluminations)
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
Driving Your Mazda
Instrument Cluster and Indicators
5-41
Mazda6_8Z64-EA-08H_Edition1 Page185
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (186,1)
To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
If the dashboard illumination knob is kept at
the illumination dimmer cancel position, the
instrument cluster and the information display
will not dim when the headlight switch is
turned to the
orposition again.
qOutside Temperature Display
The outside temperature is displayed
when the ignition is switched ON.
NOTElThe displayed ambient temperature varies
from the actual ambient temperature
depending on the surrounding conditions as
well as the driving conditions.
lTo have the ambient temperature display
changed from Fahrenheit (°F) to
Centigrade (°C), contact an Authorized
Mazda Dealer.
5-42
Driving Your Mazda
Instrument Cluster and Indicators
Mazda6_8Z64-EA-08H_Edition1 Page186
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (200,1)
qShift Position Indicator Light
(Automatic Transaxle)
This indicates the selected shift position.
Gear position indicator
In manual mode, the “M ”of the shift
position indicator illuminates and the
numeral for the selected gear displays in
the gear position indicator.
q TCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes. If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
q
TCS OFF Indicator Lightí
This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 5-24.
If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an Authorized Mazda Dealer. The TCS
may have a malfunction.
5-56
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
Mazda6_8Z64-EA-08H_Edition1 Page200
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (219,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type ............................................................................. 6-6
Fully Automatic Type ............................................................. 6-11
Audio System ............................................................................... 6-16 Antenna ................................................................................... 6-16
Operating Tips for Audio System ........................................... 6-16
Audio Set ................................................................................ 6-27
Audio Control Switch Operation
í......................................... 6-56
AUX Mode (Auxiliary input)í............................................... 6-59
Safety Certification ................................................................. 6-62
Bluetooth Audio .......................................................................... 6-63 Bluetooth Audio
í................................................................... 6-63
Bluetooth Hands-Free ................................................................. 6-72 Bluetooth Hands-Free
í.......................................................... 6-72
Basic Bluetooth Hands-Free Operation ................................... 6-76
Convenient Use of the Hands-Free System ............................. 6-79
Hands-Free Setting .................................................................. 6-85
When Bluetooth Hands-Free Cannot be Used ........................ 6-91
Safety Certification ................................................................. 6-92
Mazda Bluetooth Hands-Free Customer Service .................... 6-92
Interior Equipment ..................................................................... 6-93 Sunvisors ................................................................................. 6-93
Interior Lights ......................................................................... 6-94
Information Display ................................................................ 6-96
Cup Holder ............................................................................ 6-100
Bottle Holder ......................................................................... 6-101
Storage Compartments .......................................................... 6-102
Accessory Sockets ................................................................ 6-105
6-1íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page219
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (229,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Information display
A/CAU TOAir intake display
Temperature setting display (driver) Fan speed display
Mode selector display Temperature setting display (passenger)
A/C switch
AUTO switch
Driver temperature control dial Windshield defroster switch
Fan control dial Passenger temperature control dial Mode selector switch
Air intake selector
OFF switchDUAL switch
Interior Comfort
Climate Control System
6-11
Mazda6_8Z64-EA-08H_Edition1 Page229
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (230,1)
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial and windshield defroster
switch. Other functions will continue to
operate automatically.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
lWhen the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
lWhen the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The system changes to the individual operation
mode (DUAL switch indicator light
illuminated) by turning the front passenger
temperature control dial even when the DUAL
switch is off, which allows individual control
of the set temperature for the driver and front
passenger.
Fan control dial
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
6-12
Interior Comfort
Climate Control System
Mazda6_8Z64-EA-08H_Edition1 Page230
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (239,1)
lInsert discs one by one. If two discs are
inserted at the same time, the system
may not operate properly.
lCD TEXT textual information cannot
be displayed by audio units other than
the CD player/In-dash CD changer.
(Only playback is possible.)
lThe following player can play MP3/
WMA files recorded in CD-ROM, CD-
R, and CD-RW.
· CD player
· In-dash CD changer
lThe CD player/In-dash CD changer
ejects the CD if the CD is inserted
upside down. Also dirty and/or
defective CDs may be ejected.
lAn 8 cm (3 in) CD can be played in the
CD player.
When playing an 8 cm (3 in) CD with
the CD player, use a CD adapter. If an
8 cm (3 in) CD adapter is not used, the
CD player may be damaged. Always
use a CD adapter.
The In-dash CD changer is specially
made for 12 cm (5 in) CDs.
An 8 cm (3 in) CD can be played in the
In-dash CD changer if an 8 cm (3 in)
CD adapter is used.
If an 8 cm (3 in) CD adapter is not
used, the In-dash CD changer may be
damaged. Always use a CD adapter.
lDo not insert cleaning discs in the CD
player/In-dash CD changer.
lDo not insert any disc with a peel-off
seal affixed to it.
lThis unit may not be able to play
certain CD-R/CD-RWs made using a
computer or music CD recorder due to
disc characteristics, scratches,
smudges, dirt, etc., or due to dust or
condensation on the lens inside the
unit.
lStoring CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
lCD-R/CD-RW exceeding 700 MB
cannot be played.
lThis unit may not be able to play
certain discs made using a computer
due to the application (writing
software) setting used. (For details,
consult the store where the application
was purchased.)
lIt is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical
data (CD-DA) is playing.
lThe period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
lCompletely read the instruction manual
and cautions for CD-R/CD-RWs.
lDo not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label affixed. The disc may not
eject resulting in a malfunction.
Interior Comfort
Audio System
6-21
Mazda6_8Z64-EA-08H_Edition1 Page239
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (241,1)
05
06
010204
03
15 4 2 3
Folder
No.
Level1
Level2 Level3
Level4
Playback may not occur in the above
hierarchy depending on the audio unit. : Track (File)
: Folder
lThe folder order is automatically
assigned and this order cannot be
optionally set.
lAny folder without an MP3 file will be
ignored. (It will be skipped and the
folder number will not be displayed.)
lMP3 files not conforming to the MP3
format containing both header frames
and data frames will be skipped and
not played.
lThis unit will play MP3 files that have
up to eight levels. However, the more
levels a disc has, the longer it will take
to initially start playing. It is
recommended to record discs with two
levels or less.
lA single disc with up to 512 files can
be played and a single folder with up to
255 files can be played.
lWhen naming an MP3 file, be sure to
add an MP3 file extension (.mp3) after
the file name.
lThe maximum number of characters
that can be used for file names is as
follows. However, this unit will only
display up to 32 characters, including
the file extension (.mp3).
Maximum number of
characters in a file name
(including a separator “.”
and the three letters of the file extension)
ISO9660 level 1 12
*
ISO9660 level 231*
Joliet extended
format 64
Romeo extended
format 128
* English one-byte characters (capitalized only) and underbar “_ ” are available.
CAUTION
This unit can only play MP3 files that
have an MP3 file extension (.mp3)
attached. Do not attach an MP3 file
extension to any other type file as it
could cause noise to be emitted or a
malfunction in the unit.
About ID3 Tag display
lThis unit can only display ID3 Tag
album, track and artist names that have
been input using Ver.1.0/1.1/2.2/2.3
formats. Any other data that may have
been input cannot be displayed.
lThis unit can only display English
(including numerals) one-byte
characters. Use only English (including
numerals) one-byte characters when
inputting ID3 tags. Two-byte characters
and some special symbols cannot be
displayed.
Interior Comfort
Audio System
6-23
Mazda6_8Z64-EA-08H_Edition1 Page241
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H
