Black plate (495,1)
qIf the tire pressure monitoring
system warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qIf the KEY indication/warning
light (red) is indicated
Type A
“Keyless System Inspection Required”
is displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
“Set Power to OFF”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
“Key not found”is displayed
This message is displayed when any of
the following operations is performed
with the key out of the operational range
or placed in areas inside the cabin where it
is difficult for the key to be detected.
lThe push button start is pressed with
the ignition switched off
lThe ignition is switched onlAll doors are closed without switching
the ignition off
Type B
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-35
Mazda6_8DQ8-EA-13L_Edition3 Page495
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (499,1)
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the front passenger's seat
belt is not fastened and the vehicle is
driven at a speed faster than about 20
km/h (12 mph), a beep sound will be
heard again for a specified period of time.NOTE
lSome models do not have the seat belt
warning function for the front passenger's
seat.
lPlacing heavy items on the front passenger
seat may cause the front passenger seat belt
warning function to operate depending on
the weight of the item.
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard to notify the
driver that the ignition has not been
switched off (STOP) (for vehicles with a
type A meter, messages are displayed in
the instrument cluster). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-39
Mazda6_8DQ8-EA-13L_Edition3 Page499
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (546,1)

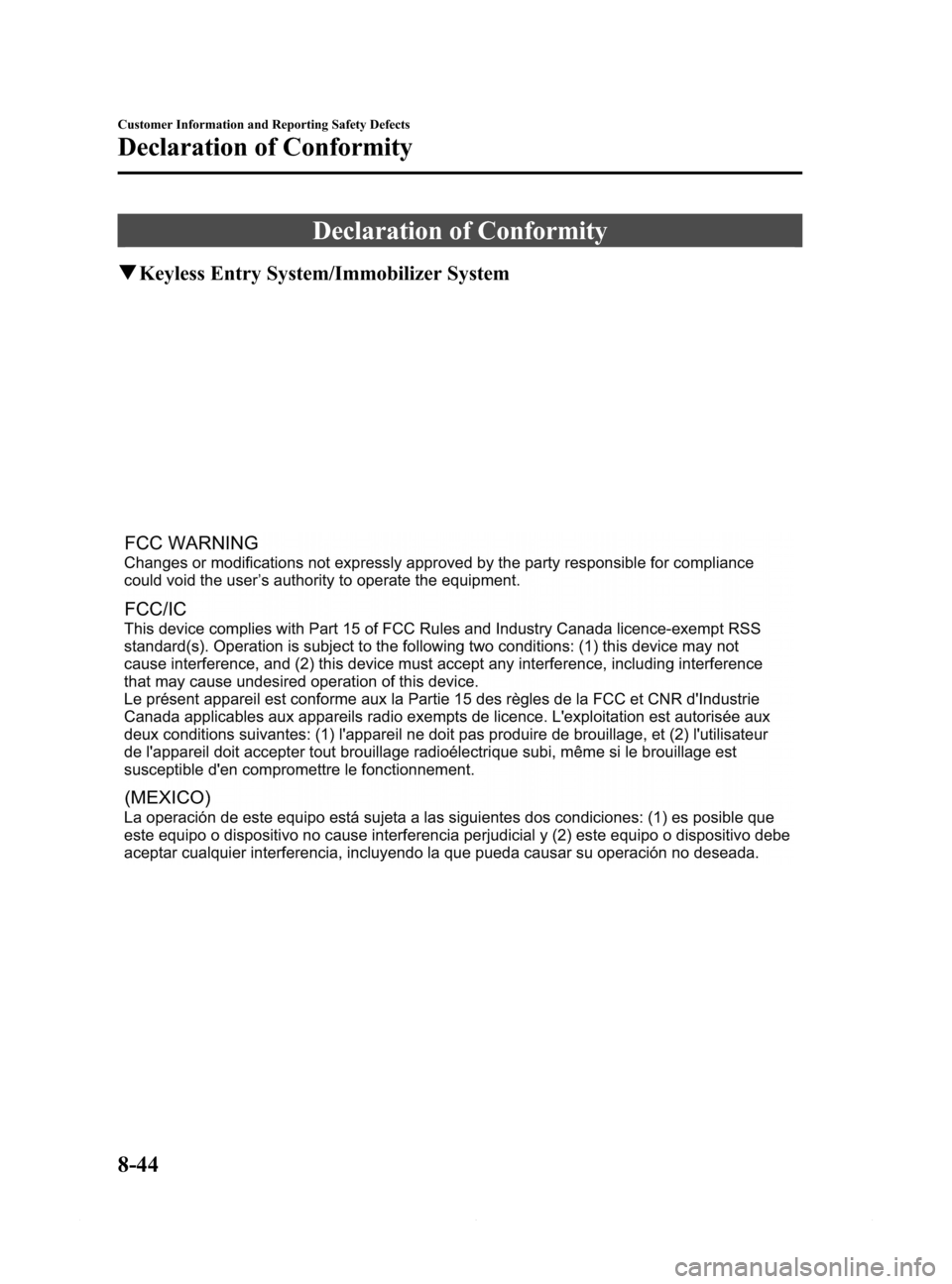

Declaration of Conformity
qKeyless Entry System/Immobilizer System
8-44
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mazda6_8DQ8-EA-13L_Edition3 Page546
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (564,1)
The following personalization features can be changed by the vehicle owner.
Items in which the feature setting can be changed differ depending on the market and specification.
Item Feature Factory Setting Available Settings
Power door lockChanges the auto lock/unlock function setting for all
the doors according to the vehicle speed, the vehicle
power supply condition, and the selector lever
position.
Refer to Auto Lock/Unlock Function on page 3-15.
Refer to Setup on page 5-55.Lock: Driving,
Unlock: IGN
OffOff/
Lock When Driving/
Lock: Driving,
Unlock: IGN Off/
Lock When Shifting
Out Of P/
Lock: Shift From P,
Unlock: In P
Keyless entry
systemThe method for unlocking the doors using the
transmitter can be changed.
Refer to Transmitter on page 3-4.
Refer to Setup on page 5-55.Once: Driver's,
Twice: All
DoorsTouch Once: All
Doors/
Once: Driver's,
Twice: All Doors
The time required for the doors to relock
automatically after unlocking with the transmitter can
be changed.
Refer to Setup on page 5-55.60 seconds90 seconds/
60 seconds/
30 seconds
Advanced keyless
entry systemThe volume of the answer-back beep during advanced
keyless entry system operation can be changed.
Refer to Locking, Unlocking with Request Switch
(With the advanced keyless function) on page 3-13.
Refer to Setup on page 5-55.MediumHigh/
Medium/
Low/
Off
The function to automatically lock the doors when
leaving the vehicle while carrying the key can be
changed.
Refer to Setup on page 5-55.OffOn/
Off
The method for unlocking the doors using the request
switch/transmitter can be changed.
Refer to Transmitter on page 3-4.
Refer to Locking, Unlocking with Request Switch
(With the advanced keyless function) on page 3-13.
Refer to Setup on page 5-55.Once: Driver's,
Twice: All
DoorsTouch Once: All
Doors/
Once: Driver's,
Twice: All Doors
The time required for the doors to relock
automatically after unlocking with the request
switch/transmitter can be changed.
Refer to Setup on page 5-55.60 seconds90 seconds/
60 seconds/
30 seconds
Illumination entryThe time required for the interior lamp to turn off
automatically can be changed
(prevents battery depletion when a door is open/ajar).
Refer to Setup on page 5-55.30 minutes60 minutes/
30 minutes/
10 minutes
The time required for the interior lamp to turn off
automatically after all doors are closed can be
changed.
Refer to Setup on page 5-55.15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds
Three-flash turn
signalThe three-flash turn function can be changed.
Refer to Setup on page 5-55.OnOn/
Off
Auto-wiper controlThe auto-wiper control function can be changed.
Refer to Setup on page 5-55.On
(Rain Sensing)On (Rain Sensing)/
Off (Intermittent)
*1
9-10
Personalization Features
Mazda6_8DQ8-EA-13L_Edition3 Page564
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (568,1)
A
Accessory Socket ............................ 5-116
Adaptive Front Lighting System
(AFS) ................................................ 4-62
Add-On Non-Genuine Parts and
Accessories ....................................... 8-19
Advanced Key
Operational range ....................... 3-10
Advanced Keyless Entry System ........ 3-9
Air Bag Systems ............................... 2-39
Antilock Brake System (ABS) .......... 4-92
Audio Control Switch
Adjusting the Volume ................ 5-57
Mute Switch ............................... 5-58
Seek Switch ................................ 5-57
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-56
Audio Set (Type A) .................... 5-25
Audio Set (Type B) .................... 5-35
AUX/USB/iPod mode ................ 5-60
Commander switch operation .... 5-58
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-44
Automatic Transaxle
Driving tips ................................ 4-56
Shift-lock override ..................... 4-51
Shift-lock system ....................... 4-51
Transaxle ranges ........................ 4-50
B
Battery ............................................... 6-30
Maintenance ............................... 6-31
Replacement ............................... 6-31
Specifications ............................... 9-4
Battery runs out ................................. 7-20
Jump-Starting ............................. 7-20
B
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-39
Blind spot monitoring
(BSM) system warning .............. 7-41
i-ELOOP ..................................... 7-40
Ignition not switched off
(STOP) warning ......................... 7-39
Key left-in-trunk compartment
warning ...................................... 7-40
Key left-in-vehicle warning ....... 7-40
Key removed from vehicle
warning ...................................... 7-40
Lane departure warning system
(LDWS) warning ....................... 7-41
Lights-on reminder ..................... 7-38
Request switch inoperable
warning ...................................... 7-40
Seat belt warning ........................ 7-39
Tire inflation pressure warning ... 7-40
Blind Spot Monitoring
(BSM) System ................................ 4-121
Blind Spot Monitoring
(BSM) ...................................... 4-123
BSM OFF switch ..................... 4-129
BSM warning light ................... 4-128
Care of radar sensors ................ 4-129
Rear Cross Traffic Alert
(RCTA) system ........................ 4-125
Bluetooth® ....................................... 5-79
Bluetooth® Audio .................... 5-104
Bluetooth® Hands-Free ............. 5-85
Troubleshooting ....................... 5-108
Body Lubrication .............................. 6-26
Bottle Holder ................................... 5-118
10-2
Index
Mazda6_8DQ8-EA-13L_Edition3 Page568
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (571,1)
I
i-ELOOP ........................................... 4-96
Display ....................................... 4-96
i-ELOOP Warning Beep ............ 7-40
Ignition
Switch .......................................... 4-2
Illuminated Entry System ................ 5-114
Immobilizer System .......................... 3-41
Indicator Lights
AFS OFF .................................... 4-43
BSM OFF ................................... 4-45
Cruise ......................................... 4-45
DSC OFF .................................... 4-42
HBC ........................................... 4-42
Headlight high-beam .................. 4-44
KEY ............................................ 4-40
LDWS ........................................ 4-33
Low engine coolant
temperature ................................ 4-43
Mazda Radar Cruise Control
(MRCC) ..................................... 4-45
Power steering malfunction ........ 4-34
Security ...................................... 4-44
Shift position .............................. 4-43
SPORT mode indicator light ...... 4-44
TCS/DSC ................................... 4-42
Turn signal/hazard warning ........ 4-44
Wrench ....................................... 4-42
Inside Trunk Release Lever ............... 3-22
Inspecting Brake/Clutch Fluid
Level ................................................. 6-25
Inspecting Coolant Level .................. 6-23
Inspecting Engine Oil Level ............. 6-22
Inspecting Washer Fluid Level ......... 6-25
Instrument Cluster ............................. 4-10
I
Interior Care ...................................... 6-63
Cleaning the Lap/Shoulder Belt
Webbing ..................................... 6-65
Cleaning the Upholstery and Interior
Trim ............................................ 6-63
Cleaning the Window Interiors ... 6-65
Dashboard Precautions ............... 6-63
Interior Lights ................................. 5-113
Courtesy Lights ........................ 5-113
Map Lights ............................... 5-113
Overhead Lights ....................... 5-113
J
Jack ..................................................... 7-5
Jump-Starting .................................... 7-20
K
Key Suspend Function ........................ 3-7
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
Key suspend function ................... 3-7
Transmitter ................................... 3-4
L
Label Information ............................... 9-2
Lane Departure Warning System
(LDWS) .......................................... 4-130
Lane-Change Signals ........................ 4-67
Light Bulbs
Replacement ............................... 6-40
Specifications ............................... 9-6
Lighting Control ............................... 4-58
Lubricant Quality ................................ 9-4
Luggage Compartment ................... 5-121
Index
10-5
Mazda6_8DQ8-EA-13L_Edition3 Page571
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
