tow MAZDA MODEL 6 2014 (in English) Owner's Guide

Black plate (491,1)
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the charging system warning
indication/warning light is indicated
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qIf the engine oil warning indication/
warning light is indicated
Type A/Type B
This warning light/warning indication
indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates or the warning
indication is displayed while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-22).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light/warning indication.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-31
Mazda6_8DQ8-EA-13L_Edition3 Page491
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (492,1)
If the light/indication remains illuminated
even though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qIf the check engine light
illuminates or flashes
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on, or it
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qIf the high engine coolant
temperature warning light (red)
illuminates or flashes
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-24).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
7-32
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mazda6_8DQ8-EA-13L_Edition3 Page492
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (517,1)
Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
8-15
Mazda6_8DQ8-EA-13L_Edition3 Page517
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (538,1)

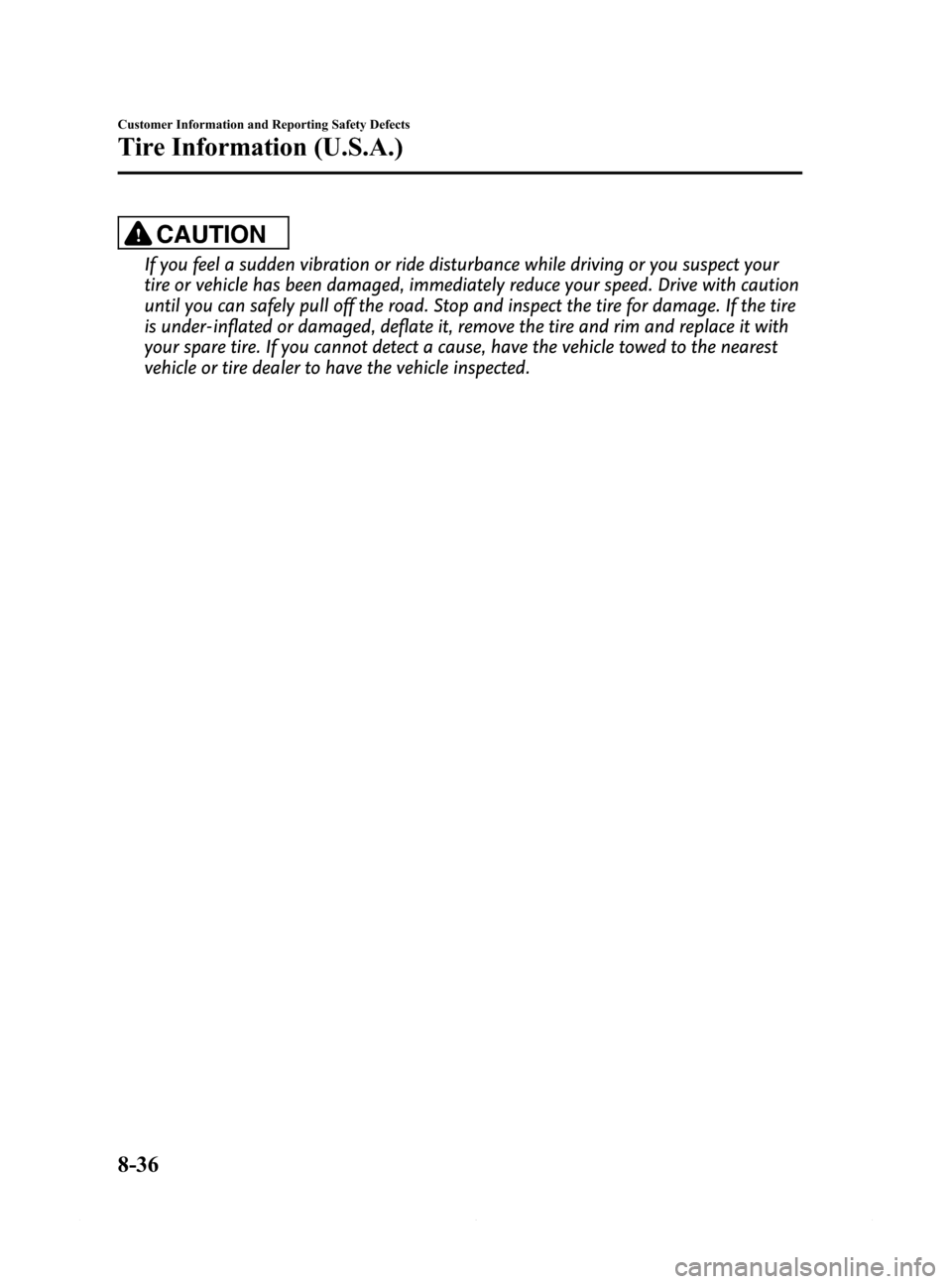

CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your
tire or vehicle has been damaged, immediately reduce your speed. Drive with caution
until you can safely pull off the road. Stop and inspect the tire for damage. If the tire
is under-inflated or damaged, deflate it, remove the tire and rim and replace it with
your spare tire. If you cannot detect a cause, have the vehicle towed to the nearest
vehicle or tire dealer to have the vehicle inspected.
8-36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda6_8DQ8-EA-13L_Edition3 Page538
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (539,1)
Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading your vehicle,
familiarize yourself with the following terms for determining your vehicle's weight ratings,
from the vehicle's Safety Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-37
Mazda6_8DQ8-EA-13L_Edition3 Page539
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (545,1)
Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs.”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be
riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg
or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the“XXX”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400_
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-43
Mazda6_8DQ8-EA-13L_Edition3 Page545
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (569,1)
B
Brakes
Brakes assist ............................... 4-83
Foot brake .................................. 4-81
Pad wear indicator ...................... 4-83
Parking brake ............................. 4-82
Break-In ............................................ 3-45
C
Capacities ............................................ 9-5
Carbon Monoxide ............................. 3-26
Cargo Sub-Compartment ................ 5-121
Cell Phones ....................................... 8-20
Center Console ................................ 5-120
Child Restraint
Child-restraint system
installation .................................. 2-27
Installing child-restraint
systems ....................................... 2-28
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-19
Climate Control System ...................... 5-2
Fully Automatic Type .................. 5-9
Gas specifications ........................ 9-6
Manual Type ................................ 5-5
Operating Tips .............................. 5-2
Vent Operation ............................. 5-3
Clock ............................................... 5-115
Commander switch operation ........... 5-58
Commander knob operation ....... 5-59
Operation of switches around
commander knob ........................ 5-58
Courtesy Lights ............................... 5-113
Cruise Control ................................. 4-111
Cruise Control Set Vehicle Speed ..... 4-15
Cup Holder ...................................... 5-117
Customer Assistance ........................... 8-2
D
Dashboard Illumination .................... 4-13
Daytime Running Lights ................... 4-62
Defogger ........................................... 4-72
Mirror ......................................... 4-73
Dimensions ......................................... 9-5
Direct Mode ...................................... 4-56
Door Locks ....................................... 3-11
Drive Selection ................................. 4-99
Driving In Flooded Area ................... 3-49
Driving on Uneven Road .................. 3-50
Driving Tips ...................................... 3-45
Automatic transaxle ................... 4-56
Break-in ..................................... 3-45
Driving in flooded area .............. 3-49
Driving on uneven road ............. 3-50
Floor mat .................................... 3-46
Hazardous driving ...................... 3-46
Money-saving suggestions ......... 3-45
Overloading ............................... 3-49
Rocking the vehicle .................... 3-47
Winter driving ............................ 3-47
Dynamic Stability Control (DSC) ..... 4-94
E
Emergency Starting
Push-Starting .............................. 7-23
Starting a Flooded Engine .......... 7-23
Emergency Towing
Tiedown Hooks .......................... 7-27
Towing Description .................... 7-26
Emission Control System .................. 3-25
Index
10-3
Mazda6_8DQ8-EA-13L_Edition3 Page569
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (572,1)
M
Maintenance
Information .................................. 6-2
Scheduled ..................................... 6-4
Maintenance and Care ........................ 6-2
Maintenance Monitor ........................ 4-15
Manual Transaxle Operation ............. 4-47
Recommendations for shifting.... 4-48
Map Lights ...................................... 5-113
Mazda Radar Cruise Control
(MRCC) .......................................... 4-102
Close Proximity Warning ......... 4-105
Display Indication .................... 4-105
Radar Sensor Handling ............ 4-110
Setting the System .................... 4-106
Shift-up/Shift-down Request
Display ..................................... 4-110
Mazda Radar Cruise Control
(MRCC) System Warnings ............... 7-41
Mazda Radar Cruise Control
(MRCC) Warning Light (Amber)/
Indicator Light (Green) ..................... 4-45
Meters and Gauges ........................... 4-10
Mirror Defogger ................................ 4-73
Mirrors
Rearview mirror ......................... 3-31
Money-Saving Suggestions .............. 3-45
Moonroof .......................................... 3-38
O
Odometer and Trip Meter .................. 4-11
Outside Temperature Display ............ 4-14
Overhead Console ........................... 5-119
Overhead Lights .............................. 5-113
Overheating ....................................... 7-24
Overloading ...................................... 3-49
O
Owner Maintenance
Battery Replacement .................. 6-32
Closing the Hood ....................... 6-19
Engine Compartment
Overview .................................... 6-20
Opening the Hood ...................... 6-18
Owner Maintenance
Precautions ................................. 6-16
P
Parking Brake ................................... 4-82
Personalization Features ..................... 9-9
Power Steering ................................ 4-101
Power Windows ................................ 3-33
R
Radar Sensor ..................................... 4-78
Rear Coat Hooks ............................. 5-121
Rear Cross Traffic Alert
(RCTA) system ............................... 4-125
Rear Door Child Safety Locks .......... 3-19
Rear Seat ........................................... 2-10
Rear View Monitor ......................... 4-137
Rear window
Rear Window Defogger ............. 4-72
Rearview Mirror ................................ 3-31
Recommended Oil ............................ 6-21
Recording of Vehicle Data ................ 8-22
Recreational Towing ......................... 3-51
Registering Your Vehicle in A Foreign
Country ............................................. 8-18
10-6
Index
Mazda6_8DQ8-EA-13L_Edition3 Page572
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (574,1)
T
Tiedown
Hook .......................................... 7-27
Tire Information ................................ 8-25
Tire Pressure Monitoring System .... 4-117
Tires .................................................. 6-34
Flat Tire ........................................ 7-3
Replacing a Tire ......................... 6-36
Replacing a Wheel ..................... 6-37
Snow tires .................................. 3-48
Specifications ............................... 9-7
Temporary Spare Tire ................. 6-37
Tire chains .................................. 3-48
Tire Inflation Pressure ................ 6-35
Tire Rotation .............................. 6-35
Uniform tire quality grading system
(UTQGS) ................................... 8-23
Towing
Recreational towing ................... 3-51
Trailer Towing ............................ 3-51
Towing Description ........................... 7-26
Traction Control System (TCS) ........ 4-93
Transmitter .......................................... 3-4
Trip Computer ................................... 4-18
Trip Meter ......................................... 4-11
Trouble
Battery runs out .......................... 7-20
Emergency Starting .................... 7-23
Emergency Towing .................... 7-26
Flat Tire ........................................ 7-3
Overheating ................................ 7-24
Parking in an Emergency ............. 7-2
Warning/indicator lights and warning
sounds ........................................ 7-29
When trunk lid cannot be
opened ........................................ 7-42
T
Trunk Lid .......................................... 3-19
Inside trunk release lever ............ 3-22
When trunk lid cannot be
opened ........................................ 7-42
Turn and Lane-Change Signals ......... 4-67
V
Vanity Mirrors ................................. 5-112
Vehicle Information Labels ................. 9-2
W
Warning Lights
ABS ............................................ 4-30
Air bag/front seat belt pretensioner
system ........................................ 4-35
Automatic transaxle ................... 4-34
Brake system .............................. 4-30
Charging system ......................... 4-31
Check engine .............................. 4-32
Check fuel cap ........................... 4-36
Door-ajar .................................... 4-37
Engine oil ................................... 4-31
HBC ........................................... 4-42
High engine coolant
temperature ................................ 4-33
KEY ............................................ 4-40
LDWS ........................................ 4-33
Low fuel ..................................... 4-36
Low washer fluid level ............... 4-38
Mazda Radar Cruise Control
(MRCC) ..................................... 4-45
Seat belt ...................................... 4-36
Tire pressure monitoring
system ........................................ 4-38
Warning/Buzzer ................................ 7-29
Warranty ............................................ 8-16
10-8
Index
Mazda6_8DQ8-EA-13L_Edition3 Page574
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
