brake light MAZDA MODEL 6 2014 (in English) Service Manual

Black plate (408,1)
(Cont.)
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
ENGINE
Drive belts I I
Engine oilRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I
Engine coolantFL22 type
*1Replace at first 200,000 km or 10 years; after that, every
100,000 km or 5 years
Others Replace every 2 years
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filterCRCRCR
Fuel lines and hoses I
*2I
Hoses and tubes for emission I*2I
Fuel filter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fluid level I I I I
Brake fluid R R
Disc brakesIIIIII
Tire (Rotation) Rotate every 10,000 km
Tire inflation pressure and tire wearIIIIII
Steering operation and linkagesIIIIII
Front and rear suspension, ball joints and wheel
bearing axial playIII
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hingesLLLLLL
Washer fluid levelIIIIII
6-14
Maintenance and Care
Scheduled Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page408
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (434,1)
Light Bulbs
Overhead lights/
Front map lights
Vanity mirror
lights
Headlights (Low/High beam)
Daytime running lights/
Parking lightsHeadlights (Low beam)
Headlights (High beam)/
Daytime running lights Fog lights
Fog lights Front turn signal lights/
Front side-marker lightsFront turn signal lights/
Front side-marker lights
Parking lights
Brake lights/Taillights Rear side-marker lights
Rear turn signal lights Taillights (Trunk lid side)
Reverse lights High-mount brake light
License plate lights Trunk light Rear map lights Side turn signal lights Courtesy lights
Side turn signal lights Courtesy lights With Xenon Fusion Headlights With Halogen HeadlightsOverhead lights/
Front map lights
Vanity mirror
lights
Some models.
6-40
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page434
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (440,1)
3. Pull the center of each plastic retainer
and remove the retainers.
Removal
Installation
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight back out of the
socket.
7. Install the new bulb in the reverse order
of the removal procedure.
Brake lights/Taillights, High-mount
brake light, Side-turn signal lights
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
6-46
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page440
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (449,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 DCDC REG 30 A―
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG1 15 A For protection of various circuits
23H/L LOW L
HID L15 A Headlight (LH)
*1, Headlight low beam (LH)*2
24 H/L LOW R 15 A Headlight low beam (RH)*2
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 A Engine control system
28 AT 15 A Transaxle control system
í
29 H/CLEAN 20 A―
30 A/C 7.5 A Air conditioner
31 AT PUMP 15 A―
32 STOP 10 A Brake lights
33 R.WIPER 15 A Theft-deterrent system
í
34 H/L HI 20 A Headlight high beam
35 HID R 15 A Headlight (RH)*1
36 FOG 15 A Fog lightsí
377.5 A Engine control system
38 AUDIO2 7.5 A Audio system
39 GLOW SIG 5 A―
40 METER2 7.5 A―
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 BOSE 25 A Bose
®Sound System-equipped modelí
44 AUDIO1 15 A Audio system
45 ABS/DSC S 30 A ABS, Dynamic stability control system
46 FUEL PUMP 15 A Fuel system
47 FUEL WARM 25 A―
48 TAIL 15 A Taillights, License plate lights
49 FUEL PUMP2 25 A―
50 HAZARD 25 AHazard warning flashers, Turn signal lights/Front side-marker
lights, Parking lights
51 DRL 15 A Daytime running lights
í
52 R.OUTLET2 15 A Accessory sockets
Maintenance and Care
Owner Maintenance
6-55íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page449
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (455,1)
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
When using an automatic car wash
lRetract the door mirrors.lThe automatic car wash brushes could
reduce the paint lustre or hasten paint
deterioration.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm (12 in) or
more) between the nozzle and the vehicle.
In addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle does not need it.
qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
Maintenance and Care
Appearance Care
6-61
Mazda6_8DQ8-EA-13L_Edition3 Page455
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (456,1)
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
6-62
Maintenance and Care
Appearance Care
Mazda6_8DQ8-EA-13L_Edition3 Page456
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (484,1)

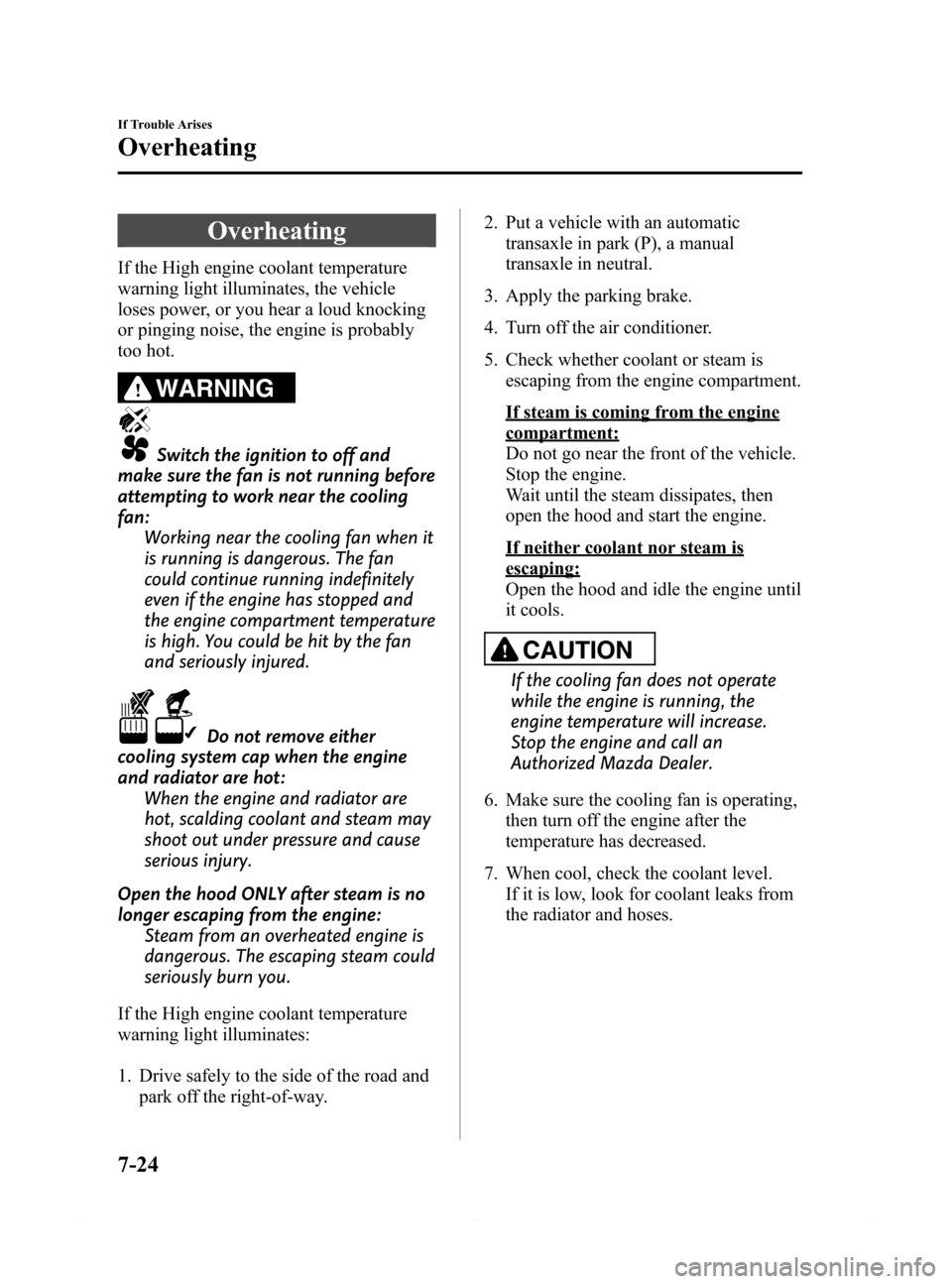

Overheating
If the High engine coolant temperature
warning light illuminates, the vehicle
loses power, or you hear a loud knocking
or pinging noise, the engine is probably
too hot.
WARNING
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the High engine coolant temperature
warning light illuminates:
1. Drive safely to the side of the road and
park off the right-of-way.2. Put a vehicle with an automatic
transaxle in park (P), a manual
transaxle in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
7-24
If Trouble Arises
Overheating
Mazda6_8DQ8-EA-13L_Edition3 Page484
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (489,1)
When Warning/Indicator
Lights Illuminate/Flash
qIf the master warning light
illuminates
Type A
Displays when notification of the system
malfunctions is required.
Check the message indicated in the
display and consult an Authorized Mazda
Dealer.
(Display example)
Displays as follows:
Master
warning
light
Indication in display and master
warning light in instrument cluster are
illuminated at same time
This indicates a malfunction with the
vehicle system. Check the message
indicated in the display and consult an
Authorized Mazda Dealer. For details,
refer to the explanations for the warning/
indicator lights, in the warning/indicator
lights section, which match the symbol in
the upper part of the display. If a message
is not indicated in the display, operate the
INFO switch to display the“Warning”
screen.
Type B
The light illuminates continuously if any
one of the following occurs. Consult an
Authorized Mazda Dealer.
lThere is a malfunction in the battery
management system.
lThere is a malfunction in the brake
switch.
qIf the brake system warning light
illuminates
If the brake warning light remains
illuminated even though the parking brake
is released, the brake fluid may be low or
there could be a problem with the brake
system. Park the vehicle in a safe place
immediately and contact an Authorized
Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-29
Mazda6_8DQ8-EA-13L_Edition3 Page489
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (490,1)
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qIf the ABS warning light illuminates
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qIf the brake system warning light
and the ABS warning light
illuminate simultaneously
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
7-30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mazda6_8DQ8-EA-13L_Edition3 Page490
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (491,1)
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the charging system warning
indication/warning light is indicated
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qIf the engine oil warning indication/
warning light is indicated
Type A/Type B
This warning light/warning indication
indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates or the warning
indication is displayed while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-22).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light/warning indication.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-31
Mazda6_8DQ8-EA-13L_Edition3 Page491
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
