Black plate (21,1)
4. Perform one of the following settings
within 5 seconds of completing step 3
above:
lTo program memory button 1 or 2,
press and hold the button until a
beep sound is heard.
lTo program a key, press and hold
the key
switch until a beep sound
is heard.
Adjusting a programmed position
(Programming to a button on the seat
side)
1. While the vehicle is stopped, press the
programming button for the seat
position you want to call up (button 1
or 2).
2. A beep sound is heard when the seat
position adjustment is completed.NOTE
lIf seat movement is not required, only the
beep sounds.
lWhen the ignition is switched ON, the seat
position memory function does not operate
unless the selector lever is in the P position
(Automatic transaxle) or the parking brake
is applied (Manual transaxle).
lWhen the ignition is switched OFF, the seat
position memory function is operable while
the selector lever is in a position other than
P position (Automatic transaxle) or the
parking brake is not applied (Manual
transaxle), however, if the ignition is
switched ON while the seat position
memory function is operating, the operation
is stopped.
lThe seat position adjustment is canceled in
the following cases:
lAny of the seat adjustment switches is
operated.
lThe SET button is pressed.lProgramming button 1 or 2 is pressed.lThe key lock switch or unlock switch is
operated.
lThe vehicle starts moving.
(When programming to the key)
1. Unlock the doors by pressing a request
switch or the key
switch.
2. After unlocking the doors, the seat
position adjustment begins within 40
seconds of opening the driver's door,
and a beep sounds when the operation
is finished.
Essential Safety Equipment
Seats
2-9
Mazda6_8DQ8-EA-13L_Edition3 Page21
Friday, June 13 2014 6:20 PM
Form No.8DQ8-EA-13L

Black plate (22,1)
NOTElIf there is no seat position movement, a
beep is not heard.
lWhen the ignition is switched ON, the seat
position memory function does not operate
unless the selector lever is in the P position
(Automatic transaxle) or the parking brake
is applied (Manual transaxle).
lWhen the ignition is switched OFF, the seat
position memory function is operable while
the selector lever is in a position other than
P position (Automatic transaxle) or the
parking brake is not applied (Manual
transaxle), however, if the ignition is
switched ON while the seat position
memory function is operating, the operation
is stopped.
lThe seat position adjustment is canceled in
the following cases:
lAny of the seat adjustment switches is
operated.
lThe SET button is pressed.lProgramming button 1 or 2 is pressed.lThe keyswitch orswitch is
operated.
lThe vehicle starts moving.
Erasing programmed seat positions
(Erasing the seat positions programmed
to the key)
1. Switch the ignition OFF.
2. Continue pressing the seat SET button
until a beep sound is heard.
3. After the beep sounds, press the key
switch continuously within 5 seconds
until the beep sounds.
Rear Seat
qSplit Folding
By lowering the rear seatbacks the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with occupants
on folded down seatbacks or in the
luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision
Do not allow children to play inside the
vehicle with the seatbacks lowered.
Allowing children to play in the
vehicle with the seatbacks folded
down is dangerous, If a child enters
the luggage compartment and the
seatbacks were raised back up, the
child may become trapped in the
luggage compartment which could
lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down.
Driving without tightly securing
cargo and luggage is dangerous as it
could move and become an
obstruction to driving during
emergency braking or a collision
resulting in an unexpected accident.
2-10
Essential Safety Equipment
Seats
Mazda6_8DQ8-EA-13L_Edition3 Page22
Friday, June 13 2014 6:20 PM
Form No.8DQ8-EA-13L

Black plate (75,1)
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.
If your key (auxiliary key) is lost, consult
your Authorized Mazda Dealer and have
your code number ready.
NOTE
The driver must carry the key to ensure the
system functions properly.
Operation indicator light
Auxiliary key Transmitter
Key code number plate
Pull out the auxiliary key from the key
(transmitter).
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the trunk lid, and opens the trunk lid.
The system can start the engine without
having to take the key out of your purse
or pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
lKEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-23.
lIgnition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-39.
lKey Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-40.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen key inoperative.
Before Driving
Keys
3-3
Mazda6_8DQ8-EA-13L_Edition3 Page75
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (78,1)
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the trunk lid.lThe key is not operated for 10 seconds.lPress any button except the UNLOCK
button on the key.
lA request switch is pressed.l(Auto re-lock function)
After unlocking with the key, all doors and
the trunk lid will automatically lock if any
of the following operations are not
performed within about 60 seconds. If your
vehicle has a theft-deterrent system, the
hazard warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
9-9.
lA door or the trunk lid is opened.lThe push button start is switched to any
position other than off.
l(With theft-deterrent system)
When the doors are unlocked by pressing
the unlock button on the key while the theft-
deterrent system is turned off, the hazard
warning lights will flash twice to indicate
that the system is turned off.
Trunk button
To open the trunk lid, press and hold the
trunk button until the trunk lid opens.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, press and hold the panic button to
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the trunk lid is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
3-6
Before Driving
Keys
Mazda6_8DQ8-EA-13L_Edition3 Page78
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (116,1)
NOTElThe theft deterrent system can also be
armed by activating the auto relock
function with all the doors, the trunk lid
and the hood closed.
Refer to Transmitter on page 3-4.
lThe system will disarm if one of the
following operations takes place within 20
seconds after pressing the lock button:
lUnlocking a door.lAny door or the trunk lid is opened.lThe hood is opened.lThe ignition is switched on.l(With the advanced keyless function)
Press the electric trunk lid opener while
the key is being carried.
To rearm the system, do the arming
procedure again.
lWhen the doors are locked by pressing the
lock button on the transmitter or using the
auxiliary key while the theft-deterrent
system is armed, the hazard warning lights
will flash once to indicate that the system is
armed.
qTo Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
lUnlock the driver's door with the
auxiliary key.í
lPress the unlock button on the
transmitter.
lSwitch the ignition ON.l(With the advanced keyless function)
Press a request switch on the doors.
The hazard warning lights will flash
twice.NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or using the
auxiliary key
íwhile the theft-deterrent system
is turned off, the hazard warning lights will
flash twice to indicate that the system is turned
off.
qTo Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
lUnlock the driver's door with the
auxiliary key.í
lPress the unlock button on the
transmitter.
lThe engine is started with the push
button start.
l(With the advanced keyless function)lPress a request switch on the doors.lPress the electric trunk lid opener
while the key is being carried.
The hazard warning lights will flash
twice.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-44
Before Driving
íSome models.
Security System
Mazda6_8DQ8-EA-13L_Edition3 Page116
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (126,1)
Ignition Switch
qPush Button Start Positions
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
NOTElThe engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch the
ignition position, press the push button start
without depressing the pedal.
lDo not leave the ignition switched ON
while the engine is not running. Doing so
could result in the battery going dead. If the
ignition is left in ACC (For automatic
transaxle, the shift lever is in the P position,
and the ignition is in ACC), the ignition
switches off automatically after about 25
minutes.
Off
The power supply to electrical devices
turns off and the push button start
indicator light (amber) also turns off.
WARNING
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the shift lever is
in P (automatic transaxle) or in 1st gear
or R (manual transaxle):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the shift
lever to P (automatic transaxle) or to
1st gear or R (manual transaxle) is
dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to
leave the vehicle for even a short
period, it is important to switch the
ignition off, as leaving it in another
position will disable some of the
vehicle's security systems and run the
battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber)
illuminates.
NOTE
The keyless entry system does not function
while the push button start has been pressed to
ACC, and the doors will not lock/unlock even
if they have been locked manually.
4-2
When Driving
Start/Stop Engine
Mazda6_8DQ8-EA-13L_Edition3 Page126
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (127,1)

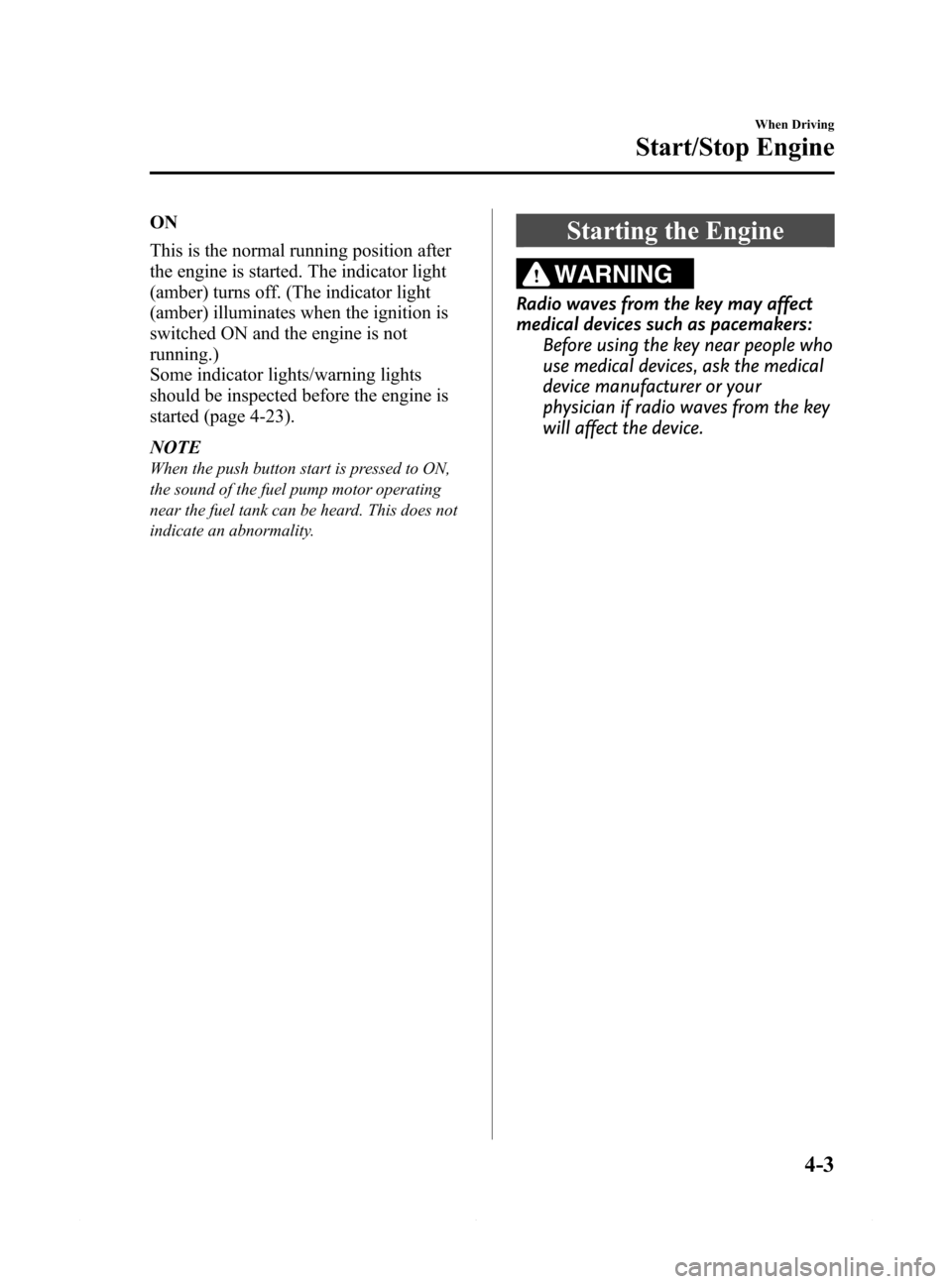

ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-23).
NOTE
When the push button start is pressed to ON,
the sound of the fuel pump motor operating
near the fuel tank can be heard. This does not
indicate an abnormality.
Starting the Engine
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
When Driving
Start/Stop Engine
4-3
Mazda6_8DQ8-EA-13L_Edition3 Page127
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (128,1)
NOTElThe key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
lThe engine can be started when the push
button start is pressed from off, ACC, or
ON.
lThe push button start system functions
(function which can start the engine by only
carrying the key) can be deactivated to
prevent any possible adverse effect on a
user wearing a pacemaker or other medical
device. If the system is deactivated, you will
be unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button start
system functions have been deactivated, you
can start the engine by following the
procedure indicated when the key battery
goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
lAfter starting a cold engine, the engine
speed increases and a whining sound from
the engine compartment can be heard.
This is for improved exhaust gas
purification and does not indicate defect of
the parts.
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
1. Make sure you are carrying the key.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal
firmly until the engine has completely
started.5.(Manual transaxle)
Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transaxle)
The starter will not operate if the clutch pedal
is not depressed sufficiently.
(Automatic transaxle)
The starter will not operate if the shift lever is
not in P or N and the brake pedal is not
depressed sufficiently.
6. Verify that the KEY indicator light
(green) (if equipped) in the instrument
cluster and the push button start
indicator light (green) illuminate. Refer
to Warning/Indicator Lights on page
4-23. If the push button start indicator
light (green) flashes, make sure that the
key is being carried (for vehicles with a
type A meter (page 4-23), messages are
displayed in the instrument cluster). If
the push button start indicator light
(green) flashes with the key being
carried, touch the key to the push
button start and start the engine (for
vehicles with a type A meter (page
4-23), messages are displayed in the
instrument cluster). Refer to Engine
Start Function When Key Battery is
Dead on page 4-6.
4-4
When Driving
Start/Stop Engine
Mazda6_8DQ8-EA-13L_Edition3 Page128
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (129,1)
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system and the
inability to start the engine or switch
the ignition to ACC or ON (for
vehicles with a type A meter (page
4-23), messages are displayed in the
instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.NOTE
lUnder the following conditions, the KEY
warning light (red) flashes after the push
button start is pressed to inform the driver
that the push button start will not switch to
ACC even if it is pressed from off (for
vehicles with a type A meter (page 4-23),
messages are displayed in the instrument
cluster).
lThe key battery is dead.lThe key is out of operational range.lThe key is placed in areas where it is
difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar
to the key is in the operational range.
l(Forced engine starting method)
If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that the
engine may not start using the usual
starting method (for vehicles with a type A
meter, messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda Dealer
as soon as possible. If this occurs, the
engine can be force-started. Press and hold
the push button start until the engine starts.
Other procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
lWhen the engine is force-started, the KEY
warning light (red) (if equipped) remains
illuminated and the push button start
indicator light (amber) remains flashing.
l(Automatic transaxle)
When the shift lever is in the neutral (N)
position, the KEY indicator light (green) (if
equipped) and the push button start
indicator light (green) do not illuminate.
When Driving
Start/Stop Engine
4-5
Mazda6_8DQ8-EA-13L_Edition3 Page129
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (130,1)
7. Press the push button start after both
the KEY indicator light (green) (if
equipped) in the instrument cluster and
the push button start indicator light
(green) illuminate.
NOTE
lAfter starting the engine, the push button
start indicator light (amber) turn off and
the ignition is in the ON position.
lAfter pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near the
fuel tank can be heard, however, this does
not indicate a malfunction.
8. After starting the engine, let it idle for
about ten seconds.
NOTE
lWhether the engine is cold or warm, it
should be started without the use of the
accelerator.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-23).
qEngine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not to
allow the following.
Otherwise the signal from the key
will not be received correctly and the
engine may not start.
ØMetal parts of other keys or metal
objects touch the key.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Depress the brake pedal (automatic
transaxle) or fully depress the clutch
pedal (manual transaxle).
4-6
When Driving
Start/Stop Engine
Mazda6_8DQ8-EA-13L_Edition3 Page130
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L
