MAZDA MODEL 6 2015 Owners Manual (in English)

Black plate (121,1)
Driving In Flooded Area
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
CAUTION
Do not drive the vehicle on flooded
roads as it could cause short
circuiting of electrical/electronic
parts, or engine damage or stalling
from water absorption. If the vehicle
has been immersed in water, consult
an Authorized Mazda Dealer.
Overloading
WARNING
Be careful not to overload your vehicle:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of your vehicle are on the
Motor Vehicle Safety Standard Label
on the driver's door frame. Exceeding
these ratings can cause an accident
or vehicle damage. You can estimate
the weight of your load by weighing
the items (or people) before putting
them in the vehicle.
Before Driving
Driving Tips
3-49
Mazda6_8DQ8-EA-13L_Edition3 Page121
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (122,1)

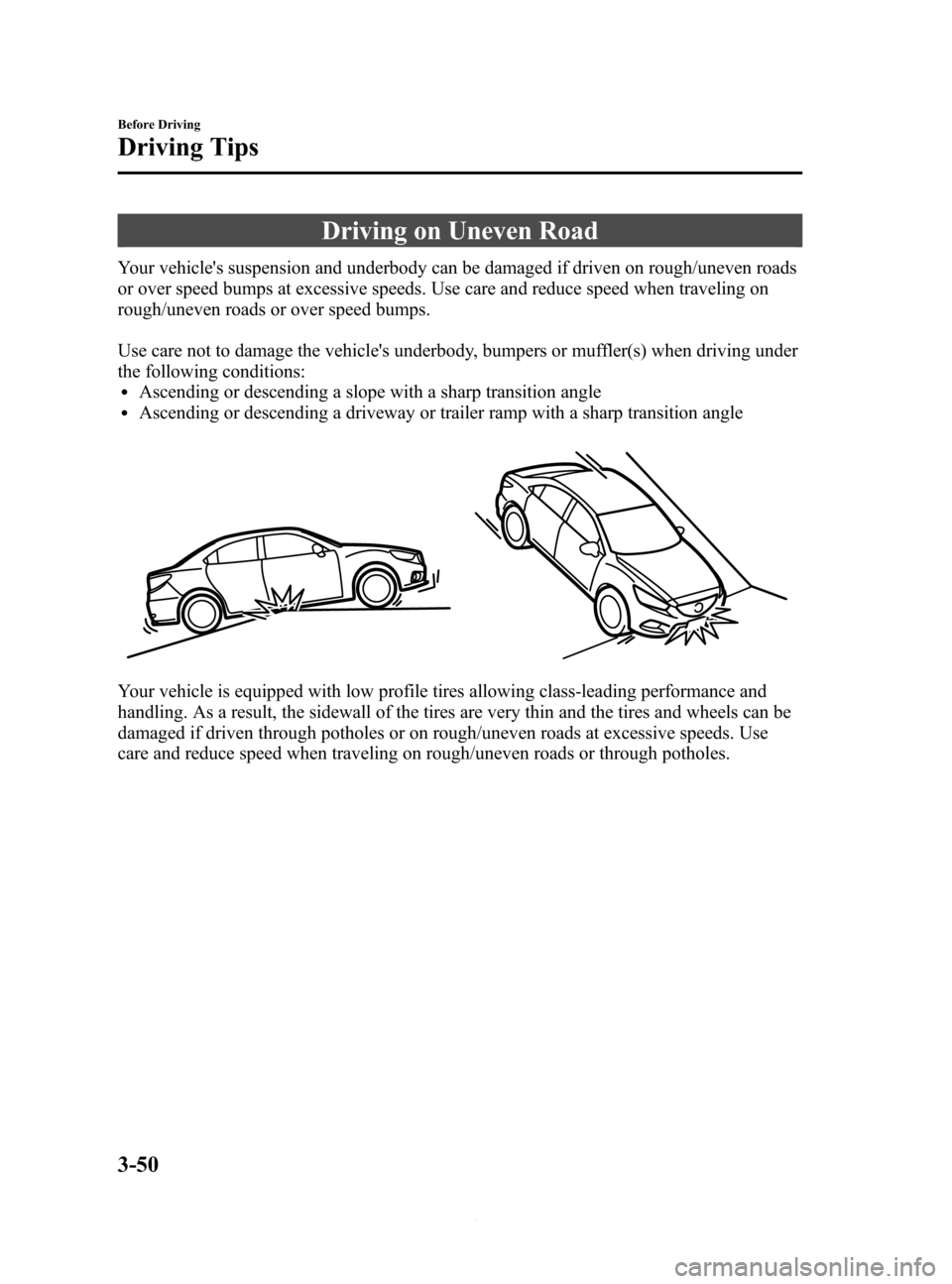

Driving on Uneven Road
Your vehicle's suspension and underbody can be damaged if driven on rough/uneven roads
or over speed bumps at excessive speeds. Use care and reduce speed when traveling on
rough/uneven roads or over speed bumps.
Use care not to damage the vehicle's underbody, bumpers or muffler(s) when driving under
the following conditions:
lAscending or descending a slope with a sharp transition anglelAscending or descending a driveway or trailer ramp with a sharp transition angle
Your vehicle is equipped with low profile tires allowing class-leading performance and
handling. As a result, the sidewall of the tires are very thin and the tires and wheels can be
damaged if driven through potholes or on rough/uneven roads at excessive speeds. Use
care and reduce speed when traveling on rough/uneven roads or through potholes.
3-50
Before Driving
Driving Tips
Mazda6_8DQ8-EA-13L_Edition3 Page122
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (123,1)
Trailer Towing
Your Mazda is not designed for towing.
Never tow a trailer with your Mazda.
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-26) and
“Tiedown Hook”(page 7-27) and
carefully follow the instructions.
Before Driving
Towing
3-51
Mazda6_8DQ8-EA-13L_Edition3 Page123
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (124,1)
3-52
Mazda6_8DQ8-EA-13L_Edition3 Page124
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (125,1)
4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine .................................... 4-2
Ignition Switch .................................... 4-2
Starting the Engine .............................. 4-3
Turning the Engine Off ....................... 4-8
Instrument Cluster and Display ........... 4-10
Meters and Gauges ............................ 4-10
Warning/Indicator Lights .................. 4-23
Transaxle ................................................ 4-47
Manual Transaxle Operation ............. 4-47
Automatic Transaxle Controls .......... 4-49
Switches and Controls ........................... 4-58
Lighting Control ............................... 4-58
High Beam Control System (HBC)í... 4-63
Fog Lightsí...................................... 4-67
Turn and Lane-Change Signals ......... 4-67
Windshield Wipers and Washer ........ 4-68
Rear Window Defogger .................... 4-72
Horn .................................................. 4-73
Hazard Warning Flasher .................... 4-74
HomeLink Wireless Control
System
í............................................ 4-74
Radar Sensor .......................................... 4-78
Radar Sensor
í.................................. 4-78
Brake ...................................................... 4-81
Brake System .................................... 4-81
Hill Launch Assist (HLA) ................. 4-84
Smart City Brake Support (SCBS)í... 4-86
ABS/TCS/DSC ....................................... 4-92
Antilock Brake System (ABS) .......... 4-92
Traction Control System (TCS) ........ 4-93
Dynamic Stability Control (DSC) ..... 4-94i-ELOOP ................................................. 4-96
i-ELOOP
í........................................ 4-96
Drive Selection ....................................... 4-99
Drive Selection
í............................... 4-99
Power Steering ..................................... 4-101
Power Steering ................................ 4-101
Mazda Radar Cruise Control (MRCC)... 4-102
Mazda Radar Cruise Control (MRCC)í... 4-102
Cruise Control ...................................... 4-111
Cruise Control
í.............................. 4-111
Forward Obstruction Warning (FOW)... 4-114
Forward Obstruction Warning (FOW)í... 4-114
Tire Pressure Monitoring System ....... 4-117
Tire Pressure Monitoring System .... 4-117
Blind Spot Monitoring (BSM)
System .................................................. 4-121
Blind Spot Monitoring (BSM)
System
í.......................................... 4-121
Lane Departure Warning System
(LDWS) ................................................ 4-130
Lane Departure Warning System
(LDWS)
í....................................... 4-130
Rear View Monitor .............................. 4-137
Rear View Monitor
í...................... 4-137
4-1íSome models.
Mazda6_8DQ8-EA-13L_Edition3 Page125
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (126,1)
Ignition Switch
qPush Button Start Positions
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
NOTElThe engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch the
ignition position, press the push button start
without depressing the pedal.
lDo not leave the ignition switched ON
while the engine is not running. Doing so
could result in the battery going dead. If the
ignition is left in ACC (For automatic
transaxle, the shift lever is in the P position,
and the ignition is in ACC), the ignition
switches off automatically after about 25
minutes.
Off
The power supply to electrical devices
turns off and the push button start
indicator light (amber) also turns off.
WARNING
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the shift lever is
in P (automatic transaxle) or in 1st gear
or R (manual transaxle):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the shift
lever to P (automatic transaxle) or to
1st gear or R (manual transaxle) is
dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to
leave the vehicle for even a short
period, it is important to switch the
ignition off, as leaving it in another
position will disable some of the
vehicle's security systems and run the
battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber)
illuminates.
NOTE
The keyless entry system does not function
while the push button start has been pressed to
ACC, and the doors will not lock/unlock even
if they have been locked manually.
4-2
When Driving
Start/Stop Engine
Mazda6_8DQ8-EA-13L_Edition3 Page126
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (127,1)
ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-23).
NOTE
When the push button start is pressed to ON,
the sound of the fuel pump motor operating
near the fuel tank can be heard. This does not
indicate an abnormality.
Starting the Engine
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
When Driving
Start/Stop Engine
4-3
Mazda6_8DQ8-EA-13L_Edition3 Page127
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (128,1)
NOTElThe key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
lThe engine can be started when the push
button start is pressed from off, ACC, or
ON.
lThe push button start system functions
(function which can start the engine by only
carrying the key) can be deactivated to
prevent any possible adverse effect on a
user wearing a pacemaker or other medical
device. If the system is deactivated, you will
be unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button start
system functions have been deactivated, you
can start the engine by following the
procedure indicated when the key battery
goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
lAfter starting a cold engine, the engine
speed increases and a whining sound from
the engine compartment can be heard.
This is for improved exhaust gas
purification and does not indicate defect of
the parts.
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
1. Make sure you are carrying the key.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal
firmly until the engine has completely
started.5.(Manual transaxle)
Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transaxle)
The starter will not operate if the clutch pedal
is not depressed sufficiently.
(Automatic transaxle)
The starter will not operate if the shift lever is
not in P or N and the brake pedal is not
depressed sufficiently.
6. Verify that the KEY indicator light
(green) (if equipped) in the instrument
cluster and the push button start
indicator light (green) illuminate. Refer
to Warning/Indicator Lights on page
4-23. If the push button start indicator
light (green) flashes, make sure that the
key is being carried (for vehicles with a
type A meter (page 4-23), messages are
displayed in the instrument cluster). If
the push button start indicator light
(green) flashes with the key being
carried, touch the key to the push
button start and start the engine (for
vehicles with a type A meter (page
4-23), messages are displayed in the
instrument cluster). Refer to Engine
Start Function When Key Battery is
Dead on page 4-6.
4-4
When Driving
Start/Stop Engine
Mazda6_8DQ8-EA-13L_Edition3 Page128
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (129,1)
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system and the
inability to start the engine or switch
the ignition to ACC or ON (for
vehicles with a type A meter (page
4-23), messages are displayed in the
instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.NOTE
lUnder the following conditions, the KEY
warning light (red) flashes after the push
button start is pressed to inform the driver
that the push button start will not switch to
ACC even if it is pressed from off (for
vehicles with a type A meter (page 4-23),
messages are displayed in the instrument
cluster).
lThe key battery is dead.lThe key is out of operational range.lThe key is placed in areas where it is
difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar
to the key is in the operational range.
l(Forced engine starting method)
If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that the
engine may not start using the usual
starting method (for vehicles with a type A
meter, messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda Dealer
as soon as possible. If this occurs, the
engine can be force-started. Press and hold
the push button start until the engine starts.
Other procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
lWhen the engine is force-started, the KEY
warning light (red) (if equipped) remains
illuminated and the push button start
indicator light (amber) remains flashing.
l(Automatic transaxle)
When the shift lever is in the neutral (N)
position, the KEY indicator light (green) (if
equipped) and the push button start
indicator light (green) do not illuminate.
When Driving
Start/Stop Engine
4-5
Mazda6_8DQ8-EA-13L_Edition3 Page129
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (130,1)
7. Press the push button start after both
the KEY indicator light (green) (if
equipped) in the instrument cluster and
the push button start indicator light
(green) illuminate.
NOTE
lAfter starting the engine, the push button
start indicator light (amber) turn off and
the ignition is in the ON position.
lAfter pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near the
fuel tank can be heard, however, this does
not indicate a malfunction.
8. After starting the engine, let it idle for
about ten seconds.
NOTE
lWhether the engine is cold or warm, it
should be started without the use of the
accelerator.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-23).
qEngine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not to
allow the following.
Otherwise the signal from the key
will not be received correctly and the
engine may not start.
ØMetal parts of other keys or metal
objects touch the key.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Depress the brake pedal (automatic
transaxle) or fully depress the clutch
pedal (manual transaxle).
4-6
When Driving
Start/Stop Engine
Mazda6_8DQ8-EA-13L_Edition3 Page130
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L
