Black plate (119,1)
Rocking the Vehicle
WARNING
Do not spin the wheels at more than 56
km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:
When the vehicle is stuck, spinning
the wheels at high speed is
dangerous. The spinning tire could
overheat and explode. This could
cause serious injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and
tire damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the
accelerator slightly and slowly move the
shift lever from 1 (D) to R.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
lHave the proper ratio of antifreeze in
the radiator.
Refer to Engine Coolant on page 6-23.
lInspect the battery and its cables. Cold
reduces battery capacity.
lUse an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-21).
lInspect the ignition system for damage
and loose connections.
lUse washer fluid made with
antifreeze―but do not use engine
coolant antifreeze for washer fluid
(page 6-25).
lDo not use the parking brake in
freezing weather as it may freeze.
Instead, shift to P with an automatic
transaxle and to 1 or R with a manual
transaxle. Block the rear wheels.
lSnow left on the windshield is
dangerous as it could obstruct vision.
Remove snow before driving.
lDo not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
lNever use warm or hot water for
removing snow or ice from windows
and mirrors as it could result in the
glass cracking.
Before Driving
Driving Tips
3-47
Mazda6_8DQ8-EA-13L_Edition3 Page119
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (150,1)
Signal Warning/Indicator Lights Page
Door-Ajar Warning Indication 4-37
Trunk lid-Ajar Warning Indication 4-38
Low Washer Fluid Level Warning Indication 4-38
Tire Pressure Monitoring System Warning Light 4-38
KEY Warning Indication 4-40
High Beam Control System (HBC) Warning Light (Amber)/Indicator Light
(Green)4-42
Wrench Indication 4-42
TCS/DSC Indicator Light 4-42
DSC OFF Indicator Light 4-42
AFS OFF Indicator Light 4-43
Low Engine Coolant Temperature Indicator Light (Blue) 4-43
Shift Position Indication 4-43
SPORT Mode Indicator Light 4-44
Headlight High-Beam Indicator Light 4-44
4-26
When Driving
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page150
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (152,1)
Signal Warning/Indicator Lights Page
Check Engine Light 4-32
High Engine Coolant Temperature Warning Light (Red) 4-33
BSM OFF Indicator Light 4-45
Lane Departure Warning System (LDWS) Warning Light (Amber)/Indicator
Light (Green)4-33
Automatic Transaxle Warning Light 4-34
Power Steering Malfunction Light 4-34
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-35
Low Fuel Warning Light 4-36
Check Fuel Cap Warning Light 4-36
Seat Belt Warning Light 4-36
Door-Ajar Warning Light 4-37
Low Washer Fluid Level Warning Light 4-38
Tire Pressure Monitoring System Warning Light 4-38
KEY Warning Light 4-40
High Beam Control System (HBC) Warning Light (Amber)/Indicator Light
(Green)4-42
TCS/DSC Indicator Light 4-42
4-28
When Driving
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page152
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (162,1)
Type A
This warning indication illuminates when
any door is not securely closed.
Close the door securely before driving the
vehicle.
Type B
This warning light illuminates when any
door or the trunk lid is not securely
closed.
Close the door or the trunk lid securely
before driving the vehicle.
qTrunk lid-Ajar Warning Indication
(Type A instrument cluster)í
This warning indication is illuminated
when the trunk lid is not securely closed.
Close the trunk lid securely before driving
the vehicle.
qLow Washer Fluid Level Warning
Indication/Warning Lightí
This warning light/warning indication
indicates that little washer fluid remains.
Add fluid (page 6-25).
qTire Pressure Monitoring System
Warning Light
This warning light illuminates for a few
seconds when the ignition is switched
ON.
The warning light illuminates and a beep
is heard when tire pressure is too low in
one or more tires, and flashes when there
is a system malfunction.
4-38
When Driving
íSome models.
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page162
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (192,1)

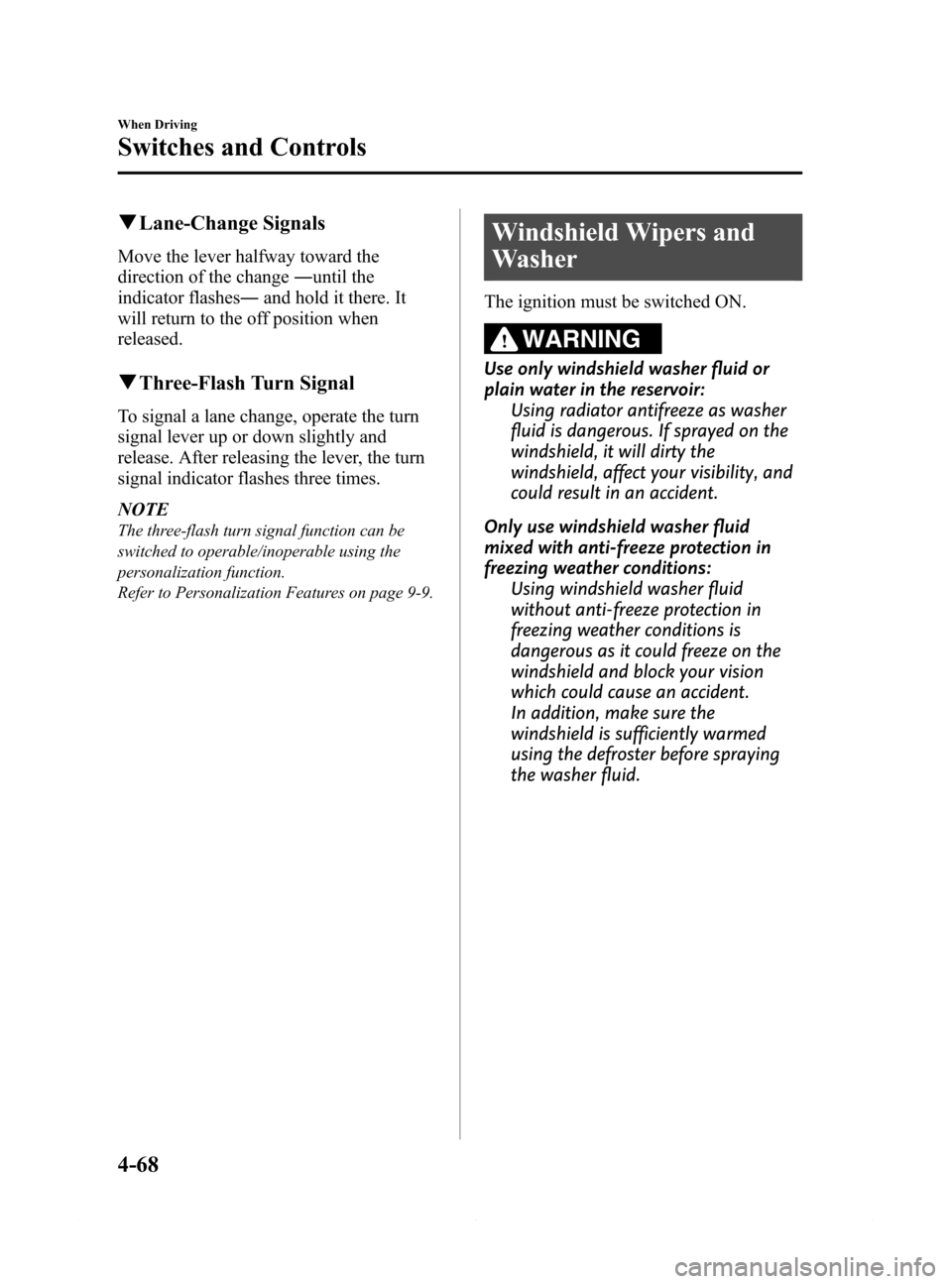

qLane-Change Signals
Move the lever halfway toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
qThree-Flash Turn Signal
To signal a lane change, operate the turn
signal lever up or down slightly and
release. After releasing the lever, the turn
signal indicator flashes three times.
NOTE
The three-flash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page 9-9.
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.
4-68
When Driving
Switches and Controls
Mazda6_8DQ8-EA-13L_Edition3 Page192
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (196,1)

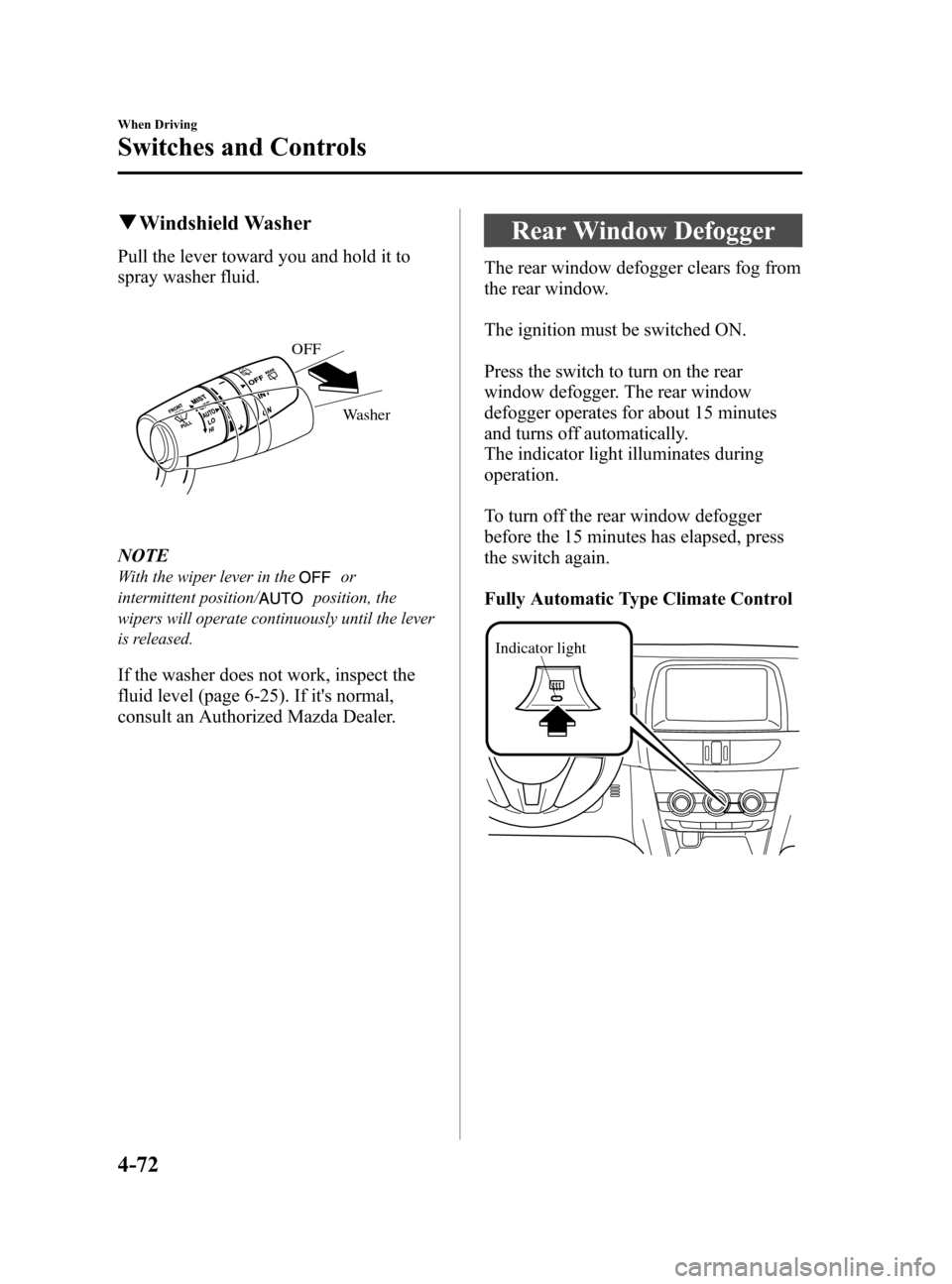

qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer OFF
NOTE
With the wiper lever in theor
intermittent position/
position, the
wipers will operate continuously until the lever
is released.
If the washer does not work, inspect the
fluid level (page 6-25). If it's normal,
consult an Authorized Mazda Dealer.
Rear Window Defogger
The rear window defogger clears fog from
the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defogger
before the 15 minutes has elapsed, press
the switch again.
Fully Automatic Type Climate Control
Indicator light
4-72
When Driving
Switches and Controls
Mazda6_8DQ8-EA-13L_Edition3 Page196
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (395,1)
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ................................................................... 6-2
Introduction ............................................................................... 6-2
Scheduled Maintenance ................................................................ 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) .... 6-4
Scheduled Maintenance (Mexico) ............................................. 6-9
Owner Maintenance ................................................................... 6-16
Owner Maintenance Precautions ............................................. 6-16
Hood ....................................................................................... 6-18
Engine Compartment Overview .............................................. 6-20
Engine Oil ............................................................................... 6-21
Engine Coolant ....................................................................... 6-23
Brake/Clutch Fluid .................................................................. 6-25
Washer Fluid ........................................................................... 6-25
Body Lubrication .................................................................... 6-26
Wiper Blades ........................................................................... 6-27
Battery ..................................................................................... 6-30
Battery Replacement ............................................................... 6-32
Tires ........................................................................................ 6-34
Light Bulbs ............................................................................. 6-40
Fuses ....................................................................................... 6-51
Appearance Care ........................................................................ 6-58
Exterior Care ........................................................................... 6-58
Interior Care ............................................................................ 6-63
6-1
Mazda6_8DQ8-EA-13L_Edition3 Page395
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (401,1)
qSchedule 2
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oilPuerto Rico Replace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
COOLING SYSTEM
Engine coolantFL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
OthersReplace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filterPuerto Rico R R
Others R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles)
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fluid levelIIIIIIIIIIII
Disc brakesIIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Body condition
*3
(for rust, corrosion and perforation)IIII
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Maintenance and Care
Scheduled Maintenance
6-7
Mazda6_8DQ8-EA-13L_Edition3 Page401
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (404,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120
ENGINE
Drive belts I I I
Engine oilRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I I
Engine coolantFL22 type
*1Replace at first 200,000 km or 10 years; after that, every
100,000 km or 5 years
Others Replace every 2 years
FUEL SYSTEM
Air filterRRRRRR
Fuel lines and hoses I
*2I*2I
Hoses and tubes for emission I*2I*2I
Fuel filter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
CHASSIS and BODY
Brake lines, hoses and connectionsIIIIII
Brake and clutch fluid level I I I I I I I I I
Brake fluid R R R
Disc brakesIIIIIIIIIIII
Tire (Rotation) Rotate every 10,000 km
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkagesIIIIIIIIIIII
Front and rear suspension, ball joints and wheel
bearing axial playIIIIII
Driveshaft dust bootsIIIIII
Bolts and nuts on chassis and bodyTTTTTT
Exhaust system and heat shieldsIIIIII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
6-10
Maintenance and Care
Scheduled Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page404
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (406,1)
qSchedule 2
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oilRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I
Engine coolantFL22 type
*1Replace at first 200,000 km or 10 years; after that, every
100,000 km or 5 years
Others Replace every 2 years
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filterCRCRCR
Fuel lines and hoses I
*2
Hoses and tubes for emission I*2
Fuel filter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fluid level I I I I I
Brake fluid R
Disc brakesIIIIII
Tire (Rotation) Rotate every 10,000 km
Tire inflation pressure and tire wearIIIIII
Steering operation and linkagesIIIIII
Front and rear suspension, ball joints and wheel
bearing axial playIII
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hingesLLLLLL
Washer fluid levelIIIIII
6-12
Maintenance and Care
Scheduled Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page406
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
