MAZDA MODEL 6 2016 Owners Manual (in English)

Black plate (131,1)
2.(Manual transaxle)
Continue to depress the clutch pedal
firmly until the engine has completely
started.
3. Verify that the push button start
indicator light (green) flashes.
NOTE
The push button start indicator light (green)
will flash even if the push button start is
pressed before depressing the brake pedal
(automatic transaxle) or the clutch pedal
(manual transaxle). If the clutch pedal is
depressed (manual transaxle) or the brake
pedal is depressed (automatic transaxle) under
this condition, the engine can be started by
resuming the procedure following this.
4. Touch the push button start using the
backside of the key (as shown) while
the push button start indicator light
(green) flashes.
Push button start
Indicator light
Key
NOTE
When touching the push button start using the
backside of the key as shown in the
illustration, touch the push button start with
the lock switch side of the key facing up.
5. Verify that the push button start
indicator light (green) turns on.6. Press the push button start to start the
engine.
NOTE
lThe engine cannot be started unless the
clutch pedal is fully depressed (manual
transaxle) or the brake pedal is fully
depressed (automatic transaxle).
lIf there is a malfunction with the push
button start function, the push button start
indicator light (amber) flashes. In this case,
the engine may start, however, have the
vehicle checked at an Authorized Mazda
Dealer as soon as possible.
lIf the push button start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If it
does not illuminate, have the vehicle
checked at an Authorized Mazda Dealer.
lTo switch the ignition position without
starting the engine, perform the following
operations after the push button start
indicator light (green) turns on.
1. Release the brake pedal (automatic
transaxle) or the clutch pedal (manual
transaxle).
2. Press the push button start to switch the
ignition position. The ignition switches
in the order of ACC, ON, and off each
time the push button start is pressed. To
switch the ignition position again,
perform the operation from the
beginning.
When Driving
Start/Stop Engine
4-7
Mazda6_8EA2-EA-14K_Edition2 Page131
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (132,1)
qEmergency Operation for
Starting the Engine
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this could
indicate that the engine may not start
using the usual starting method (for
vehicles with a type A meter, messages
are displayed in the instrument cluster).
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can be
force-started. Press and hold the push
button start until the engine starts. Other
procedures necessary for starting the
engine such as having the key in the
cabin, and depressing the clutch pedal
(manual transaxle) or the brake pedal
(automatic transaxle) are required.
Turning the Engine Off
WARNING
Do not stop the engine while the
vehicle is moving:
Stopping the engine while the vehicle
is moving for any reason other than
in an emergency is dangerous.
Stopping the engine while the vehicle
is moving will result in reduced
braking ability due to the loss of
power braking, which could cause an
accident and serious injury.
1. Stop the vehicle completely.
2.(Manual transaxle)
Shift into neutral.
(Automatic transaxle)
Shift the shift lever to the P position.
3. Press the push button start to turn off
the engine. The ignition position is off.
CAUTION
When leaving the vehicle, make sure
the push button start is pressed to
off.
4-8
When Driving
Start/Stop Engine
Mazda6_8EA2-EA-14K_Edition2 Page132
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (133,1)
NOTElThe cooling fan in the engine compartment
could turn on for a few minutes after the
ignition is switched from ON to OFF,
whether or not the A/C is on or off, to cool
the engine compartment quickly.
lIf the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the key
becomes unusable.
Refer to Key Battery Replacement on page
6-38.
(Vehicle equipped with Type A
*1
instrument cluster)
A message is indicated in the display of the
instrument cluster.
*1 Refer to Type A on page 4-22.
(Vehicle equipped with Type B
*2
instrument cluster)
The KEY indicator light (green) flashes for
approximately 30 seconds.
*2 Refer to Type B on page 4-26.
l(Automatic transaxle)
If the engine is turned off while the shift
lever is in a position other than P, the
ignition switches to ACC.
qEmergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the
engine off immediately. The ignition
switches to ACC.
When Driving
Start/Stop Engine
4-9
Mazda6_8EA2-EA-14K_Edition2 Page133
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (134,1)
Meters and Gauges
Type A
Type B
Speedometer ....................................................................................................... page 4-11
Odometer, Trip Meter and Trip Meter Selector .................................................. page 4-11
Tachometer ........................................................................................................ page 4-12
Fuel Gauge ........................................................................................................ page 4-13
Dashboard Illumination ..................................................................................... page 4-14
Outside Temperature Display ............................................................................. page 4-14
Cruise Control Set Vehicle Speed Display (Type A instrument cluster) ............ page 4-15
Maintenance Monitor (Type A instrument cluster) ............................................ page 4-15
Trip Computer and INFO Switch ...................................................................... page 4-16
4-10
When Driving
Instrument Cluster and Display
Mazda6_8EA2-EA-14K_Edition2 Page134
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (135,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Type A
Press the selector Press the selector Trip meter A
Odometer
Trip meter B
Odometer
Selector
Type B
Press the selector Press the selector Trip meter A
Odometer
Trip meter B
Odometer
Selector
NOTE
When the ignition is switched to ACC or OFF,
the odometer or trip meters cannot be
displayed, however, pressing the selector can
inadvertently switch the trip meters or reset
them during an approximate ten-minute period
in the following cases:
lAfter the ignition is switched to OFF from
ON.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
When Driving
Instrument Cluster and Display
4-11
Mazda6_8EA2-EA-14K_Edition2 Page135
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (136,1)
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
l(Vehicles with type B audio)
If the fuel economy data is reset using the
fuel economy monitor, or trip A is reset
using the trip meter when the function
which synchronizes the fuel economy
monitor and the trip meter is on, the fuel
economy data and trip A are reset
simultaneously.
Refer to Fuel Economy Monitor on page
4-87.
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 9999.9 km
(mile).
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
*1 The range varies depending on the type
of gauge.
*1 Striped zone
*
1 Red zone
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the driver
that the gears should be shifted before entering
the RED ZONE.
4-12
When Driving
Instrument Cluster and Display
Mazda6_8EA2-EA-14K_Edition2 Page136
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (137,1)
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.
Type A
Full
Empty 1/4 Full
Type B
Full
Empty1/4 Full
If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning/Indicator Lights on page
4-22.
NOTE
lAfter refueling, it may require some time for
the indicator to stabilize. In addition, the
indicator may deviate while driving on a
slope or curve since the fuel moves in the
tank.
lThe display indicating a quarter or less
remaining fuel has more segments to show
the remaining fuel level in greater detail.
lThe direction of the arrow () indicates
that the fuel-filler lid is on the left side of
the vehicle.
When Driving
Instrument Cluster and Display
4-13
Mazda6_8EA2-EA-14K_Edition2 Page137
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (138,1)
qDashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlights and
Parking lights are turned on.
lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
Dim
Bright
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster's visibility is reduced due to glare
from surrounding brightness, cancel the
illumination dimmer and increase the
illumination intensity.
To cancel the illumination dimmer, rotate
the knob clockwise fully. You will hear a
beep sound and the illumination dimmer
will be canceled.NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the dashboard illumination knob is kept
at the illumination dimmer cancel position,
the instrument cluster will not dim when the
headlight switch is turned to the
or
position again. Rotate the dashboard
illumination knob counterclockwise to
activate the illumination dimmer.
qOutside Temperature Display
When the ignition is switched ON, the
outside temperature is displayed.
Type A
Type B
NOTE
Under the following conditions, the outside
temperature display may differ from the actual
outside temperature depending on the
surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in outside temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.
4-14
When Driving
Instrument Cluster and Display
Mazda6_8EA2-EA-14K_Edition2 Page138
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (139,1)

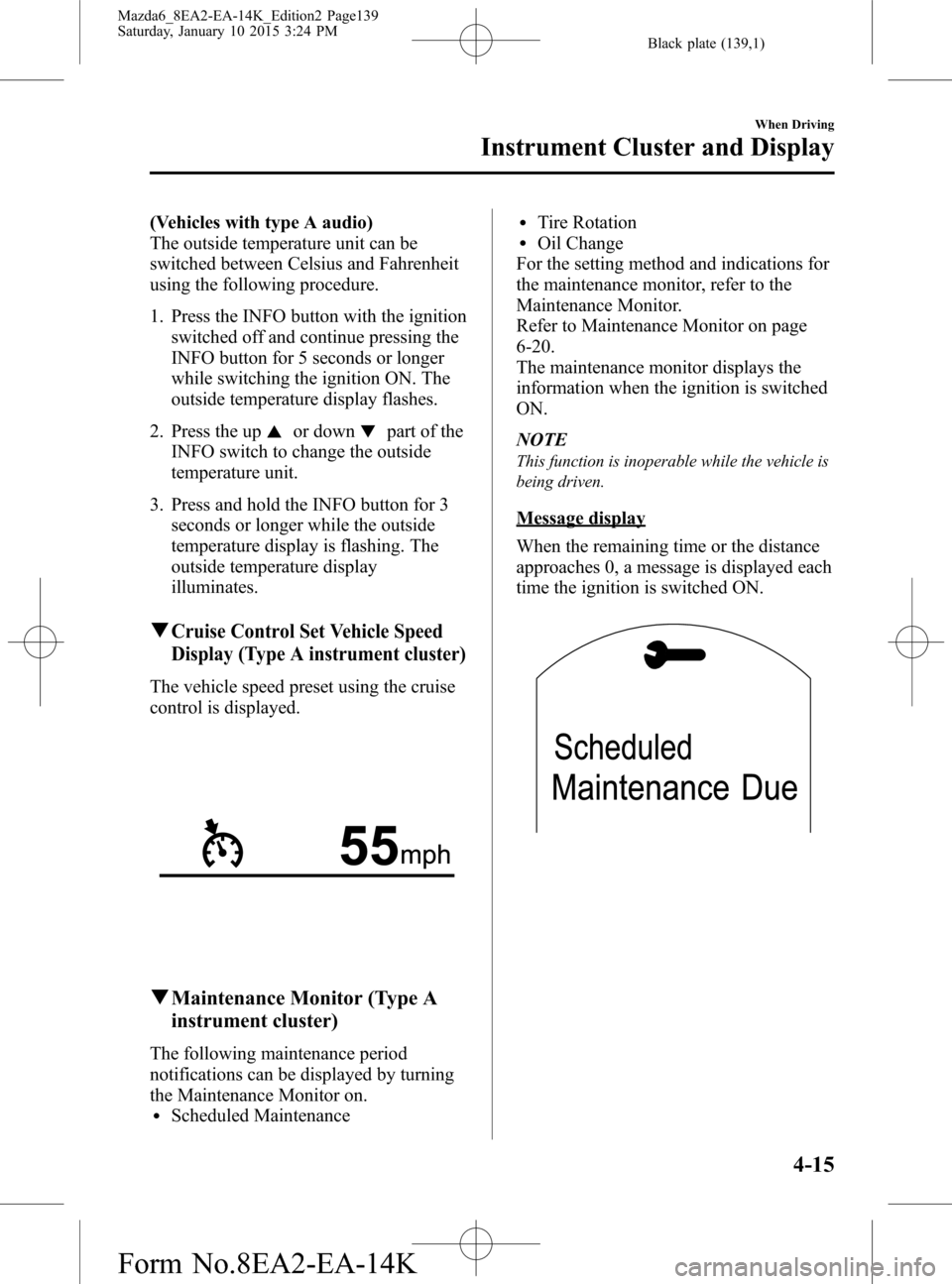

(Vehicles with type A audio)
The outside temperature unit can be
switched between Celsius and Fahrenheit
using the following procedure.
1. Press the INFO button with the ignition
switched off and continue pressing the
INFO button for 5 seconds or longer
while switching the ignition ON. The
outside temperature display flashes.
2. Press the up
or downpart of the
INFO switch to change the outside
temperature unit.
3. Press and hold the INFO button for 3
seconds or longer while the outside
temperature display is flashing. The
outside temperature display
illuminates.
qCruise Control Set Vehicle Speed
Display (Type A instrument cluster)
The vehicle speed preset using the cruise
control is displayed.
qMaintenance Monitor (Type A
instrument cluster)
The following maintenance period
notifications can be displayed by turning
the Maintenance Monitor on.
lScheduled Maintenance
lTire RotationlOil Change
For the setting method and indications for
the maintenance monitor, refer to the
Maintenance Monitor.
Refer to Maintenance Monitor on page
6-20.
The maintenance monitor displays the
information when the ignition is switched
ON.
NOTE
This function is inoperable while the vehicle is
being driven.
Message display
When the remaining time or the distance
approaches 0, a message is displayed each
time the ignition is switched ON.
When Driving
Instrument Cluster and Display
4-15
Mazda6_8EA2-EA-14K_Edition2 Page139
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (140,1)
NOTElIf any of the INFO switches (up, down
, or INFO button) is pressed while a
message is displayed, it will no longer be
displayed the next time the ignition is
switched ON.
lAfter the vehicle is serviced and the
remaining time/distance is reset, the
message for the next maintenance period
will be displayed when the remaining
distance or time to the next maintenance
period approaches 0 (displays when engine
is started).
lIf there are multiple messages, they are
displayed according to their order.
lIf OFF is set for Messages, messages are
not displayed.
qTrip Computer and INFO Switch
The following information can be selected
by pressing the up
or downpart of
the INFO switch with the ignition
switched ON.
lApproximate distance you can travel
on the available fuel
lAverage fuel economylCurrent fuel economylAverage vehicle speedlLane departure warning system
(LDWS) display (Type A instrument
cluster)
í
lMazda Radar Cruise Control (MRCC)
display (Type A instrument cluster)í
lDistance Recognition Support System
(DRSS) display (Type A instrument
cluster)
í
lWarning (Type A instrument cluster)
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
Type A
Type B
4-16
When Driving
íSome models.
Instrument Cluster and Display
Mazda6_8EA2-EA-14K_Edition2 Page140
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K
