Driver's side auto-dimming door
mirrorí
The movement of the auto-dimming door
mirror is interlocked with the auto-
dimming rearview mirror in the interior to
automatically reduce glare from rear on-
coming vehicles.
Refer to Rearview Mirror on page 3-31.
NOTE
The front passenger-side door mirror does not
have the auto-dimming feature.
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night DayDay/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition is switched ON.
Before Driving
Mirrors
3-31íSome models. Mazda6_8EA2-EA-14K_Edition2 Page105
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (138,1)
qDashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlights and
Parking lights are turned on.
lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
Dim
Bright
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster's visibility is reduced due to glare
from surrounding brightness, cancel the
illumination dimmer and increase the
illumination intensity.
To cancel the illumination dimmer, rotate
the knob clockwise fully. You will hear a
beep sound and the illumination dimmer
will be canceled.NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the dashboard illumination knob is kept
at the illumination dimmer cancel position,
the instrument cluster will not dim when the
headlight switch is turned to the
or
position again. Rotate the dashboard
illumination knob counterclockwise to
activate the illumination dimmer.
qOutside Temperature Display
When the ignition is switched ON, the
outside temperature is displayed.
Type A
Type B
NOTE
Under the following conditions, the outside
temperature display may differ from the actual
outside temperature depending on the
surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in outside temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.
4-14
When Driving
Instrument Cluster and Display
Mazda6_8EA2-EA-14K_Edition2 Page138
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (168,1)
qSelect Mode Indication
When the sport mode is selected, the
select mode Indication turns on in the
instrument cluster.
NOTE
If the mode cannot be switched to drive mode,
the select mode indication flashes to notify the
driver.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:lThe high-beam headlights are on.lThe turn signal lever is in the flash-to-
pass position.
qTurn Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 4-63).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 4-70).
If an indicator light flashes abnormally,
one of the turn signal bulbs may be
burned out. Consult an Authorized Mazda
Dealer.
qSecurity Indicator Light
This indicator light starts flashing every
two seconds when the ignition is switched
from ON to OFF and the immobilizer
system is armed.
The light stops flashing when the ignition
is switched ON with the correct key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about three seconds and then turns off.
4-44
When Driving
Instrument Cluster and Display
Mazda6_8EA2-EA-14K_Edition2 Page168
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K

Black plate (182,1)
Lighting Control
qHeadlights
lTurn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.
lFor vehicles with the type A instrument cluster, check the vehicle condition or have the
vehicle inspected at an Authorized Mazda Dealer according to the indication.
lA system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-22.
NOTE
lIf the light switch is left on, the lights will automatically switch off approximately 30 seconds after
switching the ignition off.
The time setting can be changed.
Refer to Personalization Features on page 9-9.
lTo prevent discharging the battery, do not leave the lights on while the engine is off unless safety
requires them.
Without auto-light control
Switch Position
Ignition Position ONACC or
OFFONACC or
OFFONACC or
OFF
Headlights Off Off Off Off On Off
Daytime running lights On
*1Off On*1Off Off Off
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff Off On On On Off/On
*2
*1 It turns on while driving the vehicle.
*2 While the lights are turned on, they will remain on even if the ignition is switched to a position other than ON.
If the driver's door is opened or 30 s have elapsed with the lights turned on, the lights turn off.
4-58
When Driving
Switches and Controls
Mazda6_8EA2-EA-14K_Edition2 Page182
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K

Black plate (183,1)
With auto-light control
Switch Position
Ignition Position ONACC or
OFFONACC or
OFFONACC or
OFFONACC or
OFF
Headlights Off Off Auto
*1Off Off Off On Off
Daytime running lights On*2Off Auto*1Off On*2Off Off Off
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff Off Auto
*1Off/On*3On On OnOff/On*3
*1 The headlight and other light settings switch automatically depending on the surrounding brightness detected
by the sensor.
*2 It turns on while driving the vehicle.
*3 While the lights are turned on, they will remain on even if the ignition is switched to a position other than ON.
If the driver's door is opened or 30 s have elapsed with the lights turned on, the lights turn off.
When Driving
Switches and Controls
4-59
Mazda6_8EA2-EA-14K_Edition2 Page183
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K

Black plate (184,1)
Auto-light control
When the headlight switch is in the
position and the ignition is switched ON, the
light sensor senses the surrounding lightness or darkness and automatically turns the
headlights, other exterior lights and dashboard illumination on or off (see chart above).
CAUTION
ØDo not shade the light sensor by adhering a sticker or a label on the windshield.
Otherwise the light sensor will not operate correctly.
ØThe light sensor also works as a rain sensor for the auto-wiper control. Keep
hands and scrapers clear of the windshield when the wiper lever is in the
position and the ignition is switched ON as fingers could be pinched or the wipers
and wiper blades damaged when the wipers activate automatically. If you are
going to clean the windshield, be sure the wipers are turned off completely―this
is particularly important when clearing ice and snow―when it is particularly
tempting to leave the engine running.
NOTE
lThe headlights, other exterior lights and dashboard illumination may not turn off immediately
even if the surrounding area becomes well-lit because the light sensor determines that it is
nighttime if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the lights turn off if the light switch is turned to the
position.lWhen the headlight switch is in theposition and the ignition is switched to ACC or the
ignition is switched off, the headlights, other exterior lights and dashboard illumination will turn
off.
lThe dashboard illumination can be adjusted by rotating the knob in the instrument cluster. Also,
the day/night mode can be changed by rotating the knob until a beep sound is heard. To adjust the
brightness of the dashboard illumination:
Refer to Dashboard Illumination on page 4-14.
lThe sensitivity of the AUTO lights may be changed.
Refer to Personalization Features on page 9-9.
4-60
When Driving
Switches and Controls
Mazda6_8EA2-EA-14K_Edition2 Page184
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K

Black plate (185,1)
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
The headlight high-beam indicator light in
the instrument cluster illuminates while
the high beams are turned on.
High beam
Low beam
qFlashing the Headlights
Can be used when the ignition is switched
ON.
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The headlight high-
beam indicator light in the instrument
cluster illuminates simultaneously. The
lever will return to the normal position
when released.
OFF
Flashing
qComing Home Light System
The coming home light system turns on
the headlights (low beams) when the lever
is operated.
To turn on the system
When the lever is pulled with the ignition
switched to ACC or OFF, the low beam
headlights turn on.
The headlights turn off after a certain
period of time has elapsed after the doors
are closed.
NOTElThe time until the headlights turn off after
all of the doors are closed can be changed.
Refer to Personalization Features on page
9-9.
lIf no operations are done for 3 minutes
after the lever is pulled, the headlights turn
off.
lThe headlights turn off if the lever is pulled
again while the headlights are illuminated.
When Driving
Switches and Controls
4-61
Mazda6_8EA2-EA-14K_Edition2 Page185
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K

Black plate (186,1)
qLeaving Home Light System
The leaving home light system turns on
the lights when the key unlock button is
pressed while away from the vehicle.
To turn on the system
When the ignition switch and the
headlight switch are as indicated below,
the lights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The lights turn off after a certain period of
time has elapsed (30 seconds).
lIgnition switch: offlHeadlight switch:or
The following lights turn on when the
leaving home light system is operated.
Low beams, Parking lights, Taillights,
License lights
Unlock button
Lock button
NOTElOperation of the leaving home light system
can be turned on or off.
Refer to Personalization Features on page
9-9.
lWhen the transmitter lock button is pressed
and the vehicle receives the transmitter
signal, the lights turn off.
lWhen the headlight switch is in a position
other than
or, the lights turn off.
qHeadlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The angle of the headlights will be
automatically adjusted when turning on
the headlights.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-22.
qDaytime Running Lightsí
Some countries require moving vehicles
to have their lights on (daytime running
lights) during the daytime.
The daytime running lights turn on
automatically when the vehicle starts
moving.
They turn off when the parking brake is
operated or the shift lever is shifted to the
P position (automatic transaxle vehicle).
NOTE
(Except Canada)
The daytime running lights can be deactivated.
Refer to Personalization Features on page 9-9.
4-62
When Driving
íSome models.
Switches and Controls
Mazda6_8EA2-EA-14K_Edition2 Page186
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K

Black plate (187,1)
Fog Lightsí
Can be used when the ignition is switched
ON.
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Fog light switch
To turn the fog lights off, rotate the fog
light switch to the
position or turn
the headlight switch to the
or
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beams.
l(With auto-light control)
If the fog light switch is in the
position
and the headlight switch is in the
position, the fog lights will turn on when
the headlights, the exterior lights and
dashboard illumination turn on.
Turn and Lane-Change
Signals
NOTElIf an indicator light flashes abnormally, one
of the turn signal bulbs may be burned out.
lA personalized function is available to
change the turn indicator sound volume.
Refer to Personalization Features on page
9-9.
qTurn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn Right lane change
Left lane changeOFF
Green indicators on the dashboard show
which signal is working.
qLane-Change Signals
Move the lever halfway toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
When Driving
Switches and Controls
4-63íSome models. Mazda6_8EA2-EA-14K_Edition2 Page187
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K

Black plate (209,1)

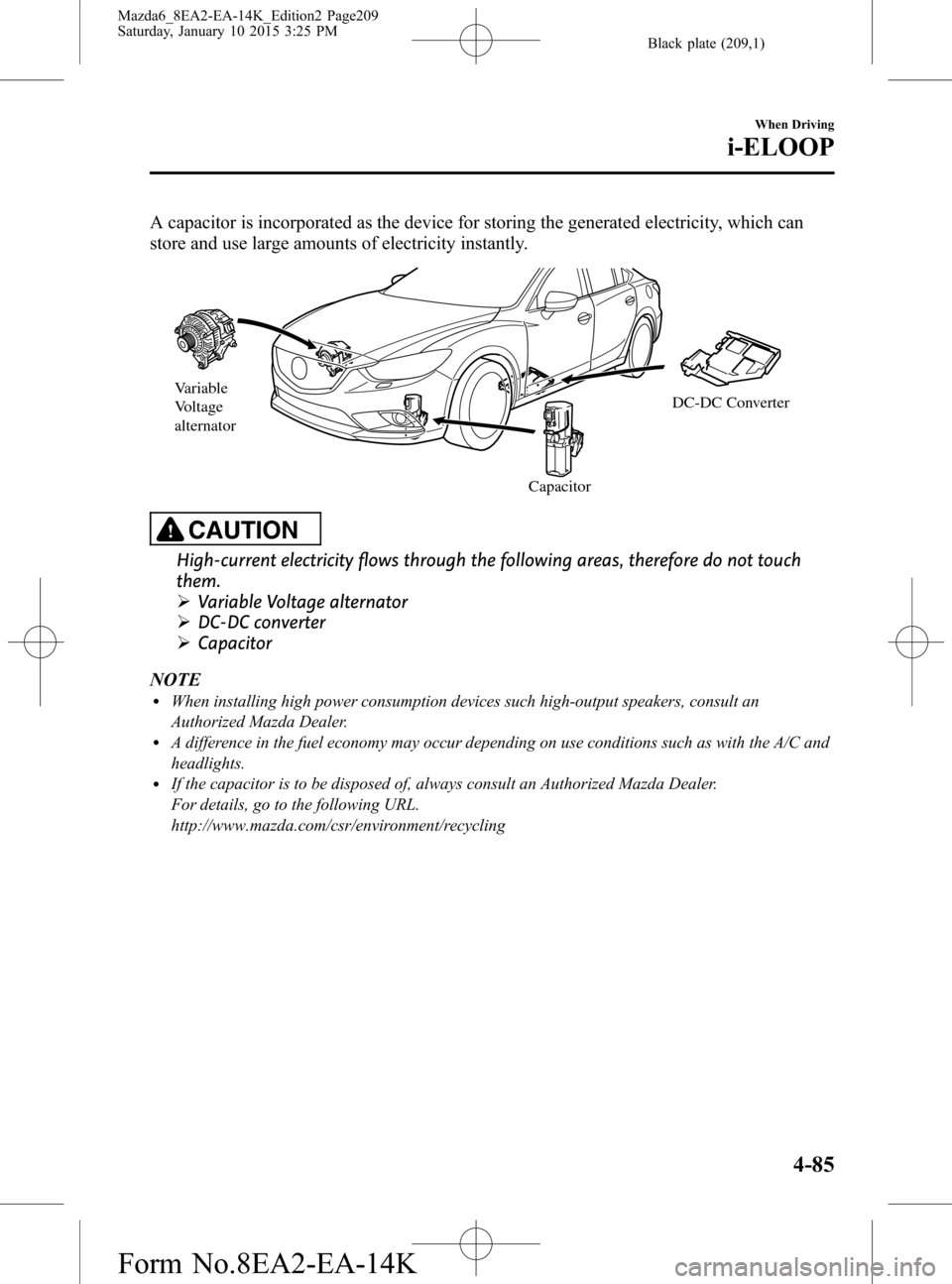

A capacitor is incorporated as the device for storing the generated electricity, which can
store and use large amounts of electricity instantly.
Variable
Voltage
alternator
CapacitorDC-DC Converter
CAUTION
High-current electricity flows through the following areas, therefore do not touch
them.
ØVariable Voltage alternator
ØDC-DC converter
ØCapacitor
NOTE
lWhen installing high power consumption devices such high-output speakers, consult an
Authorized Mazda Dealer.
lA difference in the fuel economy may occur depending on use conditions such as with the A/C and
headlights.
lIf the capacitor is to be disposed of, always consult an Authorized Mazda Dealer.
For details, go to the following URL.
http://www.mazda.com/csr/environment/recycling
When Driving
i-ELOOP
4-85
Mazda6_8EA2-EA-14K_Edition2 Page209
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K
