Black plate (425,1)
qSchedule 1
U.S.A. residents - Engine oil flexible maintenance interval
Use when the maintenance monitor for“Oil Change”is set to“Flexible”. For details, see maintenance
monitor (page 6-20).
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 12 24 36 48 60 72 84 96
×1000 km 16 32 48 64 80 96 112 128
×1000 miles 10 20 30 40 50 60 70 80
ENGINE
Drive belts I I
Engine oil & filter
*1Replace when wrench indicator light is ON.
(Max interval:12 months/16,000 km (10,000 miles))
COOLING SYSTEM
Engine coolant
*2Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
FUEL SYSTEM
Air filterReplace when any equivalent timing of replacing engine oil.
(Max interval:36 months/60,000 km (37,500 miles))
Fuel lines and hoses
*3IIII
Hoses and tubes for emission*3II
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
CHASSIS and BODY
Brake lines, hoses and connectionsIIII
Disc brakesIIIIIIII
Tire (Rotation)
*4Rotate every 8,000 km (5,000 miles).
Steering operation and linkagesIIII
Front and rear suspension, ball joints and wheel
bearing axial playIIII
Driveshaft dust bootsIIII
Bolts and nuts on chassis and bodyTTTT
Exhaust system and heat shields I I
Maintenance and Care
Scheduled Maintenance
6-5
Mazda6_8EA2-EA-14K_Edition2 Page425
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (427,1)
U.S.A. residents - Fixed maintenance interval
Use when the maintenance monitor for“Oil Change”is set to“Fixed”. For details, see maintenance monitor
(page 6-67).
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
SKYACTIV-G 2.5
Drive belts I
Engine oil & filterRRRRRRRR
COOLING SYSTEM
Engine coolant
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakesIIII
Tire (Rotation)
*3Rotate every 12,000 km (7,500 miles).
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
Maintenance and Care
Scheduled Maintenance
6-7
Mazda6_8EA2-EA-14K_Edition2 Page427
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (429,1)
qSchedule 2
U.S.A. (severe driving conditions) and Puerto Rico residents
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
SKYACTIV-G 2.5
Drive belts I
Engine oil & filterFlexible
*1Replace when wrench indicator light is ON.
(Max interval:12 months/16,000 km (10,000 miles))
FixedRRRRRRRRRRRR
COOLING SYSTEM
Engine coolant
*2Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filterU.S.A.
(severe driving
conditions)R
Puerto Rico R R
Fuel lines and hoses
*3II
Hoses and tubes for emission*3I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fluid levelIIIIIIIIIIII
Disc brakesIIII
Tire (Rotation)
*4Rotate every 8,000 km (5,000 miles).
Tire inflation pressure and tire wear*4IIIIIIIIIIII
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Maintenance and Care
Scheduled Maintenance
6-9
Mazda6_8EA2-EA-14K_Edition2 Page429
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (431,1)
Canada residents
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
SKYACTIV-G 2.5
Drive belts I
Engine oil & filterRRRRRRRRRRRR
COOLING SYSTEM
Engine coolant
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filterIIIIIIRIIIII
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fluid levelIIIIIIIIIIII
Disc brakesIIII
Tire (Rotation)
*3Rotate every 8,000 km (5,000 miles).
Tire inflation pressure and tire wear*3IIIIIIIIIIII
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Maintenance and Care
Scheduled Maintenance
6-11
Mazda6_8EA2-EA-14K_Edition2 Page431
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (434,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120
SKYACTIV-G 2.5
Drive belts I I I
Engine oilRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I I
Engine coolant
*1Replace at first 200,000 km or 10 years; after that, every
100,000 km or 5 years
FUEL SYSTEM
Air filterRRRRRR
Fuel lines and hoses I
*2I*2I
Hoses and tubes for emission I*2I*2I
Fuel filter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
CHASSIS and BODY
Brake lines, hoses and connectionsIIIIII
Brake and clutch fluid level I I I I I I I I I
Brake fluid R R R
Disc brakesIIIIIIIIIIII
Tire (Rotation)
*3Rotate every 10,000 km
Tire inflation pressure and tire wear*3IIIIIIIIIIII
Steering operation and linkagesIIIIIIIIIIII
Front and rear suspension, ball joints and wheel
bearing axial playIIIIII
Driveshaft dust bootsIIIIII
Bolts and nuts on chassis and bodyTTTTTT
Exhaust system and heat shieldsIIIIII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
6-14
Maintenance and Care
Scheduled Maintenance
Mazda6_8EA2-EA-14K_Edition2 Page434
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (436,1)

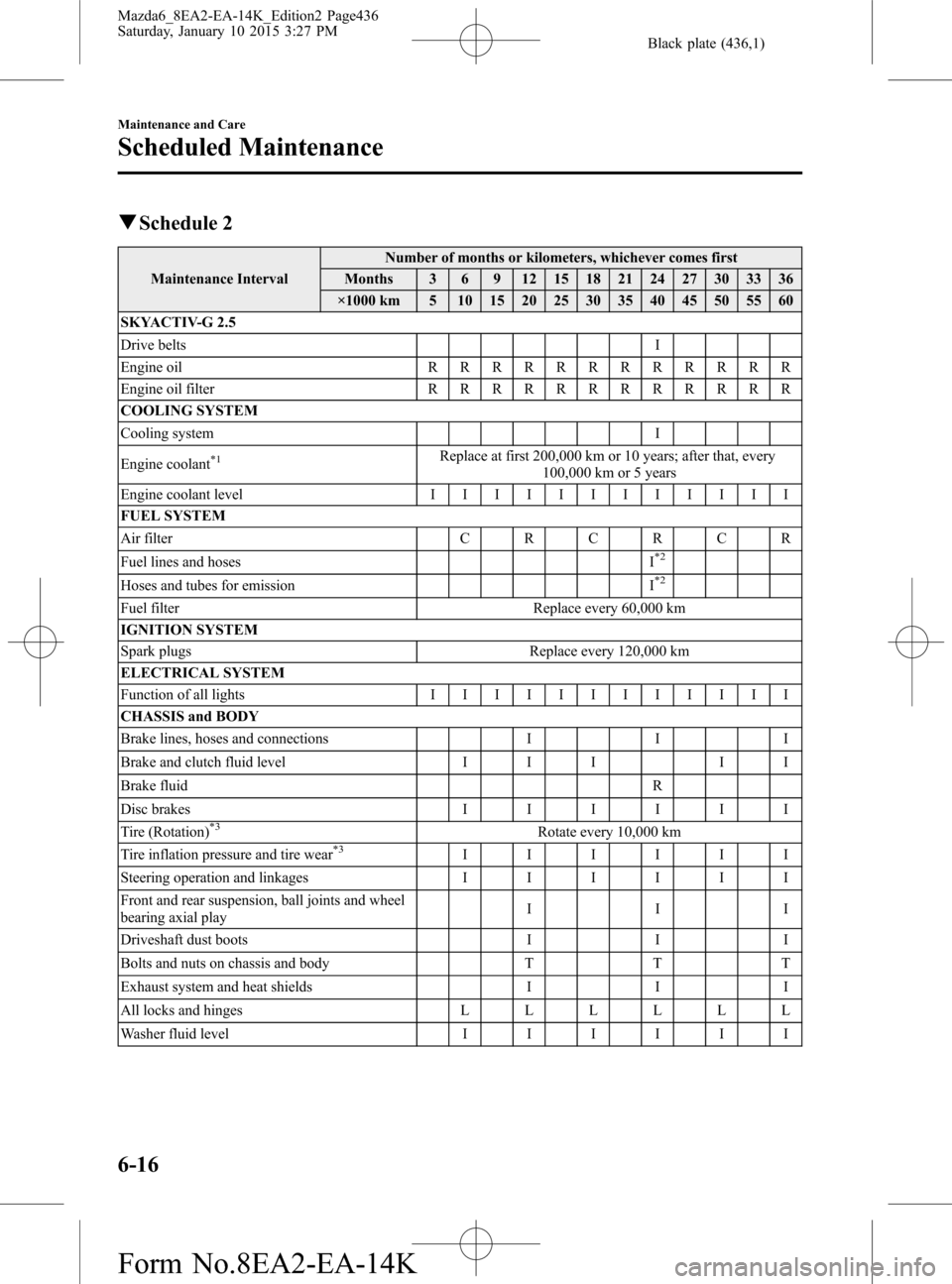

qSchedule 2
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
SKYACTIV-G 2.5
Drive belts I
Engine oilRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I
Engine coolant
*1Replace at first 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filterCRCRCR
Fuel lines and hoses I
*2
Hoses and tubes for emission I*2
Fuel filter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fluid level I I I I I
Brake fluid R
Disc brakesIIIIII
Tire (Rotation)
*3Rotate every 10,000 km
Tire inflation pressure and tire wear*3IIIIII
Steering operation and linkagesIIIIII
Front and rear suspension, ball joints and wheel
bearing axial playIII
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hingesLLLLLL
Washer fluid levelIIIIII
6-16
Maintenance and Care
Scheduled Maintenance
Mazda6_8EA2-EA-14K_Edition2 Page436
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (438,1)
(Cont.)
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
SKYACTIV-G 2.5
Drive belts I I
Engine oilRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I
Engine coolant
*1Replace at first 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filterCRCRCR
Fuel lines and hoses I
*2I*2
Hoses and tubes for emission I*2I*2
Fuel filter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fluid level I I I I
Brake fluid R R
Disc brakesIIIIII
Tire (Rotation)
*3Rotate every 10,000 km
Tire inflation pressure and tire wear*3IIIIII
Steering operation and linkagesIIIIII
Front and rear suspension, ball joints and wheel
bearing axial playIII
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hingesLLLLLL
Washer fluid levelIIIIII
6-18
Maintenance and Care
Scheduled Maintenance
Mazda6_8EA2-EA-14K_Edition2 Page438
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K
