MAZDA MODEL 6 2016 Quick Guide (in English)

When Driving
For details, refer to Section 4, “Instrument Cluster and Display”.
Warning Indication/Warning Lights
Signal Warning
1
2
3
4
5
6
7
8
9
10Charging System Warning
Indication/Warning Light Brake System Warning Light
Engine Oil Warning Light
High Engine Coolant Temperature
Warning Indication/Warning Light
Power Steering Malfunction
Indication/Malfunction Indicator
Light
Master Warning
Indication/Warning Light
Electric Parking Brake Warning
Indication/Warning Light
Check Engine Light
11
12
13
14Automatic Transaxle Warning
Indication/Warning Light
KEY Warning Indication 4WD Warning Indication/Warning
Light
15KEY Warning Light Air Bag/Front Seat Belt
Pretensioner System Warning Light
20Mazda Radar Cruise Control
(MRCC) Warning Indication
Lane Departure Warning System
(LDWS) Warning Light
LED Headlight Warning Light
120 km/h Warning Light
Seat Belt Warning Light (Front seat)
Low Washer Fluid Level Warning
Indication/Warning Light
Liftgate-Ajar Warning Indication
Door-Ajar Warning Light Boot lid-Ajar Warning Indication Signal Warning
ABS Warning Light
These lights turn on or flash to notify the user of the system operation status or a
system malfunction.
19Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Warning Indication
Driver Attention Alert (DAA)
Warning Indication
Smart Brake Support/Smart City
Brake Support (SBS/SCBS) Warning
Indication/Warning Light
21
16
17
1822
23
24
25
10
Seat Belt Warning Light (Rear seat)
26
27
28
29
30
31
32
33
34
35
Tyre Pressure Monitoring System
Warning Indication/Warning Light
High Beam Control System (HBC)
Warning Indication/Warning Light i-stop Warning Light i-ELOOP Warning Indication
Blind Spot Monitoring (BSM)
Warning Indication Adaptive LED Headlights (ALH)
Warning Indication/Warning Light
Door-Ajar Warning Indication Low Fuel Warning
Indication/Warning Light


When Driving
30
Indication/Indicator Lights
Signal Indicator Lights
1
2
3
4
5
6
7
8
9
10Security Indicator Light Seat Belt Indicator Light (Rear seat)
KEY Indication/Indicator Light
Vehicle Speed Alarm Indication
Wrench Indication/Indicator Light
Diesel Particulate Filter
Indication/Indicator Light
Low Engine Coolant Temperature
Indicator Light Glow Indicator Light
Shift Position Indication
11
12
13
14Lights-On Indication/Indicator Light
Headlight High-Beam Indicator
Light
Direction Indicator/Hazard Warning
Indicator Lights
15Front Fog Light Indicator Light20
Adaptive LED Headlights (ALH)
Indicator Light
Blind Spot Monitoring (BSM) OFF
Indicator Light
Mazda Radar Cruise Control
(MRCC) Main Indication
Lane Departure Warning System
(LDWS) OFF Indicator Light
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Indication
Driver Attention Alert (DAA)
Indication Smart Brake Support/Smart City
Brake Support (SBS/SCBS) OFF
Indicator Light
Cruise Set Indication Cruise Main Indication i-ELOOP Indication Light Smart City Brake Support (SCBS)
Indicator Light
Smart Brake Support/Smart City
Brake Support (SBS/SCBS)
Indication Signal Indicator Lights
Front Passenger Air Bag
Deactivation Indicator Light
These lights turn on or flash to notify the user of the system operation status or a
system malfunction.
19
29Mazda Radar Cruise Control
(MRCC) Set Indication
21
17
1822
23
24
25
26
27
28
Rear Fog Light Indicator Light
Electric Parking Brake
Indication/Indicator Light
Brake Pedal Operation demand
Indicator LightHigh Beam Control System (HBC)
Indicator Light
TCS/DSC Indicator Light
DSC OFF Indicator LightSelect Mode Indication
16
31
32
33
34
11For details, refer to Section 4, “Instrument Cluster and Display”.


When Driving
12
Lock-release button
Automatic Transaxle Controls
Various Lockouts:
Indicates that you must depress
the brake pedal and hold in the
lock-release button to shift (The
ignition must be switched ON).
Indicates the selector lever can be
shifted freely into any position.
Indicates that you must hold in
the lock-release button to shift.
Drive Selection Switch
Drive Selection
Drive selection is a system to switch the vehicle's drive mode. When the sport mode is
selected, vehicle's response against accelerator operation is enhanced. This provides
additional quick acceleration which may be needed to safely make manoeuvres such
as lane changes, merging onto freeways, or passing other vehicles.
Pull the drive selection switch back (“ ”) to
cancel the sport mode. Press the drive selection switch forward (“ ”)
to select the sport mode.
Select Mode Indication
When the sport mode is selected, the select mode
indication turns on in the instrument cluster.
For details, refer to Section 4, “Automatic Transaxle” or “Drive Selection”.


13
When Driving
Higher sensitivity
Less sensitivity Switch
Centre
position
Operation of the Headlights
Without auto-light control With auto-light control
Operation of the Windscreen Wipers
With intermittent wiper With auto-wiper control
Operation while pulling up lever
Intermittent (With intermittent wiper)
Low speed Switch
PositionWiper operation
High speed
When the wiper lever
is in the
position, the rain
sensor senses the
amount of rainfall on
the windscreen and
turns the wipers on
or off automatically.
Auto control (With auto-wiper control)
For details, refer to Section 4, “Switches and Controls”.


When Driving
14

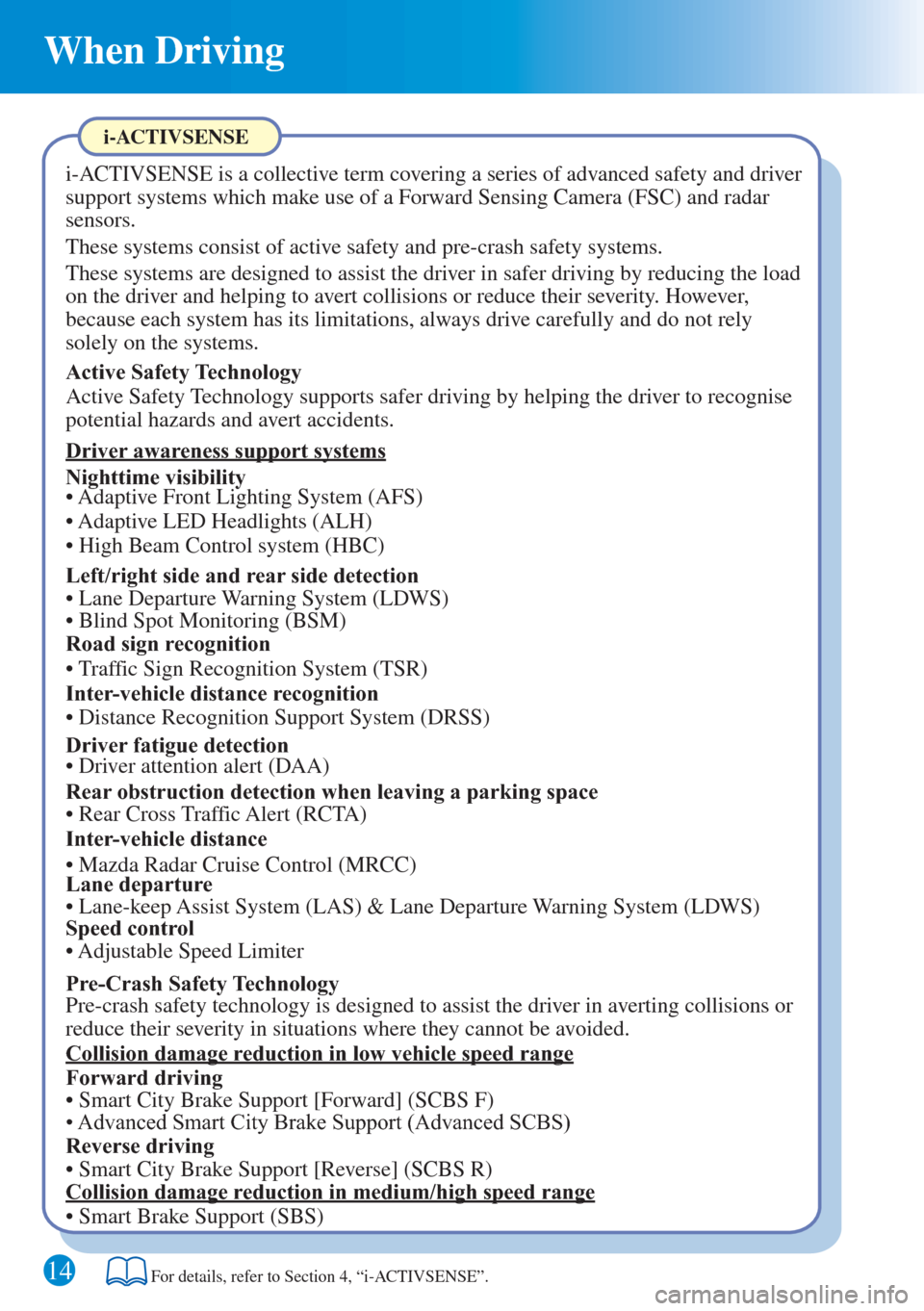

i-ACTIVSENSE
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver
support systems which make use of a Forward Sensing Camera (FSC) and radar
sensors.
These systems consist of active safety and pre-crash safety systems.
Driver awareness support systems
• Adaptive Front Lighting System (AFS)
• High Beam Control system (HBC) • Adaptive LED Headlights (ALH)
• Lane Departure Warning System (LDWS)
• Blind Spot Monitoring (BSM)
• Distance Recognition Support System (DRSS)
• Driver attention alert (DAA)
These systems are designed to assist the driver in safer driving by reducing the load
on the driver and helping to avert collisions or reduce their severity. However,
because each system has its limitations, always drive carefully and do not rely
solely on the systems.
Active Safety Technology
Active Safety Technology supports safer driving by helping the driver to recognise
potential hazards and avert accidents.
Nighttime visibility
Left/right side and rear side detection
Inter-vehicle distance recognition
Driver fatigue detection
• Rear Cross Traffic Alert (RCTA)
Rear obstruction detection when leaving a parking space
• Mazda Radar Cruise Control (MRCC)
• Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
Inter-vehicle distance
Lane departure
• Adjustable Speed Limiter
Speed control
Collision damage reduction in low vehicle speed range
• Smart City Brake Support [Forward] (SCBS F)
Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in averting collisions or
reduce their severity in situations where they cannot be avoided.
Forward driving
• Smart City Brake Support [Reverse] (SCBS R)
• Smart Brake Support (SBS)
Reverse driving
Collision damage reduction in medium/high speed range
For details, refer to Section 4, “i-ACTIVSENSE”.
• Traffic Sign Recognition System (TSR)
Road sign recognition
• Advanced Smart City Brake Support (Advanced SCBS)


15
When Driving
For details, refer to Section 4, “i-ACTIVSENSE”.
Adaptive LED Headlights (ALH)
The adaptive LED headlights are controlled between high and low beams as follows
to assure the driver’s visibility without dazzling a vehicle ahead or a vehicle
approaching in the opposite direction.
This feature dims only the high-beam light shone on a vehicle ahead.
Glare-free high beam
The high beams will dim while driving at a speed of about 40 km/h (25 mph) or
faster. When the vehicle speed is less than about 30 km/h (18 mph), the beams
switch to the low beams.
NOTE
The headlight high-beam indicator light turns on while the high beams are on.
This feature extends the illumination range of the light cast by the low beams while
driving at a speed of about 40 km/h (24 mph) or slower.
Wide-range low beam
This feature shifts the illumination angle of the light cast by the headlights upward
while driving on highways.
Highway mode


16
When Driving
For details, refer to Section 4, “i-ACTIVSENSE”.
Adaptive LED Headlights (ALH)
The system switches the headlights to the high beams after the ignition is switched
ON and the headlight switch is in the AUTO position.
To turn on the system
NOTE
Under the following conditions, the Adaptive LED Headlights (ALH) may not
operate normally. Manually switch between the high and low beams according to
the visibility, and the road and traffic conditions.
• When there are other sources of light in the area such as street lamps,
illuminated signboards, and traffic signals.
• When there are reflective objects in the surrounding area such as reflective
plates and signs.
• When visibility is reduced under rain, snow and foggy conditions.
• When driving on roads with sharp curves or undulations.
CAUTION
• Do not modify the suspensions or headlight units, or remove the camera.
Otherwise, the Adaptive LED Headlights (ALH) may not operate normally.
• Do not rely excessively on the Adaptive LED Headlights (ALH) and drive
the vehicle while paying sufficient attention to safety. Switch the headlights
between the high beams and low beams manually if necessary.
• When the headlights/rear lamps of vehicles ahead or in the opposite lane are
dim or not illuminated.
• When there is insufficient darkness such as at dawn or dusk.
• When the luggage compartment is loaded with heavy objects or the rear
passenger seats are occupied.
• When visibility is reduced due to a vehicle ahead spraying water from its
tyres onto your windscreen.


When Driving
Traffic Sign Recognition System (TSR)
The Traffic Sign Recognition System (TSR) helps prevent the driver from
overlooking traffic signs, and provides support for safer driving by displaying traffic
signs on the active driving display which are recognised by the Forward Sensing
Camera (FSC) or recorded in the navigation system while the vehicle is driven.
If the vehicle speed exceeds the speed limit sign indicated in the active driving
display while the vehicle is driven, the system notifies the driver using the
indication in the active driving display and a warning sound.
The Traffic Sign Recognition System (TSR) displays the speed limit (including
auxiliary signs) and do not enter signs.
Always check the traffic signs visually while driving.
The Traffic Sign Recognition System (TSR) helps prevent the driver from
overlooking traffic signs and provides support for safer driving. Depending on
the weather conditions or problems with traffic signs, a traffic sign may not be
recognised or a traffic sign different from the actual traffic sign may be
displayed. Always make it your responsibility as a driver to check the traffic
signs.
WARNING
Otherwise, it could result in an unexpected accident.
NOTE
• The Traffic Sign Recognition System (TSR) is not supported in some
countries or regions. For information concerning the supported countries or
regions, consult an expert repairer, we recommend an Authorised Mazda
Repairer.
• The Traffic Sign Recognition System (TSR) operates only if the navigation
system SD card (Mazda genuine) is inserted in the SD card slot. Consult an
expert repairer, we recommend an Authorised Mazda Repairer for details.
17For details, refer to Section 4, “i-ACTIVSENSE”.


18
When Driving
For details, refer to Section 4, “i-ACTIVSENSE”.
Traffic Sign Recognition System (TSR)
If the vehicle speed exceeds the speed limit sign displayed on the active driving
display, the warning sound is activated and the area around the speed limit sign
displayed on the active driving display flashes 3 times in amber, and if the vehicle
speed continues to exceed the displayed speed limit sign, the indication stops
flashing and remains on. Check the surrounding conditions and adjust the vehicle
speed to the legal speed using the appropriate operation such as depressing the
brake pedal.
Excessive Speed Warning
NOTE
The Traffic Sign Recognition System (TSR) does not operate if there is a
malfunction in the Forward Sensing Camera (FSC).


19
When Driving
Mazda Radar Cruise Control (MRCC) system
The Mazda Radar Cruise Control (MRCC) system is designed to maintain
headway control according to the vehicle speed using a radar sensor to detect the
distance to a vehicle ahead, which frees the driver from having to use the
accelerator or brake pedals.
Additionally, if your vehicle starts closing in on the vehicle ahead because, for
example, the vehicle ahead brakes suddenly, a warning sound and a warning
indication in the display are activated simultaneously to alert you to maintain a
sufficient distance between the vehicles.
The possible vehicle speed setting ranges are as follows:
• (European models)
About 30 km/h (19 mph) to 200 km/h (124 mph)
• (Except European models)
About 30 km/h (19 mph) to 145 km/h (90 mph)
For details, refer to Section 4, “i-ACTIVSENSE”.
Use the Mazda Radar Cruise Control (MRCC) system on expressways and other
highways which do not require a lot of repeated acceleration and deceleration.
Do not rely completely on the Mazda Radar Cruise Control (MRCC) system
and always drive carefully:
WARNING
Do not use the Mazda Radar Cruise Control (MRCC) system in the
following locations. Otherwise, it could lead to an accident:
• Roads with sharp curves, heavy traffic, or roads requiring repeated and
frequent acceleration.
• When entering expressway interchanges and service areas.
• Slippery roads such as ice or snow-bound roads.
• Long descending slopes.
The Mazda Radar Cruise Control (MRCC) system is designed to reduce load
on the driver, and although it maintains a constant vehicle speed, or
specifically, it maintains a constant distance between your vehicle and the
detected vehicle ahead according to the vehicle speed, the system has detection
limitations depending on the type of vehicle ahead and its conditions, the
weather conditions, and the road conditions. Additionally, the system may be
unable to decelerate sufficiently to avoid hitting the vehicle ahead if the
vehicle ahead applies the brakes suddenly or another vehicle cuts into the
driving lane, which could result in an accident. Always verify the safety of the
surrounding area and depress the brake pedal or accelerator pedal while
keeping a safer distance from vehicles ahead or on-coming vehicles.
