sensor MAZDA MODEL 6 2016 Quick Guide (in English)

13
When Driving
Higher sensitivity
Less sensitivity Switch
Centre
position
Operation of the Headlights
Without auto-light control With auto-light control
Operation of the Windscreen Wipers
With intermittent wiper With auto-wiper control
Operation while pulling up lever
Intermittent (With intermittent wiper)
Low speed Switch
PositionWiper operation
High speed
When the wiper lever
is in the
position, the rain
sensor senses the
amount of rainfall on
the windscreen and
turns the wipers on
or off automatically.
Auto control (With auto-wiper control)
For details, refer to Section 4, “Switches and Controls”.


When Driving
14
i-ACTIVSENSE
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver
support systems which make use of a Forward Sensing Camera (FSC) and radar
sensors.
These systems consist of active safety and pre-crash safety systems.
Driver awareness support systems
• Adaptive Front Lighting System (AFS)
• High Beam Control system (HBC) • Adaptive LED Headlights (ALH)
• Lane Departure Warning System (LDWS)
• Blind Spot Monitoring (BSM)
• Distance Recognition Support System (DRSS)
• Driver attention alert (DAA)
These systems are designed to assist the driver in safer driving by reducing the load
on the driver and helping to avert collisions or reduce their severity. However,
because each system has its limitations, always drive carefully and do not rely
solely on the systems.
Active Safety Technology
Active Safety Technology supports safer driving by helping the driver to recognise
potential hazards and avert accidents.
Nighttime visibility
Left/right side and rear side detection
Inter-vehicle distance recognition
Driver fatigue detection
• Rear Cross Traffic Alert (RCTA)
Rear obstruction detection when leaving a parking space
• Mazda Radar Cruise Control (MRCC)
• Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
Inter-vehicle distance
Lane departure
• Adjustable Speed Limiter
Speed control
Collision damage reduction in low vehicle speed range
• Smart City Brake Support [Forward] (SCBS F)
Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in averting collisions or
reduce their severity in situations where they cannot be avoided.
Forward driving
• Smart City Brake Support [Reverse] (SCBS R)
• Smart Brake Support (SBS)
Reverse driving
Collision damage reduction in medium/high speed range
For details, refer to Section 4, “i-ACTIVSENSE”.
• Traffic Sign Recognition System (TSR)
Road sign recognition
• Advanced Smart City Brake Support (Advanced SCBS)


19
When Driving
Mazda Radar Cruise Control (MRCC) system
The Mazda Radar Cruise Control (MRCC) system is designed to maintain
headway control according to the vehicle speed using a radar sensor to detect the
distance to a vehicle ahead, which frees the driver from having to use the
accelerator or brake pedals.
Additionally, if your vehicle starts closing in on the vehicle ahead because, for
example, the vehicle ahead brakes suddenly, a warning sound and a warning
indication in the display are activated simultaneously to alert you to maintain a
sufficient distance between the vehicles.
The possible vehicle speed setting ranges are as follows:
• (European models)
About 30 km/h (19 mph) to 200 km/h (124 mph)
• (Except European models)
About 30 km/h (19 mph) to 145 km/h (90 mph)
For details, refer to Section 4, “i-ACTIVSENSE”.
Use the Mazda Radar Cruise Control (MRCC) system on expressways and other
highways which do not require a lot of repeated acceleration and deceleration.
Do not rely completely on the Mazda Radar Cruise Control (MRCC) system
and always drive carefully:
WARNING
Do not use the Mazda Radar Cruise Control (MRCC) system in the
following locations. Otherwise, it could lead to an accident:
• Roads with sharp curves, heavy traffic, or roads requiring repeated and
frequent acceleration.
• When entering expressway interchanges and service areas.
• Slippery roads such as ice or snow-bound roads.
• Long descending slopes.
The Mazda Radar Cruise Control (MRCC) system is designed to reduce load
on the driver, and although it maintains a constant vehicle speed, or
specifically, it maintains a constant distance between your vehicle and the
detected vehicle ahead according to the vehicle speed, the system has detection
limitations depending on the type of vehicle ahead and its conditions, the
weather conditions, and the road conditions. Additionally, the system may be
unable to decelerate sufficiently to avoid hitting the vehicle ahead if the
vehicle ahead applies the brakes suddenly or another vehicle cuts into the
driving lane, which could result in an accident. Always verify the safety of the
surrounding area and depress the brake pedal or accelerator pedal while
keeping a safer distance from vehicles ahead or on-coming vehicles.


When Driving

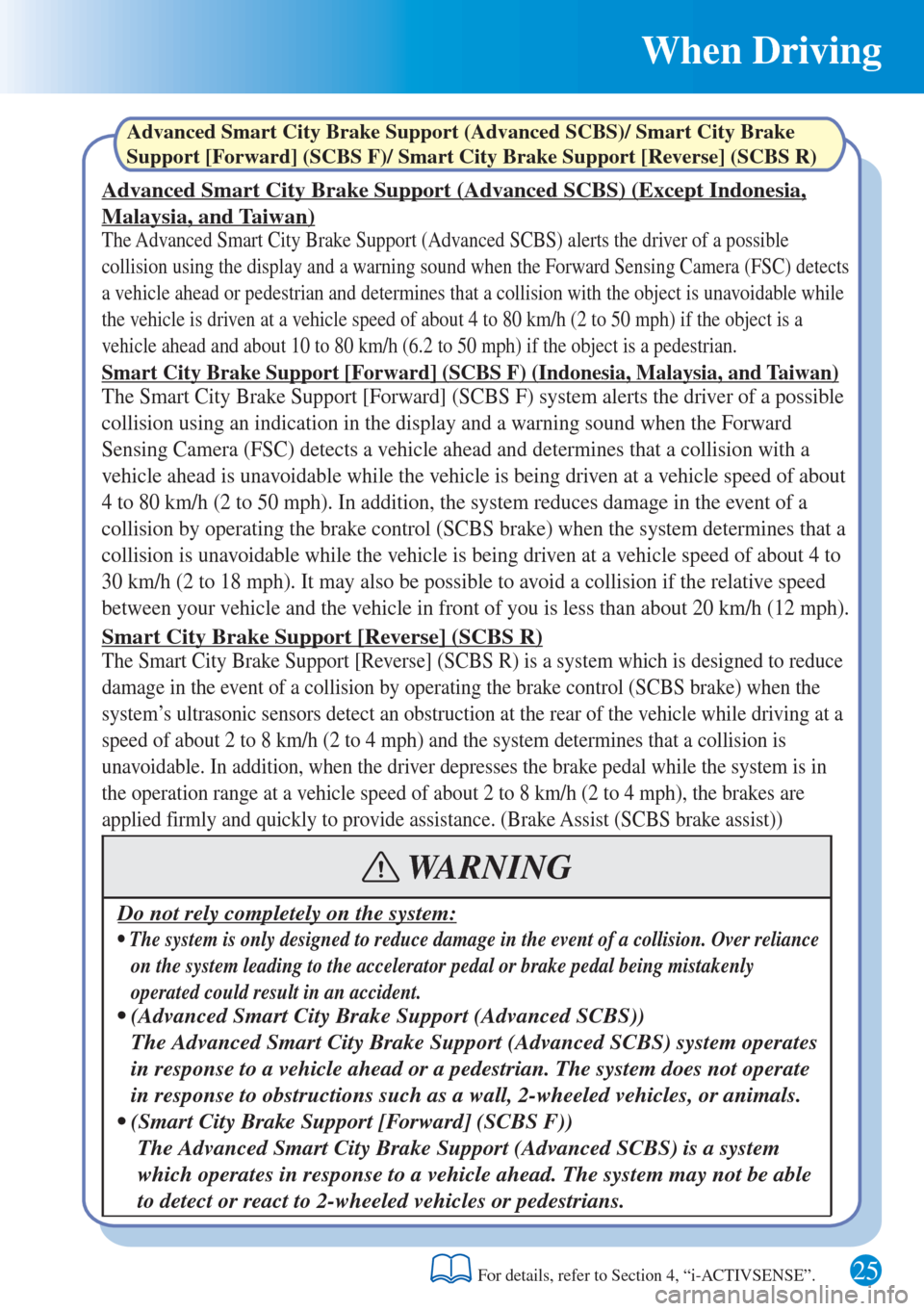

Advanced Smart City Brake Support (Advanced SCBS)/ Smart City Brake
Support [Forward] (SCBS F)/ Smart City Brake Support [Reverse] (SCBS R)
Advanced Smart City Brake Support (Advanced SCBS) (Except Indonesia,
Malaysia, and Taiwan)
The Smart City Brake Support [Reverse] (SCBS R) is a system which is designed to reduce
damage in the event of a collision by operating the brake control (SCBS brake) when the
system’s ultrasonic sensors detect an obstruction at the rear of the vehicle while driving at a
speed of about 2 to 8 km/h (2 to 4 mph) and the system determines that a collision is
unavoidable. In addition, when the driver depresses the brake pedal while the system is in
the operation range at a vehicle speed of about 2 to 8 km/h (2 to 4 mph), the brakes are
applied firmly and quickly to provide assistance. (Brake Assist (SCBS brake assist))
Smart City Brake Support [Reverse] (SCBS R)
The Advanced Smart City Brake Support (Advanced SCBS) alerts the driver of a possible
collision using the display and a warning sound when the Forward Sensing Camera (FSC) detects
a vehicle ahead or pedestrian and determines that a collision with the object is unavoidable while
the vehicle is driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph) if the object is a
vehicle ahead and about 10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian.
Smart City Brake Support [Forward] (SCBS F) (Indonesia, Malaysia, and Taiwan)
The Smart City Brake Support [Forward] (SCBS F) system alerts the driver of a possible
collision using an indication in the display and a warning sound when the Forward
Sensing Camera (FSC) detects a vehicle ahead and determines that a collision with a
vehicle ahead is unavoidable while the vehicle is being driven at a vehicle speed of about
4 to 80 km/h (2 to 50 mph). In addition, the system reduces damage in the event of a
collision by operating the brake control (SCBS brake) when the system determines that a
collision is unavoidable while the vehicle is being driven at a vehicle speed of about 4 to
30 km/h (2 to 18 mph). It may also be possible to avoid a collision if the relative speed
between your vehicle and the vehicle in front of you is less than about 20 km/h (12 mph).
• The system is only designed to reduce damage in the event of a collision. Over reliance
on the system leading to the accelerator pedal or brake pedal being mistakenly
operated could result in an accident.
• (Advanced Smart City Brake Support (Advanced SCBS)) Do not rely completely on the system:
WARNING
The Advanced Smart City Brake Support (Advanced SCBS) system operates
in response to a vehicle ahead or a pedestrian. The system does not operate
in response to obstructions such as a wall, 2-wheeled vehicles, or animals.
• (Smart City Brake Support [Forward] (SCBS F))
The Advanced Smart City Brake Support (Advanced SCBS) is a system
which operates in response to a vehicle ahead. The system may not be able
to detect or react to 2-wheeled vehicles or pedestrians.
25For details, refer to Section 4, “i-ACTIVSENSE”.


When Driving
Smart Brake Support (SBS)
The Smart Brake Support (SBS) system alerts the driver of a possible collision
using a display and warning sound if the radar sensor (front) and the Forward
Sensing Camera (FSC) determine that there is the possibility of a collision with a
vehicle ahead while the vehicle is being driven at about 15 km/h or faster (10
mph or faster). Furthermore, if the radar sensor (front) and the Forward Sensing
Camera (FSC) determines that a collision is unavoidable, the automatic brake
control is performed to reduce damage in the event of a collision.
Do not rely completely on the Smart Brake Support (SBS) system and always
drive carefully:
The Smart Brake Support (SBS) is designed to reduce damage in the event of a
collision, not avoid an accident. The ability to detect an obstruction is limited
depending on the obstruction, weather conditions, or traffic conditions. Therefore, if
the accelerator pedal or brake pedal is mistakenly operated it could result in an
accident. Always verify the safety of the surrounding area and depress the brake pedal
or accelerator pedal while keeping a safer distance from vehicles ahead or on-coming
vehicles.
WARNING
In addition, when the driver depresses the brake pedal, the brakes are applied
firmly and quickly to assist. (Brake Assist (SBS brake assist)).
27For details, refer to Section 4, “i-ACTIVSENSE”.


28
When Driving
Multi-information Display
Active Driving DisplayIf there is the possibility of a collision with a
vehicle or obstruction ahead, the beep sounds
continuously and a warning is indicated in the
display.
Collision Warning
The Smart Brake Support (SBS) system may not operate under the following
conditions:
• If the vehicle is accelerated rapidly and it comes close to a vehicle ahead.
Although the objects which activate the system are four-wheeled vehicles, the
radar sensor (front) could detect the following objects, determine them to be an
obstruction, and operate the Smart Brake Support (SBS) system.
• Objects on the road at the entrance to a curve (including guardrails and
snow banks).
• The vehicle is driven at the same speed as the vehicle ahead.
• The accelerator pedal is depressed.
• A vehicle appears in the opposite lane while cornering or rounding a curve.
• When crossing a narrow bridge.
• When entering an underground parking area.
• Metal objects, bumps, or protruding objects on the road. NOTE
Smart Brake Support (SBS)
• The brake pedal is depressed.
• The steering wheel is being operated.
• The selector lever is being operated.
• The direction indicator is being used.
• When the vehicle ahead is not equipped with tail lights or the tail lights are
turned off.
• When warnings and messages, such as a dirty windscreen, related to the
Forward Sensing Camera (FSC) are being displayed in the multi-
information display.
•
When passing under a low gate or through a tunnel or narrow gate.
• If you suddenly come close to a vehicle ahead.
• When driving in areas where there is high grass or forage.
• Two-wheeled vehicles such as motorbikes or bicycles.
• Pedestrians or non-metallic objects such as standing trees.
For details, refer to Section 4, “i-ACTIVSENSE”.
