4–152
When Driving
i-ACTIVSENSE
NOTE
 Under the following conditions, the radar sensor (front) may not be able to detect
vehicles ahead or obstructions correctly and each system may not operate normally.
 The rear surface of a vehicle ahead does not reflect radio waves effectively, such as
an unloaded trailer or an automobile with a loading platform covered by a soft top,
vehicles with a hard plastic tailgate, and round-shaped vehicles.
 Vehicles ahead with low vehicle height and thus less area for reflecting radio waves. Visibility is reduced due to a vehicle ahead casting off water, snow, or sand from its
tires and onto your windshield.
 The trunk compartment is loaded with heavy objects or the rear passenger seats are
occupied.
 Ice, snow, or soiling is on the front surface of the front emblem. During inclement weather such as rain, snow, or sand storms. When driving near facilities or objects emitting strong radio waves.
 Under the following conditions, the radar sensor (front) may not be able to detect
vehicles ahead or obstructions.
 The beginning and end of a curve. Roads with continuous curves. Narrow lane roads due to road construction or lane closures. The vehicle ahead enters the radar sensor's blind spot. The vehicle ahead is running abnormally due to accident or vehicle damag\
e. Roads with repeated up and down slopes Driving on poor roads or unpaved roads. The distance between your vehicle and the vehicle ahead is extremely short. A vehicle suddenly comes close such as by cutting into the lane.
 To prevent incorrect operation of the system, use tires of the same specified size,
manufacturer, brand, and tread pattern on all four wheels. In addition, do not use tires
with significantly different wear patterns or tire pressures on the same vehicle (Including
the temporary spare tire).
 If the battery power is weak, the system may not operate correctly. When driving on roads with little traffic and few vehicles ahead or obstructions for
the radar sensor (front) to detect, “Front Radar Sensor Blocked” may be temporarily
displayed, however, this does not indicate a problem.
Mazda6_8FH2-EA-16F_Edition2.indb 1522016/07/07 13:45:20

4–153
When Driving
i-ACTIVSENSE
*Some models.
Radar Sensors (Rear)*
Your vehicle is equipped with radar sensors (rear). The following systems also use the radar
sensors (rear).
 Blind Spot Monitoring system (BSM) Rear Cross Traffic Alert (RCTA)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensor.
Radar Sensors (Rear)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Always keep the surface of the rear bumper near the radar sensors (rear\
) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
Refer to Exterior Care on page 6-64.
CAUTION
If the rear bumper receives a severe impact, the system may no longer operate normally.
Stop the system immediately and have the vehicle inspected at an Authorized Mazda
Dealer.
Mazda6_8FH2-EA-16F_Edition2.indb 1532016/07/07 13:45:21

4–154
When Driving
i-ACTIVSENSE
NOTE
 The detection ability of the radar sensors (rear) has limitations. In the following cases,
the detection ability may lower and the system may not operate normally.
 The rear bumper near the radar sensors (rear) has become deformed. Snow, ice or mud adheres to the radar sensors (rear) on the rear bumper. Under bad weather conditions such as rain, snow and fog.
 Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
 Stationary objects on a road or a road side such as small, two-wheeled vehicles,
bicycles, pedestrians, animals, and shopping carts.
 Vehicle shapes which do not reflect radar waves well such as empty trailers with a low
vehicle height and sports cars.
 Vehicles are shipped with the direction of the radar sensors (rear) adjusted for each
vehicle to a loaded vehicle condition so that the radar sensors (rear) detect approaching
vehicles correctly. If the direction of the radar sensors (rear) has deviated for some
reason, have the vehicle inspected at an Authorized Mazda Dealer.
 For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork,
and replacement near the radar sensors, consult an Authorized Mazda Dealer.
 Turn off the system while pulling a trailer or while an accessory such as\
a bicycle carrier
is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the radar will\

be blocked causing the system to not operate normally.
 The radar sensors are regulated by the relevant radio wave laws of the country in which
the vehicle is driven. If the vehicle is driven abroad, authorization from the country in
which the vehicle is driven may be required.
Mazda6_8FH2-EA-16F_Edition2.indb 1542016/07/07 13:45:21

4–159
When Driving
Tire Pressure Monitoring System
Tire Pressure Monitoring System
The Tire Pressure Monitoring System (TPMS) monitors the air pressure of all\
four tires. If
the air pressure of one or more tires is too low, the system warns the driver by indicating the
tire pressure monitoring system warning light in the instrument cluster \
and operating a beep
sound. The system monitors the tire pressures indirectly using the data sent from the ABS
wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the specified
tire pressure (value on the tire pressure label). Follow the procedure\
and perform the
initialization.
Refer to Tire Pressure Monitoring System Initialization on page 4-162.
The warning light flashes when the system has a malfunction.
Refer to Warning Indication/Warning Lights on page 4-33.
ABS wheel speed sensor
Mazda6_8FH2-EA-16F_Edition2.indb 1592016/07/07 13:45:22

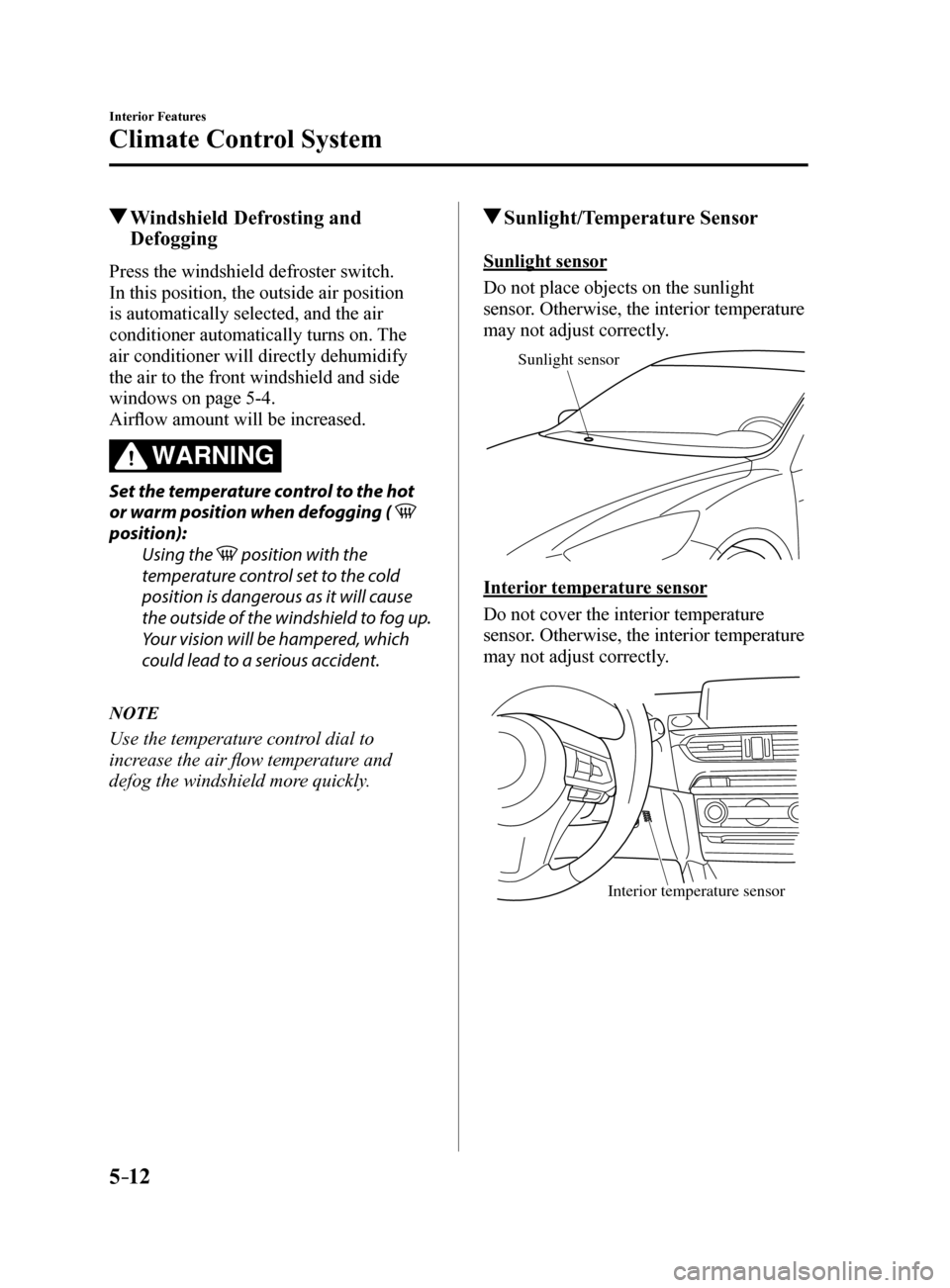

5–12
Interior Features
Climate Control System
Windshield Defrosting and
Defogging
Press the windshield defroster switch.
In this position, the outside air position
is automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows on page 5-4.
Airflow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (

position): Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
Sunlight/Temperature Sensor
Sunlight sensor
Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.
Sunlight sensor
Interior temperature sensor
Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.
Interior temperature sensor
Mazda6_8FH2-EA-16F_Edition2.indb 122016/07/07 13:45:29

6–33
Maintenance and Care
Owner Maintenance
Wiper Blades
CAUTION
 Hot waxes applied by automatic car
washers have been known to affect the
wiper's ability to clean windows.
 To prevent damage to the wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
 When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain
sensor is touched.
 If the windshield above the rain
sensor is wiped with a cloth.
 If the windshield is struck with a hand
or other object.
 If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Replacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, do not try to
sweep the wiper arm by hand.
NOTE
When raising both windshield wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windshield.
1. Raise the wiper arm.
2. Open the clip and slide the blade
assembly in the direction of the arrow.
Mazda6_8FH2-EA-16F_Edition2.indb 332016/07/07 13:46:11

6–66
Maintenance and Care
Appearance Care
Maintaining the Finish
Washing
CAUTION
 When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain
sensor is touched or wiped with a
cloth.
 If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
 Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
 When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof or the
antenna. Otherwise, you could dent the
vehicle or damage the antenna.
To help protect the finish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water. If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface when:

The vehicle is washed without first
rinsing off dirt and other foreign matter.
 The vehicle is washed with a rough, dry,
or dirty cloth.
 The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
 Cleansers or wax containing abrasives
are used.
NOTE
 Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
 Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
 Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
 Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
 Rub gently when washing or drying the
vehicle.
 Take your vehicle only to a car wash
that keeps its brushes well maintained.
 Do not use abrasive cleansers or wax
that contain abrasives.
Mazda6_8FH2-EA-16F_Edition2.indb 662016/07/07 13:46:22

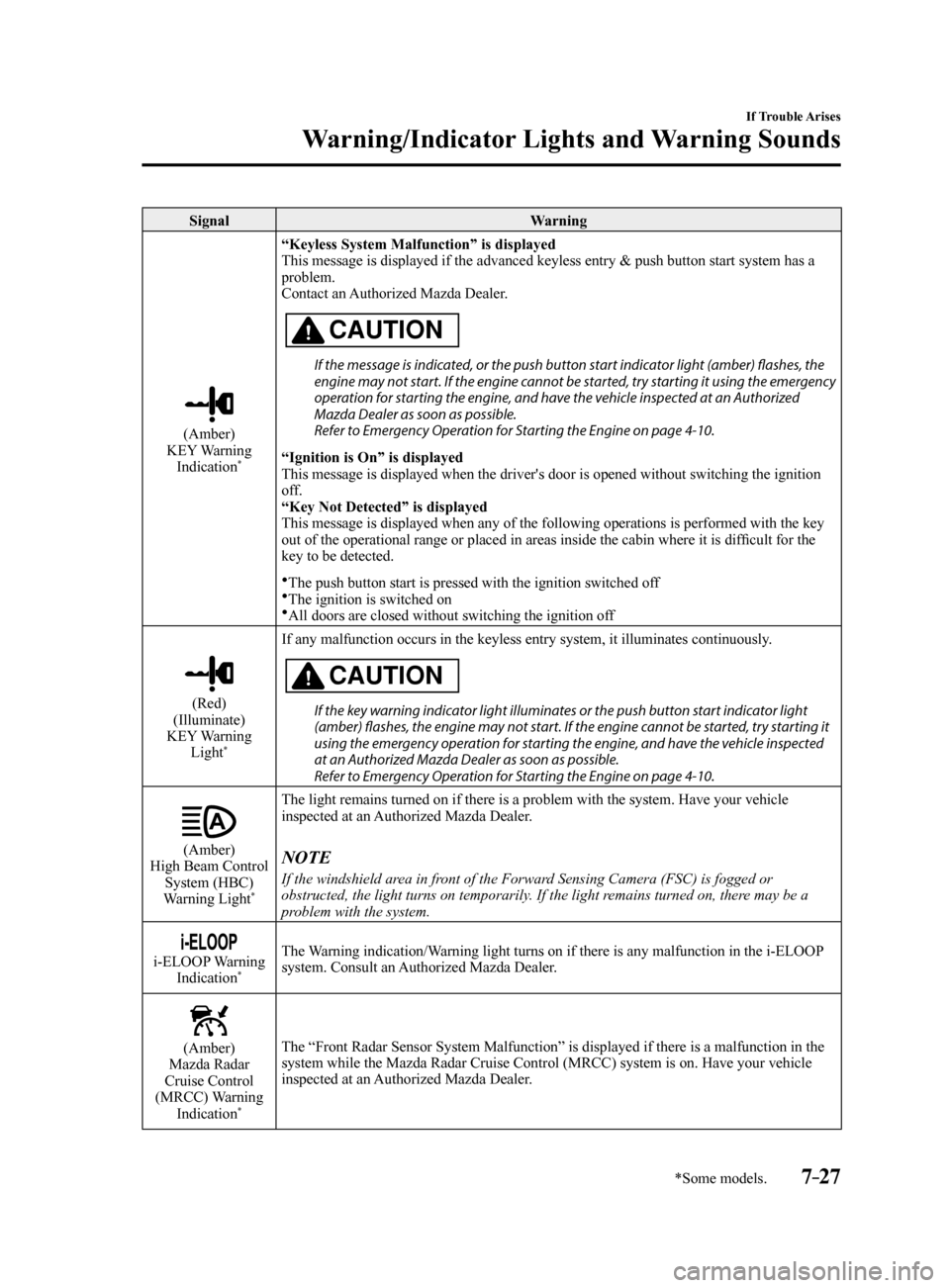

7–27
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning
(Amber)
KEY Warning Indication
*
“Keyless System Malfunction” is displayed
This message is displayed if the advanced keyless entry & push button st\
art system has a
problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the message is indicated, or the push button start indicator light (amber) flashes, the
engine may not start. If the engine cannot be started, try starting it using the emergency
operation for starting the engine, and have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10.
“Ignition is On” is displayed
This message is displayed when the driver's door is opened without switc\
hing the ignition
off.
“Key Not Detected” is displayed
This message is displayed when any of the following operations is perfor\
med with the key
out of the operational range or placed in areas inside the cabin where it is difficult for the
key to be detected.
 The push button start is pressed with the ignition switched off
 The ignition is switched on
 All doors are closed without switching the ignition off
(Red)
(Illuminate)
KEY Warning Light
*
If any malfunction occurs in the keyless entry system, it illuminates co\
ntinuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) flashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10.
(Amber)
High Beam Control System (HBC)
Warning Light
*
The light remains turned on if there is a problem with the system. Have \
your vehicle
inspected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
i-ELOOP Warning Indication*
The Warning indication/Warning light turns on if there is any malfunction in the i-ELOOP
system. Consult an Authorized Mazda Dealer.
(Amber)
Mazda Radar
Cruise Control
(MRCC) Warning Indication
*
The “Front Radar Sensor System Malfunction” is displayed if there is a malfunction in the
system while the Mazda Radar Cruise Control (MRCC) system is on. Have your vehicle
inspected at an Authorized Mazda Dealer.
Mazda6_8FH2-EA-16F_Edition2.indb 272016/07/07 13:46:33

7–28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning
(Amber)
Lane-keep Assist System (LAS) & Lane Departure
Warning System
(LDWS) Warning Indication
*
The message is displayed when the system has a malfunction. Have your ve\
hicle inspected
at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.
CAUTION
 Always use tires for all wheels that are of the specified size, and the same
manufacture, brand, and tread pattern. In addition, do not use tires with significantly
different wear patterns on the same vehicle. If such improper tires are used, the system
may not operate normally.
 When an emergency spare tire is used, the system may not operate normally.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
Blind Spot
Monitoring (BSM) OFF Indicator Light
*
A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not turn on when the ignition is switched ON.It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF\
indicator light in
the instrument cluster illuminates). However, it does not indicate a malfunction.
LED Headlight Warning Light This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
Mazda6_8FH2-EA-16F_Edition2.indb 282016/07/07 13:46:34

7–30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning Action to be taken
Smart Brake Support/
Smart City Brake
Support (SBS/SCBS) Warning Indication
*
The light turns on if the windshield or
the radar sensor are dirty, or there is a
malfunction in the system. Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is
illuminated is due to a dirty windshield,
clean the windshield.
If the warning light is illuminated because
of a dirty radar sensor, clean the front
emblem.
For any other reasons, have the vehicle
inspected at an Authorized Mazda Dealer.
(Amber)
Smart City Brake
Support (SCBS) Warning Light
*
The light turns on if the windshield is
dirty or there is a malfunction in the
system. Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is
illuminated is due to a dirty windshield,
clean the windshield.
For any other reasons, have the vehicle
inspected at an Authorized Mazda Dealer.
Low Fuel Warning
Indication/Warning Light The light turns on when the remaining
fuel is about 9.0 L (2.3 US gal, 1.9 Imp
gal).NOTE
The light illumination timing may
vary because fuel inside the fuel tank
moves around according to the driving
conditions and the vehicle posture.
Add fuel.
Check Fuel Cap Warning
Light*
If the check fuel cap warning light
illuminates while driving, the fuel-filler
cap may not be installed properly. Stop the engine and reinstall the fuel-filler
cap.
Refer to Fuel-Filler Cap on page 3-29
Mazda6_8FH2-EA-16F_Edition2.indb 302016/07/07 13:46:34
