6–37
Maintenance and Care
Owner Maintenance
Battery Maintenance
To get the best service from a battery:
 Keep it securely mounted. Keep the top clean and dry. Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.
 Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.
 If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every six
weeks.
Inspecting Electrolyte Level
A low level of electrolyte fluid will cause
the battery to discharge quickly.
Upper le vel
Lo wer le vel
Inspect the electrolyte level at least once
a week. If it is low, remove the caps and
add enough distilled water to bring the
level between the upper and lower level
(illustration).
Do not overfill.
Examine the specific gravity of the
electrolyte with a hydrometer, especially
during cold weather. If it is low, recharge
the battery.
Battery Recharging
NOTE
 Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
 To disconnect the battery, remove the
negative cable first. Install it last when
connecting the battery.
 Be sure to remove the caps before
recharging the battery.
 If the battery quickly discharges
because, for example, the lights were
left on too long with the engine off,
slow-charge it as required by battery
size and charger capacity.
 If the battery gradually discharges
because of high electric load while the
vehicle is being used, recharge it as
required by battery size and charger
capacity.
Battery Replacement
Contact an Authorized Mazda Dealer for a
battery replacement purchase.
Mazda6_8FH2-EA-16F_Edition2.indb 372016/07/07 13:46:13

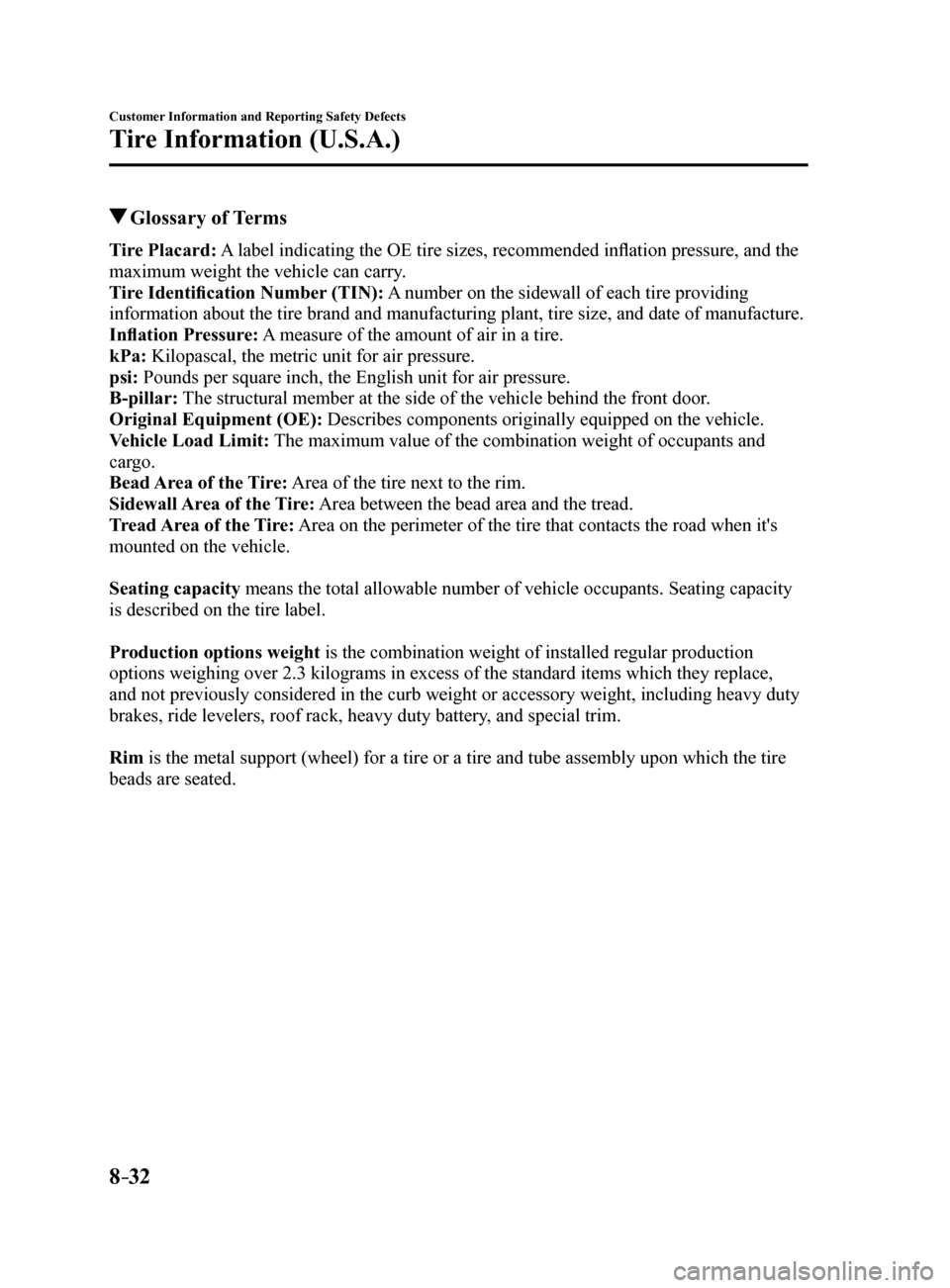

8–32
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Glossary of Terms
Tire Placard: A label indicating the OE tire sizes, recommended inflation pressure, and the
maximum weight the vehicle can carry.
Tire Identification Number (TIN): A number on the sidewall of each tire providing
information about the tire brand and manufacturing plant, tire size, and\
date of manufacture.
Inflation Pressure: A measure of the amount of air in a tire.
kPa: Kilopascal, the metric unit for air pressure.
psi: Pounds per square inch, the English unit for air pressure.
B-pillar: The structural member at the side of the vehicle behind the front door.
Original Equipment (OE): Describes components originally equipped on the vehicle.
Vehicle Load Limit: The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.
Seating capacity means the total allowable number of vehicle occupants. Seating capacity\

is described on the tire label.
Production options weight is the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard items whic\
h they replace,
and not previously considered in the curb weight or accessory weight, in\
cluding heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim.
Rim is the metal support (wheel) for a tire or a tire and tube assembly u\
pon which the tire
beads are seated.
Mazda6_8FH2-EA-16F_Edition2.indb 322016/07/07 13:46:40

8–42
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never exceed
XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be \
riding in your
vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or\
XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity. For
example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That
weight may not safely exceed the available cargo and luggage load capacity calculated in
Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your
vehicle. Consult this manual to determine how this reduces the available\
cargo and
luggage load capacity of your vehicle.
