2–59
Essential Safety Equipment
SRS Air Bags
 An object, such as a seat cushion, is put on the front passenger's seat or between the
passenger's back and the seatback.
 A seat cover is put on the front passenger's seat. Luggage or other items are placed on the seat with the child in the child-restraint
system.
 A rear passenger or luggage push or pull down on the front passenger seatback. Luggage or other items are placed on the seatback or hung on the head restraint. The seat is washed. Liquids are spilled on the seat. The front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
 The front passenger seatback contacts the rear seat. Luggage or other items are placed between the front passenger seat and driver seat. An electric device is put on the front passenger's seat. An additional electrical device, such as a seat warmer is installed to the surface of the
front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the front passenger air bag deactivation indicator light turns on.
CAUTION
 To assure proper deployment of the front air bag and to prevent damage to the sensor in
the front seat cushion:
 Do not place sharp objects on the front seat cushion or leave heavy luggage on them. Do not spill any liquids on the front seats or under the front seats.
 To allow the sensors to function properly, always perform the following:
 Adjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
 If you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-30).
Mazda6_8FH2-EA-16F_Edition2.indb 592016/07/07 13:44:21

2–60
Essential Safety Equipment
SRS Air Bags
NOTE
 The system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
 The front passenger air bag deactivation indicator light may turn on repeatedly if luggage
or other items are put on the front passenger seat, or if the temperature of the vehicle's
interior changes suddenly.
 The front passenger air bag deactivation indicator light may turn on for 10 se\
conds if the
electrostatic capacity on the front passenger seat changes.
 The air bag/front seat belt pretensioner system warning light might turn on if the front
passenger seat receives a severe impact.
 If the front passenger air bag deactivation indicator light does not turn on afte\
r installing
a child-restraint system on the front passenger seat, first, re-install your child-restraint
system according to the procedure in this owner's manual. Then, if the front passenger air
bag deactivation indicator light still does not turn on, install the chi\
ld-restraint system on
the rear seat and consult an Authorized Mazda Dealer as soon as possible.
 If the front passenger air bag deactivation indicator light turns on when an occu\
pant
is seated directly in the front passenger seat, have the passenger re-adjust their posture
by sitting with their feet on the floor, and then re-fastening the seat belt. If the front
passenger air bag deactivation indicator light remains turned on, move the passenger to
the rear seat. If sitting in the rear seat is not possible, slide the front passenger seat as far
back as possible. Consult an Authorized Mazda Dealer as soon as possible.
Mazda6_8FH2-EA-16F_Edition2.indb 602016/07/07 13:44:21

2–61
Essential Safety Equipment
SRS Air Bags
Constant Monitoring
The following components of the air bag systems are monitored by a diagn\
ostic system:
 Crash sensors, and diagnostic module (SAS unit) Front air bag sensors Air bag modules Side crash sensors Air bag/Front seat belt pretensioner system warning light Front seat belt pretensioners Related wiring
(With Front Passenger Occupant Classification System)
 Front passenger air bag deactivation indicator light Front passenger occupant classification sensor Front passenger occupant classification module
The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.
Mazda6_8FH2-EA-16F_Edition2.indb 612016/07/07 13:44:21

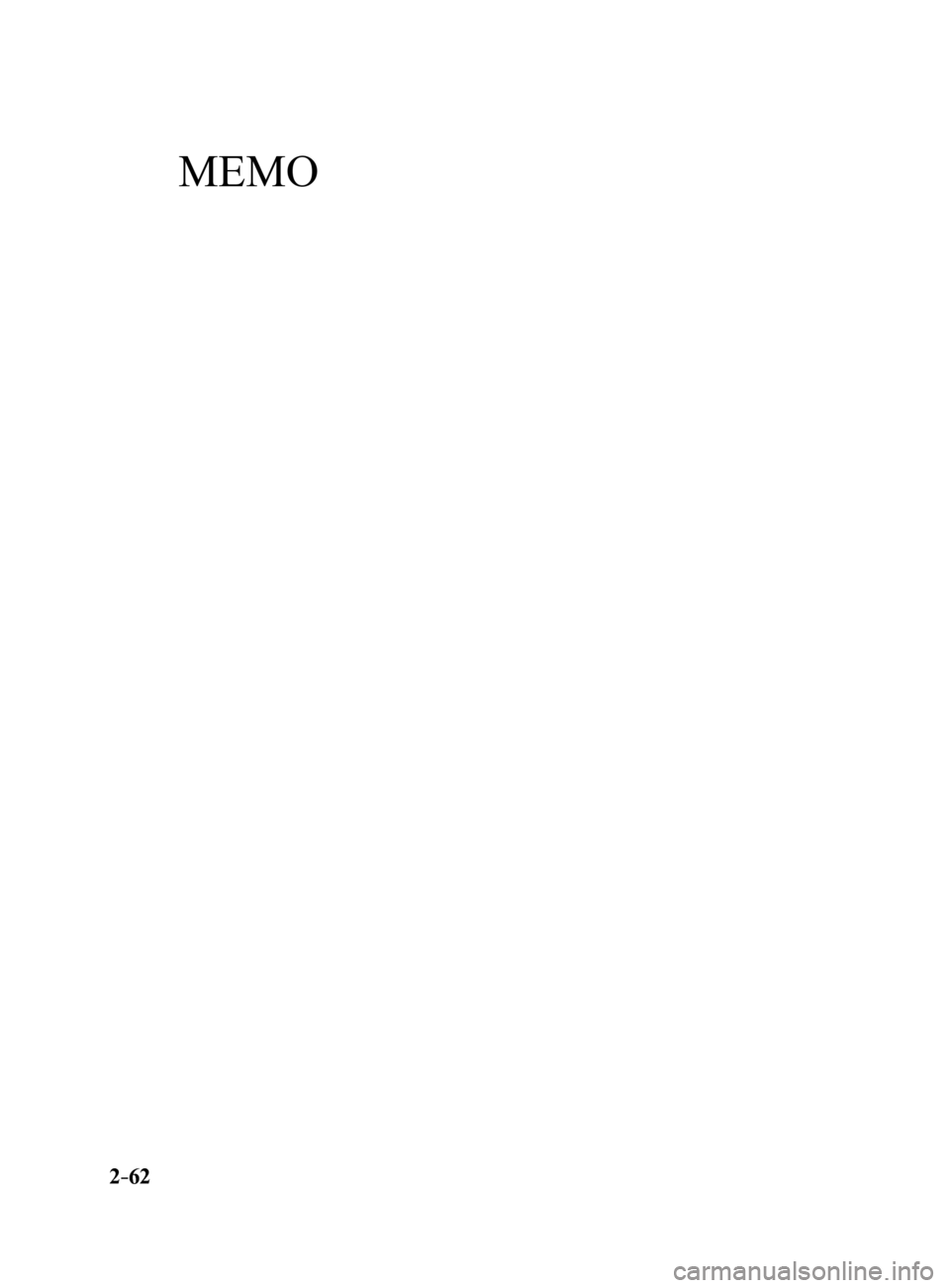

2–62
Mazda6_8FH2-EA-16F_Edition2.indb 622016/07/07 13:44:21
MEMO

3–1*Some models.
3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys ...................................................... 3-2
Keys ............................................... 3-2
Keyless Entry System .................... 3-3
Advanced Keyless Entry System ..... 3-10
Advanced Keyless Entry

System .......................................... 3-10
Operational Range ....................... 3-11
Doors and Locks ................................ 3-12
Door Locks ................................... 3-12
Trunk Lid ..................................... 3-20
Inside Trunk Release Lever
* ........ 3-23
Fuel and Emission ............................. 3-25
Fuel and Engine Exhaust

Precautions ................................... 3-25
Fuel-Filler Lid and Cap ................ 3-28
Steering Wheel ................................... 3-30
Steering Wheel ............................. 3-30
Mirrors ............................................... 3-31
Mirrors ......................................... 3-31
Windows ............................................. 3-34
Power Windows ........................... 3-34
Moonroof
* ................................... 3-37Security System .................................
3-40
Modification and Add-On

Equipment .................................... 3-40
Immobilizer System ..................... 3-40
Theft-Deterrent System
* ............... 3-42
Driving Tips ....................................... 3-44
Break-In Period ............................ 3-44
Saving Fuel and Protection of the
Environment ................................. 3-44
Hazardous Driving ....................... 3-45
Floor Mat ..................................... 3-45
Rocking the Vehicle ..................... 3-46
Winter Driving ............................. 3-46
Driving In Flooded Area ..............3-48
Overloading .................................. 3-48
Driving on Uneven Road ............. 3-49
Towing ................................................ 3-50
Trailer Towing .............................. 3-50
Recreational Towing .................... 3-50
Mazda6_8FH2-EA-16F_Edition2.indb 12016/07/07 13:44:21

3–2
Before Driving
Keys
Keys
WARNING
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these keys to
be an interesting toy to play with and
could cause the power windows or
other controls to operate, or even make
the vehicle move.
CAUTION
 Because the key (transmitter) uses
low-intensity radio waves, it may not
function correctly under the following
conditions:
 The key is carried with
communication devices such as
cellular phones.
 The key contacts or is covered by a
metal object.
 The key is near electronic devices such
as personal computers.
 Non-Mazda genuine electronic
equipment is installed in the vehicle.
 There is equipment which discharges
radio waves near the vehicle.
 The key (transmitter) may consume
battery power excessively if it receives
high-intensity radio waves. Do not place
the key near electronic devices such as
televisions or personal computers.
 To avoid damage to the key
(transmitter), DO NOT:
 Drop the key. Get the key wet. Disassemble the key. Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 Expose the key to any kind of
magnetic field.
 Place heavy objects on the key. Put the key in an ultrasonic cleaner. Put any magnetized objects close to
the key.
Mazda6_8FH2-EA-16F_Edition2.indb 22016/07/07 13:44:21

3–3
Before Driving
Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.
If your key (auxiliary key) is lost, consult
your Authorized Mazda Dealer and have
your code number ready.
NOTE
The driver must carry the key to ensure the
system functions properly.
Auxiliary key
T ransmitter
Ke y code number plate
To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.
Knob
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the trunk lid, and opens the trunk lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you signal for attention or
help.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
 KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-32.
 Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-37.
 Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-37.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
Mazda6_8FH2-EA-16F_Edition2.indb 32016/07/07 13:44:21

3–4
Before Driving
Keys
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
NOTE
 The keyless entry system operation may
vary due to local conditions.
 The keyless entry system is fully
operational (door lock/unlock) when the
ignition is switched off. The system does
not operate if the ignition is switched to
any position other than off.
 If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-38).
 Battery life is about one year. Replace
the battery with a new one if the KEY
indicator light (green) flashes in the
instrument cluster (for vehicles with
a type A instrument cluster (page
4-32), messages are displayed in
the instrument cluster). Replacing
the battery about once a year is
recommended because the KEY warning
light/indicator light may not illuminate
or flash depending on the rate of battery
depletion.
 Additional keys can be obtained at
an Authorized Mazda Dealer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorized Mazda Dealer when
additional keys are required.
Mazda6_8FH2-EA-16F_Edition2.indb 42016/07/07 13:44:22

3–5
Before Driving
Keys
Transmitter
Operation buttons
Operation indicator light
NOTE
 (With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-42.
 (With the advanced keyless function)
A beep sound can be heard for
confirmation when the doors are locked/
unlocked using the key. If you prefer, the
beep sound can be turned off.
The volume of the beep sound can also
be changed.
Refer to Personalization Features on
page 9-10.
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.

All of the doors lock and the beep
sound activates at the currently set
volume. The setting changes each time
the LOCK button on the key is pressed
and the beep sound activates at the set
volume. (If the beep sound has been
set to not activate, it will not activate.)
4. The setting change is completed by
doing any one of the following:
 Switching the ignition to ACC or
ON.
 Closing the driver's door. Opening the trunk lid. Not operating the key for 10
seconds.
 Pressing any button except the
LOCK button on the key.
 Pressing a request switch.
Mazda6_8FH2-EA-16F_Edition2.indb 52016/07/07 13:44:22

3–6
Before Driving
Keys
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors , press the lock button
and the hazard warning lights will flash
once.
(With the advanced keyless function)
A beep sound will be heard once.
To confirm that all doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
NOTE
 The doors can be locked by pressing the
lock button while any other door or the
trunk lid is open. The hazard warning
lights will not flash.
When the lock button is pressed while
any door is open and then the door is
closed, all the doors are locked.
 Confirm that all doors are locked
visually or audibly by use of the double
click.
 Make sure all doors are locked after
pressing the button.
 (With theft-deterrent system)
When the doors are locked by pressing
the lock button on the key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
(With the advanced keyless function)
A beep sound will be heard twice.
To unlock all doors , press the unlock
button again within 3 seconds and two
more beep sounds will be heard.
Mazda6_8FH2-EA-16F_Edition2.indb 62016/07/07 13:44:22
