▼Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue range of the gauge indicates that
the engine coolant temperature is low, and
the red range of the gauge indicates that
the engine coolant temperature is high and
overheating.

CAUTION
If the engine coolant temperature gauge
needle is in the red range, there is the
possibility of overheating. Drive slowly to
reduce engine load until you can find a safe
place to stop the vehicle and wait for the
engine to cool down.
Refer to Overheating on page 7-20.
NOTE
(SKYACTIV-G 2.5T, SKYACTIV-D 2.2)
If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.
During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).
▼Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full
1/4 Full
Empty
If the low fuel warni
ng light illuminates or
the fuel level is very low, refuel as soon as
possible.
If inconsistency in engine performance or
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Refer to Taking Action on page 7-35.
NOTE
After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
When Driving
Instrument Cluster and Display
4-19
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Speed Unit Selector
In some countries, you may have to
change the speed units between km/h and
mph.
When pressing the selector knob, the
speed units in the instrument cluster will
change.

Selector knob
▼Outside Tempera
ture Display
When the ignition is switched ON, the
outside temperature is displayed.

NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
Significantly cold or hot temperatures.
Sudden changes in outside
temperature.
The vehicle is parked.
The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
center display screen.
Refer to Other Equ ipment/Functions on
page 9-15.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
When Driving
Instrument Cluster and Display
4-21
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications
.
Front Center of Headliner
Warning lights will appear in any of the highlighted areas
Instrument Cluster
▼
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Warning Page
Brake System Warning Indication/Warning Light*1*27-25
ABS Warning Light*1
Electronic Brake
Force Distribu‐ tion System
Wa r n i n g
7-25
ABS warning 7-28
Charging System Warning Indication/Warning Light*17-25
Engine Oil Warning Light*17-25
High Engine Coolant Temperat ure Warning Indication 7-25
Power Steering Malfunction Indication 7-25
When Driving
Instrument Cluster and Display
4-26
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning Page
Master Warning Indication 7-28
Electric Parking Brake (EPB) Warning Indication/Warning Light*17-28
Check Engine Light*17-28
*Selective Catalytic Reduction (SCR) system Warning Indication/W arning
Light*17-28
Automatic Transaxle War ning Indication 7-28
*AWD Warning Indication 7-28
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-28
Tire Pressure Monitoring System Warning Light*1
Flashing
7-28
Turns on 7-35
(Amber/White) KEY Warning Indication Amber
7-28
White 7-35
(Amber) High Beam Control System (HBC) Warning Indication/Warning Light
*17-28
Blind Spot Monitoring (BSM)
Warning Indication 7-28
(Amber)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) War ning Indication 7-28
(Amber)Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Warning Indication
7-28
LED Headlight Warning Light*17-28
*Smart Brake Support/Smart City B
rake Support (SBS/SCBS) Warning In‐
dication 7-35
Low Fuel Warning Indication/Warning Light
7-35
Check Fuel Cap Warning Indication/Warning Light*17-35
When Driving
Instrument Cluster and Display
*Some models.4-27
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning Page
Engine Oil Level Warning Light*17-35
Seat Belt Warning Light (Front seat) 7-35
(Red)Seat Belt Warning Light (Rear seat) 7-35
Low Washer Fluid Level Warning Indication
7-35
Door-Ajar Warning Indication7-35
Trunk lid-Ajar Warning Indication 7-35
Door-Ajar Warning Light7-35
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼Indication/Indicator Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Indicator Page
(Green)Seat Belt Indicator Light (Rear seat) 2-27
Front Passenger Air Bag Deactivation Indicator Light*12-68
Security Indicator Light*13-41
Wrench Indication
4-31
*Glow Indicator Light*14-31
*Diesel Particulate Filter Indication4-230
When Driving
Instrument Cluster and Display
4-28*Some models.
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

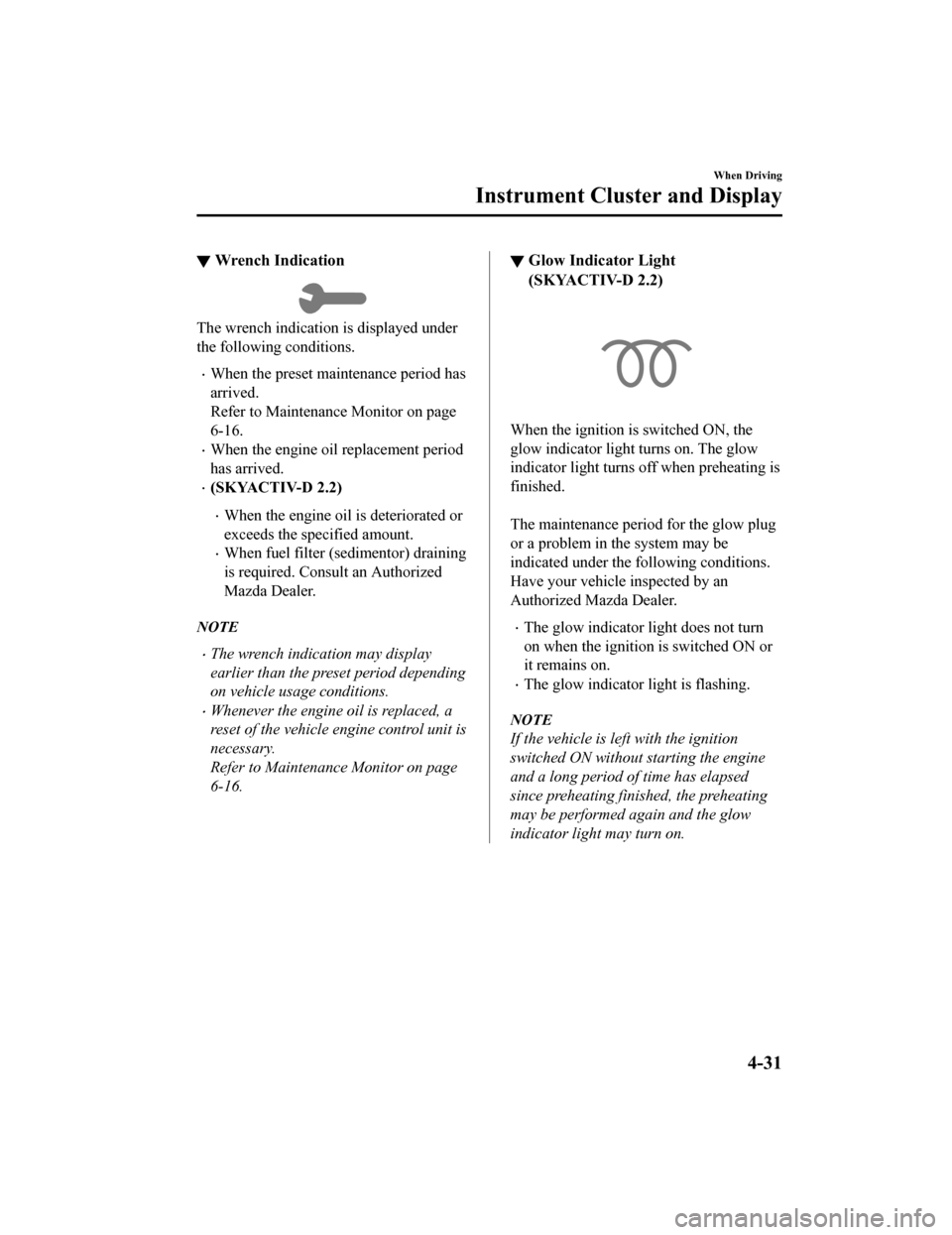

▼Wrench Indication
The wrench indication is displayed under
the following conditions.
When the preset maintenance period has
arrived.
Refer to Maintenance Monitor on page
6-16.
When the engine oil replacement period
has arrived.
(SKYACTIV-D 2.2)
When the engine oil is deteriorated or
exceeds the spec
ified amount.
When fuel filter (sedimentor) draining
is required. Consu lt an Authorized
Mazda Dealer.
NOTE
The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to Maintenance Monitor on page
6-16.

▼ Glow Indicator Light
(SKYACTIV-D 2.2)
When the ignition is switched ON, the
glow indicator light turns on. The glow
indicator light turns
off when preheating is
finished.

The maintenance period for the glow plug
or a problem in the system may be
indicated under the fo llowing conditions.
Have your vehicle inspected by an
Authorized Mazda Dealer.
The glow indicator light does not turn
on when the ignition is switched ON or
it remains on.
The glow indicator light is flashing.
NOTE
If the vehicle is left with the ignition
switched ON without starting the engine
and a long period of time has elapsed
since preheating finished, the preheating
may be performed again and the glow
indicator light may turn on.
When Driving
Instrument Cluster and Display
4-31
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Instrument Cluster (Type B)

ƒSpeedometer.................................................... ...................................................... page 4-32
„ Tachometer..................................................... ....................................................... page 4-32
… Multi-information Display (Type B)............................. ........................................ page 4-33
† Dashboard Illumination......................................... ................................................page 4-37
▼Speedometer
The speedometer indicates the speed of the
vehicle.
▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

STRIPED
ZONE
RED ZONE
*
1The range varies depending on the type
of gauge. *
1
*1
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-32
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

▼Multi-information Display (Type B)
INFO switchMulti-information Display (Type B)
The multi-information display indi
cates the following information.
Odometer
Trip meter
Engine coolant temperature gauge
Fuel gauge
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor (Except SKYACTIV-D 2.2)
Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distan ce Display
(SKYACTIV-D 2.2)
Blind Spot Monitoring (BSM) Display
Traffic Sign Recognition System (TSR) Display
Distance Recognition Support System (DRSS) Display
Mazda Radar Cruise Control with Stop & Go function (MRCC with S top & Go function)
System Display
Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) Display
Cruise Control Display
Compass Display
Message Display
When Driving
Instrument Cluster and Display
4-33
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

The screen content changes each time the INFO switch is pressed.
Press the INFO switchPress the INFO switch
Press the INFO switch Press the INFO switch
Press the INFO switch
Press the INFO switch
Current Fuel Economy,
Trip Meter A, Average
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge
Current Fuel Economy,
Trip Meter B, Average
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge
Engine Coolant
Temperature Gauge,
Maintenance Monitor,
Outside Temperature,
Odometer, Fuel Gauge i-ACTIVSENSE display,
Outside Temperature,
Odometer, Fuel Gauge Warning message,
Outside Temperature,
Odometer, Fuel Gauge
*3
*1
*2 *3: Displayed only when a warning occurs. *1: Except SKYACTIV-D 2.2
*2: SKYACTIV-D 2.2
Engine Coolant
Temperature Gauge,
Remaining Diesel
Exhaust Fluid (DEF),
Maximum Driving
Distance Display,
Outside Temperature,
Odometer, Fuel Gauge
Engine Coolant
Temperature Gauge,
Compass,
Distance-to-empty,
Outside Temperature,
Odometer, Fuel Gauge
When Driving
Instrument Cluster and Display
4-34
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The blue range of the gauge indicates that
the engine coolant temperature is low, and
the red range of the
gauge indicates that
the engine coolant temperature is high and
overheating.

CAUTION
If the high engine coolant temperature
warning light (red) flashes, there is a
possibility of overheating. Drive slowly to
reduce engine load until you can find a safe
place to stop the vehicle and wait for the
engine to cool down.
Refer to Overheating on page 7-20.
NOTE
(SKYACTIV-G 2.5T, SKYACTIV-D 2.2)
If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.
The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with the
temperature unit of the outside
temperature display.
Refer to Other Equipment/Functions on
page 9-15.
During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).
▼ Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full
1/4 Full
Empty
If the fuel level is low, () and () turn an
amber color. Refuel as soon as possible.
If inconsistency in e ngine performance or
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Refer to Taking Action on page 7-35.
NOTE
After refueling, it may require some time
for the indicator to st abilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
When Driving
Instrument Cluster and Display
4-36
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
