MAZDA MODEL 6 2020 Owner's Manual (in English)

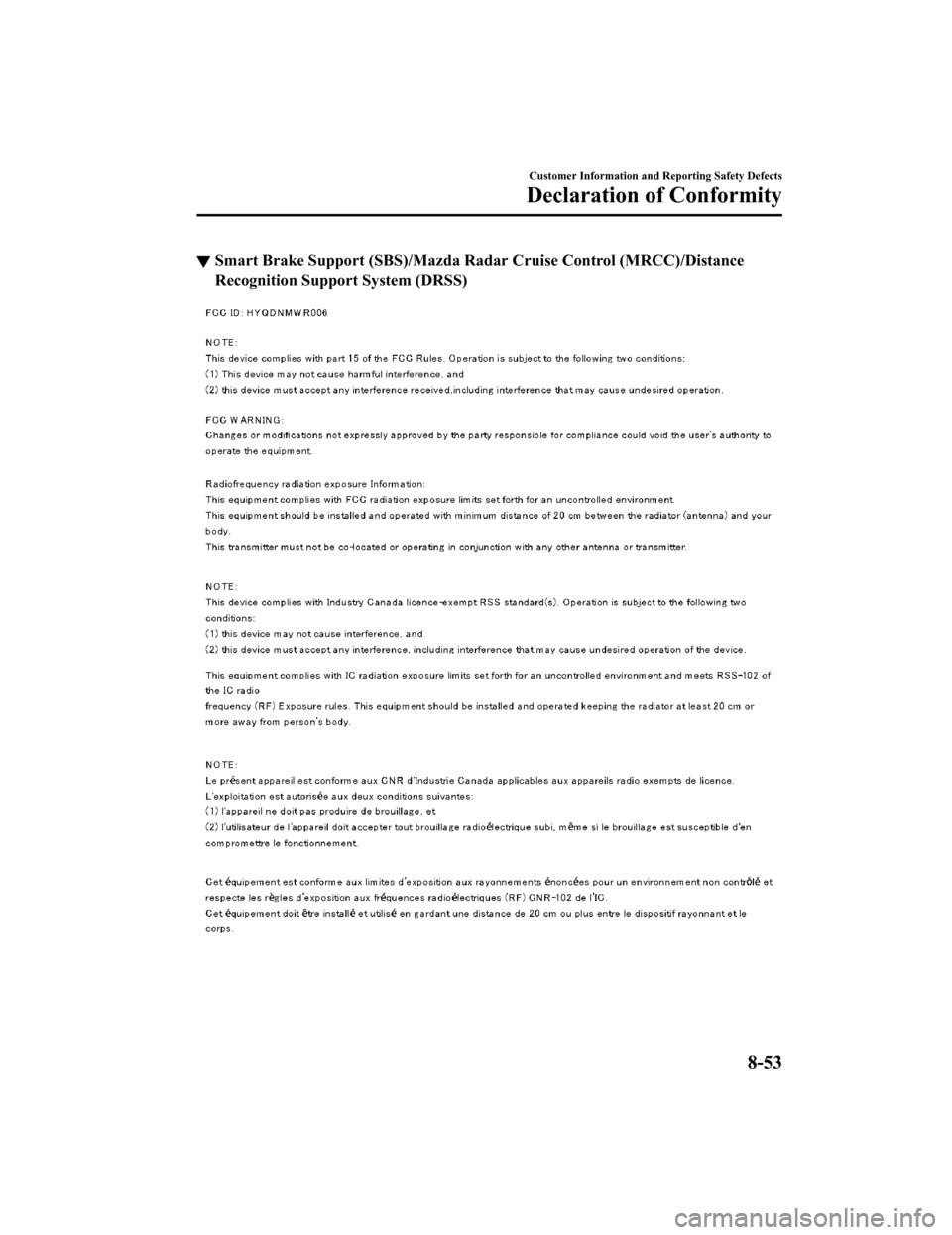

▼Smart Brake Support (SBS)/Mazda
Radar Cruise Control (MRCC)/Distance
Recognition Suppor t System (DRSS)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-53
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Customer Information and Reporting Safety Defects
Declaration of Conformity
8-54
Mazda6_8HX3-EA-19I_Edition1_old2019-6-18 9:25:17

9Specifications
Technical information about your Mazda.
Identification Numbers..................... 9-2 Vehicle Information Labels.......... 9-2
Specifications..................................... 9-4 Specifications............................... 9-4
Personalization Feat ures................. 9-11
Personalization Features............. 9-11
9-1
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

▼Engine Number
SKYACTIV-G 2.5, SKYACTIV-G 2.5T

Forward
SKYACTIV-D 2.2

Forward
Specifications
Identification Numbers
9-3
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

Specifications
▼Engine
Gasoline engine
Item Specification
SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.010.5
Diesel engine
Item Specification
SKYACTIV-D 2.2
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 86.0 × 94.3 mm (3.39 × 3.71 in)
Displacement 2,191.1 ml (2,191.1 cc)
Compression ratio 14.4
▼Electrical System
Battery
Classification
Specification
SKYACTIV-G 2.5,
SKYACTIV-G 2.5T 12V-60Ah/20HR or 12V-65Ah/20HR
SKYACTIV-D 2.2 12V-65Ah/20HR or 12V-80Ah/20HR
Spark-plug
Classification Specification
SKYACTIV-G 2.5 Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine spark plug
*1PY8V-18-110
*1 The spark plugs provide the SKY ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-25.
Coolant FL-22 type
Manual transaxle oil Mazda Long Life Gear Oil G7
*1
Automatic transaxle fluid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life
Gear Oil G7 is recommended.
If Mazda Long Life Gear Oil G7 ca nnot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYACTIV-G
2.5
With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYACTIV-G
2.5T With oil filter replacement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
SKYACTIV-D
2.2 With oil filter replacement
5.1 L (5.4 US qt, 4.5 Imp qt)
Without oil filter replacement 4.8 L (5.1 US qt, 4.2 Imp qt)
Coolant U.S.A. and
Canada SKYAC‐
TIV-G 2.5
Manual trans‐
axle
6.8 L (7.2 US qt, 6.0 Imp qt)
Automatic
transaxle 7.0 L (7.4 US qt, 6.2 Imp qt)/7.1 L (7.5 US qt, 6.2
Imp qt)
SKYACTIV-G 2.5T 8.3 L (8.8 US qt, 7.3 Imp qt)
SKYACTIV-D 2.2 8.6 L (9.1 US qt, 7.6 Imp qt)
Mexico SKYACTIV-G 2.5
7.0 L (7.4 US qt, 6.2 Imp qt)
SKYACTIV-G 2.5T 8.2 L (8.7 US qt, 7.2 Imp qt)
Manual transaxle oil 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic
transaxle
fluid SKYACTIV-G 2.5
7.8 L (8.2 US qt, 6.9 Imp qt)/8.0 L (8.5 US qt, 7.0
Imp qt)
SKYACTIV-G 2.5T, SKYACTIV-D 2.2 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Specifications
Specifications
9-5
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

ItemCapacity
Fuel tank FWD
62.0 L (16.4 US gal, 13.6 Imp gal)
AWD 52.0 L (13.7 US gal, 11.4 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length Without license plate holder
4,865 mm (191.5 in)
With license plate holder 4,895 mm (192.7 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,450 mm (57.1 in)
Front tread 17 inch wheel vehicle
1,585 mm (62.4 in)
19 inch wheel vehicle 1,595 mm (62.8 in)
Rear tread 17 inch wheel vehicle
1,575 mm (62.0 in)
19 inch wheel vehicle 1,585 mm (62.4 in)
Wheelbase 2,830 mm (111.4 in)
▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.5
Item We i g h t
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,977 kg (4,358 lbs) 2,029 kg (4,473 lbs)
GAWR (Gross Axle Weight Rating) Front 1,023 kg (2,255 lbs) 1,078 kg (2,377 lbs)
Rear 959 kg (2,114 lbs)
957 kg (2,110 lbs)
SKYACTIV-G 2.5T
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,065 kg (4,552 lbs)
GAWR (Gross Axle Weight Rating) Front
1,107 kg (2,440 lbs)
Rear 963 kg (2,123 lbs)
SKYACTIV-D 2.2
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,185 kg (4,817 lbs)
GAWR (Gross Axle Weight Rating) Front
1,166 kg (2,571 lbs)
Rear 1,024 kg (2,258 lbs)
Specifications
Specifications
9-6
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Mexico
SKYACTIV-G 2.5
ItemWeight
GVW (Gross Vehicle Weight) Total
2,032 kg (4,480 lbs)
Front 1,037 kg (2,286 lbs)
Rear 995 kg (2,194 lbs)
GAW (Permissible axle load) Front
1,072 kg (2,363 lbs)
Rear 1,061 kg (2,339 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) Total
2,118 kg (4,669 lbs)
Front 1,121 kg (2,471 lbs)
Rear 997 kg (2,198 lbs)
GAW (Permissible axle load) Front
1,156 kg (2,549 lbs)
Rear 1,063 kg (2,344 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached t
o the inside of the engine com‐
partment. Check the label before recharging the refrigerant. Refer to Climate Control Sys‐
tem on page 5-2.
Item Specification
Refrigerant Type HFC134a (R-134a)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UN-R*1 (SAE)
Headlights LED
*2
― (―)
Daytime running lights
LED*2
Parking lightsLED type
LED*2
Bulb type 21/5*3W21/5W (7444)
Specifications
Specifications
9-7
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Light bulbCategory
Wat t a ge UN-R*1 (SAE)
Front turn signal lightsFront side-marker lightsSide turn signal lightsHigh-mount brake lightRear turn signal lightsRear side-marker lightsBrake lightsTaillightsReverse lightsLicense plate lights LED
*2― (―)
*1 UN-R stands for United Nations Regulation.*2 LED is the abbreviation for Light Emitting Diode.*3 Double-filament light bulb, however, only 5 W filament bulb is
used in the parking lights.
Interior light
Light bulbCategory
Wat t a ge UN-R*1
Trunk light Bulb type 3 ―
LED type
LED*2―
Overhead light (Front)/Map lights Bulb type 8 ―
LED type
LED
*2―
Rear map lights Bulb type 8 ―
LED type
LED
*2―
Vanity mirror lights
*Bulb type 2―
LED type LED
*2―
Courtesy lights LED
*2―
Ambient lights
*LED*2―
*1 UN-R stands for United Nations Regulation.*2 LED is the abbreviation for Light Emitting Diode.
Specifications
Specifications
9-8*Some models.
