MAZDA MODEL 6 SPORT WAGON 2006 Owners Manual

Black plate (311,1)

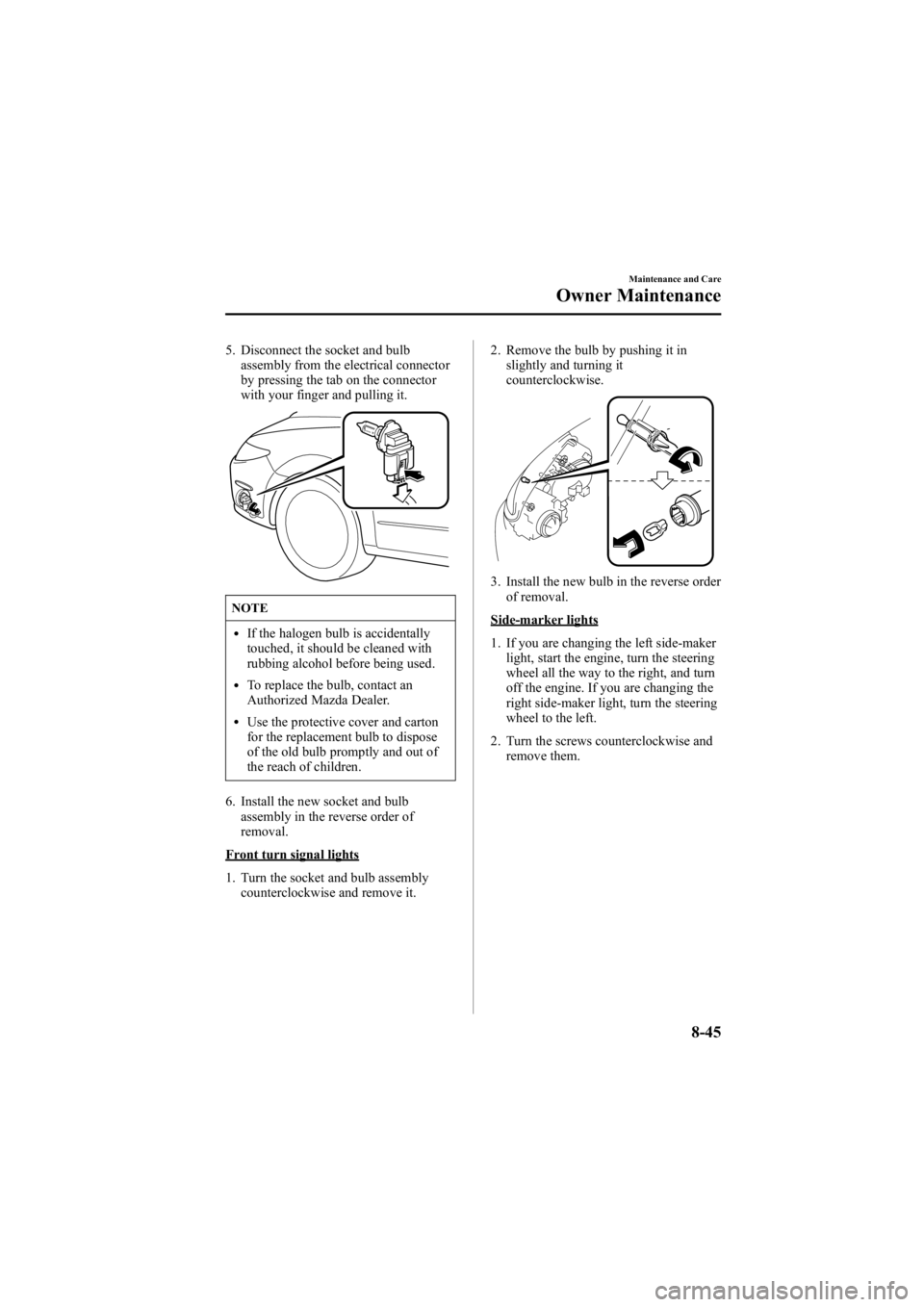

5. Disconnect the socket and bulbassembly from the electrical connector
by pressing the tab on the connector
with your finger and pulling it.
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
6. Install the new socket and bulb assembly in the reverse order of
removal.
Front turn signal lights
1. Turn the socket and bulb assemblycounterclockwise and remove it. 2. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse orderof removal.
Side-marker lights
1. If you are changing the left side-maker
light, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right side-maker light, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and remove them.
Maintenance and Care
Owner Maintenance
8-45
Mazda6_8V40-EA-05L_Edition1 Page311
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (312,1)

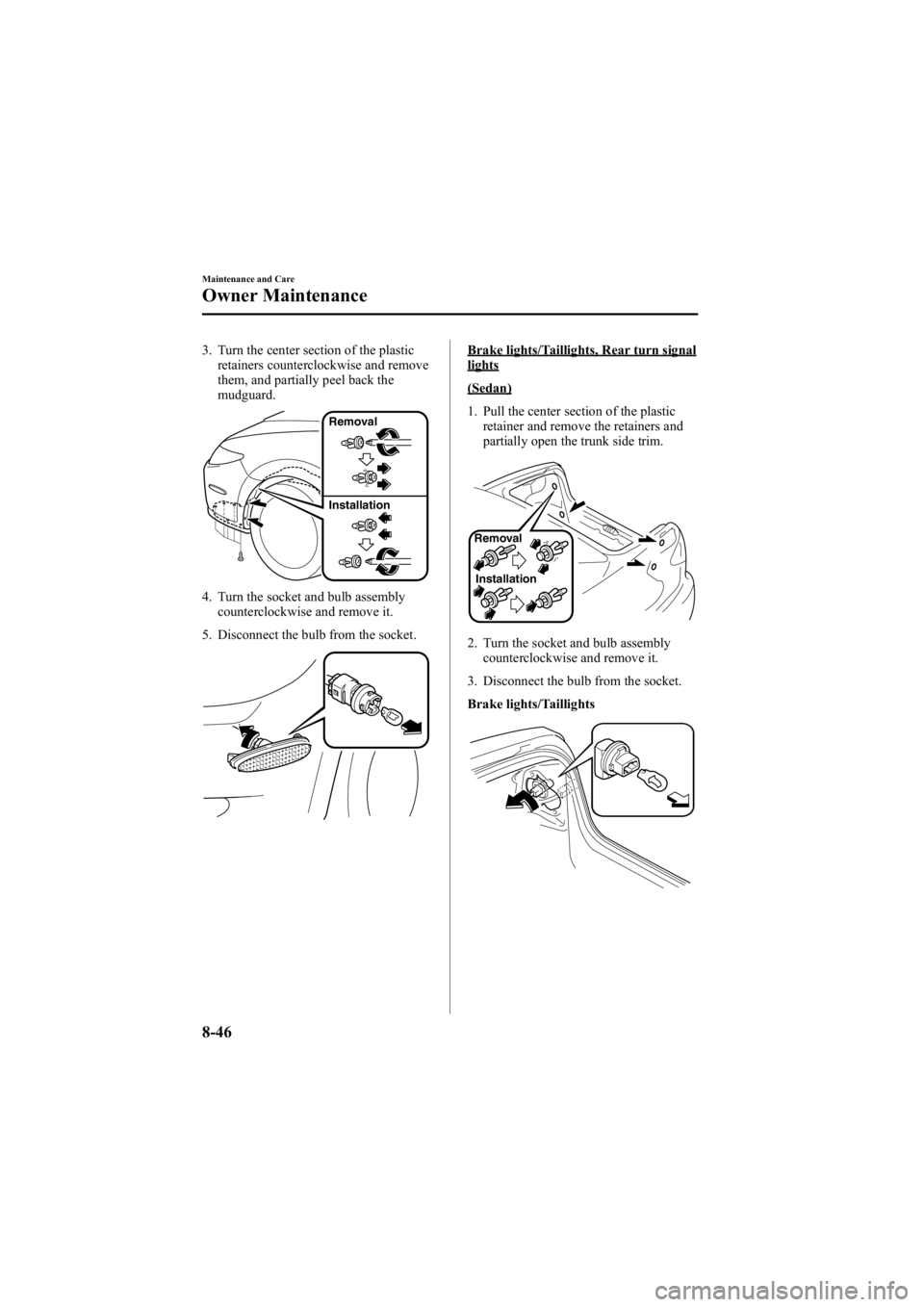

3. Turn the center section of the plasticretainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
Brake lights/Taillights, Rear turn signallights
(Sedan)
1. Pull the center section of the plastic retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights
8-46
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page312
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (313,1)
Rear turn signal lights
4. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(5-Door)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Brake lights/Taillights
Rear turn signal lights
Maintenance and Care
Owner Maintenance
8-47
Mazda6_8V40-EA-05L_Edition1 Page313
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (314,1)
5. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
(Sport Wagon)
1. Turn the knob and remove the cover.
Left side Right side
2. Pull the strap and remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it. 4. Disconnect the bulb from the socket.
Rear turn signal lights
Brake lights/Taillights
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse lights, Taillights
(Sedan)
1. Pull the center section of the plasticretainer and remove the retainers, then
remove the trunk rear trim.
Installation
Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it.
8-48
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page314
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (315,1)
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse orderof removal.
(5-Door/Sport Wagon)
1. Remove the cover.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse order of removal.
High-mount brake light
(Sedan)
1. Remove the high-mount brake light
component. 2. Detach the electrical connector from
the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
(5-Door)
1. Remove the cover.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-49
Mazda6_8V40-EA-05L_Edition1 Page315
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (316,1)

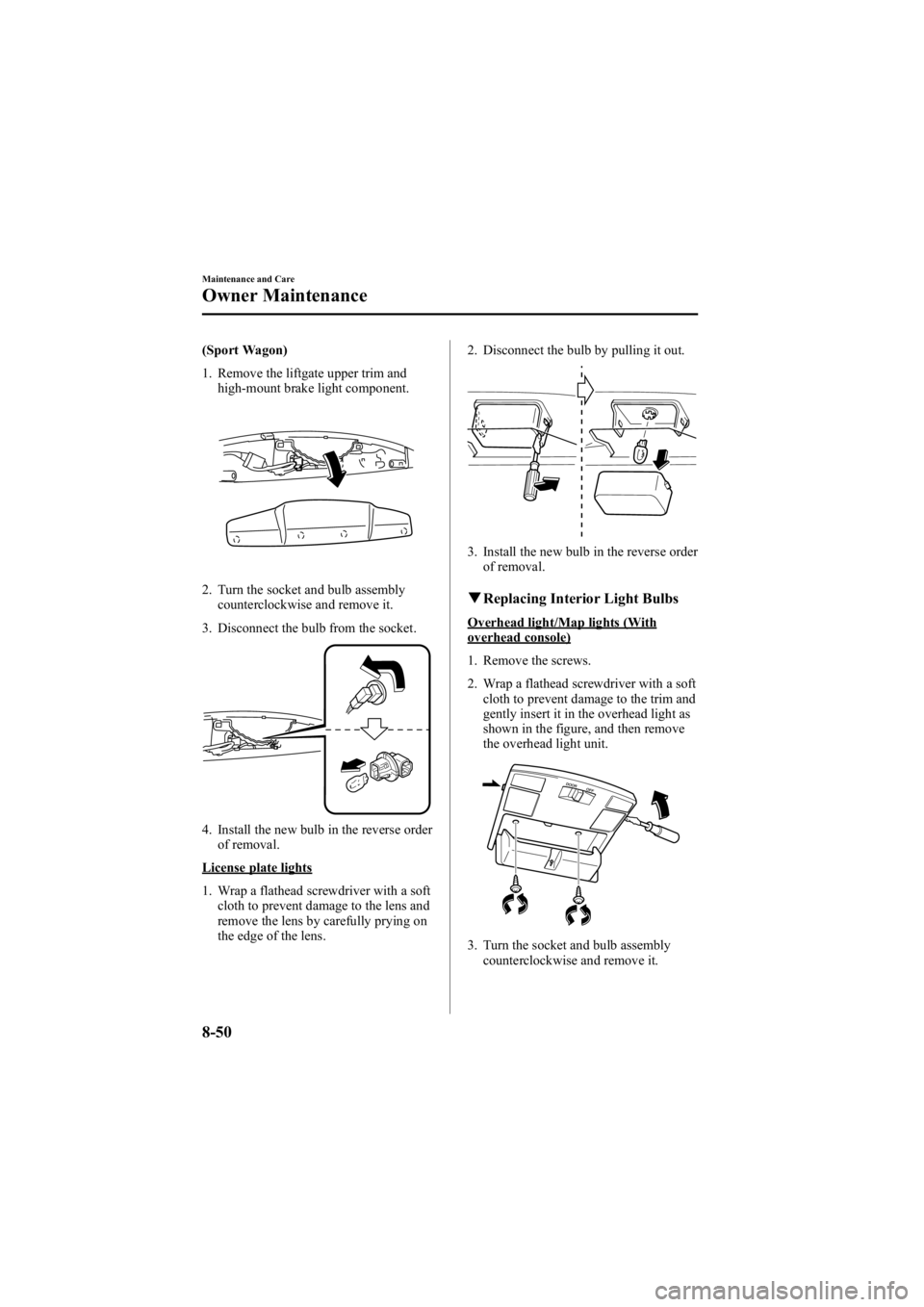

(Sport Wagon)
1. Remove the liftgate upper trim andhigh-mount brake light component.
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
License plate lights
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens. 2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Withoverhead console)
1. Remove the screws.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assemblycounterclockwise and remove it.
8-50
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page316
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (317,1)

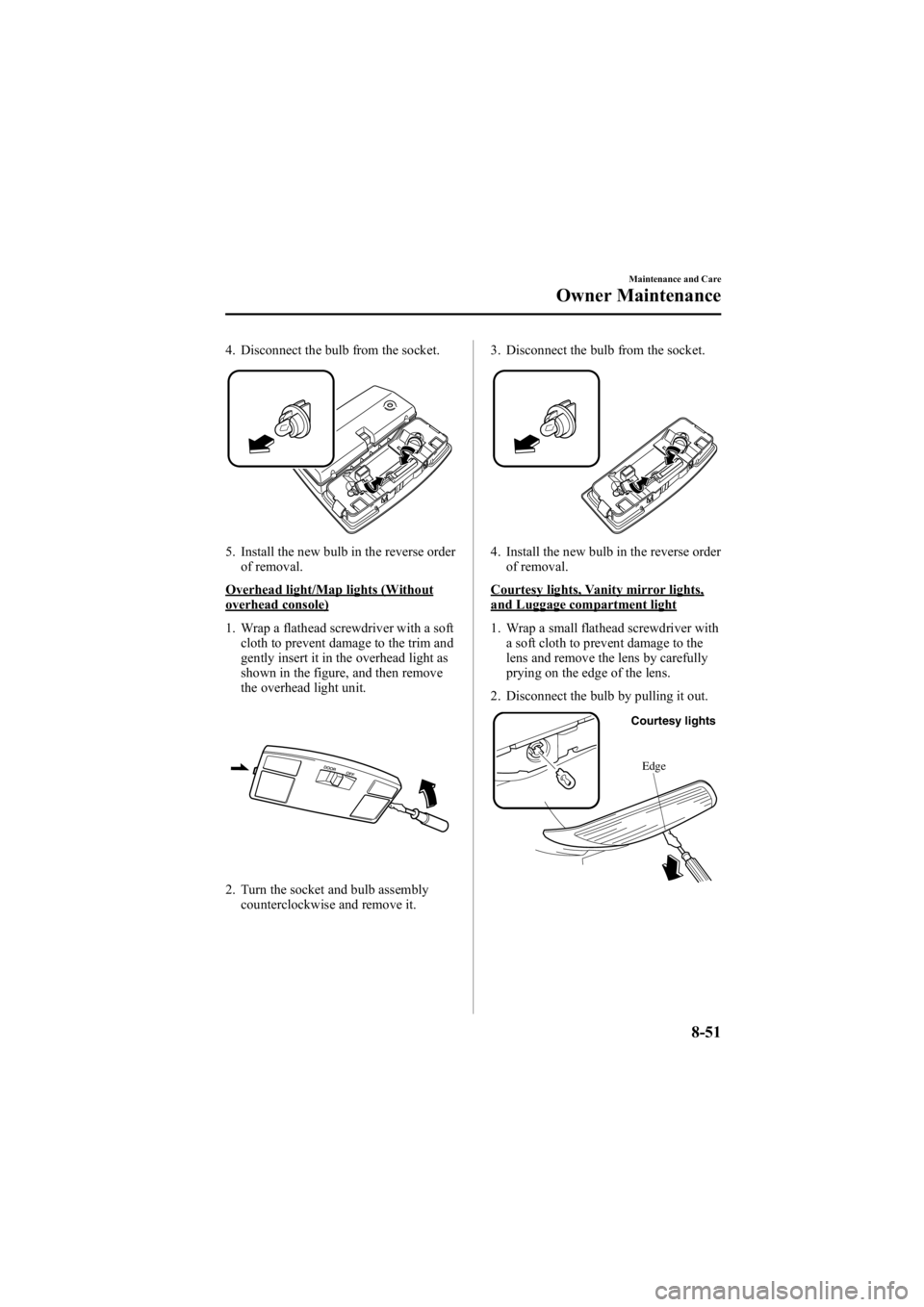

4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse orderof removal.
Overhead light/Map lights (Withoutoverhead console)
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it. 3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
Courtesy lights, Vanity mirror lights,and Luggage compartment light
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens.
2. Disconnect the bulb by pulling it out.
Edge
Courtesy lights
Maintenance and Care
Owner Maintenance
8-51
Mazda6_8V40-EA-05L_Edition1 Page317
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (318,1)

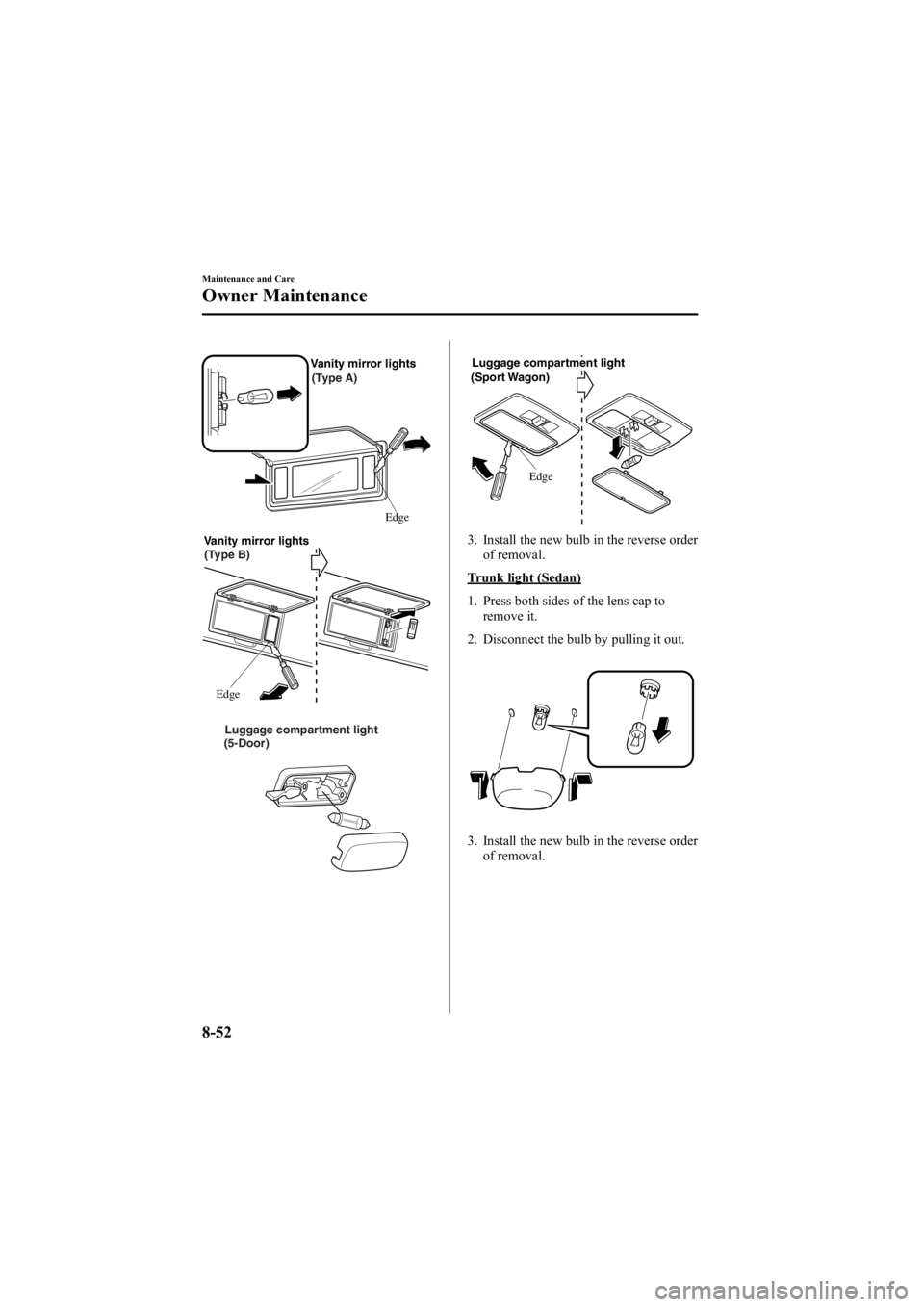

Vanity mirror lightsEdge
(Type A)
Edge
Vanity mirror lights
(Type B)
(5-Door) Luggage compartment light
Luggage compartment light
(Sport Wagon)
Edge
3. Install the new bulb in the reverse orderof removal.
Trunk light (Sedan)
1. Press both sides of the lens cap toremove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
8-52
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page318
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (319,1)

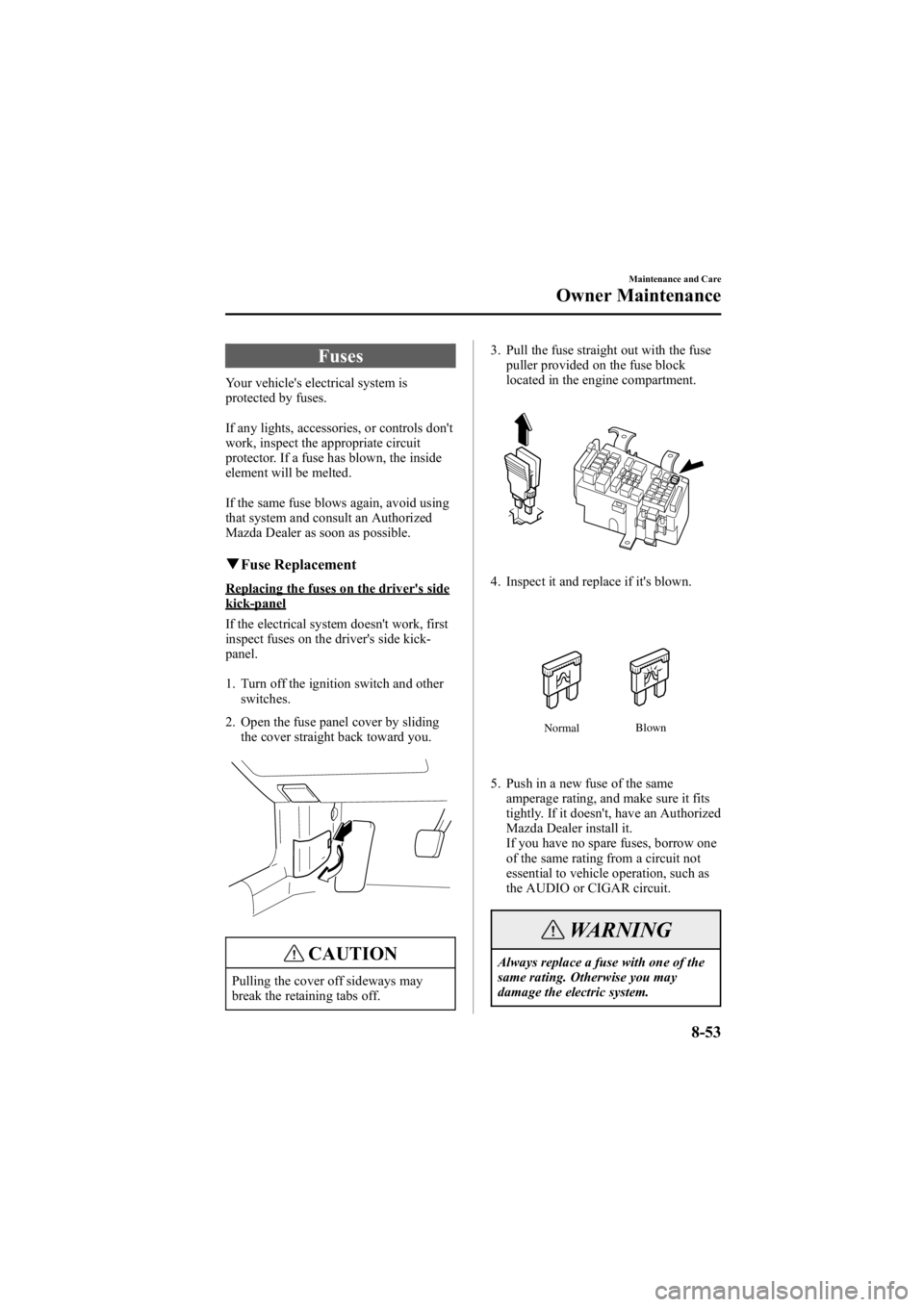

Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's sidekick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off. 3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect it and replace if it's blown.
Normal Blown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Maintenance and Care
Owner Maintenance
8-53
Mazda6_8V40-EA-05L_Edition1 Page319
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (320,1)

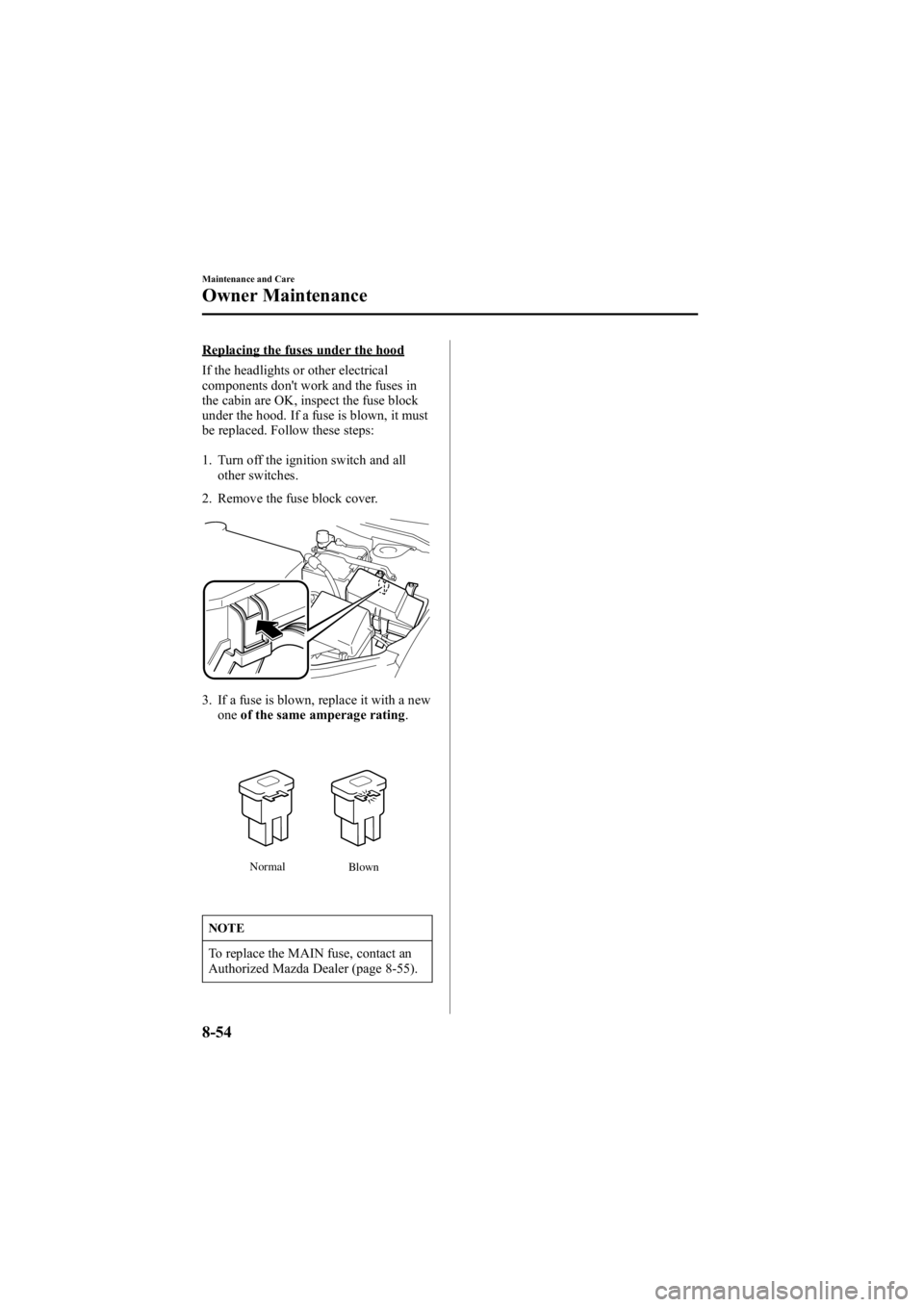

Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new one of the same amperage rating .
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-55).
