MAZDA MODEL 6 SPORT WAGON 2006 Owners Manual

Black plate (271,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
AIR CONDITIONER SYSTEM (if installed)
Cabin air filter Replace every 40,000 km (25,000 miles) or 2 years
Chart symbols:
I: Inspect and repair, clean, adjust, or replace if necessary.
R: Replace
L : Lubricate
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
Maintenance and Care
Scheduled Maintenance
8-5
Mazda6_8V40-EA-05L_Edition1 Page271
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (272,1)

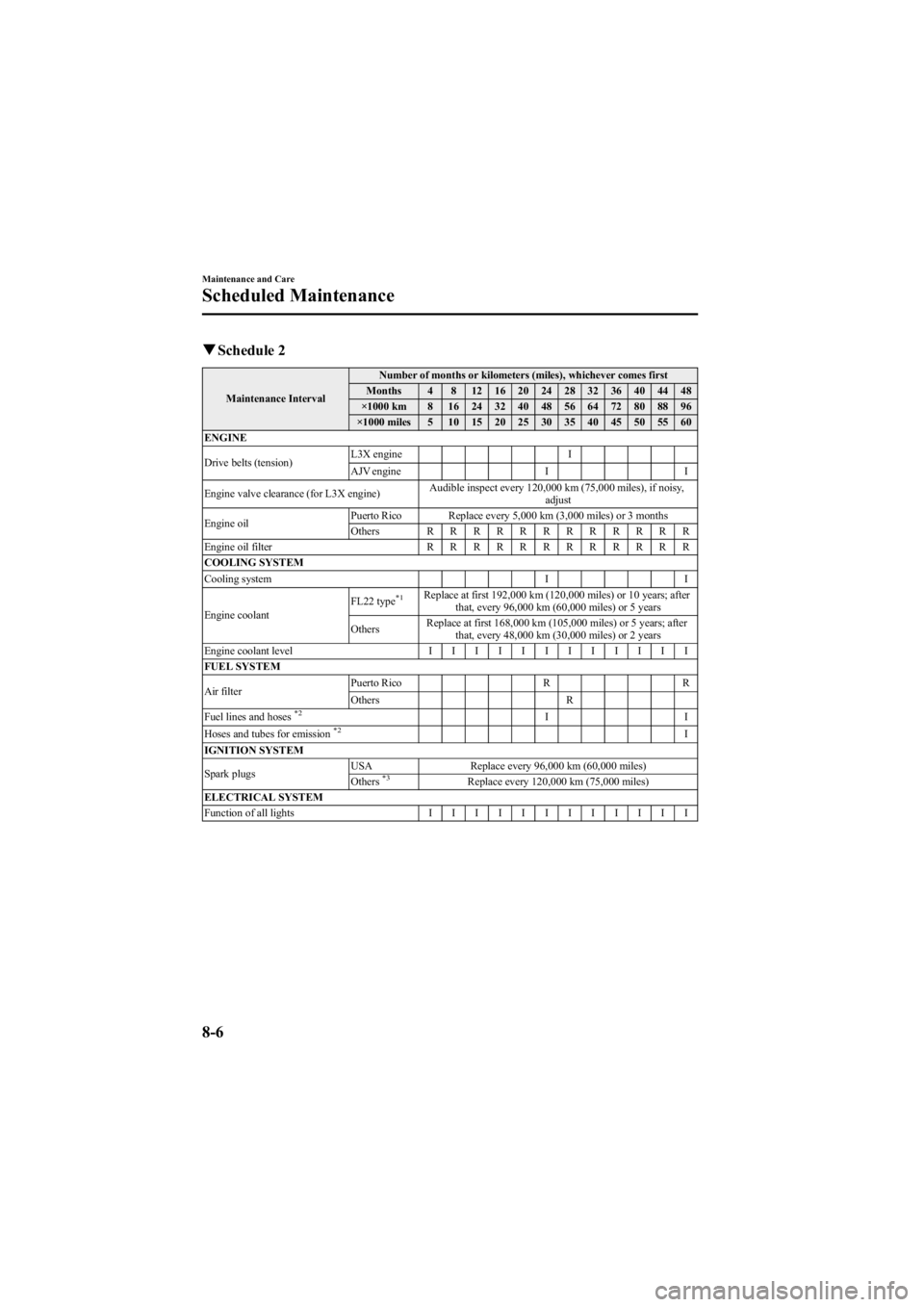

qSchedule 2
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts (tension) L3X engine I
AJV engine I I
Engine valve clearance (for L3X engine) Audible inspect every 120,000 km (75,000 miles), if noisy,
adjust
Engine oil Puerto Rico Replace every 5,000 km (3,000 miles) or 3 months
Others
RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I
Engine coolant FL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
Others Replace at first 168,000 km (105,000 miles) or 5 years; after
that, every 48,000 km (30,000 miles) or 2 years
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter Puerto Rico R R
Others R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs USA Replace every 96,000 km (60,000 miles)
Others
*3Replace every 120,000 km (75,000 miles)
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
8-6
Maintenance and Care
Scheduled Maintenance
Mazda6_8V40-EA-05L_Edition1 Page272
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (273,1)

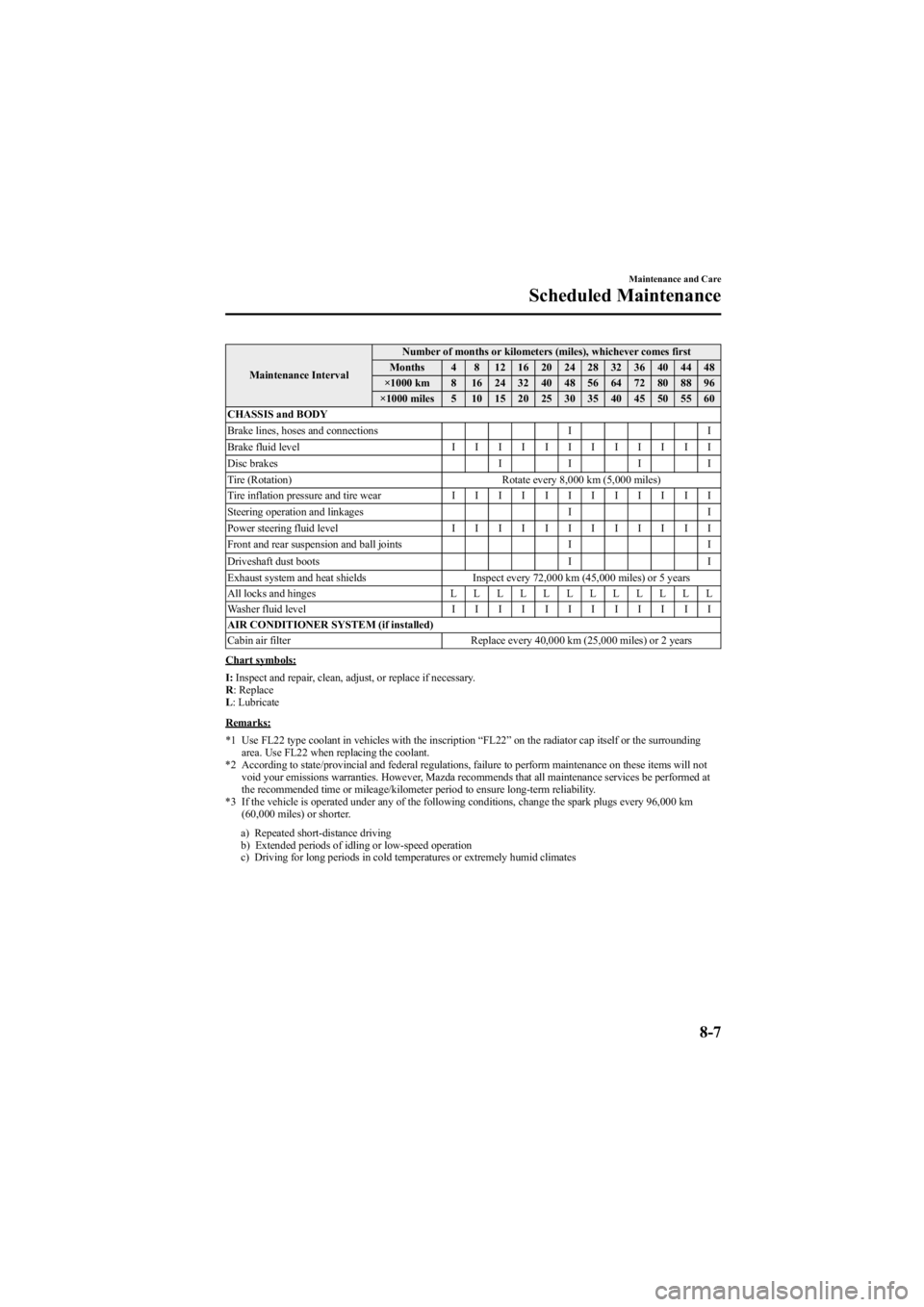

Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake fluid level IIIIIIIIIIII
Disc brakes IIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wear IIIIIIIIIIII
Steering operation and linkages I I
Power steering fluid level IIIIIIIIIIII
Front and rear suspension and ball joints I I
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
AIR CONDITIONER SYSTEM (if installed)
Cabin air filter Replace every 40,000 km (25,000 miles) or 2 years
Chart symbols:
I: Inspect and repair, clean, adjust, or replace if necessary.
R: Replace
L : Lubricate
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*3 If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000 km (60,000 miles) or shorter.
a) Repeated short-distance driving
b) Extended periods of idling or low-speed operation
c) Driving for long periods in cold temperatures or extremely humid climates
Maintenance and Care
Scheduled Maintenance
8-7
Mazda6_8V40-EA-05L_Edition1 Page273
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (274,1)

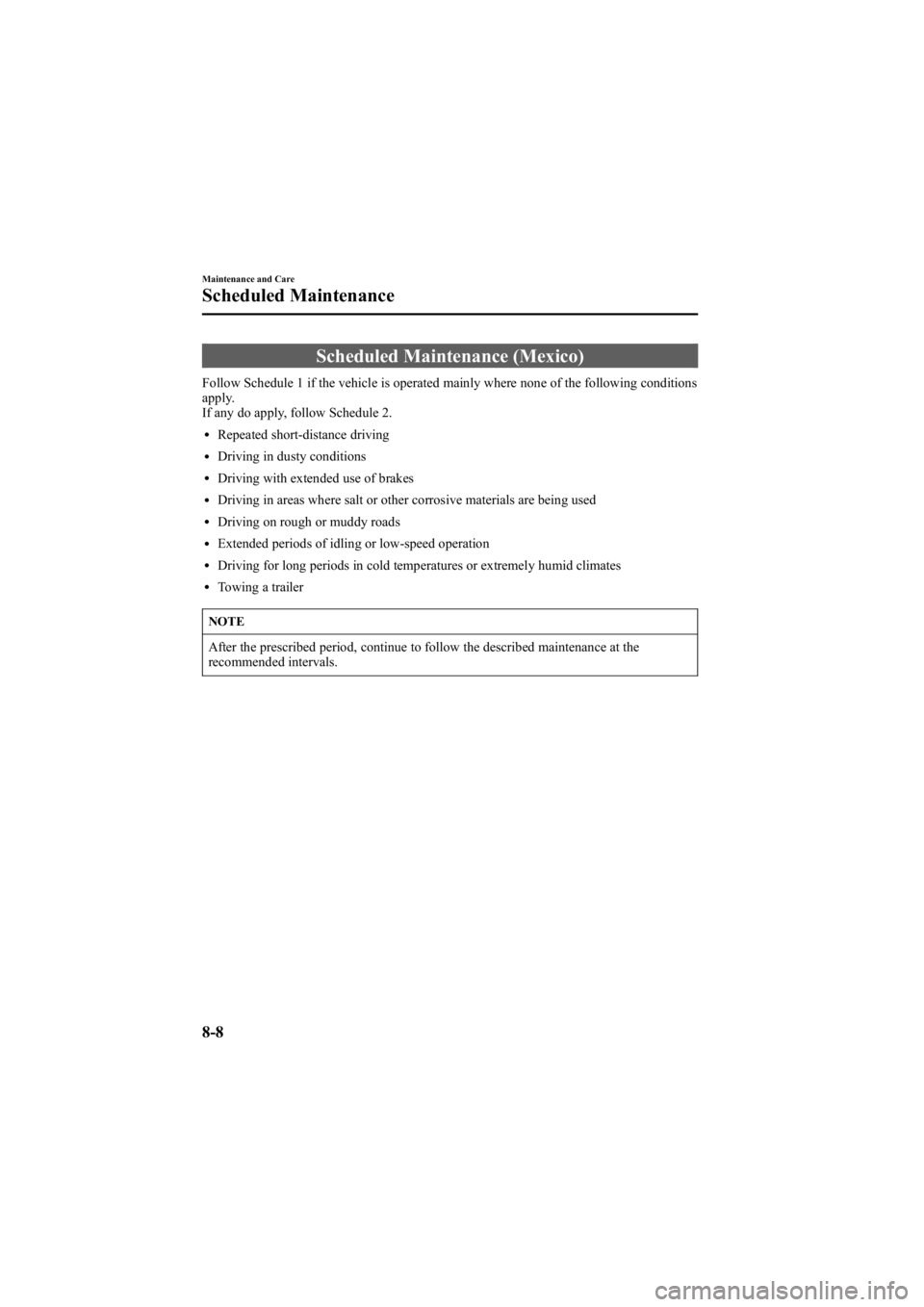

Scheduled Maintenance (Mexico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2.
lRepeated short-distance driving
lDriving in dusty conditions
lDriving with extended use of brakes
lDriving in areas where salt or other corrosive materials are being used
lDriving on rough or muddy roads
lExtended periods of idling or low-speed operation
lDriving for long periods in cold temperatures or extremely humid climates
lTowing a trailer
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
8-8
Maintenance and Care
Scheduled Maintenance
Mazda6_8V40-EA-05L_Edition1 Page274
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (275,1)

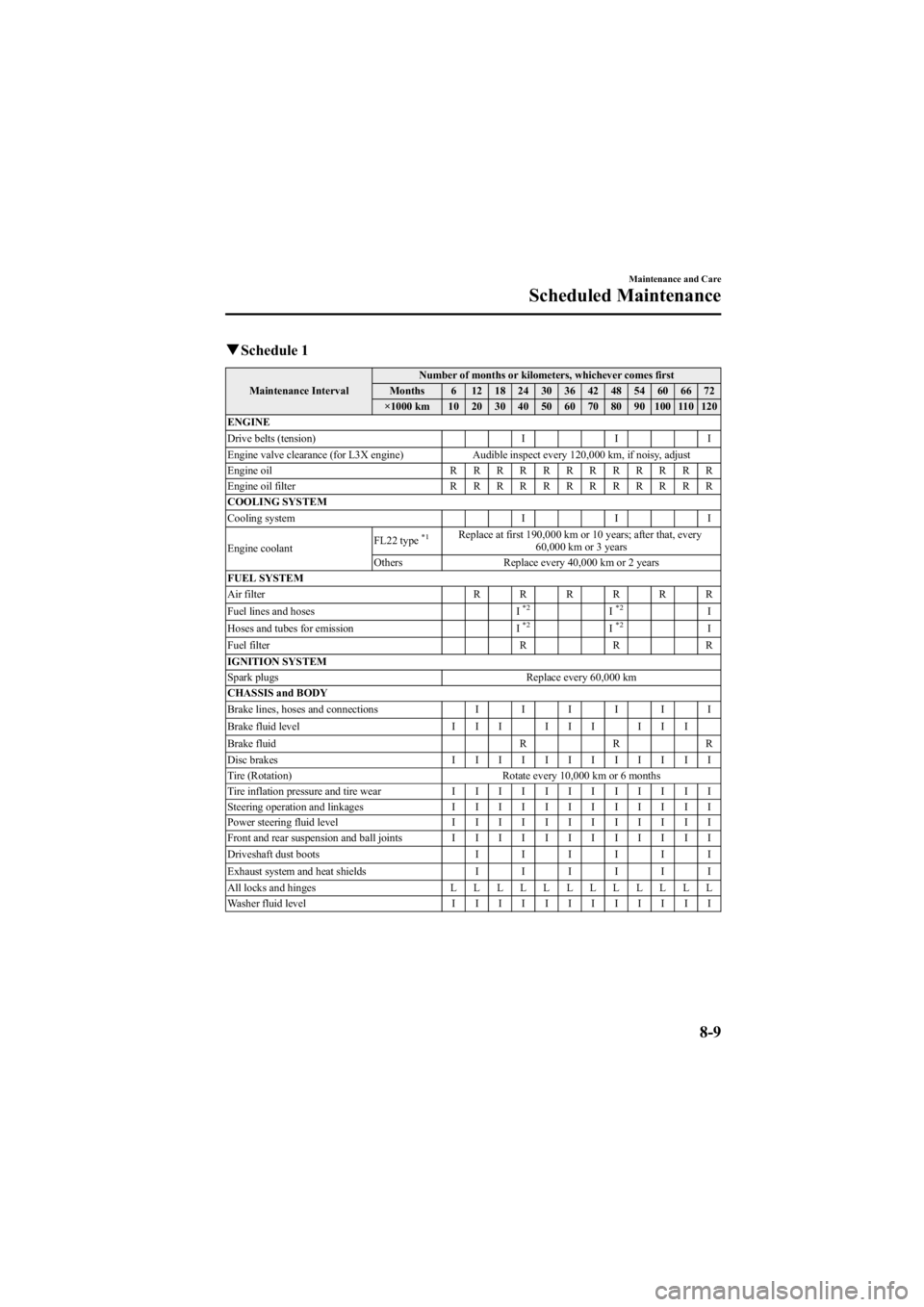

qSchedule 1
Maintenance Interval Number of months or kilometers, whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120
ENGINE
Drive belts (tension) III
Engine valve clearance (for L3X engine) Audible inspect every 120,000 km, if noisy, adjust
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system III
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others Replace every 40,000 km or 2 years
FUEL SYSTEM
Air filter RRRRRR
Fuel lines and hoses I
*2I*2I
Hoses and tubes for emission I*2I*2I
Fuel filter RRR
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
CHASSIS and BODY
Brake lines, hoses and connections IIIIII
Brake fluid level I I I I I I I I I
Brake fluid RRR
Disc brakes IIIIIIIIIIII
Tire (Rotation) Rotate every 10,000 km or 6 months
Tire inflation pressure and tire wear IIIIIIIIIIII
Steering operation and linkages IIIIIIIIIIII
Power steering fluid level IIIIIIIIIIII
Front and rear suspension and ball joints IIIIIIIIIIII
Driveshaft dust boots IIIIII
Exhaust system and heat shields IIIIII
All locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
Maintenance and Care
Scheduled Maintenance
8-9
Mazda6_8V40-EA-05L_Edition1 Page275
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (276,1)
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120
AIR CONDITIONER SYSTEM (if installed)
Cabin air filter R R R
Chart symbols:
I: Inspect and repair, clean, adjust, or replace if necessary
R: Replace
L: Lubricate
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
8-10
Maintenance and Care
Scheduled Maintenance
Mazda6_8V40-EA-05L_Edition1 Page276
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (277,1)

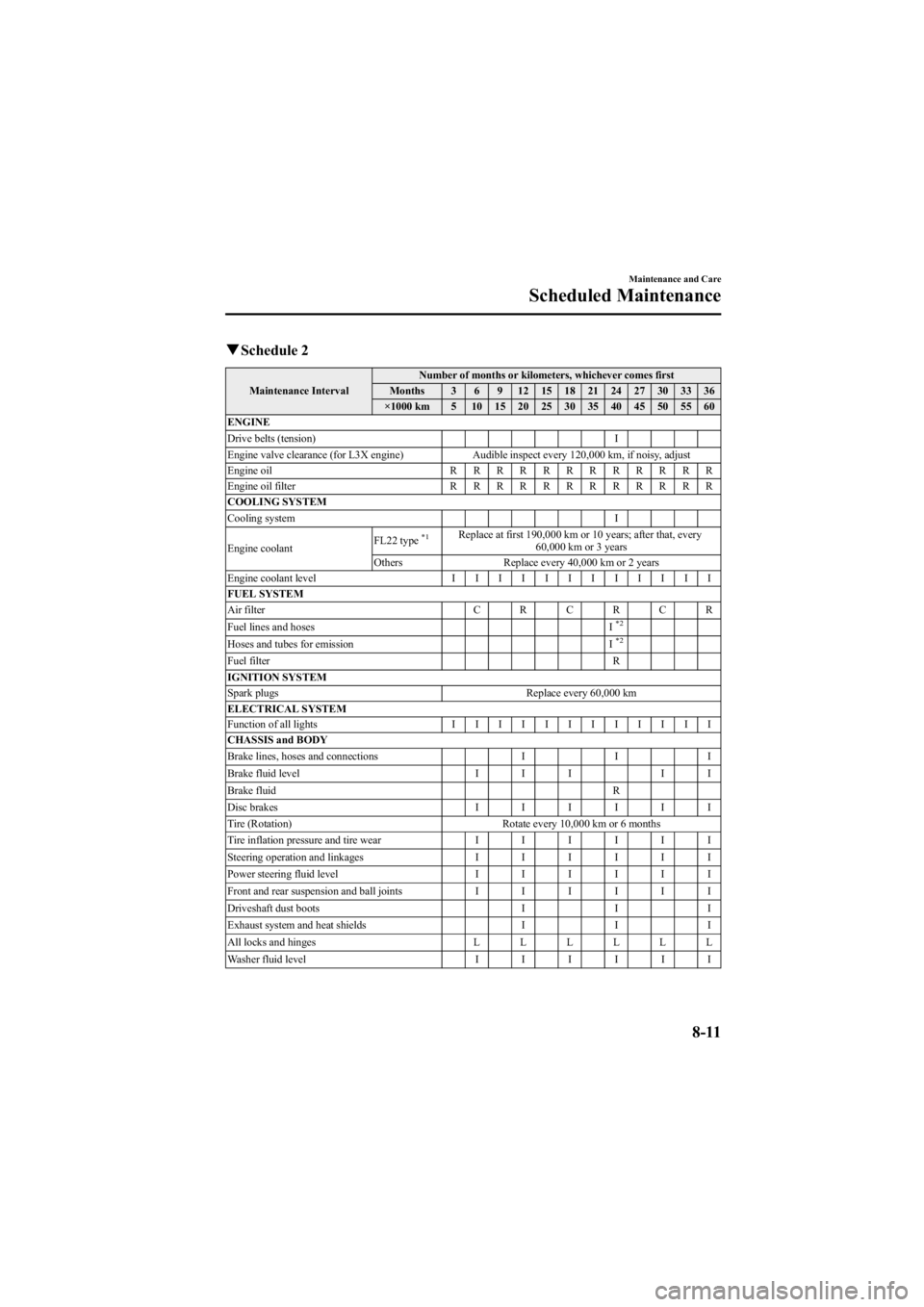

qSchedule 2
Maintenance Interval Number of months or kilometers, whichever comes first
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts (tension) I
Engine valve clearance (for L3X engine) Audible inspect every 120,000 km, if noisy, adjust
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system I
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others Replace every 40,000 km or 2 years
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2
Hoses and tubes for emission I*2
Fuel filter R
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections III
Brake fluid level I I II I
Brake fluid R
Disc brakes IIIIII
Tire (Rotation) Rotate every 10,000 km or 6 months
Tire inflation pressure and tire wear IIIIII
Steering operation and linkages IIIIII
Power steering fluid level IIIIII
Front and rear suspension and ball joints IIIIII
Driveshaft dust boots III
Exhaust system and heat shields III
All locks and hinges LLLLLL
Washer fluid level IIIIII
Maintenance and Care
Scheduled Maintenance
8-11
Mazda6_8V40-EA-05L_Edition1 Page277
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (278,1)
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
AIR CONDITIONER SYSTEM (if installed)
Cabin air filter R R R
Chart symbols:
I: Inspect and repair, clean, adjust, or replace if necessary
R: Replace
L: Lubricate
C: Clean
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
8-12
Maintenance and Care
Scheduled Maintenance
Mazda6_8V40-EA-05L_Edition1 Page278
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (279,1)
(Cont.)Maintenance Interval Number of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
ENGINE
Drive belts (tension) II
Engine valve clearance (for L3X engine) Audible inspect every 120,000 km, if noisy, adjust
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Cooling system II
Engine coolant FL22 type
*1Replace at first 190,000 km or 10 years; after that, every
60,000 km or 3 years
Others Replace every 40,000 km or 2 years
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter CRCRCR
Fuel lines and hoses I
*2I
Hoses and tubes for emission I*2I
Fuel filter RR
IGNITION SYSTEM
Spark plugs Replace every 60,000 km
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections III
Brake fluid level I III
Brake fluid RR
Disc brakes IIIIII
Tire (Rotation) Rotate every 10,000 km or 6 months
Tire inflation pressure and tire wear IIIIII
Steering operation and linkages IIIIII
Power steering fluid level IIIIII
Front and rear suspension and ball joints IIIIII
Driveshaft dust boots III
Exhaust system and heat shields III
All locks and hinges LLLLLL
Washer fluid level IIIIII
Maintenance and Care
Scheduled Maintenance
8-13
Mazda6_8V40-EA-05L_Edition1 Page279
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (280,1)
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
AIR CONDITIONER SYSTEM (if installed)
Cabin air filter RRR
Chart symbols:
I:
Inspect and repair, clean, adjust, or replace if necessary
R: Replace
L: Lubricate
C: Clean
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription “FL22 ”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
8-14
Maintenance and Care
Scheduled Maintenance
Mazda6_8V40-EA-05L_Edition1 Page280
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L
