MAZDA MODEL 6 SPORTS SEDAN 2006 (in English) Workshop Manual

51
Before
UseGetting
startedRoutingAddress
BookVo i c e
Recognition
As necessary

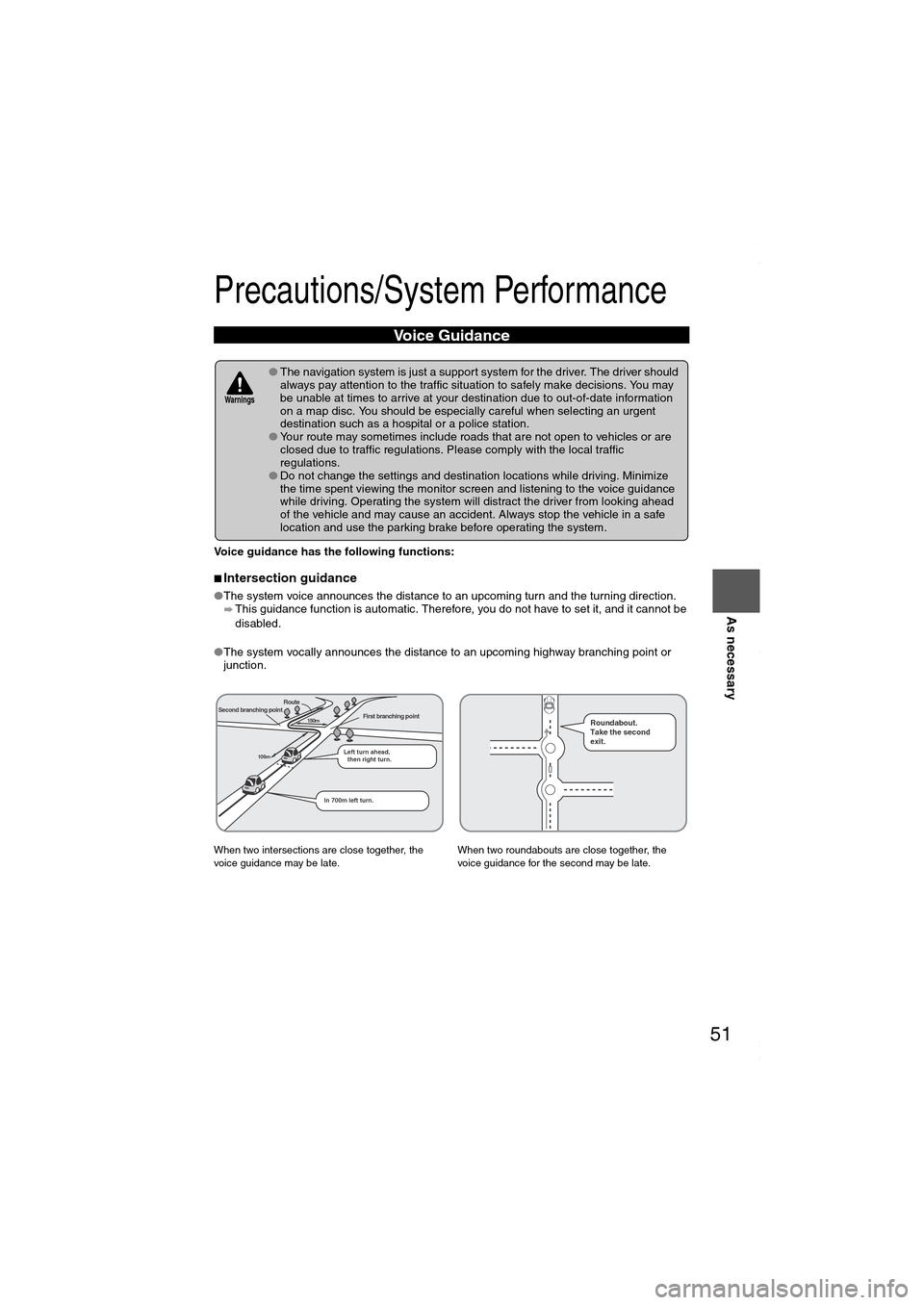

Precautions/System Performance
Voice guidance has the following functions:
■Intersection guidance
●The system voice announces the distance to an upcoming turn and the turning direction.
This guidance function is automatic. Therefore, you do not have to set it, and it cannot be
disabled.
●The system vocally announces the distance to an upcoming highway branching point or
junction.
Voice Guidance
●The navigation system is just a support system for the driver. The driver should
always pay attention to the traffic situation to safely make decisions. You may
be unable at times to arrive at your destination due to out-of-date information
on a map disc. You should be especially careful when selecting an urgent
destination such as a hospital or a police station.
●Your route may sometimes include roads that are not open to vehicles or are
closed due to traffic regulations. Please comply with the local traffic
regulations.
●Do not change the settings and destination locations while driving. Minimize
the time spent viewing the monitor screen and listening to the voice guidance
while driving. Operating the system will distract the driver from looking ahead
of the vehicle and may cause an accident. Always stop the vehicle in a safe
location and use the parking brake before operating the system.
When two intersections are close together, the
voice guidance may be late.When two roundabouts are close together, the
voice guidance for the second may be late.
Wa r n i n gs
Second branching pointFirst branching point150m
100m
Route
In 700m left turn.Left turn ahead,
then right turn.
Roundabout.
Take the second
exit.
MAZDA6_NAVI_EA.book Page 51 Wednesday, December 28, 2005 1:36 PM

52
Before
UseGetting
startedRoutingAddress
Book
Vo i c e Recognition
As necessary

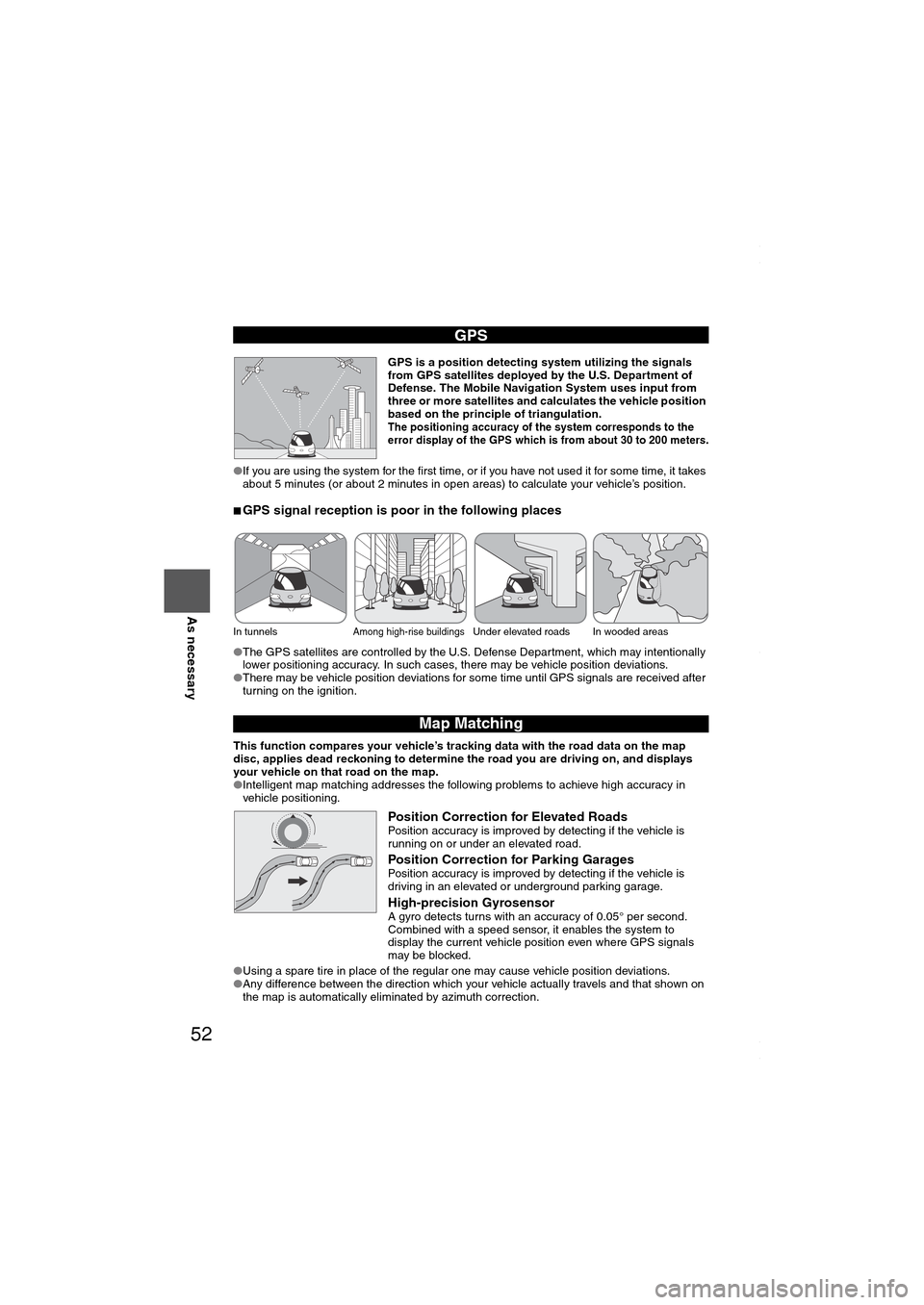

GPS is a position detecting system utilizing the signals
from GPS satellites deployed by the U.S. Department of
Defense. The Mobile Navigation System uses input from
three or more satellites and calculates the vehicle position
based on the principle of triangulation.
The positioning accuracy of the system corresponds to the
error display of the GPS which is from about 30 to 200 meters.
●If you are using the system for the first time, or if you have not used it for some time, it takes
about 5 minutes (or about 2 minutes in open areas) to calculate your vehicle’s position.
■GPS signal reception is poor in the following places
●The GPS satellites are controlled by the U.S. Defense Department, which may intentionally
lower positioning accuracy. In such cases, there may be vehicle position deviations.
●There may be vehicle position deviations for some time until GPS signals are received after
turning on the ignition.
This function compares your vehicle’s tracking data with the road data on the map
disc, applies dead reckoning to determine the road you are driving on, and displays
your vehicle on that road on the map.
●Intelligent map matching addresses the following problems to achieve high accuracy in
vehicle positioning.
Position Correction for Elevated RoadsPosition accuracy is improved by detecting if the vehicle is
running on or under an elevated road.
Position Correction for Parking GaragesPosition accuracy is improved by detecting if the vehicle is
driving in an elevated or underground parking garage.
High-precision GyrosensorA gyro detects turns with an accuracy of 0.05° per second.
Combined with a speed sensor, it enables the system to
display the current vehicle position even where GPS signals
may be blocked.
●Using a spare tire in place of the regular one may cause vehicle position deviations.
●Any difference between the direction which your vehicle actually travels and that shown on
the map is automatically eliminated by azimuth correction.
GPS
In tunnelsAmong high-rise buildingsUnder elevated roads In wooded areas
Map Matching
MAZDA6_NAVI_EA.book Page 52 Wednesday, December 28, 2005 1:36 PM

53
Before
UseGetting
startedRoutingAddress
BookVo i c e
Recognition
As necessary

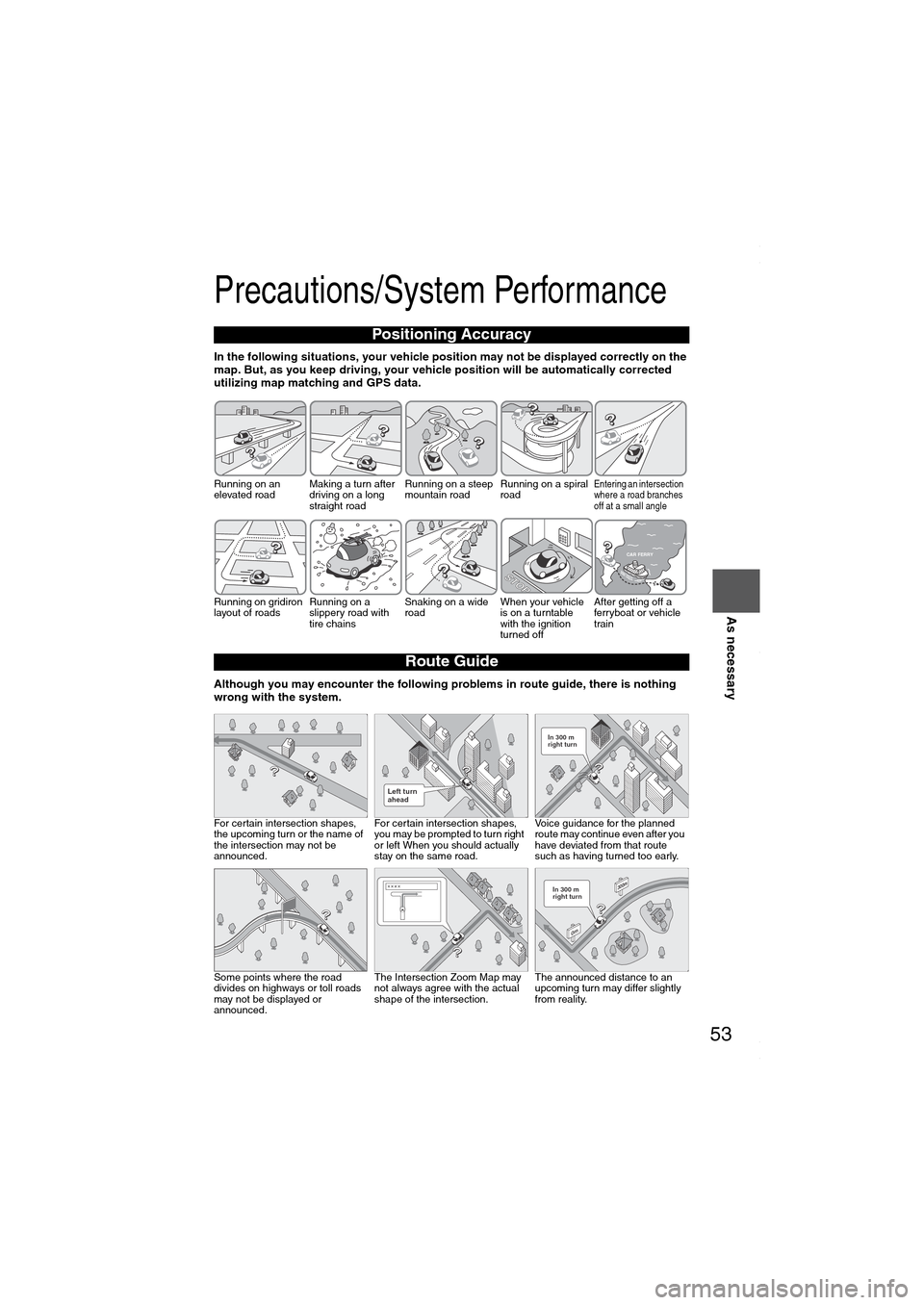

Precautions/System Performance
In the following situations, your vehicle position may not be displayed correctly on the
map. But, as you keep driving, your vehicle position will be automatically corrected
utilizing map matching and GPS data.
Although you may encounter the following problems in route guide, there is nothing
wrong with the system.
Positioning Accuracy
Running on an
elevated roadMaking a turn after
driving on a long
straight roadRunning on a steep
mountain roadRunning on a spiral
roadEntering an intersection
where a road branches
off at a small angle
Running on gridiron
layout of roadsRunning on a
slippery road with
tire chainsSnaking on a wide
road When your vehicle
is on a turntable
with the ignition
turned offAfter getting off a
ferryboat or vehicle
train
Route Guide
For certain intersection shapes,
the upcoming turn or the name of
the intersection may not be
announced.For certain intersection shapes,
you may be prompted to turn right
or left When you should actually
stay on the same road.Voice guidance for the planned
route may continue even after you
have deviated from that route
such as having turned too early.
Some points where the road
divides on highways or toll roads
may not be displayed or
announced.The Intersection Zoom Map may
not always agree with the actual
shape of the intersection.The announced distance to an
upcoming turn may differ slightly
from reality.
STOPSTOP
CAR FERRY
Left turn
ahead
In 300 m
right turn
300m
0m
In 300 m
right turn
MAZDA6_NAVI_EA.book Page 53 Wednesday, December 28, 2005 1:36 PM

54
Before
UseGetting
startedRoutingAddress
Book
Vo i c e Recognition
As necessary

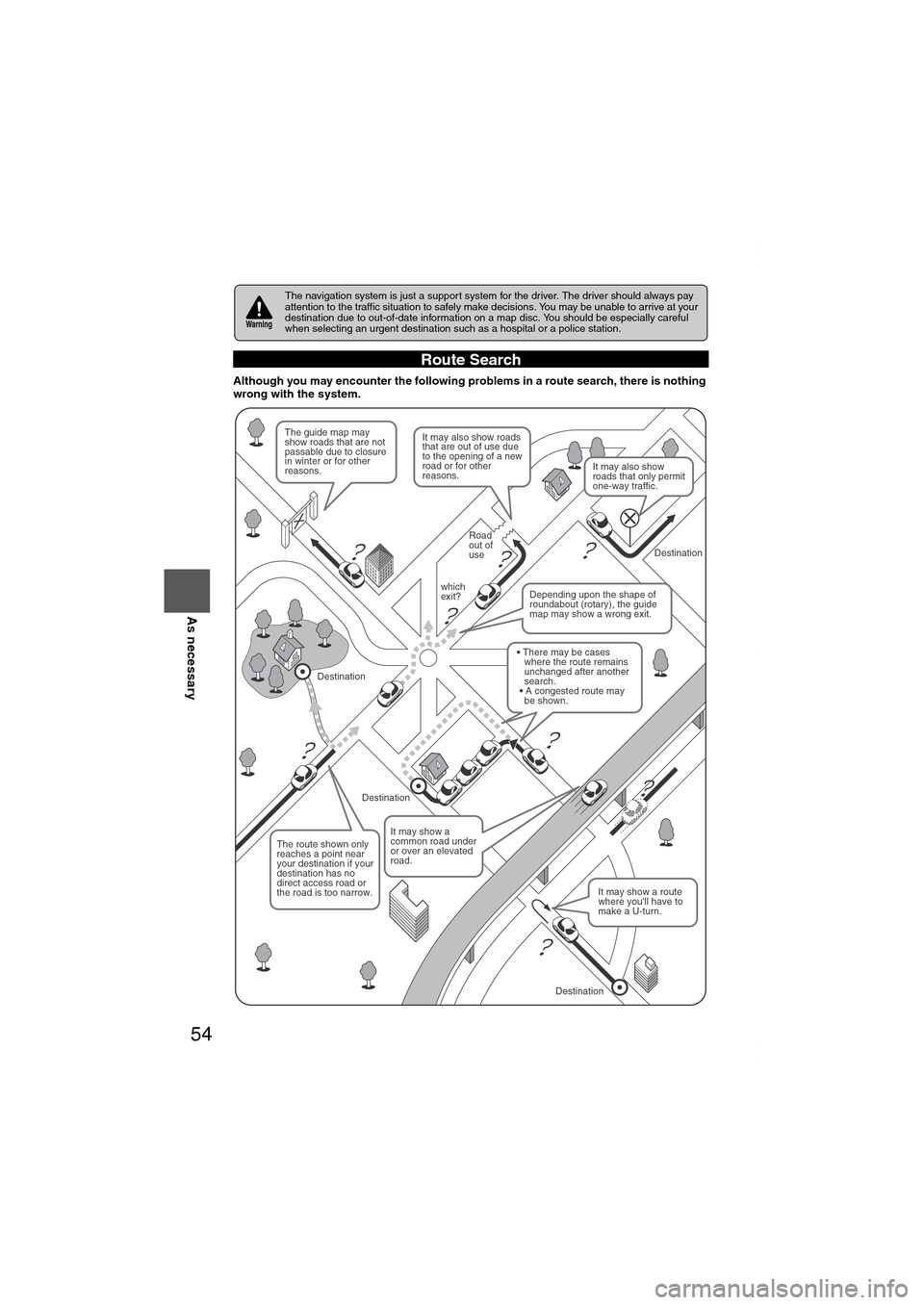

Although you may encounter the following problems in a route search, there is nothing
wrong with the system.
The navigation system is just a suppor t system for the driver. The driver should always pay
attention to the traffic situation to safely make decisions. You may be unable to arrive at your
destination due to out-of-date information on a map disc. You should be especially careful
when selecting an urgent destination such as a hospital or a police station.
Route Search
Wa r n i n g
?
?
? ? ?
? ??
It may also show roads
that are out of use due
to the opening of a new
road or for other
reasons.
The route shown only
reaches a point near
your destination if your
destination has no
direct access road or
the road is too narrow.
It may show a route
where you'll have to
make a U-turn.
The guide map may
show roads that are not
passable due to closure
in winter or for other
reasons.
It may show a
common road under
or over an elevated
road. DestinationRoad
out of
use
which
exit?Destination
Destination Destination
Depending upon the shape of
roundabout (rotary), the guide
map may show a wrong exit.
where the route remains
unchanged after another
search.  There may be cases
 A congested route may
be shown.
It may also show
roads that only permit
one-way traffic.
MAZDA6_NAVI_EA.book Page 54 Wednesday, December 28, 2005 1:36 PM

55
Before
UseGetting
startedRoutingAddress
BookVo i c e
Recognition
As necessary

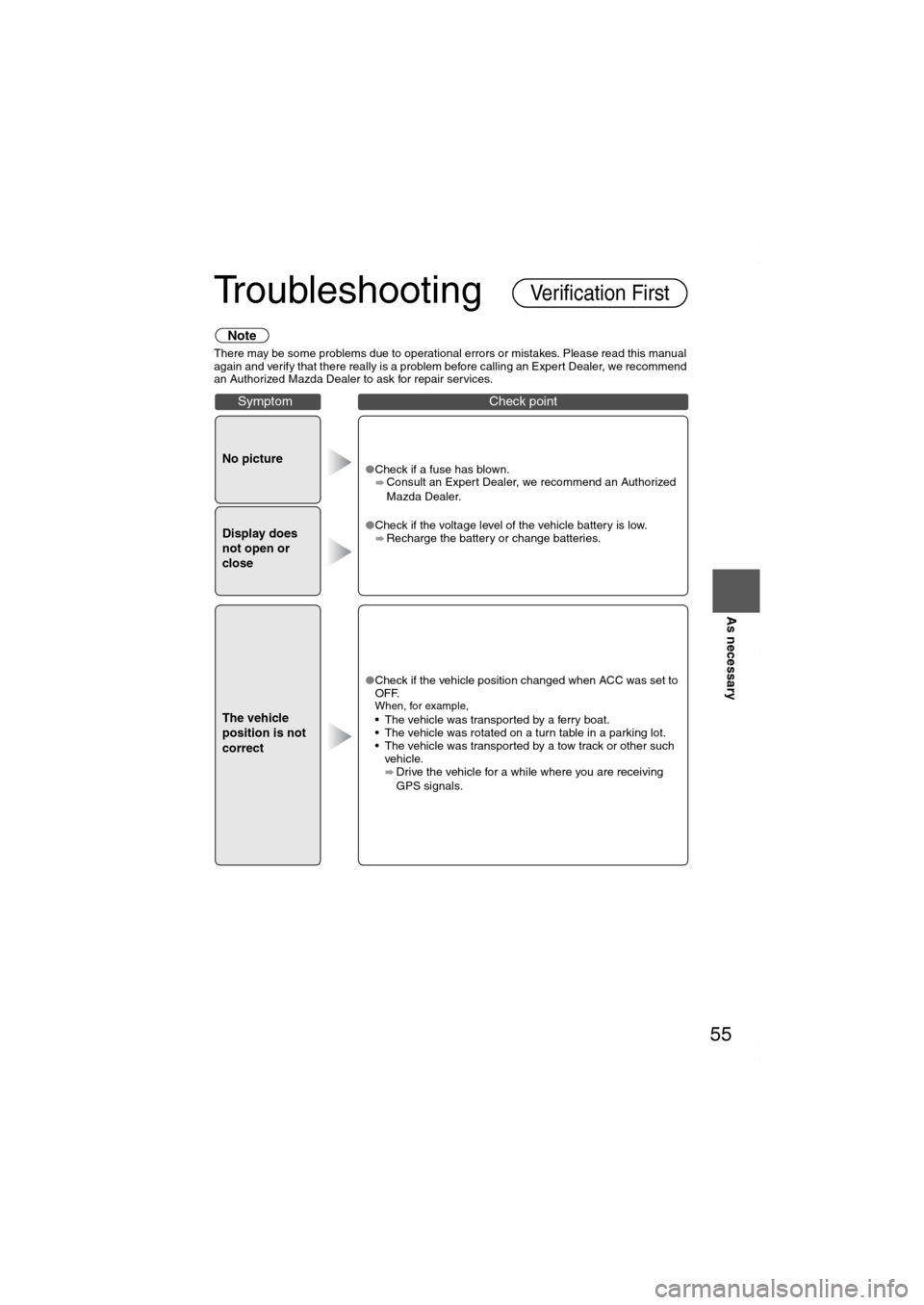

Troubleshooting
Note
There may be some problems due to operational errors or mistakes. Please read this manual
again and verify that there really is a problem before calling an Expert Dealer, we recommend
an Authorized Mazda Dealer to ask for repair services.
No picture●Check if a fuse has blown.
Consult an Exper t Dealer, we recommend an Authorized
Mazda Dealer.
●Check if the voltage level of the vehicle battery is low.
Recharge the battery or change batteries.
Display does
not open or
close
The vehicle
position is not
correct
●Check if the vehicle position changed when ACC was set to
OFF.
When, for example,  The vehicle was transported by a ferry boat.
 The vehicle was rotated on a turn table in a parking lot.
 The vehicle was transported by a tow track or other such
vehicle.
Drive the vehicle for a while where you are receiving
GPS signals.
Verification First
SymptomCheck point
MAZDA6_NAVI_EA.book Page 55 Wednesday, December 28, 2005 1:36 PM

56
Before
UseGetting
startedRoutingAddress
Book
Vo i c e Recognition
As necessary

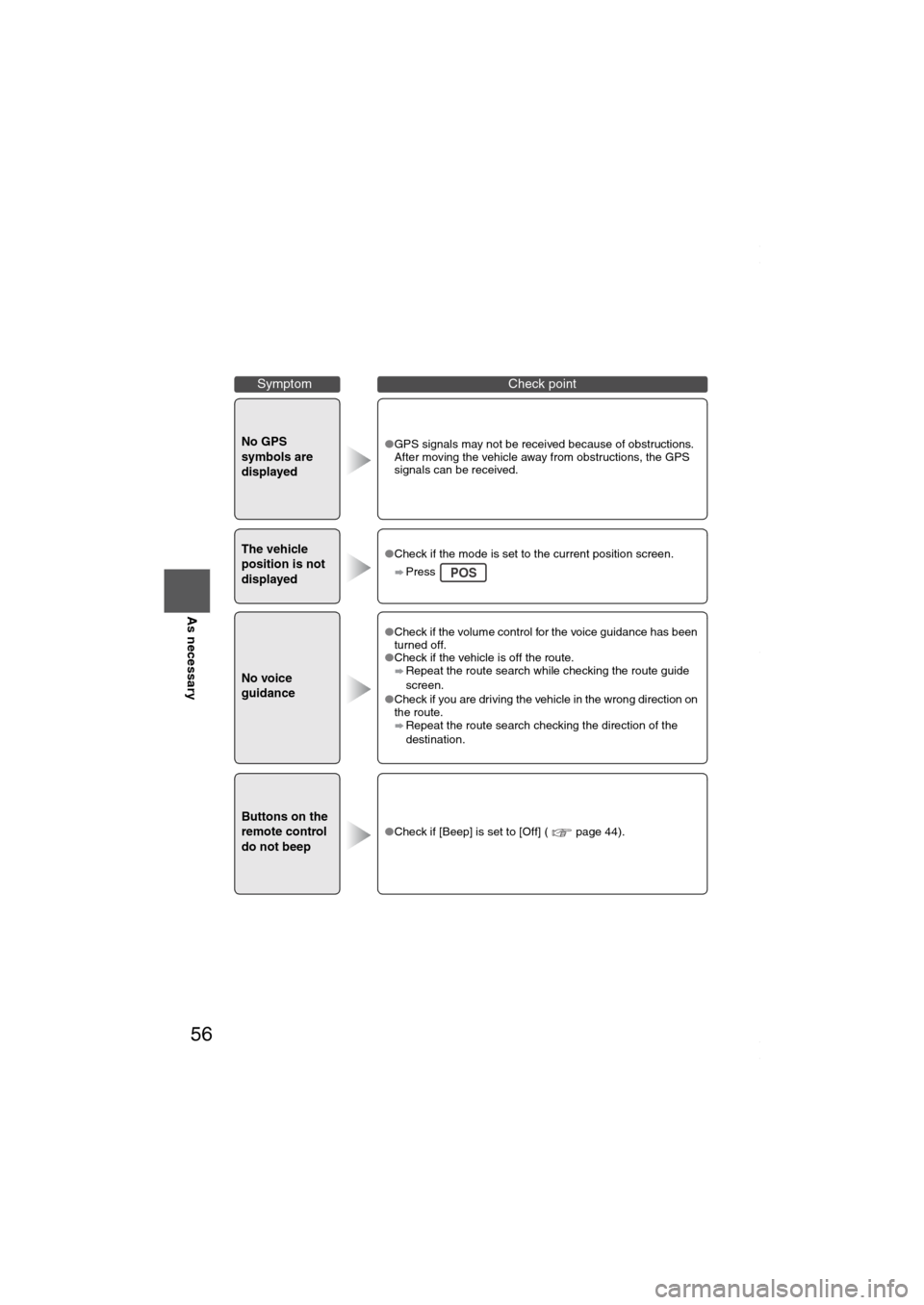

No GPS
symbols are
displayed●GPS signals may not be received because of obstructions.
After moving the vehicle away from obstructions, the GPS
signals can be received.
The vehicle
position is not
displayed●Check if the mode is set to the current position screen.
Press
No voice
guidance
●Check if the volume control for the voice guidance has been
turned off.
●Check if the vehicle is off the route.
Repeat the route search while checking the route guide
screen.
●Check if you are driving the vehicle in the wrong direction on
the route.
Repeat the route search checking the direction of the
destination.
Buttons on the
remote control
do not beep●Check if [Beep] is set to [Off] ( page 44).
SymptomCheck point
POS
MAZDA6_NAVI_EA.book Page 56 Wednesday, December 28, 2005 1:36 PM

57
Before
UseGetting
startedRoutingAddress
BookVo i c e
Recognition
As necessary
Troubleshooting

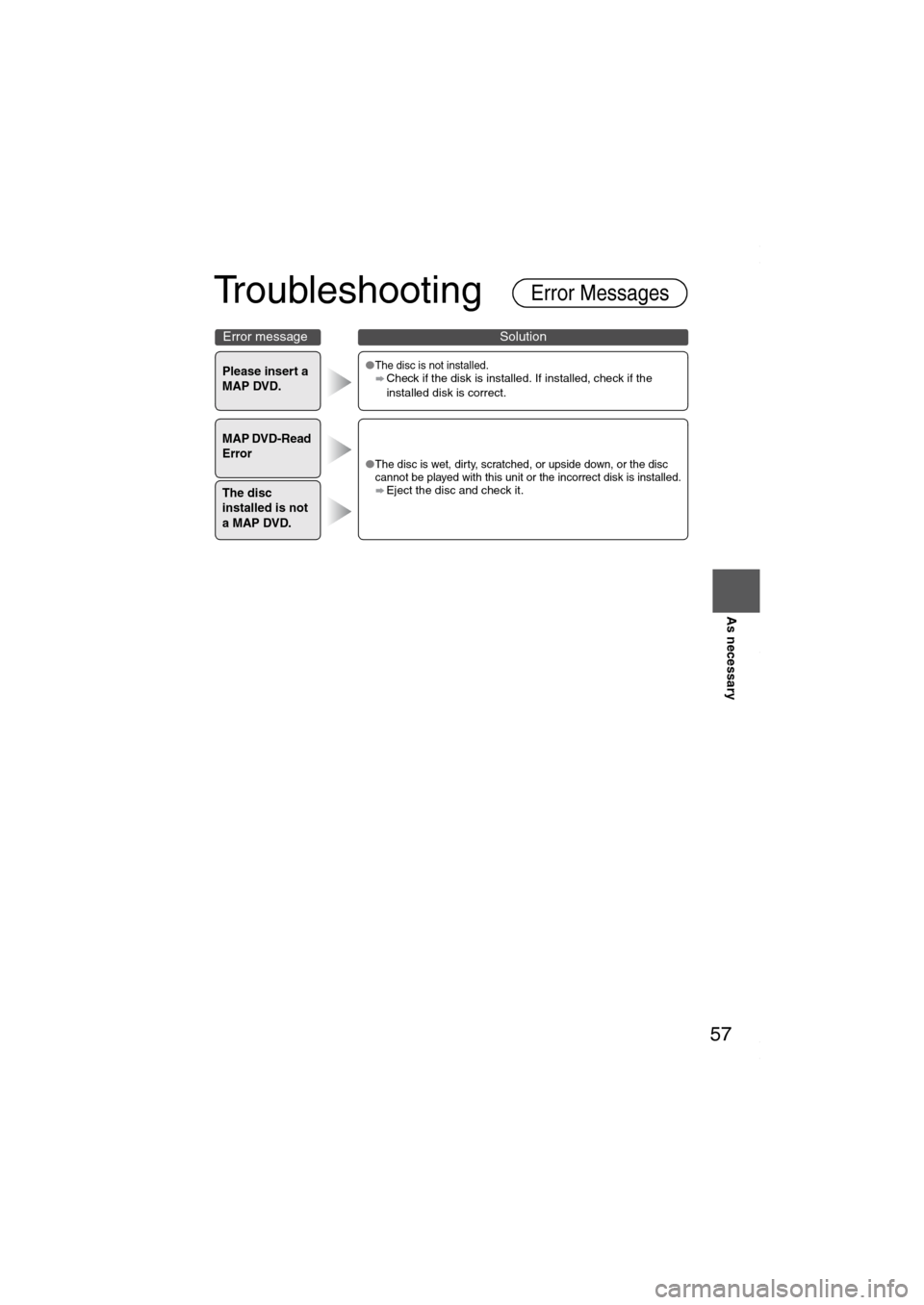

Please insert a
MAP DVD.●The disc is not installed.Check if the disk is installed. If installed, check if the
installed disk is correct.
MAP DVD-Read
Error
●The disc is wet, dirty, scratched, or upside down, or the disc
cannot be played with this unit or the incorrect disk is installed.
Eject the disc and check it.The disc
installed is not
a MAP DVD.
Error Messages
Error messageSolution
MAZDA6_NAVI_EA.book Page 57 Wednesday, December 28, 2005 1:36 PM

58
Before
UseGetting
startedRoutingAddress
Book
Vo i c e Recognition
As necessary

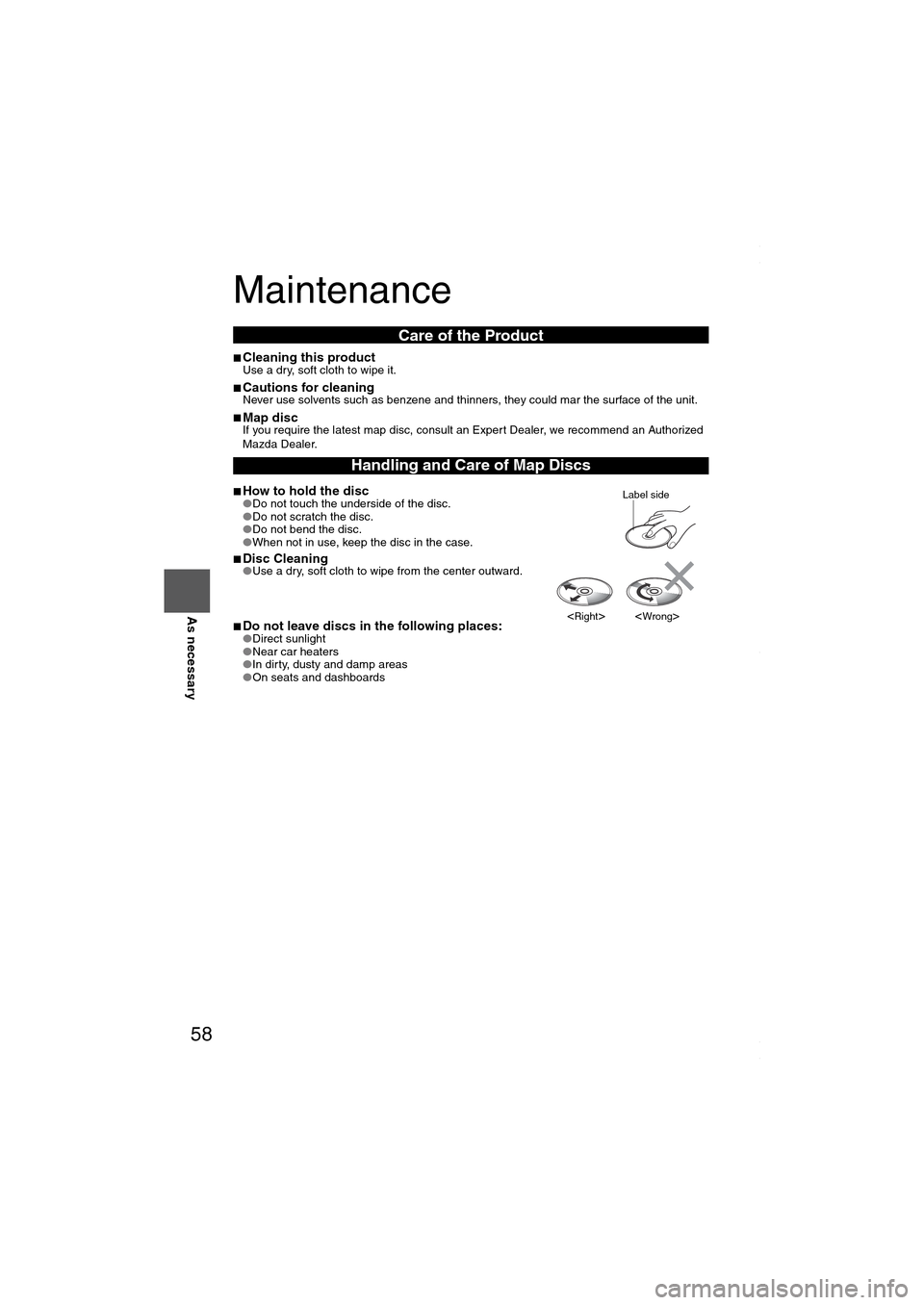

Maintenance
■Cleaning this productUse a dry, soft cloth to wipe it.
■Cautions for cleaningNever use solvents such as benzene and thinners, they could mar the surface of the unit.
■Map discIf you require the latest map disc, consult an Expert Dealer, we recommend an Authorized
Mazda Dealer.
■How to hold the disc●Do not touch the underside of the disc.
●Do not scratch the disc.
●Do not bend the disc.
●When not in use, keep the disc in the case.
■Disc Cleaning●Use a dry, soft cloth to wipe from the center outward.
■Do not leave discs in the following places:●Direct sunlight
●Near car heaters
●In dirty, dusty and damp areas
●On seats and dashboards
Care of the Product
Handling and Care of Map Discs
Label side

MAZDA6_NAVI_EA.book Page 58 Wednesday, December 28, 2005 1:36 PM
