MAZDA MODEL 6 WAGON 2007 Owner's Manual

Black plate (21,1)

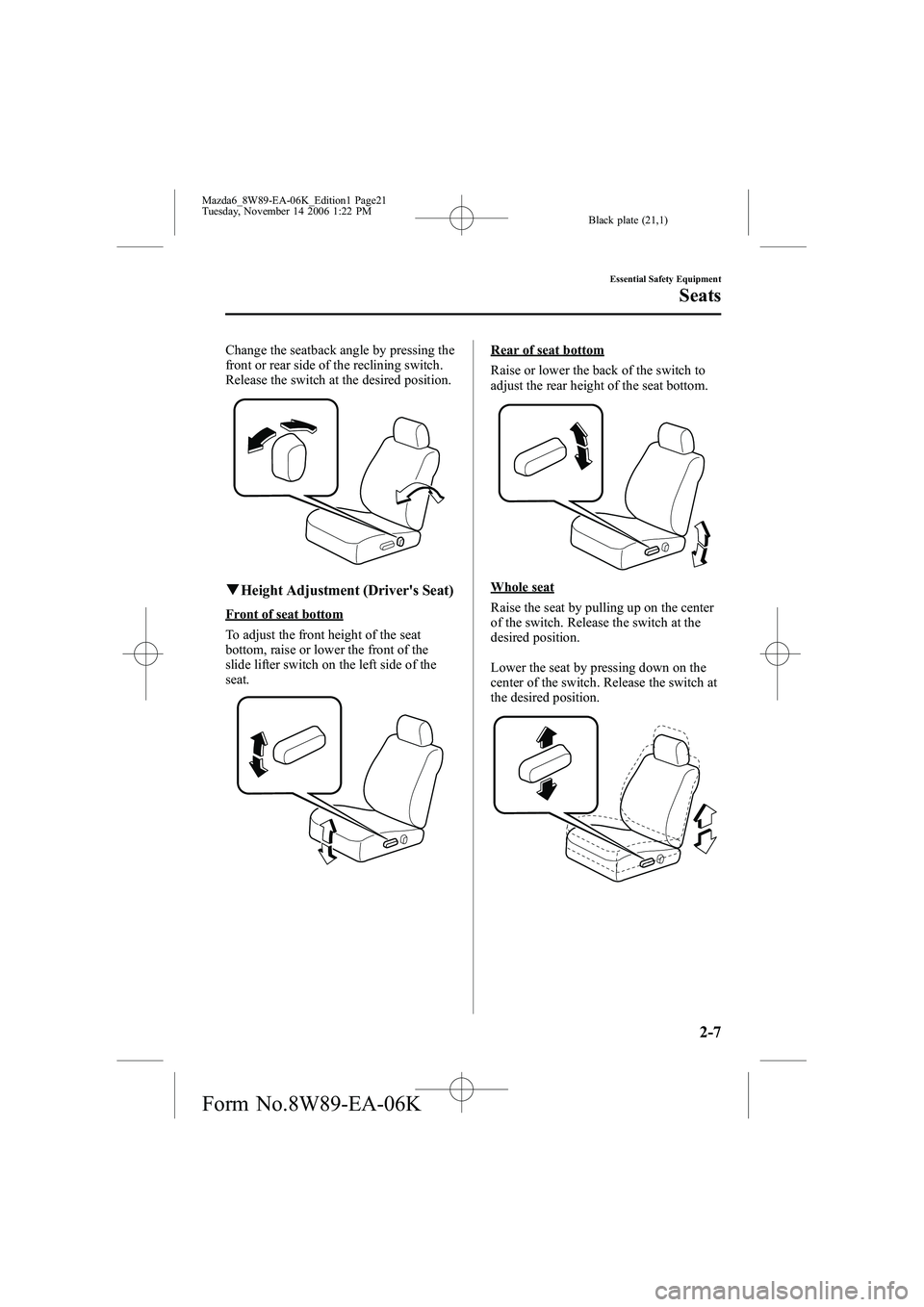

Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
Front of seat bottom
To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear of seat bottom
Raise or lower the back of the switch to
adjust the rear height of the seat bottom.
Whole seat
Raise the seat by pulling up on the center
of the switch. Release the switch at the
desired position.
Lower the seat by pressing down on the
center of the switch. Release the switch at
the desired position.
Essential Safety Equipment
Seats
2-7
Mazda6_8W89-EA-06K_Edition1 Page21
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (22,1)

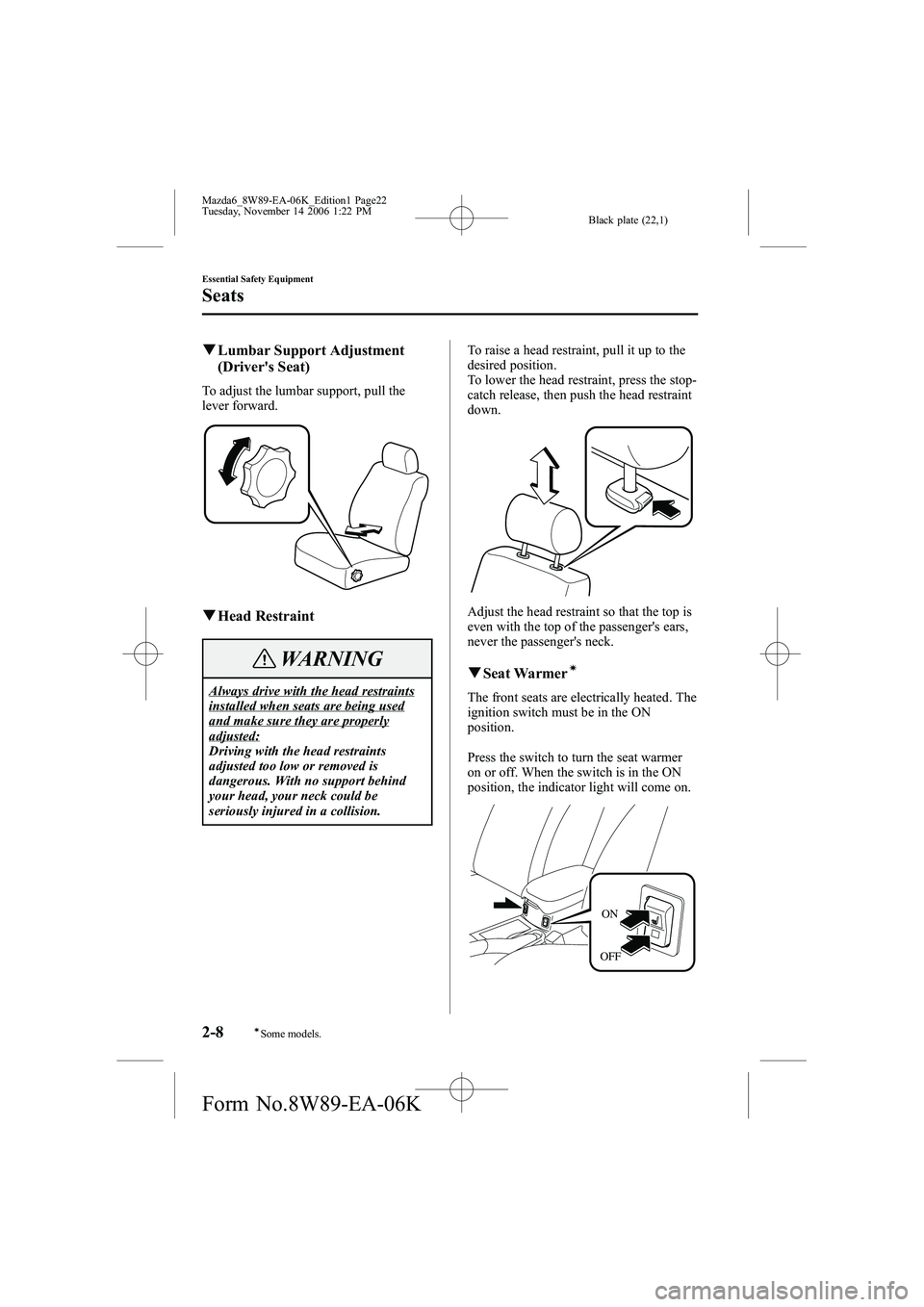

qLumbar Support Adjustment
(Driver's Seat)
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraintsinstalled when seats are being usedand make sure they are properlyadjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
q
Seat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-8
Essential Safety Equipment
íSome models.
Seats
Mazda6_8W89-EA-06K_Edition1 Page22
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (23,1)
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Rear Seat
WARNING
Do not stack cargo higher than theseatbacks or place articles on the rearpackage tray or on the luggagecompartment cover:
Stacking luggage or other cargo
higher than the seatbacks, and placing
articles on the rear package tray or on
the luggage compartment cover is
dangerous. During sudden braking or
a collision, objects can fly around and
become projectiles that may hit and
injure passengers.
Make sure luggage and cargo issecured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable componentsof a seat are locked in place:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Essential Safety Equipment
Seats
2-9
Mazda6_8W89-EA-06K_Edition1 Page23
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (24,1)
WARNING
Do not drive with the seatbackunlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Never allow a passenger to sit or standon the folded seatback while thevehicle is moving:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child in the baggage area
could be thrown into other occupants
and cause serious injury.
Never give the car keys to children anddo not allow them to play in thevehicle:
Playing with the folding rear seats is
dangerous. Once the seatbacks are
back up, a child in the trunk would
not be able to get out the way they had
entered. If you have small children,
keep the seatbacks locked (sedan).
NOTE
When returning a rear seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls out and retracts.
qSplit-Folding Rear Seatback (Sedan)
The seatbacks can be folded down to
provide more space in the trunk.
To fold the seatbacks
WARNING
Always remove the child-restraintsystem from the rear seat beforeoperating the remote handle levers forthe rear seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Make sure there is nobody in the rearseat area before operating the remotehandle levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward.
2-10
Essential Safety Equipment
Seats
Mazda6_8W89-EA-06K_Edition1 Page24
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (25,1)
CAUTION
Before folding the seatbacks with the
remote handle levers, make sure there is
no cup in a rear cup holder. Folding the
seatbacks with the remote handle levers
while a cup is in the cup holder could
soil or damage the seat bottom and
seatback.
CAUTION
Be careful of the following when using
the remote handle levers:
lOn a downward slope, the seatback
could flip forward faster than on a
flat area.
lOn an upward slope, the seatback
may not fold down. When the
seatbacks cannot be folded down
with levers, pull the rear seatback
forward from inside the vehicle.
1. Unfasten the lap portion of the center- rear seat belt (page 2-23).
CAUTION
Always unfasten the lap portion of the
belt before folding left-rear seatback.
Leaving the lap portion of the belt
fastened could cause damage to the seat
belt, buckle and seatback. 2. After checking that the rear seats are
clear, open the trunk and pull the
remote handle levers on the left and
right side of the trunk.
To return the seatbacks to the uprightposition
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks frominside the vehicle to make sure they are
locked.
3. Fasten the center-rear lap/shoulder belt and check that all seat belts are routed
properly for passenger use (page 2-23).
WARNING
Always make sure the seat belts arefully pulled out from under theseatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
Essential Safety Equipment
Seats
2-11
Mazda6_8W89-EA-06K_Edition1 Page25
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (26,1)
qEasy Fold Down Rear Seatbacks
and Forward Slide Seat Bottom
for Added Luggage Space (5-
Door/Sport Wagon)
The seatback can be folded down and the
seat bottom slid forward to provide a flat
surface extending from the back of the
front seats to the rear of the vehicle for
extra luggage space.
To fold down the rear seatbacks andslide forward seat bottoms
WARNING
Always remove the child-restraintsystem from the rear seat beforeoperating the remote handle levers forthe rear seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Make sure there is nobody in the rearseat area before operating the remotehandle levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward.
CAUTION
Before folding the seatbacks with the
remote handle levers, make sure there is
no cup in a rear cup holder. Folding the
seatbacks with the remote handle levers
while a cup is in the cup holder could
soil or damage the seat bottom and
seatback.
2-12
Essential Safety Equipment
Seats
Mazda6_8W89-EA-06K_Edition1 Page26
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (27,1)
When using the remote handle levers:
CAUTION
Be careful of the following when using
the remote handle levers:
lOn a downward slope, the seatback
could flip forward faster than on a
flat area.
lOn an upward slope, the seatback
may not fold down. When the
seatbacks cannot be folded down
with levers, pull the rear seatback
forward from inside the vehicle.
1. Unfasten the lap portion of the center- rear seat belt (page 2-23).
CAUTION
Always unfasten the lap portion of the
belt before folding left-rear seatback.
Leaving the lap portion of the belt
fastened could cause damage to the seat
belt, buckle and seatback. 2. After checking that the rear seats are
clear, open the liftgate compartment
and pull the remote handle levers on
the left and right side of the liftgate
compartment.
When using the rear seatback knobs:
CAUTION
When operating the rear seatback knob,
make sure you support the seatback
with your hand. If the seatback is not
supported with your hand, it will flip
forward suddenly and could cause
injury to the finger that pushes the rear
seatback knob down.
1. Unfasten the lap portion of the center- rear seat belt (page 2-23).
CAUTION
Always unfasten the lap portion of the
belt before folding the rear-left
seatback. Leaving the lap portion of the
belt fastened could cause damage to the
seat belt, buckle and seatback.
2. Support the seatback with your hand.
Essential Safety Equipment
Seats
2-13
Mazda6_8W89-EA-06K_Edition1 Page27
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (28,1)
3. Push the rear seatback knob down.
To return the seatbacks to the uprightposition
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks frominside the vehicle to make sure they are
locked.
3. Fasten the center-rear lap/shoulder belt and check that all seat belts are routed
properly for passenger use (page 2-23).
WARNING
Always make sure the seat belts arefully pulled out from under theseatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
WARNING
When returning the seatback to theupright position, make sure there is nored indication:
A rear seatback not fully returned and
locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob, the
seatback is not locked in the upright
position.
Unlocked positionLocked position
q
Head Restraint (5-Door/Sport
Wagon)
WARNING
Always drive with the head restraintsinstalled when seats are being usedand make sure they are properlyadjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
2-14
Essential Safety Equipment
Seats
Mazda6_8W89-EA-06K_Edition1 Page28
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (29,1)
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qArmrest
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Essential Safety Equipment
Seats
2-15
Mazda6_8W89-EA-06K_Edition1 Page29
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (30,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page30
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K
