MAZDA MODEL 6 WAGON 2007 Owners Manual

Black plate (371,1)
qEngine Number
2.3-liter engine
Forward
3.0-liter engine
Forward
Identification Numbers
10-3
Mazda6_8W89-EA-06K_Edition1 Page371
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (372,1)
Specifications
qEngine
Item Specification
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
q Electrical System
Item Classification
Battery 12V-50AH/5HR
Spark-plug number 2.3-liter engine LFG1 18 110
*1
L3Y2 18 110
3.0-liter engine AJ57 18 110*1*2
Spark-plug gap 2.3-liter engine 1.25
―1.35 mm (0.050 ―0.053 in)
3.0-liter engine 1.29 ―1.45 mm (0.051 ―0.057 in)
*1 ex factory
*2 Verify the spark plug type from the spark plug itself. If the spark plug type cannot be determined, consult an Authorized Mazda Dealer.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
10-4
Specifications
Mazda6_8W89-EA-06K_Edition1 Page372
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (373,1)
qLubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers
on page 8-18.
Manual transaxle oil 2.3-liter engineAny temperature
API Service
GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service
GL-4 or GL-5
SAE 80W-90
3.0-liter engine API Service
GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid 2.3-liter engine
ATF M-V
3.0-liter engine JWS3309
Power steering fluid ATF M-V, or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil 2.3-liter engine
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
3.0-liter engine With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.2 L (5.5 US qt, 4.6 Imp qt)
Coolant 2.3-liter engine 7.0 L (7.4 US qt, 6.2 Imp qt)
3.0-liter engine 8.5 L (9.0 US qt, 7.5 Imp qt)
Manual transaxle oil 2.3-liter engine 2.87 L (3.03 US qt, 2.53 Imp qt)
3.0-liter engine 2.3 L (2.4 US qt, 2.0 Imp qt)
Automatic transaxle fluid 2.3-liter engine 8.14 L (8.60 US qt, 7.16 Imp qt)
3.0-liter engine 7.0 L (7.4 US qt, 6.1 Imp qt)
Fuel tank 68.0 L (18.0 US gal, 15.0 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
10-5
Mazda6_8W89-EA-06K_Edition1 Page373
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (374,1)

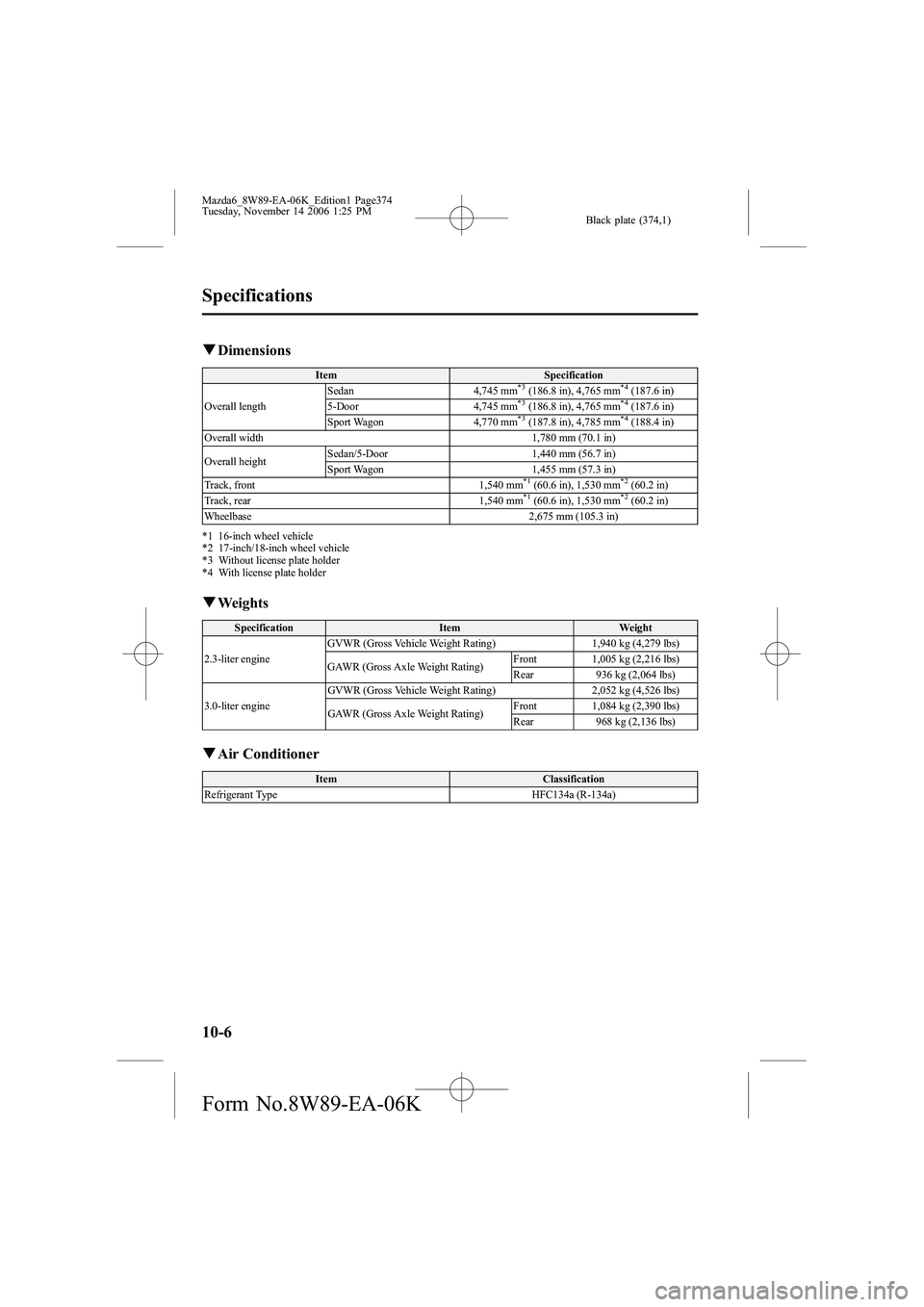

qDimensions
Item Specification
Overall length Sedan
4,745 mm*3(186.8 in), 4,765 mm*4(187.6 in)
5-Door 4,745 mm*3(186.8 in), 4,765 mm*4(187.6 in)
Sport Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall height Sedan/5-Door 1,440 mm (56.7 in)
Sport Wagon 1,455 mm (57.3 in)
Track, front 1,540 mm
*1(60.6 in), 1,530 mm*2(60.2 in)
Track, rear 1,540 mm*1(60.6 in), 1,530 mm*2(60.2 in)
Wheelbase 2,675 mm (105.3 in)
*1 16-inch wheel vehicle
*2 17-inch/18-inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
q Weights
Specification ItemWeight
2.3-liter engine GVWR (Gross Vehicle Weight Rating)
1,940 kg (4,279 lbs)
GAWR (Gross Axle Weight Rating) Front
1,005 kg (2,216 lbs)
Rear 936 kg (2,064 lbs)
3.0-liter engine GVWR (Gross Vehicle Weight Rating)
2,052 kg (4,526 lbs)
GAWR (Gross Axle Weight Rating) Front
1,084 kg (2,390 lbs)
Rear 968 kg (2,136 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
10-6
Specifications
Mazda6_8W89-EA-06K_Edition1 Page374
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (375,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 55 H1 (
―)
Low beam Halogen 55 H1 (
―)
Xenon fusion 35 D2S ( ―)
Front turn signal lights 27 ―(#2357A)
Parking lights 5 W5W ( ―)
Fog lights
í55 H11 (H11)
Side-marker lights 5―(― )
High-mount brake light Sedan
Non-LED bulb
18.4W16W (#921)
LED bulb
*24 ―(― )
5-Door 21 W21W (#7440)
Sport Wagon Non-LED bulb 21 W21W (#7440)
LED bulb
*24
―(― )
Rear turn signal lights Sedan/5-Door 21 WY21W (
―)
Sport wagon 21 W21W (#7440)
Brake lights/Taillights 21/5 W21/5W (#7443)
Taillights 5
*1W21/5W (#7443)
Reverse lights 18.4 W16W (#921)
License plate lights 5 W5W ( ―)
*1 Use a 21/5W type bulb.
*2 Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light
Light bulb Category
Wattage ECE R
Trunk light (Sedan) 3―
Overhead light/Map lights 5W5W
Courtesy lights 5W5W
Vanity mirror lights
*Type A 1.2―
Type B 3―
Luggage compartment light 5-Door
5―
Sport Wagon 10―
* Vanity mirror lights
Specifications
10-7íSome models.
Mazda6_8W89-EA-06K_Edition1 Page375
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (376,1)
Type B
Type A
q Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-35.
Standard tire
Tire size Inflation pressure
Front Rear
P205/60R16 91V 220 kPa
(2.2 kgf/cm
2, 32 psi or lb/po2) 220 kPa
(2.2 kgf/cm2, 32 psi or lb/po2)
P215/50R17 93V
215/45R18 93W 240 kPa
(2.4 kgf/cm
2, 35 psi or lb/po2) 240 kPa
(2.4 kgf/cm2, 35 psi or lb/po2)
Temporary spare tire
Tire size Inflation pressure
T115/70D16 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-49.
10-8
Specifications
Mazda6_8W89-EA-06K_Edition1 Page376
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (377,1)
11Index
11-1
Mazda6_8W89-EA-06K_Edition1 Page377
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (378,1)
A
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-53
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-6Warning light ............................... 5-7
Appearance Care ............................... 8-54
Audio System ................................... 6-16 Audio control switch .................. 6-45
Audio set .................................... 6-27
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-48
Automatic Transaxle Driving tips ................................ 5-17
Fluid ........................................... 8-24
Manual shift mode ..................... 5-13
Shift-lock system ....................... 5-12
Transaxle ranges ......................... 5-11
B
BatteryEmergency starting .................... 7-17
Maintenance ............................... 8-33
Specifications ............................. 10-4
Beep sounds Ignition key reminder ................. 5-39
Lights-on reminder ..................... 5-39
Seat belt warning beep ............... 5-39
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-55
Brake/Clutch Fluid ........................................... 8-22
B
BrakesAnti-lock brake system (ABS) ..... 5-6
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-58
Cargo Sub-Compartment .................. 6-59
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-17
Center Box ........................................ 6-56
Center Console .................................. 6-57
Child Restraint
Installing child-restraint
systems ....................................... 2-33
LATCH child-restraint
systems ....................................... 2-41
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Clock ................................................. 6-53
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-54
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-27
Daytime Running Lights ................... 5-41
Defroster Rear window .............................. 5-45
11-2
Index
Mazda6_8W89-EA-06K_Edition1 Page378
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (379,1)
D
Dimensions ....................................... 10-6
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-17Flooded engine ........................... 7-17
Jump-starting .............................. 7-18
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-20
Exhaust gas .................................. 4-5
Hood release .............................. 3-32
Oil .............................................. 8-18
Overheating ................................ 7-15
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-15
Engine Coolant Temperature
Gauge ................................................ 5-26
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-56
F
Flasher Hazard warning .......................... 5-46
Headlights .................................. 5-40
Flat Tire ............................................... 7-3 Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids Owner maintenance ................... 8-15
Fog Lights ......................................... 5-42
Foot Brake .......................................... 5-4
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-30
Gauge ......................................... 5-27
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-49 Panel description ........................ 8-51
Replacement ............................... 8-49
G
Glove Box ......................................... 6-57
H
Hatch ................................................. 3-12Luggage compartment cover ...... 3-13
Luggage strap ............................. 3-13
Hazard Warning Flasher .................... 5-46
Hazardous Driving .............................. 4-8
Index
11-3
Mazda6_8W89-EA-06K_Edition1 Page379
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (380,1)
H
HeadlightsControl ....................................... 5-40
Flashing ...................................... 5-41
High-low beam .......................... 5-41
Leveling ..................................... 5-41
On reminder ............................... 5-40
HomeLink Wireless Control
System .............................................. 5-47
Hood Release .................................... 3-32
Horn .................................................. 5-46
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-49
Immobilizer System .......................... 3-35
Indicator Lights ................................. 5-29
Cruise Main ................................ 5-38
Cruise set .................................... 5-38
Headlight high-beam .................. 5-37
Security ...................................... 5-36
Shift position .............................. 5-37
TCS ............................................ 5-37
TCS OFF .................................... 5-38
Turn-signal/hazard warning ....... 5-39
Information Display .......................... 6-52 Ambient temperature display ..... 6-53
Audio display ............................. 6-54
Climate control display .............. 6-54
Clock .......................................... 6-53
Information display functions .... 6-52
Inside Trunk Release Lever ............... 3-22
Instrument Cluster ............................. 5-24
Interior Care ...................................... 8-59
Interior Lights ................................... 6-49
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-42
Liftgate .............................................. 3-14 Luggage compartment cover ...... 3-15
Luggage compartment net .......... 3-17
Light Bulbs
Replacement ............................... 8-39
Specifications ............................. 10-7
Lighting Control ............................... 5-40
Luggage Compartment Light ............ 6-51
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-50
Mirrors Outside mirrors .......................... 3-40
Rearview mirror ......................... 3-41
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-33
11-4
Index
Mazda6_8W89-EA-06K_Edition1 Page380
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K
