MAZDA MODEL 626 2001 User Guide

Form No. 8P95-EA-00G
*Some models.
Your Vehicle at a Glance1-4
004-4AE
Doors
Courtesy light (page 3-41)
Front (Driver’s side)
Remote trunk lid release (page 3-16)Door lock switch* (page 3-7)
Door lock (page 3-4)
Power window
master control*
(page 3-13)J94S1003_a
(2001)
Outside mirror (page 3-33)
Door handle (page 3-7)
Courtesy light (page 3-41)
Front (Passenger’s side)J94S1004_a (2001)
Door lock (page 3-4)
Outside mirror (page 3-33)
Power window switch* (page 3-13) Door handle (page 3-7)

Form No. 8P95-EA-00G
*Some models.
Your Vehicle at a Glance
1-5
RearJ94A1005Door handle
(page 3-7)Door lock (page 3-4)
Power window switch* (page 3-13)
Child safety lock (page 3-8)
004-5AE
Luggage Compartment
Tool bag Jack
Spare tire (page 6-27)
J94S6013_1Gr

Form No. 8P95-EA-00G

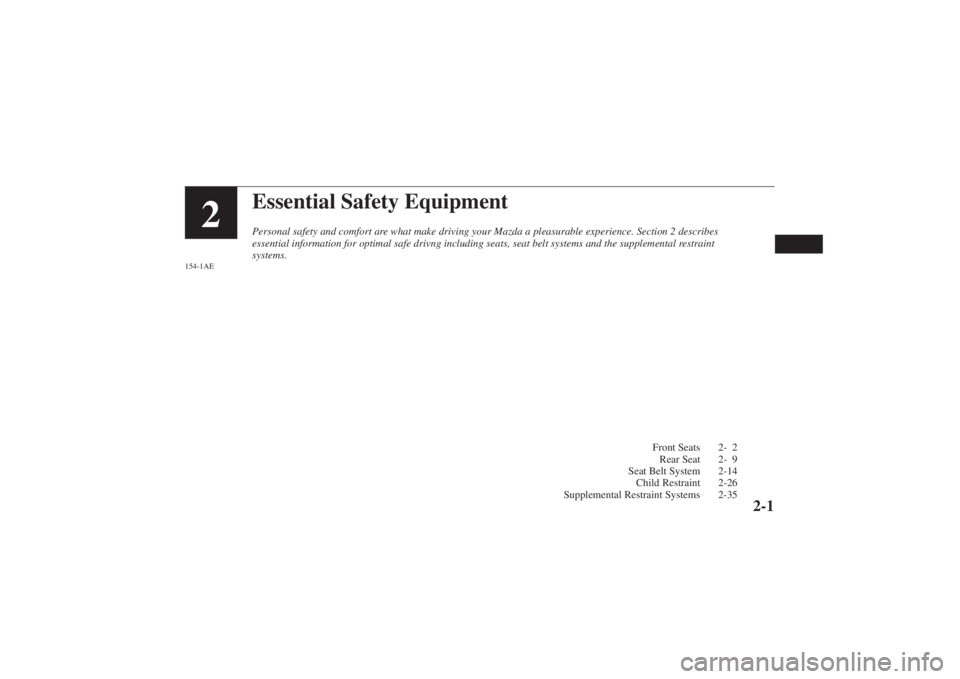

Essential Safety EquipmentPersonal safety and comfort are what make driving your Mazda a pleasurable experience. Section 2 descr\
ibes
essential information for optimal safe drivng including seats, seat belt\
systems and the supplemental restraint
systems.Front Seats 2- 2Rear Seat 2- 9
Seat Belt System 2-14 Child Restraint 2-26
Supplemental Restraint Systems 2-35
2
2-1
154-1AE

Form No. 8P95-EA-00G
Essential Safety Equipment2-2

016-1A3E

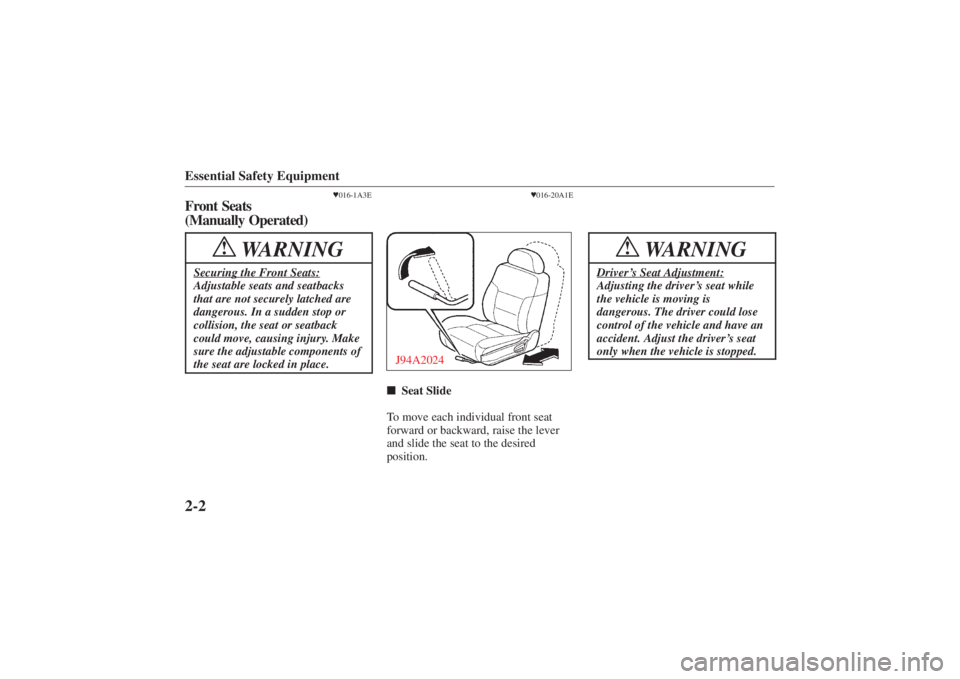

Front Seats
(Manually Operated)
WARNING
!
Securing the Front Seats:Adjustable seats and seatbacks
that are not securely latched are
dangerous. In a sudden stop or
collision, the seat or seatback
could move, causing injury. Make
sure the adjustable components of
the seat are locked in place.

016-20A1E
J94A2024 Seat Slide

To move each individual front seat
forward or backward, raise the lever
and slide the seat to the desired
position.
WARNING
!
Driver’s Seat Adjustment:Adjusting the driver’s seat while
the vehicle is moving is
dangerous. The driver could lose
control of the vehicle and have an
accident. Adjust the driver’s seat
only when the vehicle is stopped.

Form No. 8P95-EA-00G
Essential Safety Equipment
2-3

016-2AE
J94A2025 Seat Recline
To change each individual seatback
angle, lean forward slightly while
raising the lever. Then lean back to the
desired position and release the lever.
Make sure the lever returned to its original position and the seatback is
locked in place by attempting to push
it forward and backward.


016-15BE
WARNING
!
Reclining:Sitting in a reclined position while
the vehicle is moving is dangerous
because you don’ t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries.
For maximum protection, sit well
back and upright.
CAUTION
!
When returning a rear-reclined
seatback to its upright position,
make sure you support the
seatback while operating the
seatback lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.

Form No. 8P95-EA-00G
Essential Safety Equipment2-4

Q016–3G1E

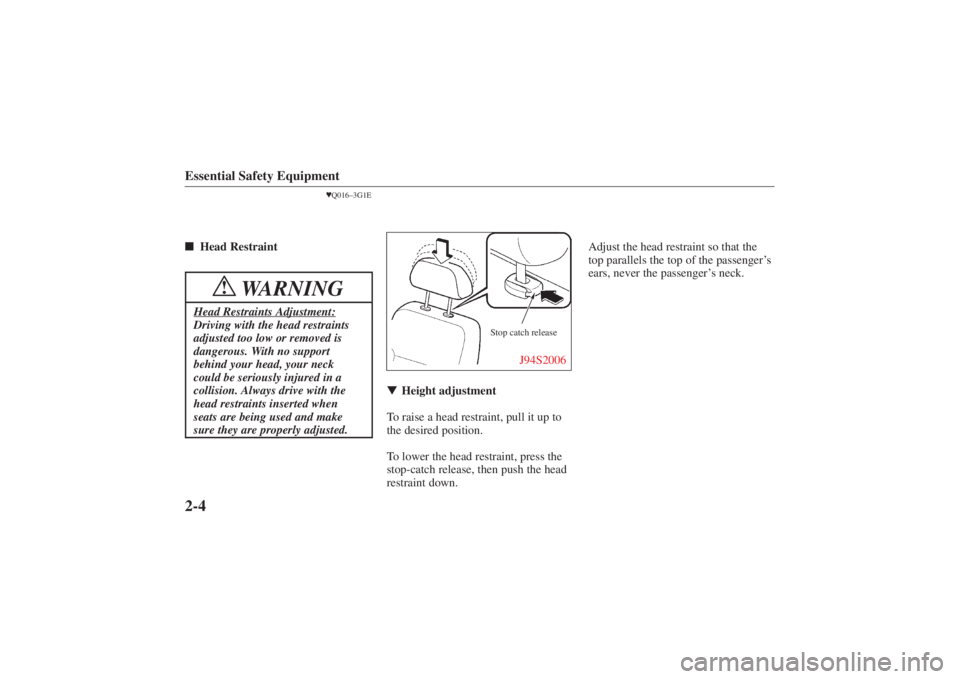

 Head Restraint
WARNING
!
Head Restraints Adjustment:Driving with the head restraints
adjusted too low or removed is
dangerous. With no support
behind your head, your neck
could be seriously injured in a
collision. Always drive with the
head restraints inserted when
seats are being used and make
sure they are properly adjusted.
Stop catch release
J94S2006
Height adjustment
To raise a head restraint, pull it up to
the desired position.
To lower the head restraint, press the
stop-catch release, then push the head
restraint down. Adjust the head restraint so that the
top parallels the top of the passenger’s
ears, never the passenger’s neck.

Form No. 8P95-EA-00G
Essential Safety Equipment
2-5

016-5BE
Up
Down
J94A2070
 Seat Tilt (Driver’s Seat)
The seat-bottom angle can be adjusted
by rotating the dial. The dial tilts the
seat-bottom upward.

017-1DE
Front Seats
(Electrically Operated)The seat-bottom tilt, seat height and
seat slide can be electrically adjusted.
Move them to the desired positions by
using the switch on the seat’ s lower
side.


017-8A1E
CAUTION
!
•The seat-bottom power adjust is
operated by a motor. Avoid
extended operation because
excessive use can damage the
motor.
• To prevent the battery from
running down, avoid using the
power adjust when the engine is
stopped. The adjuster uses a
great amount of electric power.

Form No. 8P95-EA-00G
Essential Safety Equipment2-6
017-2AE

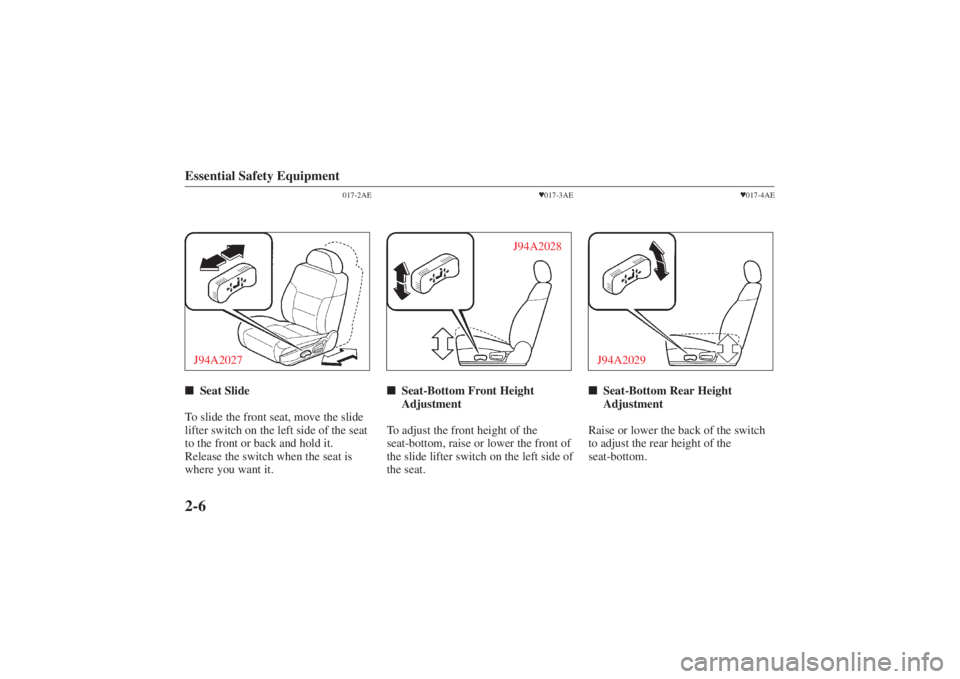

J94A2027Seat Slide
To slide the front seat, move the slide
lifter switch on the left side of the seat
to the front or back and hold it.
Release the switch when the seat is
where you want it.

017-3AE
J94A2028
 Seat-Bottom Front Height
Adjustment
To adjust the front height of the
seat-bottom, raise or lower the front of
the slide lifter switch on the left side of
the seat.

017-4AE
J94A2029 Seat-Bottom Rear Height
Adjustment
Raise or lower the back of the switch
to adjust the rear height of the
seat-bottom.

Form No. 8P95-EA-00G
Essential Safety Equipment
2-7

017-5A1E

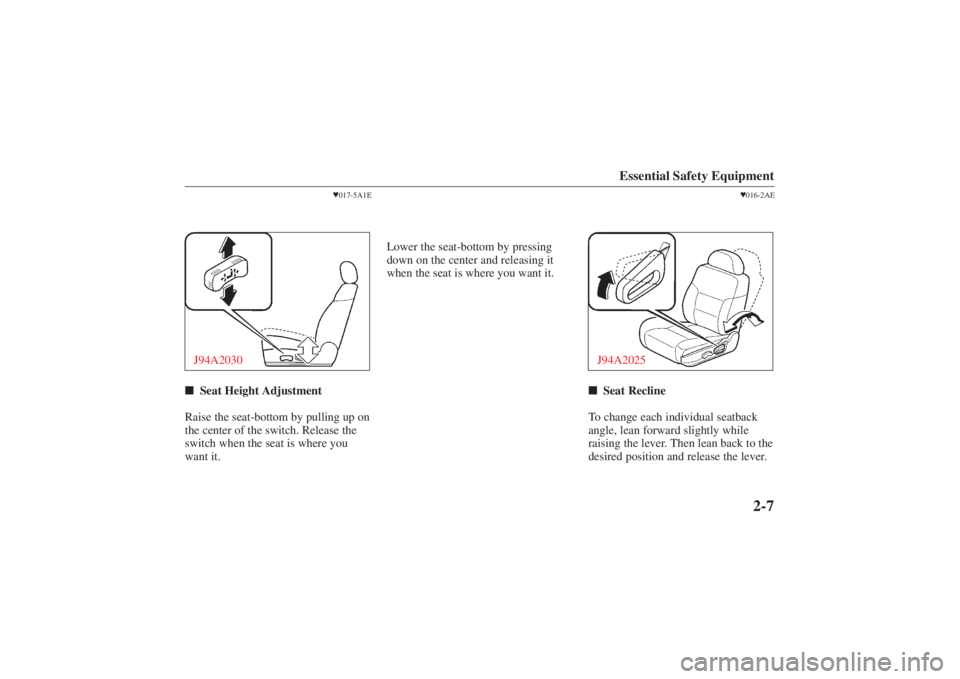

J94A2030 Seat Height Adjustment
Raise the seat-bottom by pulling up on
the center of the switch. Release the
switch when the seat is where you
want it. Lower the seat-bottom by pressing
down on the center and releasing it
when the seat is where you want it.


016-2AE
J94A2025 Seat Recline
To change each individual seatback
angle, lean forward slightly while
raising the lever. Then lean back to the
desired position and release the lever.

Form No. 8P95-EA-00G

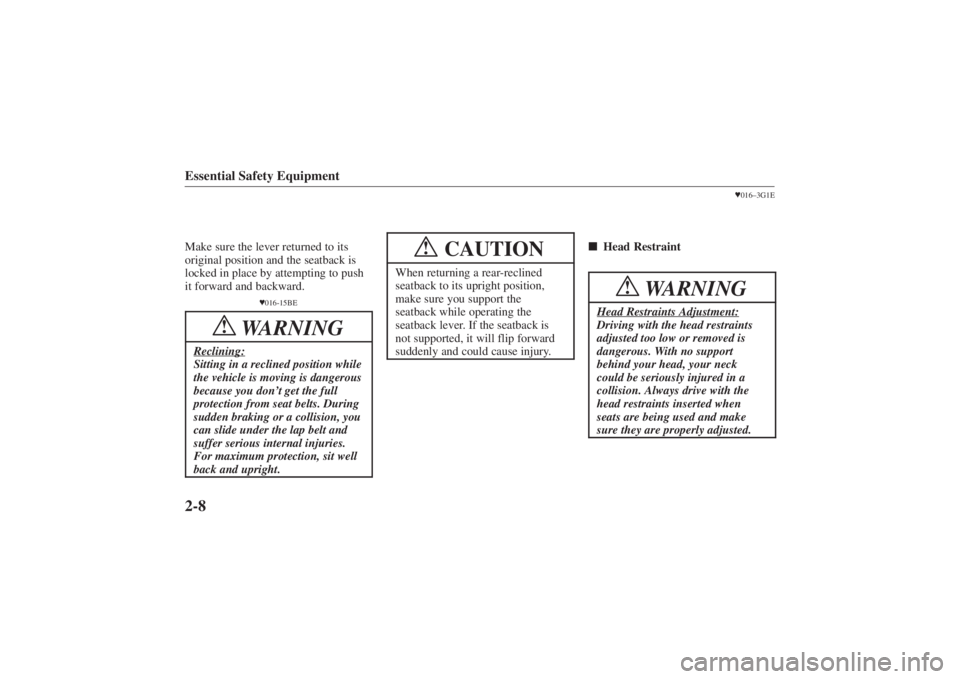

Essential Safety Equipment2-8Make sure the lever returned to its
original position and the seatback is
locked in place by attempting to push
it forward and backward.

016-15BE
WARNING
!
Reclining:Sitting in a reclined position while
the vehicle is moving is dangerous
because you don’ t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries.
For maximum protection, sit well
back and upright.
CAUTION
!
When returning a rear-reclined
seatback to its upright position,
make sure you support the
seatback while operating the
seatback lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.

016–3G1E
 Head Restraint
WARNING
!
Head Restraints Adjustment:Driving with the head restraints
adjusted too low or removed is
dangerous. With no support
behind your head, your neck
could be seriously injured in a
collision. Always drive with the
head restraints inserted when
seats are being used and make
sure they are properly adjusted.
