display MAZDA MODEL 626 2001 User Guide

Form No. 8P95-EA-00G
Driving Your Mazda
5-91
Band selection
Select AM by pressing the AM button
and FM1 or FM2 by pressing the
FM1/2 button.
The selected mode will be indicated.
If FM stereo is being received, “ST”
will be displayed.NOTEIf the FM broadcast signal
becomes weak, reception
automatically changes from
STEREO to MONO for reduced
noise, and the “ST” indicator will
go out.
 Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning.
The easiest way to tune stations is to
set them on preset channels.NOTEIf the power supply is interrupted
(fuse blows or the battery is
disconnected), the preset channels
will be canceled.
76Y032-008_a
Higher
frequency
Lower
frequency
Manual tuning
Turning the manual tuning knob will
change to a higher or lower frequency.

Form No. 8P95-EA-00G
Driving Your Mazda
5-93
76Y032-010Preset channel tuning
The six preset channels can be used to
store 6 AM and 12 FM stations.To set a channel first select AM, FM1,
or FM2. Tune to the station you want
and depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed.
The station is now held in the memory.
Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.
NOTEIf the power supply is interrupted
(fuse blows or the battery is
disconnected), the preset channels
will be canceled.

Form No. 8P95-EA-00G
Driving Your Mazda5-9476Y032-011Auto memory tuning
This is especially useful when driving
in an area where the local stations are
not known. Additional AM/FM
stations can be stored without
disturbing the previously set channels.Press and hold the auto memory
button for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store the six
strongest stations of each selected
band in that area.
After scanning is completed, the
strongest station will be tuned and its
frequency displayed.
Press and release the auto memory
button to recall stations from the
auto-stored stations. One stored station
will be selected each time; its
frequency and channel number will be
displayed.
NOTEIf no stations can be tuned after
scanning operations, “A” will be
displayed.

Form No. 8P95-EA-00G
Driving Your Mazda
5-95
76Y032-005
 Radio OFF
Press the power/volume knob to turn
off the radio.
NOTEPress the power/volume knob
again to listen to the frequency last
tuned to.

Operating the Cassette Tape
Player
To operate the cassette tape player,
turn the ignition switch to the ACC or
ON position.
 Cassette tape insert
Insert the cassette tape into the slot,
open edge to the right and cassette
tape will begin play and “TAPE” will
be displayed. At the end of the cassette
tape, the unit automatically reverses
cassette tape play.
When  is lit, the cassette tape’ s top
side is playing. When  is lit, the
bottom side is on.

Form No. 8P95-EA-00G
Driving Your Mazda5-96NOTEWhen a metal tape is inserted, the
player will automatically
compensate for it and “MTL” will
be displayed.
76Y032-031 Playing
Press the cassette tape play button to
start playing when a cassette tape is in
the unit. If there isn’ t a cassette tape in
the unit when the cassette tape play
button is pressed, “NO TAPE” will
flash on and off in sequence.
76Y032-021 Dolby noise reduction
When using a tape with Dolby NR*,
push the
button. The
symbol
will be displayed. To play a tape
without Dolby NR, push the button
once again.

Form No. 8P95-EA-00G
Driving Your Mazda
5-99

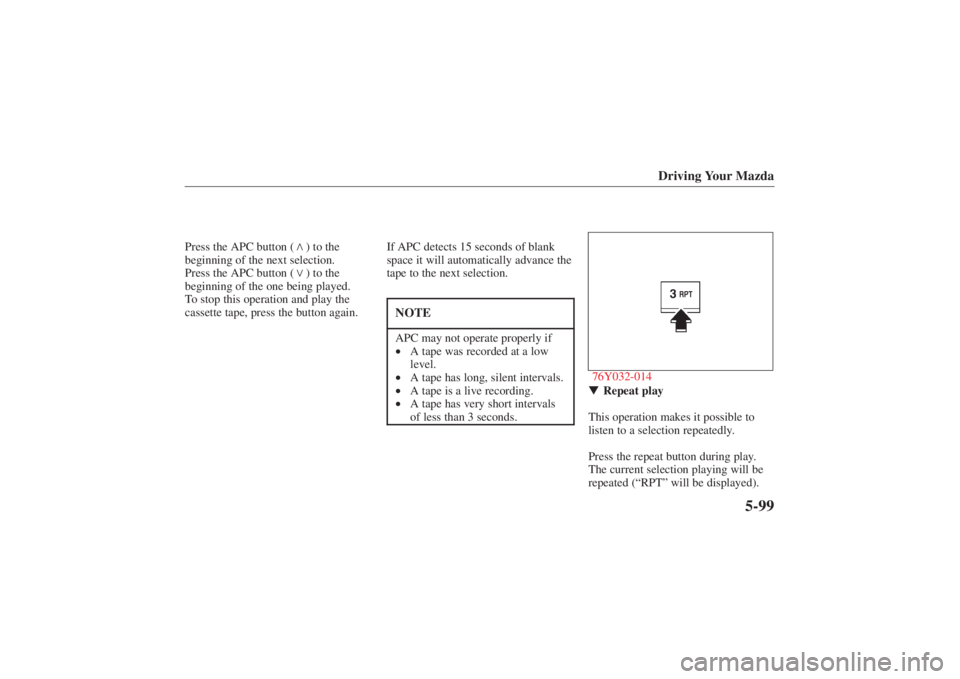

Press the APC button (
) to the
beginning of the next selection.
Press the APC button ( ) to the
beginning of the one being played.
To stop this operation and play the
cassette tape, press the button again. If APC detects 15 seconds of blank
space it will automatically advance the
tape to the next selection.
NOTEAPC may not operate properly if
•
A tape was recorded at a low
level.
• A tape has long, silent intervals.
• A tape is a live recording.
• A tape has very short intervals
of less than 3 seconds.
76Y032-014Repeat play
This operation makes it possible to
listen to a selection repeatedly.
Press the repeat button during play.
The current selection playing will be
repeated (“RPT” will be displayed).

Form No. 8P95-EA-00G

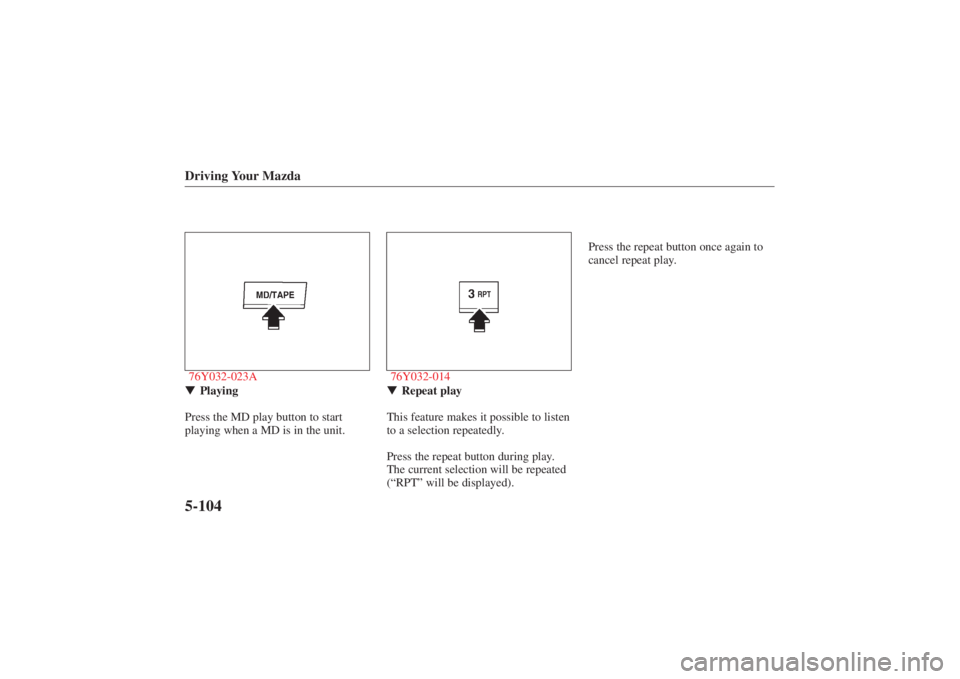

Driving Your Mazda5-10476Y032-023APlaying
Press the MD play button to start
playing when a MD is in the unit.
76Y032-014 Repeat play
This feature makes it possible to listen
to a selection repeatedly.
Press the repeat button during play.
The current selection will be repeated
(“RPT” will be displayed). Press the repeat button once again to
cancel repeat play.

Form No. 8P95-EA-00G
Driving Your Mazda
5-105
76Y032-015Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button during play.
The next selection will be randomly
selected (“RDM” will be displayed). Press the random button once again to
cancel random play.
76Y032-020
Music scan
This feature helps to find a program by
playing about the first 10 seconds of
each track.
Press the scan button during play to
start scan play operation (the track
number will flash).

Form No. 8P95-EA-00G
Driving Your Mazda
5-107
76Y032-005

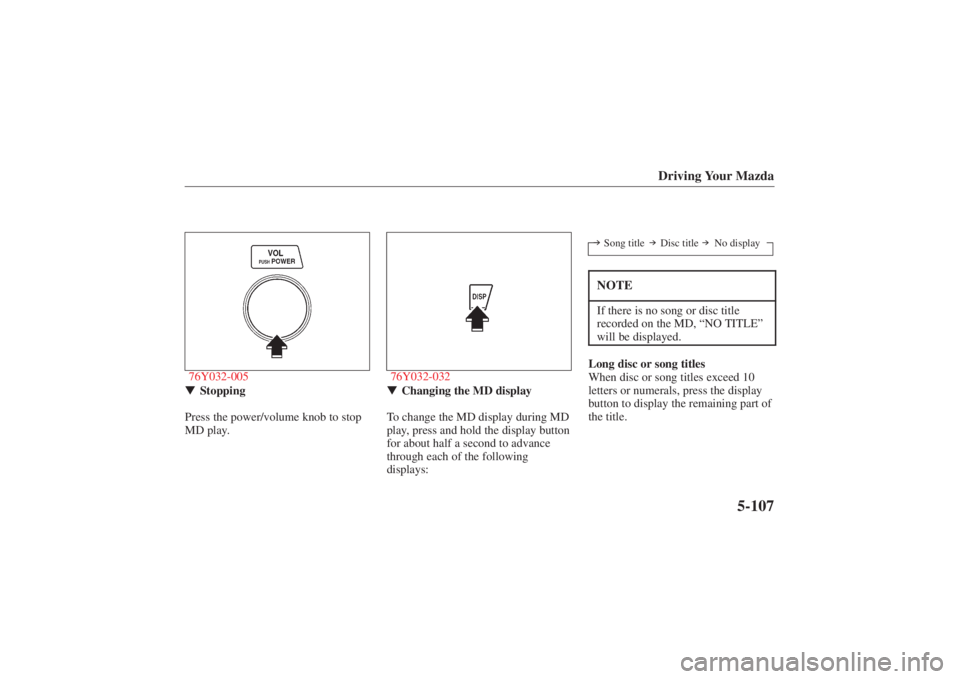

 Stopping
Press the power/volume knob to stop
MD play.
76Y032-032 Changing the MD display
To change the MD display during MD
play, press and hold the display button
for about half a second to advance
through each of the following
displays:
Song title Disc title No displayNOTEIf there is no song or disc title
recorded on the MD, “NO TITLE”
will be displayed.Long disc or song titles
When disc or song titles exceed 10
letters or numerals, press the display
button to display the remaining part of
the title.

Form No. 8P95-EA-00G

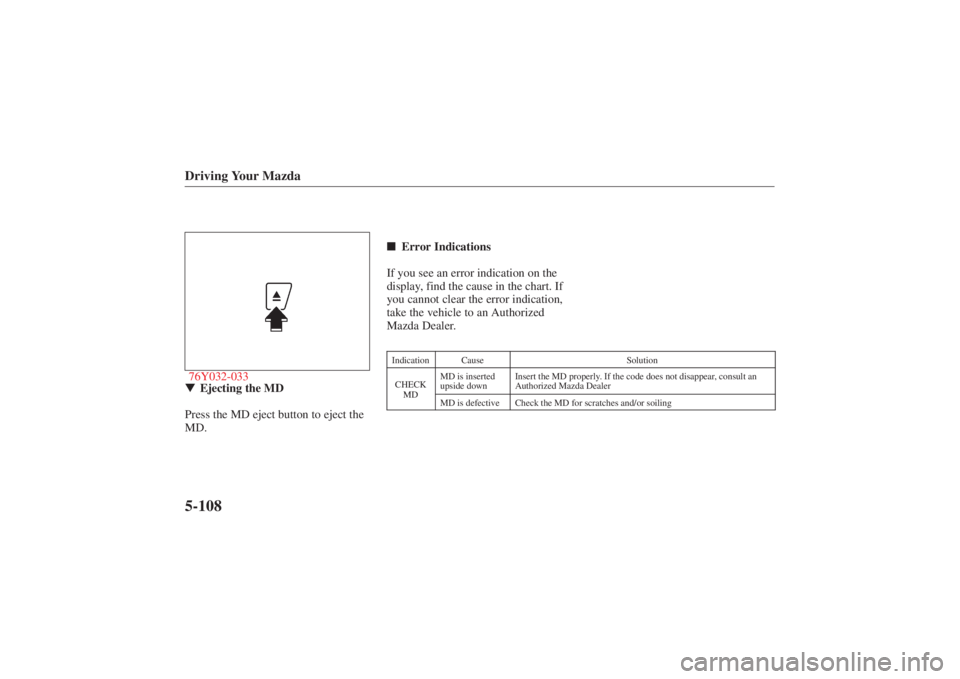

76Y032-033Ejecting the MD
Press the MD eject button to eject the
MD.Driving Your Mazda5-108

Error Indications
If you see an error indication on the
display, find the cause in the chart. If
you cannot clear the error indication,
take the vehicle to an Authorized
Mazda Dealer.Indication
Cause
Solution
CHECKMD
MD is inserted
upside down
Insert the MD properly. If the code does not disappear, consult an
Authorized Mazda Dealer
MD
MD is defective
Check the MD for scratches and/or soiling
