MAZDA MODEL 626 2001 Manual PDF

Form No. 8P95-EA-00G
Knowing Your Mazda3-6
007-2A1E
WARNING
!
Unattended Children and Pets:Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause
brain damage or even death.
Always take all children and
animals with you or leave a
responsible person with them.
NOTEAlways remove the key from the
ignition switch, close all windows,
and lock all doors when leaving
your vehicle unattended. This
discourages intruders and thieves.
007-3E3E
J94A2006
Unlock Lock
Inside Door Lock
To lock any door, push the door lock
button into the door handle area.
To unlock, pull it.

Form No. 8P95-EA-00G
*Some models.
Knowing Your Mazda
3-7

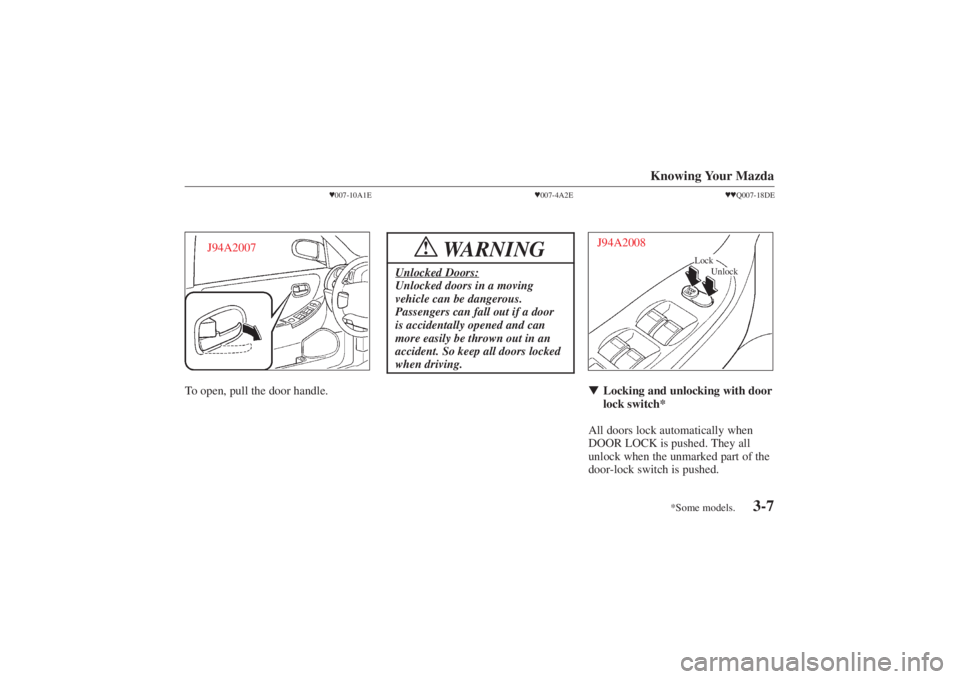

007-10A1E
J94A2007
To open, pull the door handle.
007-4A2E
WARNING
!
Unlocked Doors:Unlocked doors in a moving
vehicle can be dangerous.
Passengers can fall out if a door
is accidentally opened and can
more easily be thrown out in an
accident. So keep all doors locked
when driving.
 Q007-18DE
J94A2008
Unlock
Lock

Locking and unlocking with door
lock switch*
All doors lock automatically when
DOOR LOCK is pushed. They all
unlock when the unmarked part of the
door-lock switch is pushed.

Form No. 8P95-EA-00G
Knowing Your Mazda3-8

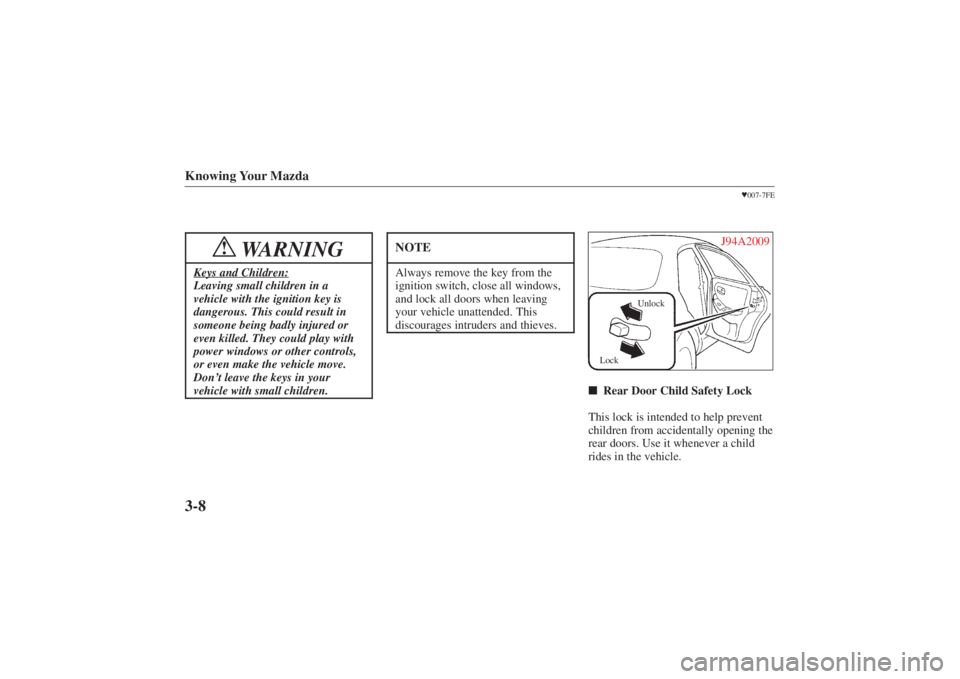

WARNING
!
Keys and Children:Leaving small children in a
vehicle with the ignition key is
dangerous. This could result in
someone being badly injured or
even killed. They could play with
power windows or other controls,
or even make the vehicle move.
Don’t leave the keys in your
vehicle with small children.
NOTEAlways remove the key from the
ignition switch, close all windows,
and lock all doors when leaving
your vehicle unattended. This
discourages intruders and thieves.
 007-7FE
J94A2009
Unlock
Lock
 Rear Door Child Safety Lock
This lock is intended to help prevent
children from accidentally opening the
rear doors. Use it whenever a child
rides in the vehicle.

Form No. 8P95-EA-00G
*Some models.
Knowing Your Mazda
3-9

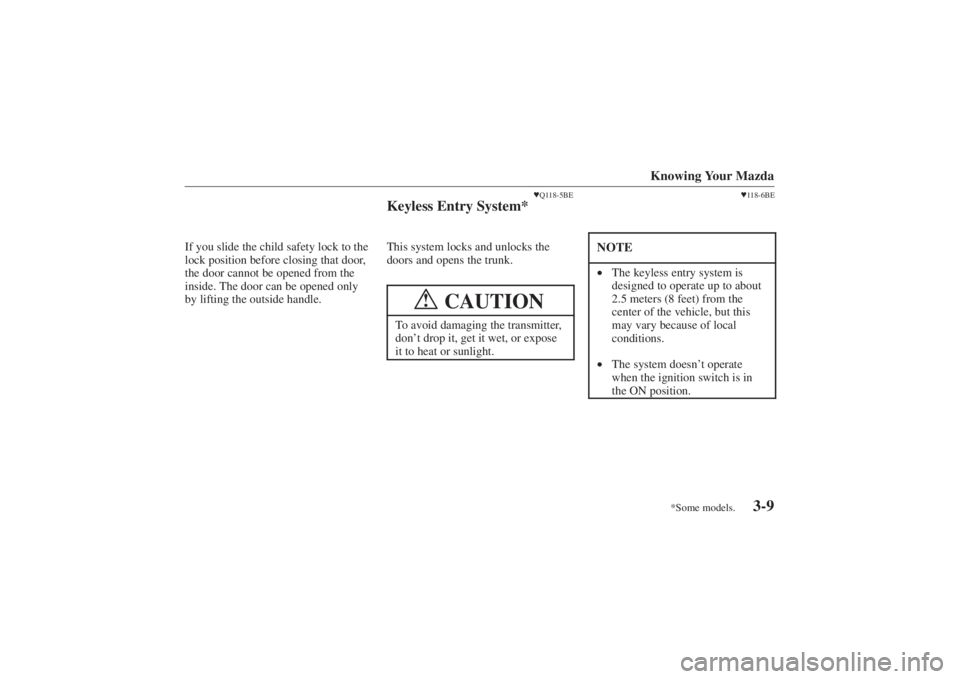

If you slide the child safety lock to the
lock position before closing that door,
the door cannot be opened from the
inside. The door can be opened only
by lifting the outside handle.
Q118-5BE
Keyless Entry System*This system locks and unlocks the
doors and opens the trunk.
CAUTION
!
To avoid damaging the transmitter,
don’ t drop it, get it wet, or expose
it to heat or sunlight.
 118-6BE
NOTE• The keyless entry system is
designed to operate up to about
2.5 meters (8 feet) from the
center of the vehicle, but this
may vary because of local
conditions.
• The system doesn’ t operate
when the ignition switch is in
the ON position.

Form No. 8P95-EA-00G
Knowing Your Mazda3-10

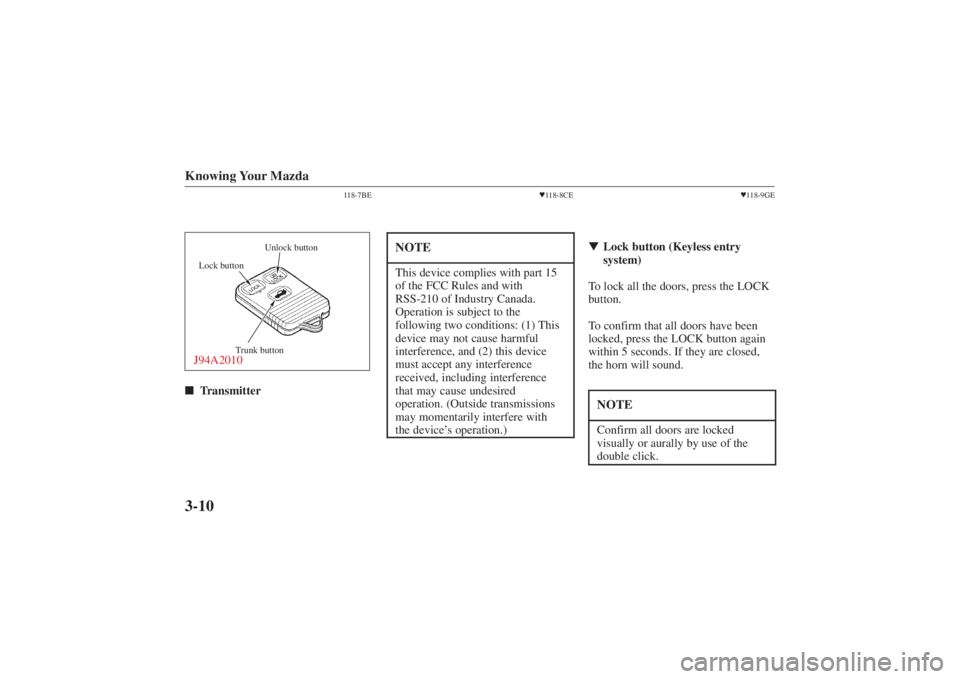

118-7BE
Trunk button
Lock button
Unlock button
J94A2010
Transmitter
118-8CE
NOTEThis device complies with part 15
of the FCC Rules and with
RSS-210 of Industry Canada.
Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device
must accept any interference
received, including interference
that may cause undesired
operation. (Outside transmissions
may momentarily interfere with
the device’ s operation.)
118-9GE
 Lock button (Keyless entry
system)
To lock all the doors, press the LOCK
button.
To confirm that all doors have been
locked, press the LOCK button again
within 5 seconds. If they are closed,
the horn will sound.NOTEConfirm all doors are locked
visually or aurally by use of the
double click.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-11

118-10EE
 Unlock button (Keyless entry
system)
To unlock the driver ’s door, press the
UNLOCK button.
To unlock all the doors, press the
UNLOCK button again within 5
seconds.

Q118-12BE

Trunk button (Keyless entry
system)
To open the trunk, press the
button.
 Q118-14EE
NOTE• If the transmitter does not
work, open the back cover and
check the battery for correct
installation.
• Additional transmitters can be
obtained at an Authorized
Mazda Dealer. Up to 3
additional transmitters can be
used with the keyless entry
system per vehicle. Bring all
transmitters to an Authorized
Mazda Dealer when the
electronic codes need to be
reset.
MaintenanceNOTE•Make sure the battery is
installed with the correct pole
facing upward. Battery leakage
could occur if it is not installed
correctly.
• When replacing the battery, be
careful not to bend the
electrical terminals or get oil on
them. Also be careful not to get
dirt in the remote control unit
as it could damage it.

Form No. 8P95-EA-00G
Knowing Your Mazda3-12

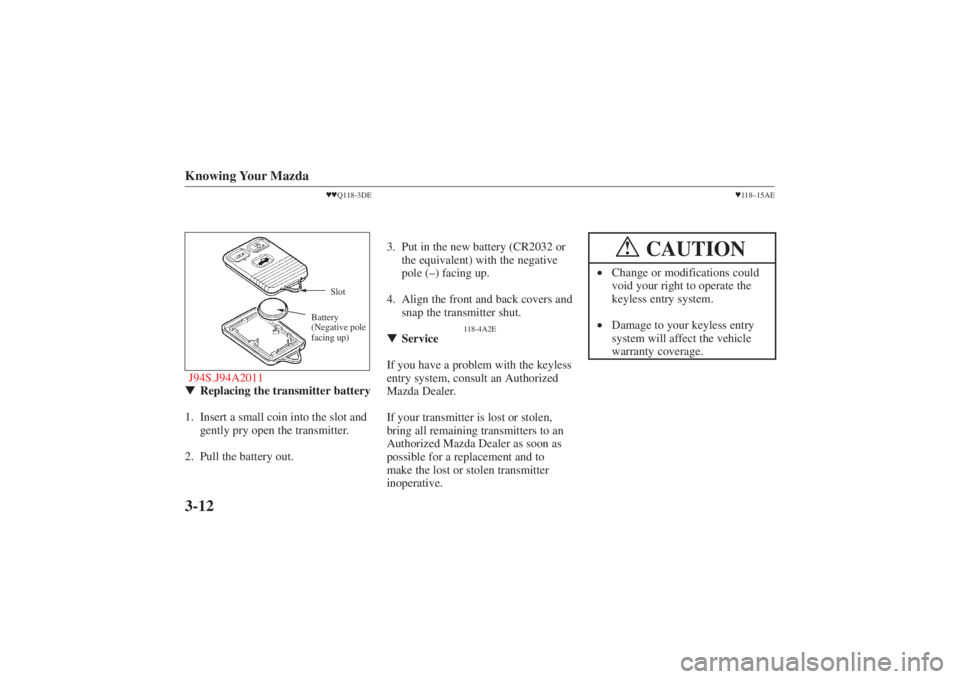

Q118-3DESlot
Battery
(Negative pole
facing up)
J94S.J94A2011 Replacing the transmitter battery
1. Insert a small coin into the slot and gently pry open the transmitter.
2. Pull the battery out. 3. Put in the new battery (CR2032 or
the equivalent) with the negative
pole (–) facing up.
4. Align the front and back covers and snap the transmitter shut.
118-4A2E
Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen,
bring all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to
make the lost or stolen transmitter
inoperative.
 118 –15AE
CAUTION
!
•Change or modifications could
void your right to operate the
keyless entry system.
• Damage to your keyless entry
system will affect the vehicle
warranty coverage.

Form No. 8P95-EA-00G
*Some models.
Knowing Your Mazda
3-13

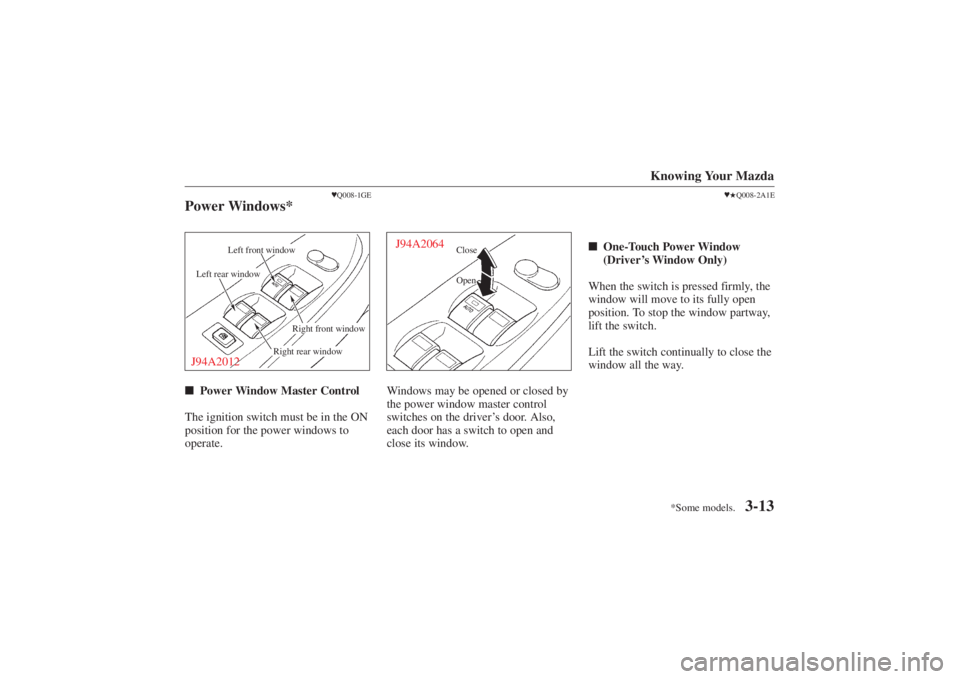

Q008-1GE
Power Windows*J94A2012
Right front window
Right rear window
Left front window
Left rear window
 Power Window Master Control
The ignition switch must be in the ON
position for the power windows to
operate.
J94A2064
Open Close
Windows may be opened or closed by
the power window master control
switches on the driver ’s door. Also,
each door has a switch to open and
close its window.

Q008-2A1E
One-Touch Power Window
(Driver ’s Window Only)
When the switch is pressed firmly, the
window will move to its fully open
position. To stop the window partway,
lift the switch.
Lift the switch continually to close the
window all the way.

Form No. 8P95-EA-00G
Knowing Your Mazda3-14
Q008-3AE
WARNING
!
Closing Power Windows:Closing power windows can be
dangerous. A person’s hands,
head, or even neck could be
caught by the window and result
in serious injury. This warning
applies especially to children.
Make sure the opening is clear
before closing a window.
Q008-4E2E
J94A2013
Lock
 Power Window Lock Switch
With the lock switch in the unlocked
position, all power window switches
may be used. With the lock switch in the locked
position, only the driver
’s window can
be operated.
WARNING
!
Unintentional Window Operation:Unintentional window operation
could be dangerous. A person ’s
hands, head, or neck could be
caught by the window and result
in serious injury. Unless a
passenger needs to operate a
window, keep the power window
lock switch in the locked position.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-15
CAUTION
!
To prevent burning out the fuse
and damaging the power window
system, don’t open or close more
than two windows at once.
Q008-7A1E
WARNING
!
Children Playing with PowerWindows:Playing with power windows is
dangerous. Someone’ s hands,
head, or neck could get caught in
a closing window. They would be
seriously injured or even killed.
Don’ t let children play with power
windows.
 Q008-5AEOpen Close
J94A2014
 Passenger Door Power Window
Switch
To open the window, push down on its
switch. To close, pull the switch up.
 Q010-1A2E
Trunk LidJ94A2015
Open
Key-Operated Trunk
To open the trunk lid, insert the
primary key and turn it clockwise.
The secondary key will not operate
this lock (page 3-2).
