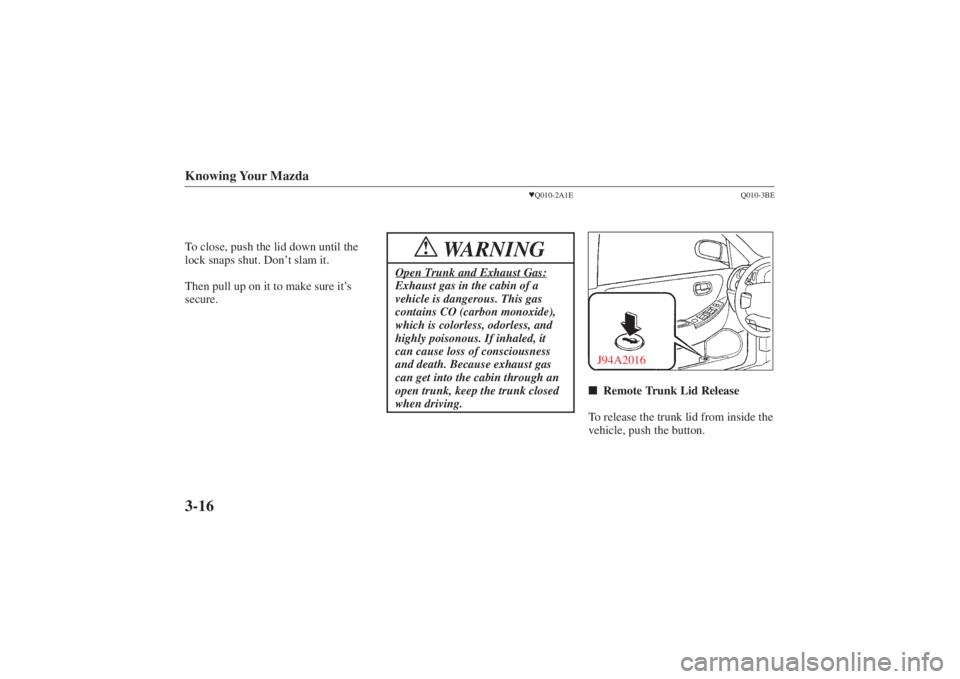

Knowing Your Mazda3-16To close, push the lid down until the
lock snaps shut. Don’t slam it.
Then pull up on it to make sure it’ s
secure.
 Q010-2A1E
WARNING
!
Open Trunk and Exhaust Gas:Exhaust gas in the cabin of a
vehicle is dangerous. This gas
contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous. If inhaled, it
can cause loss of consciousness
and death. Because exhaust gas
can get into the cabin through an
open trunk, keep the trunk closed
when driving.
Q010-3BE
J94A2016 Remote Trunk Lid Release
To release the trunk lid from inside the
vehicle, push the button.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-17
UQ010-6IE
Trunk Security
In some situations you may want to
prevent the trunk from being opened
with the remote trunk lid release.
If you must leave your Mazda with
another person, such as a parking
attendant, protect valuables in the
trunk by locking the rear seat backs
and trunk. Give the other person only
the secondary key, which does not
open the trunk.
Lock Unlock
J94A2071To secure the trunk lid, lock the rear
seatbacks (page 2-13), push the left
side of the trunk-lock switch, and
close the trunk.
To cancel the security feature, insert
the primary key into the lock, turn the
key clockwise to open the trunk, and push the right side of the trunk-lock
switch.

Form No. 8P95-EA-00G
Knowing Your Mazda3-18
N178-1AE
Trunk Release HandleYour vehicle is equipped with a trunk
release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars,
parents should be aware that children
may be tempted to play around
vehicles and use the trunk as a hiding
place.
Adults are advised to familiarize
themselves with the operation and
location of the release handle so that
all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don’t have such handles.
WARNING
!
Open Trunk Lid and Children:Leaving the trunk lid open or
leaving children in the vehicle
with the keys is dangerous.
Children could open the trunk lid
and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid, lock
the rear seatbacks and do not
allow children to play inside the
vehicle.
94S060–004To open the trunk lid from the inside,
pull the illuminated ‘‘ T” shaped
handle. The handle is made of
material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-19

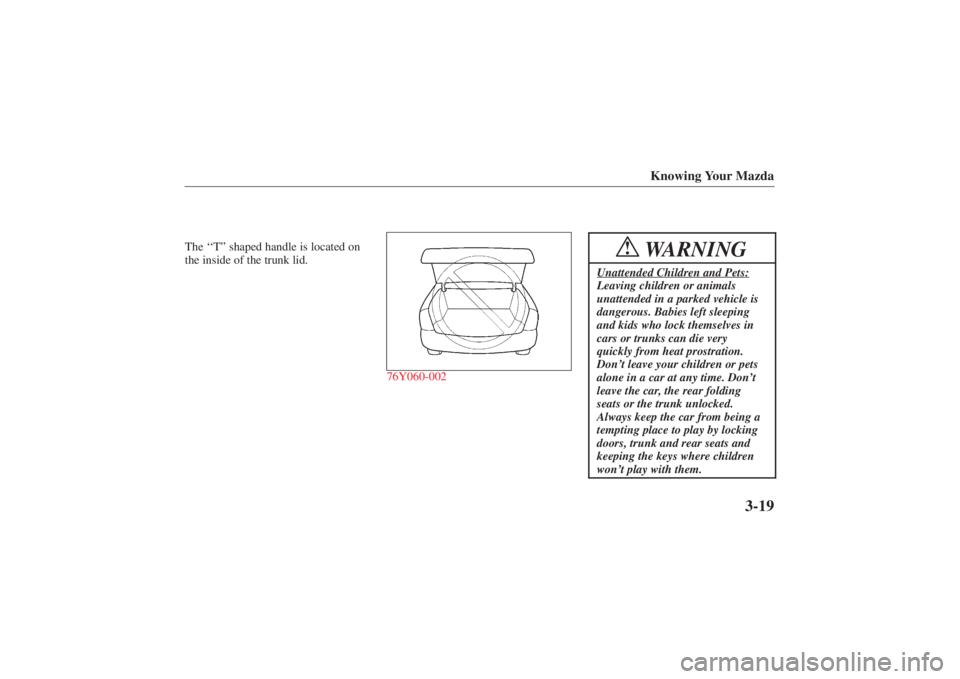

The ‘‘T” shaped handle is located on
the inside of the trunk lid.
76Y060-002
WARNING
!
Unattended Children and Pets:Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping
and kids who lock themselves in
cars or trunks can die very
quickly from heat prostration.
Don’ t leave your children or pets
alone in a car at any time. Don’ t
leave the car, the rear folding
seats or the trunk unlocked.
Always keep the car from being a
tempting place to play by locking
doors, trunk and rear seats and
keeping the keys where children
won’ t play with them.

Form No. 8P95-EA-00G

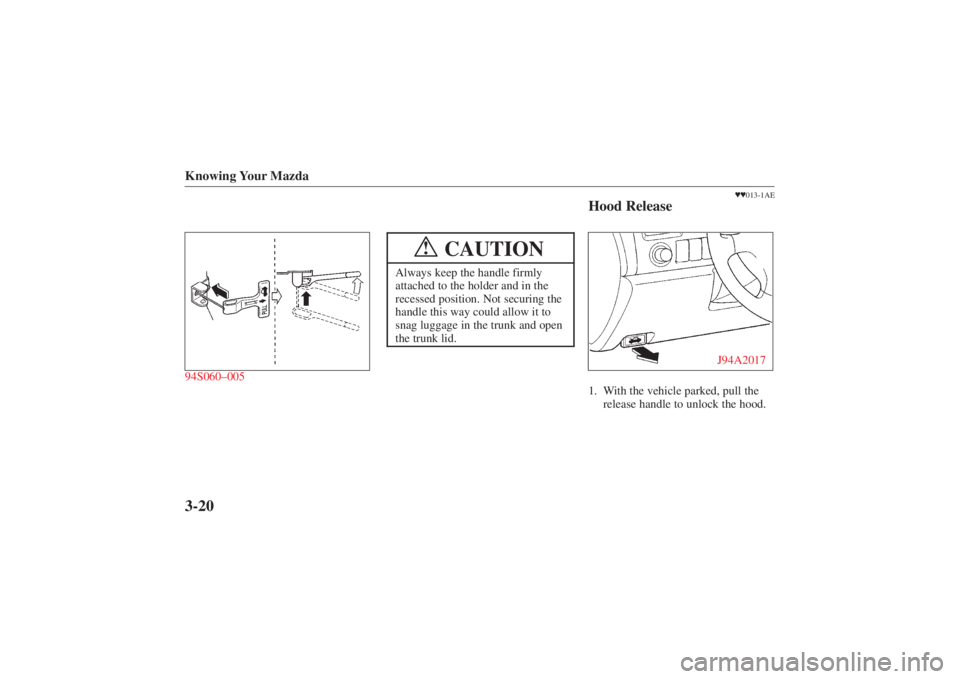

Knowing Your Mazda3-2094S060–005
CAUTION
!
Always keep the handle firmly
attached to the holder and in the
recessed position. Not securing the
handle this way could allow it to
snag luggage in the trunk and open
the trunk lid.
013-1AE
Hood Release
J94A2017
1. With the vehicle parked, pull the
release handle to unlock the hood.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-21

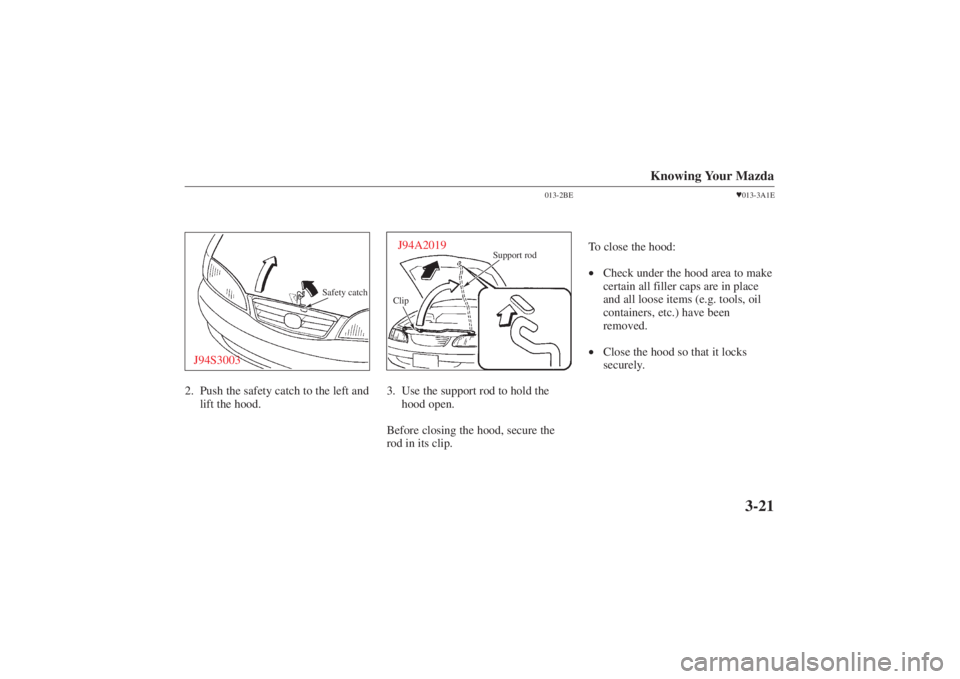

Safety catch
J94S30032. Push the safety catch to the left andlift the hood.
013-2BE
Clip Support rodJ94A20193. Use the support rod to hold the
hood open.
Before closing the hood, secure the
rod in its clip.
 013-3A1E
To close the hood:
• Check under the hood area to make
certain all filler caps are in place
and all loose items (e.g. tools, oil
containers, etc.) have been
removed.
• Close the hood so that it locks
securely.

Form No. 8P95-EA-00G
*Some models.
Knowing Your Mazda3-22
134-1B1E
Immobilizer System*If the engine is started without the
proper key, the immobilizer system
will cause the engine to stall, thereby
helping to prevent the theft of your
vehicle.
If the system is working properly, the
warning light will come on when the
ignition switch is turned to the START
position. The light will go out when
the engine starts.
If the light flashes rapidly, fails to
come on, or comes on and stays on, it
indicates a system malfunction. If any
of these occur, contact an Authorized
Mazda Dealer as soon as possible.
CAUTION
!
Changes or modifications not
expressly approved by the
manufacturer could void the user ’s
authority to operate the equipment.
NOTEThis device complies with part 15
of the FCC Rules and with
RSS-210 of Industry Canada.
Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device
must accept any interference
received, including interference
that may cause undesired
operation. (Outside transmissions
may momentarily interfere with
the device’ s operation.)

Form No. 8P95-EA-00G
Knowing Your Mazda
3-23
NOTE•Signals from a TV or radio
station, or from a transceiver or
a mobile telephone, could
interfere with your immobilizer
system. If you are using the
proper key and your engine
fails to start, check the warning
light. If it is flashing, turn the
key to the OFF position and try
again. If the engine doesn’ t start
after 3 or more tries, contact an
Authorized Mazda Dealer.
(Continued)
• If the warning light flashes
continuously while you are
driving, don’ t shut off the
engine. Go to an Authorized
Mazda Dealer and have it
checked. If you shut off the
engine while the light is
flashing you won’ t be able to
restart it.
J94S3001 Operation
When you start the engine with a key
the system recognizes, the system will
allow the engine to continue running.
However, if someone attempts to start
the engine with an unrecognized key,
the system will stall the engine

Form No. 8P95-EA-00G
Knowing Your Mazda3-24immediately after it starts.NOTEIf the warning light comes on and
stays on when the ignition is
turned to the ON position, the
engine will not start.Maintenance
If you have a problem with the
immobilizer system or the key, consult
an Authorized Mazda Dealer.
NOTE• The keys carry a unique
electronic code. For this reason,
and to assure your safety,
replacement keys require some
waiting time to obtain. They are
only available through an
Authorized Mazda Dealer.
• Always keep a replacement
key, in case one is lost. If a key
is lost, contact an Authorized
Mazda Dealer as soon as
possible.
(Continued)
•If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your
remaining keys and the
immobilizer system. Starting
the vehicle with a key that has
not been reset is not possible.

Form No. 8P95-EA-00G
Knowing Your Mazda
3-25
CAUTION
!
To avoid damage to the key, do
not:
•Drop the key.
• Get the key wet.
• Expose the key to any kind of
magnetic field.
• Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
!
When starting the engine, do not
let the following materials touch
the key grip. The engine may not
start:
•Spare keys.
• Keys for other vehicles
equipped with an immobilizer
system.
• Metal objects that touch or pass
through the hole in the key.
Modification and Add-On
Equipment
Mazda cannot guarantee the system’ s
operation if the system has been
modified or if any add-on equipment
has been installed to it.
CAUTION
!
To avoid damaging your vehicle,
don’ t modify the system or install
any add-on equipment to it.
