Page 140 of 365
Form No. 8P95-EA-00G
*Some models.
Driving Your Mazda5-16
114-1A1E

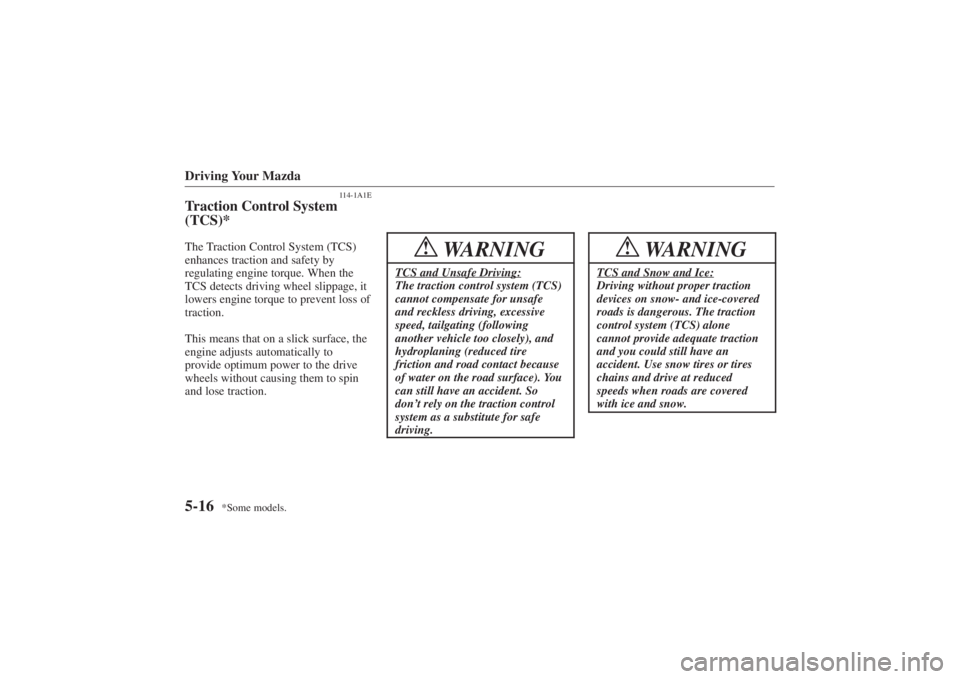

Traction Control System
(TCS)*The Traction Control System (TCS)
enhances traction and safety by
regulating engine torque. When the
TCS detects driving wheel slippage, it
lowers engine torque to prevent loss of
traction.
This means that on a slick surface, the
engine adjusts automatically to
provide optimum power to the drive
wheels without causing them to spin
and lose traction.
WARNING
!
TCS and Unsafe Driving:The traction control system (TCS)
cannot compensate for unsafe
and reckless driving, excessive
speed, tailgating (following
another vehicle too closely), and
hydroplaning (reduced tire
friction and road contact because
of water on the road surface). You
can still have an accident. So
don’t rely on the traction control
system as a substitute for safe
driving.
WARNING
!
TCS and Snow and Ice:Driving without proper traction
devices on snow- and ice-covered
roads is dangerous. The traction
control system (TCS) alone
cannot provide adequate traction
and you could still have an
accident. Use snow tires or tires
chains and drive at reduced
speeds when roads are covered
with ice and snow.
Page 141 of 365
Form No. 8P95-EA-00G
Driving Your Mazda
5-17
114 –2B1E
J94A4010

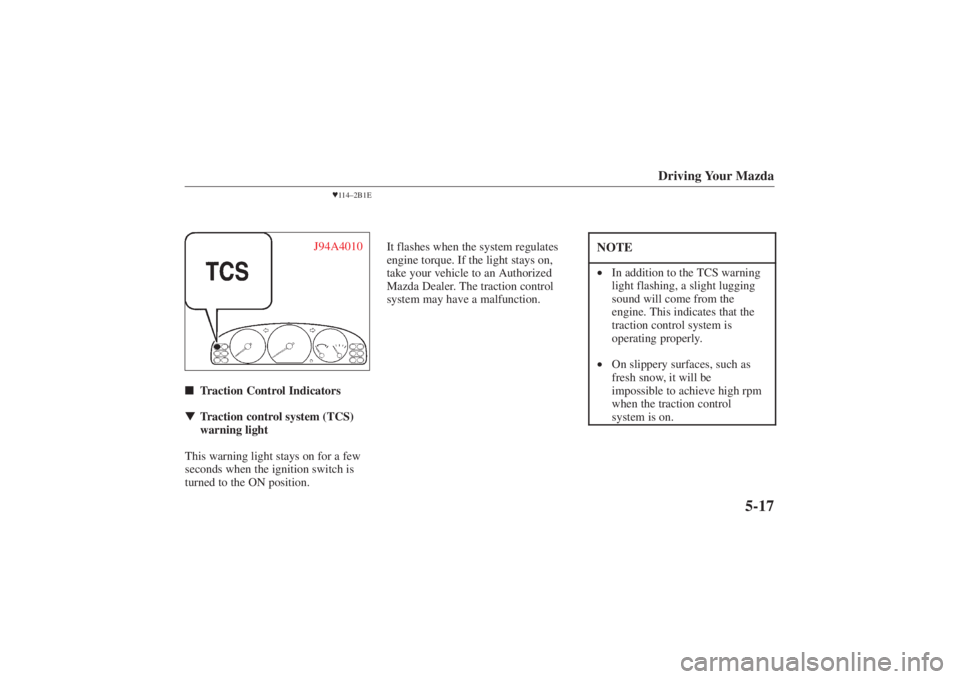

Traction Control Indicators
Traction control system (TCS)
warning light
This warning light stays on for a few
seconds when the ignition switch is
turned to the ON position. It flashes when the system regulates
engine torque. If the light stays on,
take your vehicle to an Authorized
Mazda Dealer. The traction control
system may have a malfunction.
NOTE•
In addition to the TCS warning
light flashing, a slight lugging
sound will come from the
engine. This indicates that the
traction control system is
operating properly.
• On slippery surfaces, such as
fresh snow, it will be
impossible to achieve high rpm
when the traction control
system is on.
Page 163 of 365
Form No. 8P95-EA-00G
*Some models.Driving Your Mazda
5-39
053-55A1E
Traction Control System
(TCS) Warning Light*
This warning light stays on for a few
seconds when the ignition switch is
turned to the ON position.
The light flashes when the system
regulates engine torque and will stay
on if the system malfunctions. If it
stays on while the system is operating,
consult an Authorized Mazda Dealer.
053-8BE
Low Fuel Warning Light
This warning signals that the fuel tank
will soon be empty. Get fuel as soon as
possible.
053-9FE
Check Engine Light
If this light comes on while driving,
the vehicle may have a problem. It is
important to note the driving
conditions when the light came on and
consult an Authorized Mazda Dealer. The check engine light may come on
in the following cases:
•
The fuel tank level being very low
or approaching empty.
• The engine’ s electrical system has a
problem.
• The emission control system has a
problem.
• A ROOM fuse blows or is
removed.
• The fuel-filler cap is missing or not
tightened securely.
Page 273 of 365
Form No. 8P95-EA-00G
In Case of Emergency6-26
If you’re unsure of how tight the
nuts should be, have them
inspected at a service station. The
specified torque is 90 to 120 N·m
(9.0 to 12.0 kgf·m, 65 to 87
ft·lbf).
WARNING
!
Loose Lug Nuts:Improperly or loosely tightened
lug nuts are dangerous. The
wheel could wobble or come off.
This could result in loss of vehicle
control and cause a serious
accident. Always securely and
correctly tighten the lug nuts.
WARNING
!
Metric Studs and Lug Nuts:Because the wheel studs and lug
nuts on your Mazda have metric
threads, using a nonmetric nut
would be dangerous. On a metric
stud, it would not secure the
wheel and would damage the
stud, which could cause the wheel
to slip off and cause an accident.
Be sure to reinstall the same nuts
you removed or replace them with
metric nuts of the same
configuration.
WARNING
!
Incorrect Tire Air Pressure:Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an
accident. Don’t drive with any
tires that have incorrect air
pressure. When you check the
regular tire’ s air pressure, check
the spare tire, too.
