Page 41 of 250
2-33
Essential Safety Equipment
SRS Air Bags
Form No. 8Q50-EA-01G
Limitations to side air bag activation
Depending on the severity of impact, a side air bag may not inflate in the following cases:
Non-activation of side air-bags
A side air bag will not normally inflate in the following cases:
Side impacts involving trees or poles can
cause severe cosmetic damage but may not
have enough impact force to activate.Side impacts with two-wheeled vehicles
may not provide enough force to deploy a
side air bag. Vehicle roll-over may not provide enough
side force to deploy the side air bags.
Frontal offset impact may not provide
enough side impact to deploy a side air bag.
Collision from the rear.
Collision from the front, but it may deploy
the front air bags.
J94S.book Page 33 Saturday, June 23, 2001 1:04 PM
Page 42 of 250
2-34
Essential Safety Equipment
SRS Air Bags
Form No. 8Q50-EA-01G
Constant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
• SAS unit
• Air bag modules
• Side air bag crash sensor
• Related wiring
A diagnostic module continuously
monitors the systems ’ readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
Air Bag Systems Warning Light
If the air bag system is OK, the warning
light comes on when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds it
goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn ’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
Maintenance
The air bag systems are maintenance-free.
But if any of the following occurs, take
your vehicle to an Authorized Mazda
Dealer as soon as possible:
• The air bag system warning light
flashes.
• The air bag system warning light stays
on.
• The air bag system warning light stays
off when the ignition switch is turned
to the ON position.
• The air bags inflate.
Self-Servicing the Air Bag Systems:Self-servicing or tampering with the
systems is dangerous. An air bag
could accidentally activate or become
disabled. This could cause serious
injuries. Never tamper with the
systems and always have an
Authorized Mazda Dealer perform all
servicing and repairs.
WARNING
J94S.book Page 34 Saturday, June 23, 2001 1:04 PM
Page 43 of 250
2-35
Essential Safety Equipment
SRS Air Bags
Form No. 8Q50-EA-01G
Damaged Air Bag Sensors:Driving with damaged air bag sensors
is dangerous. A collision, even one
not strong enough to inflate the air
bags, could damage the sensors. If
there was a subsequent collision, a
damaged sensor would not inflate the
air bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front seat, front dashboard, the
steering wheel or parts containing air
bag sensors is dangerous. These parts
contain essential air bag parts. The
air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
J94S.book Page 35 Saturday, June 23, 2001 1:04 PM
Page 44 of 250
J94S.book Page 36 Saturday, June 23, 2001 1:04 PM
Page 45 of 250
3-1
Form No. 8Q50-EA-01G
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks .......................................................................... 3- 2
Keys ......................................................................................... 3- 2
Door Locks .............................................................................. 3- 3
Keyless Entry System .............................................................. 3- 5
Power Windows ....................................................................... 3- 7
Hood ........................................................................................ 3- 9
Trunk Lid ................................................................................. 3-10
Trunk Release Handle ............................................................. 3-12
Fuel-Filler Lid and Cap ........................................................... 3-14
Sunroof .................................................................................... 3-15
Security System ........................................................................... 3-17
Immobilizer System ................................................................ 3-17
Theft-Deterrent System ........................................................... 3-19
Steering Wheel and Mirrors ...................................................... 3-21
Steering Wheel ........................................................................ 3-21
Mirrors ..................................................................................... 3-21
J94S.book Page 1 Saturday, June 23, 2001 1:04 PM

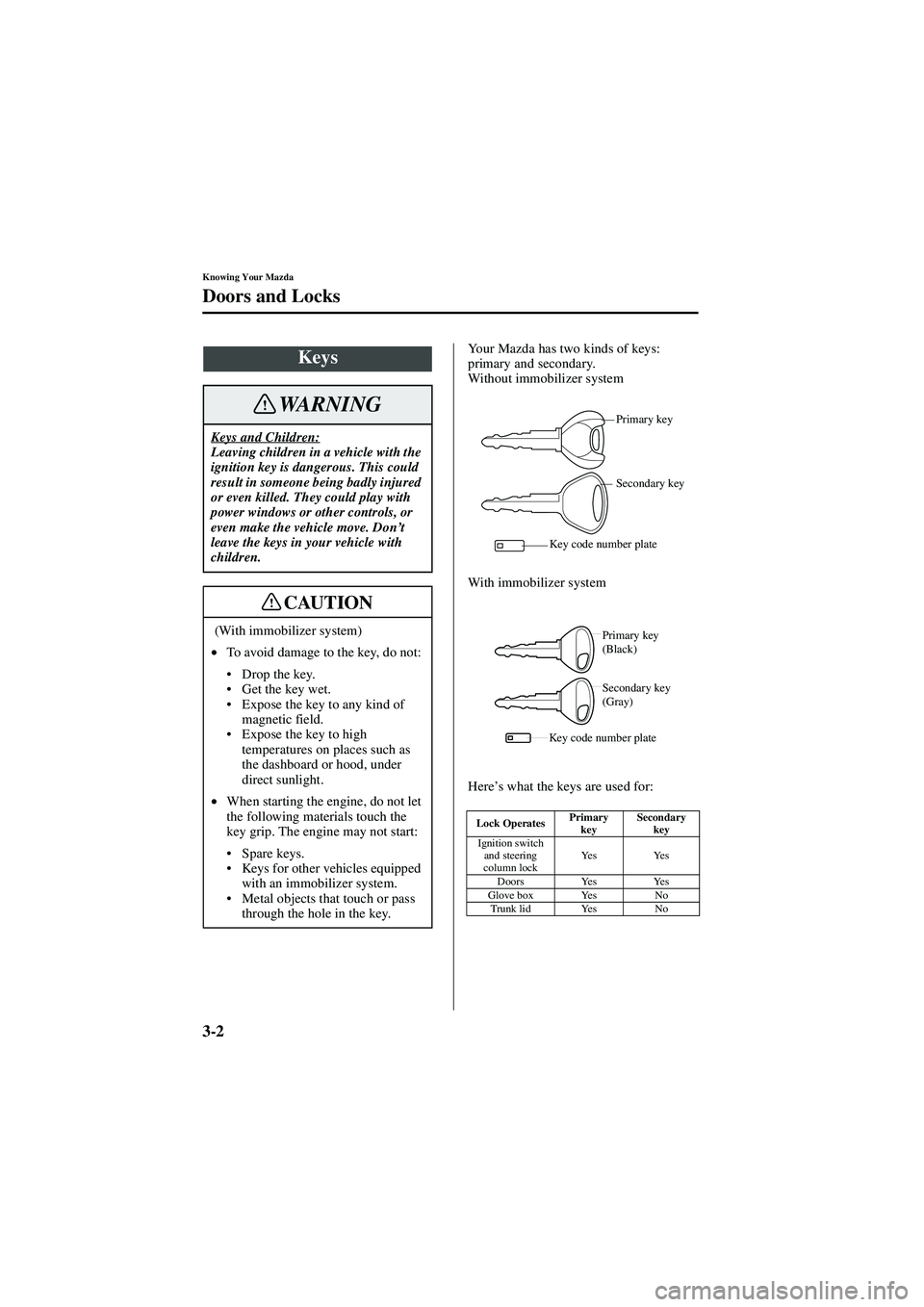

Page 46 of 250
3-2
Knowing Your Mazda
Form No. 8Q50-EA-01G
Doors and Locks
Your Mazda has two kinds of keys:
primary and secondary.
Without immobilizer system
With immobilizer system
Here’s what the keys are used for:Keys
Keys and Children:Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don ’t
leave the keys in your vehicle with
children.
(With immobilizer system)
• To avoid damage to the key, do not:
Drop the key.
Get the key wet.
Expose the key to any kind of
magnetic field.
Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
• When starting the engine, do not let
the following materials touch the
key grip. The engine may not start:
Spare keys.
Keys for other vehicles equipped
with an immobilizer system.
Metal objects that touch or pass
through the hole in the key.
WARNING
CAUTION
Lock Operates Primary
key Secondary
key
Ignition switch and steering
column lock Ye s Ye s
Doors Yes Yes
Glove box Yes No Trunk lid Yes No
Primary key
Secondary key
Key code number plate
Key code number plate Secondary key
(Gray) Primary key
(Black)
J94S.book Page 2 Saturday, June 23, 2001 1:04 PM
Page 47 of 250
3-3
Knowing Your Mazda
Doors and Locks
Form No. 8Q50-EA-01G
If you must leave your vehicle with
another person, such as a parking
attendant, protect items by locking the
glove box and trunk lid with the primary
key. Keep that key and give the other
person only the secondary key.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Door Locks
Unattended Children and Pets:Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors when leaving your
vehicle unattended. This discourages
intruders and thieves.
WARNING
J94S.book Page 3 Saturday, June 23, 2001 1:04 PM
Page 48 of 250
3-4
Knowing Your Mazda
Doors and Locks
Form No. 8Q50-EA-01G
Locking, Unlocking with Key
Either front door can be locked or
unlocked with a key.
Turn the key toward the front to unlock,
toward the back to lock.
Locking, Unlocking with Door-
Lock Button
To lock any door from the inside, push its
door-lock button.
To unlock, pull it out. To lock any door with the door-lock
button from the outside, push its door-
lock button and close the door.
Power Door Locks
Locking, unlocking with door-lock switch
All doors lock automatically when DOOR
LOCK is pushed. They all unlock when
the unmarked part of the door-lock switch
is pushed.
Unlock
Lock
UnlockLock
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
Lock
DOOR
LOCK
Lock Unlock
J94S.book Page 4 Saturday, June 23, 2001 1:04 PM
Page 49 of 250
3-5
Knowing Your Mazda
Doors and Locks
Form No. 8Q50-EA-01G
Rear Door Child Safety Lock
This lock is intended to help prevent
children from accidentally opening the
rear doors. Use it whenever a child rides
in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by lifting the
outside handle. This system locks and unlocks the doors
and opens the trunk.
Press the button slowly and accurately.
Unlock
Lock
Keyless Entry System
To avoid damage to the transmitter, do
not:
• Drop it.
• Get it wet.
• Disassemble it.
• Expose it to heat or sunlight.
NOTE
•The keyless entry system is
designed to operate up to about 2.5
m (8 ft) from the center of the
vehicle, but this may vary because
of local conditions.
• The system doesn ’t operate when
the ignition switch is in the ON
position.
• If the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-6).
• Additional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 additional
transmitters can be used with the
keyless entry system per vehicle.
Bring all transmitters to an
Authorized Mazda Dealer when the
electronic codes need to be reset.
CAUTION
J94S.book Page 5 Saturday, June 23, 2001 1:04 PM
Page 50 of 250
3-6
Knowing Your Mazda
Doors and Locks
Form No. 8Q50-EA-01G
Transmitter
Lock button
To lock the doors, press the button.
To confirm that all the doors have been
locked, press the button again within
5 seconds. If they are closed and locked,
the horn will sound. Unlock button
To unlock the driver
’s door, press the
button.
To unlock all the doors, press the
button again within 5 seconds.
Trunk button
To open the trunk, press the button.
Maintenance
Replacing the transmitter battery
1. Insert a small coin into the slot and
gently pry open the transmitter.
NOTE
This device complies with part 15 of
the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation. (Outside
transmissions may momentarily
interfere with the device ’s operation.)
NOTE
Confirm that all the doors are locked
visually or aurally by use of the double
click.
Unlock button
Lock button
Trunk button
•Make sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
• When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could damage it.
• Danger of explosion if battery is
incorrectly replaced.
• Replace only with the same type
battery (CR2032 or the equivalent).
• Dispose of used batteries according
to the following instructions.
Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
Never disassemble.
Never throw the battery into fire
and/or water.
Never deform or crush.
CAUTION
J94S.book Page 6 Saturday, June 23, 2001 1:04 PM
