MAZDA MODEL CX-3 2016 Owners Manual (in English)

3–31
Before Driving
Windows
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed),
the window will not fully open and close
automatically.
The power window auto function will only
resume on a power window that has been
reset.
1. Switch the ignition ON.
2. Make sure that the power window lock
switch located on the driver's door is
not depressed.
3. Press the switch and fully open the
window.
4. Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while holding up the power
window switch:
Blocking the power window just before
it reaches the fully closed position or
while holding up the power window
switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fi ngers are
caught, serious injuries could occur.
NOTE



y Depending on driving conditions, a
closing power window could stop and
start opening when the window feels
a shock that is similar to something
blocking it.
  In the event the jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch and the window will close.



y The jam-safe window function does not
operate until the system has been reset.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to off with all doors
closed. If any door is opened, the power
window will stop operating.
NOTE
For engine-off operation of the power
window, the switch must be held up fi rmly
throughout window closure because the
auto-closing function will be inoperable.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC

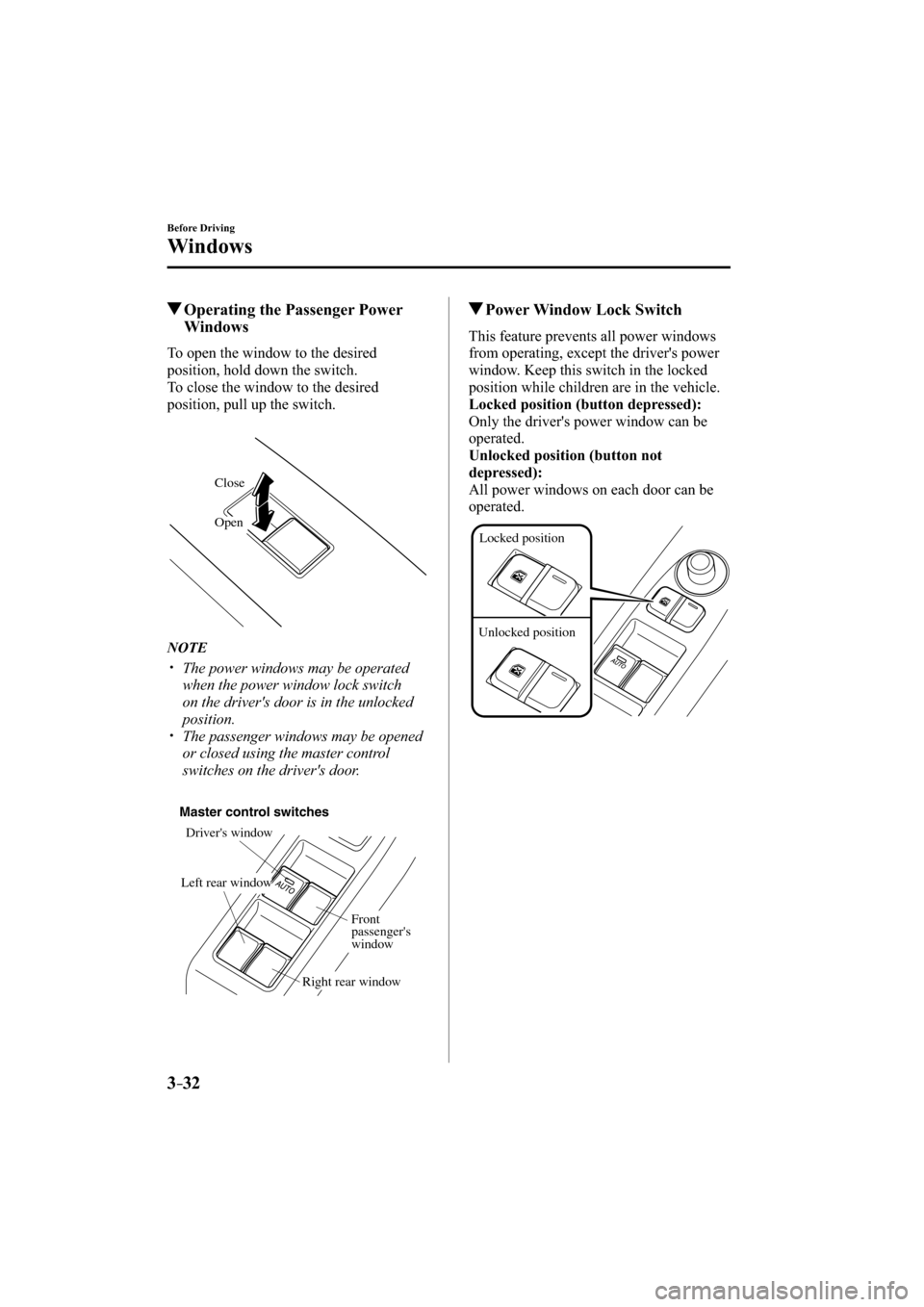

3–32
Before Driving
Windows
Operating the Passenger Power
Windows
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
NOTE



y The power windows may be operated
when the power window lock switch
on the driver's door is in the unlocked
position.



y The passenger windows may be opened
or closed using the master control
switches on the driver's door.

Left rear window
Right rear windowFront
passenger's
window
Driver's window Master control switches
Power Window Lock Switch
This feature prevents all power windows
from operating, except the driver's power
window. Keep this switch in the locked
position while children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
All power windows on each door can be
operated.
Locked position
Unlocked position
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.3–33
Before Driving
Windows
Moonroof *
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt/Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.

Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in
it as it closes, causing serious injury or
even death.
NOTE
Before washing your Mazda, make sure
the moonroof is completely closed so that
water does not get inside the cabin area.
After washing your Mazda or after it rains,
wipe the water off the moonroof before
operating it to avoid water penetration
which could cause rust and water damage
to your headliner.
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt/slide switch.
To stop tilting partway, press the tilt/slide
switch.
To close to the desired position, press the
tilt/slide switch in the forward direction.
Close (Tilt down)
Tilt up
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC

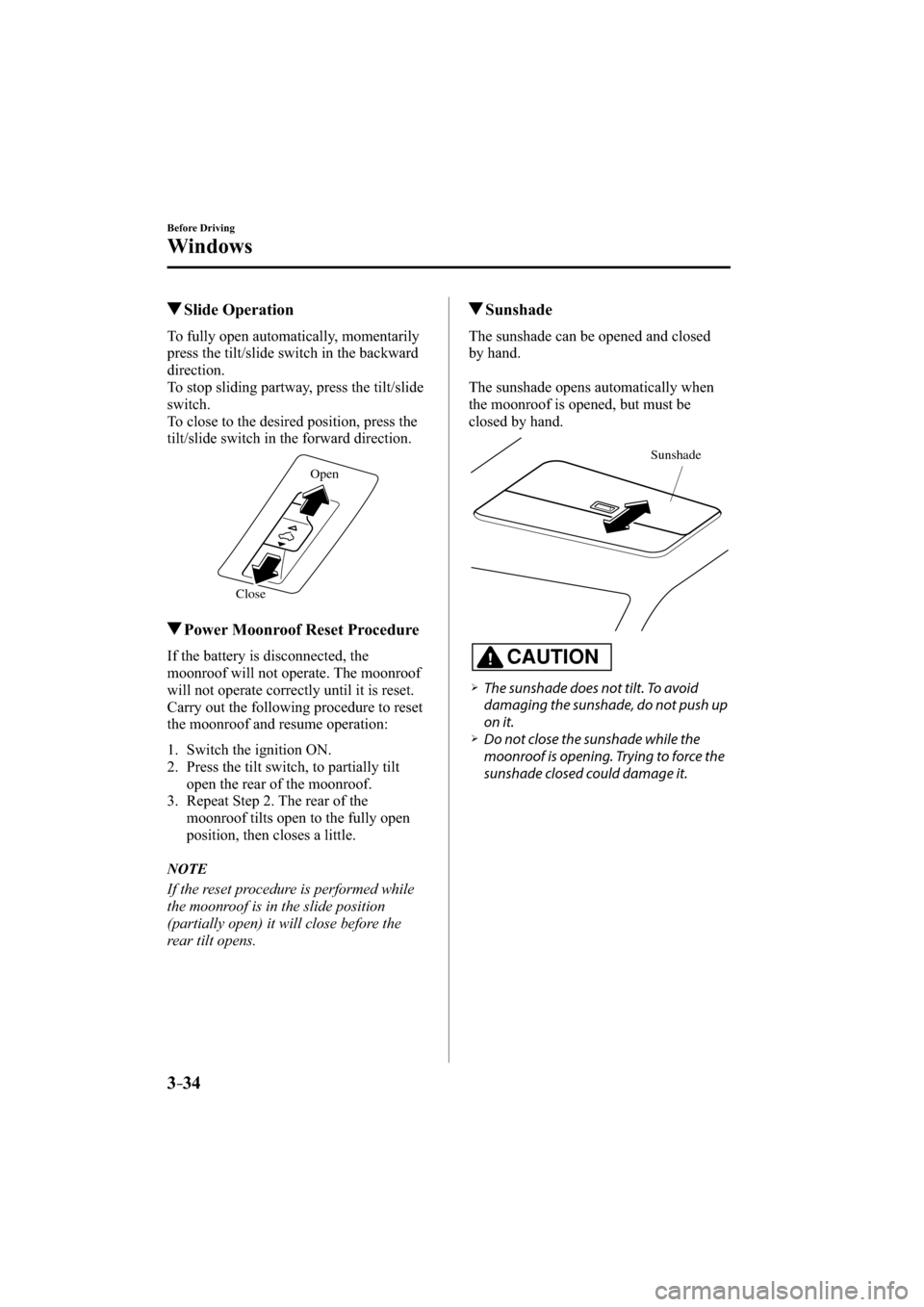

3–34
Before Driving
Windows
Slide Operation
To fully open automatically, momentarily
press the tilt/slide switch in the backward
direction.
To stop sliding partway, press the tilt/slide
switch.
To close to the desired position, press the
tilt/slide switch in the forward direction.
CloseOpen
Power Moonroof Reset Procedure
If the battery is disconnected, the
moonroof will not operate. The moonroof
will not operate correctly until it is reset.
Carry out the following procedure to reset
the moonroof and resume operation:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
3. Repeat Step 2. The rear of the
moonroof tilts open to the fully open
position, then closes a little.
NOTE
If the reset procedure is performed while
the moonroof is in the slide position
(partially open) it will close before the
rear tilt opens.
Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION



¾ The sunshade does not tilt. To avoid
damaging the sunshade, do not push up
on it.



¾ Do not close the sunshade while the
moonroof is opening. Trying to force the
sunshade closed could damage it.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










3–35
Before Driving
Security System
Modifi cation and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modifi ed or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION



¾ Radio equipment like this is governed by
laws in the United States.
  Changes or modifi cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.



¾ To avoid damage to the key, do not:




¾ Drop the key.



¾ Get the key wet.



¾ Expose the key to any kind of
magnetic fi eld.



¾ Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.



¾ If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or fl ashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










3–36
Before Driving
Security System
NOTE



y The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.



y Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.



y If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
  Starting the vehicle with a key that has
not been reset is not possible.
Operation
NOTE



y The engine may not start and security
indicator light may illuminate or fl ash
if the key is placed in an area where it
is diffi cult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key
to a location within the signal range,
switch the ignition off, and then restart
the engine.



y Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster fl ashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
fl ashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
NOTE



y If the security indicator light fl ashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is fl ashing, you will
not be able to restart it.



y Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.3–37
Before Driving
Security System
Theft-Deterrent System *
If the theft deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and fl ashing the hazard
warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights fl ash for about 30
seconds when the system is triggered by
any one of the following:



y Unlocking a door with the key, door
lock switch, or an inside door-lock knob.



y Forcing open a door, the hood or the
liftgate.



y Opening the hood by operating the hood
release handle.



y Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door or the liftgate is unlocked with the
transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE



y The liftgate does not open while the
theft-deterrent system is operating.



y If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will fl ash when the battery is charged or
replaced.
How to Arm the System
1. Close the windows and the moonroof *
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
liftgate are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will fl ash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument panel fl ashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










3–38
Before Driving
Security System
NOTE



y The theft deterrent system can also be
armed by activating the auto relock
function with all the doors, the liftgate
and the hood closed.
  Refer to Transmitter on page 3-4 .



y The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:



y Unlocking any door.



y Opening any door or the liftgate.



y Opening the hood.



y Switching the ignition ON.



y(With the advanced keyless
function)
  Pressing the electric liftgate opener
while the key is being carried.
  To rearm the system, do the arming
procedure again.



y When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will fl ash once to
indicate that the system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:



y Pressing the unlock button on the
transmitter.



y Starting the engine with the push button
start.



y(With the advanced keyless function)



y
 Pressing a request switch on the doors.
The hazard warning lights will fl ash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will fl ash twice to
indicate that the system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:



y Pressing the unlock button on the
transmitter.



y Starting the engine with the push button
start.



y(With the advanced keyless function)



y
 Pressing a request switch on the doors.


y
 Pressing the electric liftgate opener
while the key is being carried.
The hazard warning lights will fl ash twice.
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affi x it to the
lower rear corner of a front door window.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










3–39
Before Driving
Driving Tips
Break-In Period
No special break-in is necessary, but a
few precautions in the fi rst 1,000 km
(600 miles) may add to the performance,
economy, and life of the vehicle.



y Do not race the engine.



y Do not maintain one constant speed,
either slow or fast, for a long period of
time.



y Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.



y Avoid unnecessary hard stops.



y Avoid full-throttle starts.
Saving Fuel and
Protection of the
Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO2.



y Avoid long warm-ups. Once the engine
runs smoothly, begin driving.



y Avoid fast starts.



y Drive at lower speeds.



y Anticipate when to apply the brakes
(avoid sudden braking).



y Follow the maintenance schedule
(page 6-4 ) and have an Authorized
Mazda Dealer perform inspections and
servicing.



y Use the air conditioner only when
necessary.



y Slow down on rough roads.



y Keep the tires properly infl ated.



y Do not carry unnecessary weight.



y Do not rest your foot on the brake pedal
while driving.



y Keep the wheels in correct alignment.



y Keep windows closed at high speeds.



y Slow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going down
a hill:
Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










3–40
Before Driving
Driving Tips
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear
while driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:



y Be cautious and allow extra distance for
braking.



y Avoid sudden braking and sudden
maneuvering.



y Do not pump the brakes. Continue to
press down on the brake pedal.
  Refer to Antilock Brake System (ABS)
on page 4-58 .



y If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.



y For more traction in starting on slippery
surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
Floor Mat
WARNING
Make sure the fl oor mats are hooked on
the retention pins to prevent them from
bunching up under the foot pedals:
Using a fl oor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.

Do not install two fl oor mats, one on top
of the other, on the driver's side:
Installing two fl oor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one fl oor mat from sliding
forward.
If using a heavy duty fl oor mat for
winter use always remove the original
fl oor mat.
Loose fl oor mat(s) will interfere with
the foot pedal and could result in an
accident.
When setting a fl oor mat, position the fl oor
mat so that its grommets are inserted over
the pointed end of the retention posts.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
