Page 468 of 580
7–8
If Trouble Arises
Flat Tire
5. For vehicles equipped with a sub-
woofer, loosen the hold-down bolt and
remove the woofer and spare tire.
For vehicles not equipped with a sub-
woofer, turn the spare tire hold-down
bolt counterclockwise and remove the
spare tire.
Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing, verify that the
spare tire is stored securely.
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a fl at tire.
y Steering becomes diffi cult.
y The vehicle begins to vibrate
excessively.
y The vehicle pulls in one direction.
If you have a fl at tire, drive slowly to a
level spot that is well off the road and out
of the way of traffi c to change the tire.
Stopping in traffi c or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a level surface off the right-of-
way and fi rmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning fl asher.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 472 of 580
*Some models.7–12
If Trouble Arises
Flat Tire
WARNING
Do not jack up the vehicle higher than is
necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
9. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.
Locking Lug Nuts *
If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must
use a special key to unlock them. This
key will attach to the lug wrench.
Register them with the lock manufacturer
by fi lling out the card provided in the
glove compartment and mailing it in the
accompanying envelope. If you lose this
key, consult an Authorized Mazda Dealer
or use the lock manufacturer's order form,
which is with the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. If the spare tire
is installed, one of the original lug nuts
(which should still be in the vehicle) must
be installed in place of the wheel lock.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C

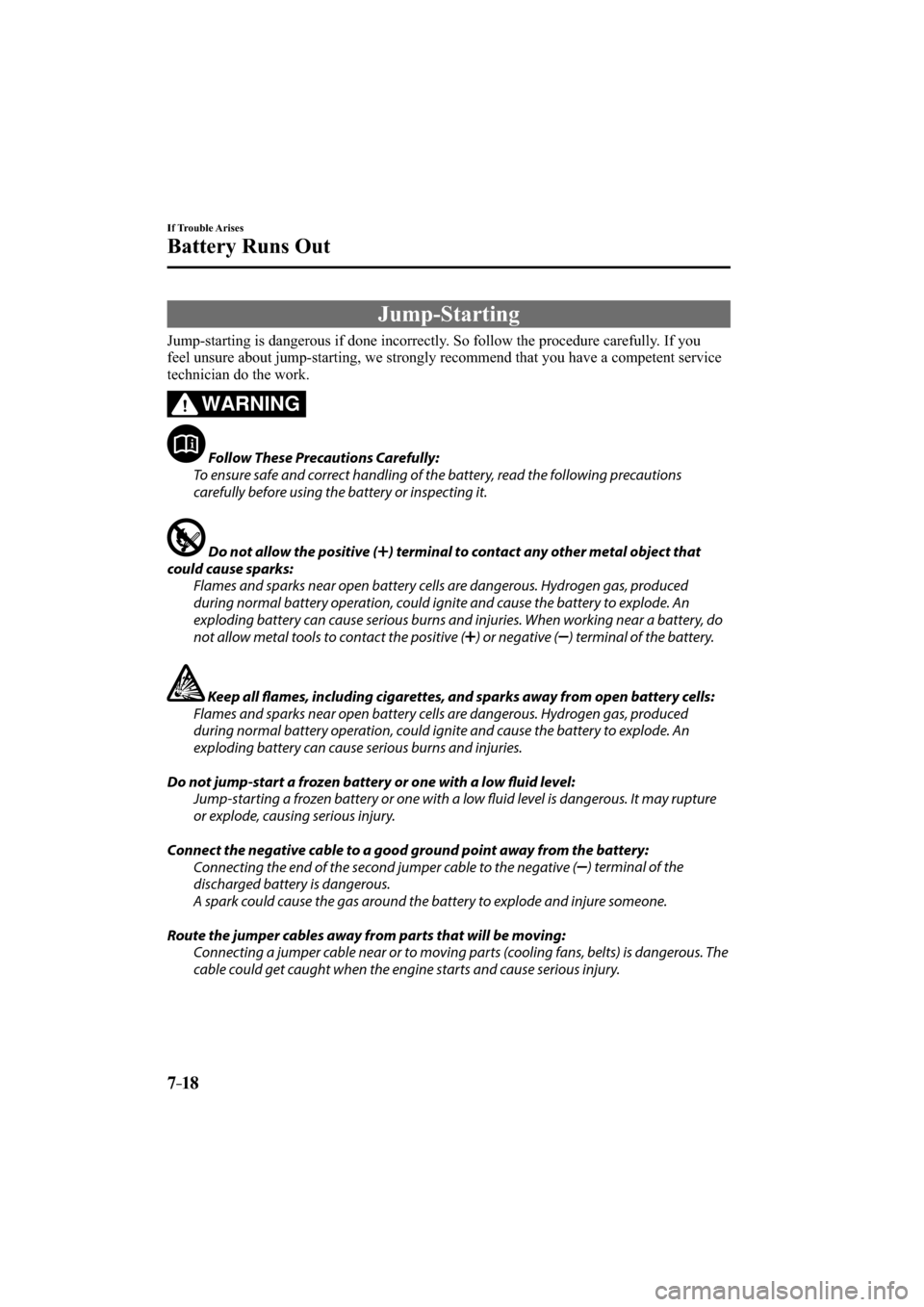

Page 478 of 580
7–18
If Trouble Arises
Battery Runs Out
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Do not allow the positive () terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a battery, do
not allow metal tools to contact the positive (
) or negative () terminal of the battery.
Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fl uid level:
Jump-starting a frozen battery or one with a low fl uid level is dangerous. It may rupture
or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 480 of 580
7–20
If Trouble Arises
Battery Runs Out
1. Remove the battery cover.
2. Make sure the booster battery is 12
V and that its negative terminal is
grounded.
3. If the booster battery is in another
vehicle, do not allow both vehicles
to touch. Turn off the engine of the
vehicle with the booster battery and
all unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.
y
Connect one end of a cable to the
positive terminal on the discharged
battery (1).
y
Attach the other end to the positive
terminal on the booster battery (2).
y
Connect one end of the other cable to
the negative terminal of the booster
battery (3).
y
Connect the other end to the ground
point indicated in the illustration away
from the discharged battery (4).
5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
6. When fi nished, carefully disconnect the
cables in the reverse order described in
the illustration. 7. If the battery cover has been removed,
install it in the reverse order of
removal.
NOTE
Verify that the covers are securely
installed.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 481 of 580
7–21
If Trouble Arises
Emergency Starting
Starting a Flooded Engine
If the engine fails to start, it may be
fl ooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within
fi ve seconds on the fi rst try, wait ten
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.
4. Depress the brake pedal, then press the
push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.
5. If the engine fails to start, crank it
without depressing the accelerator.
If the engine still does not start using
the above procedure, have your vehicle
inspected by an Authorized Mazda Dealer.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be injured.
NOTE
You cannot start a vehicle with an
automatic transaxle by pushing it.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 482 of 580
7–22
If Trouble Arises
Overheating
Overheating
If the High engine coolant temperature
warning light illuminates, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WARNING
Switch the ignition to off and make
sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running indefi nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the High engine coolant temperature
warning light illuminates:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C

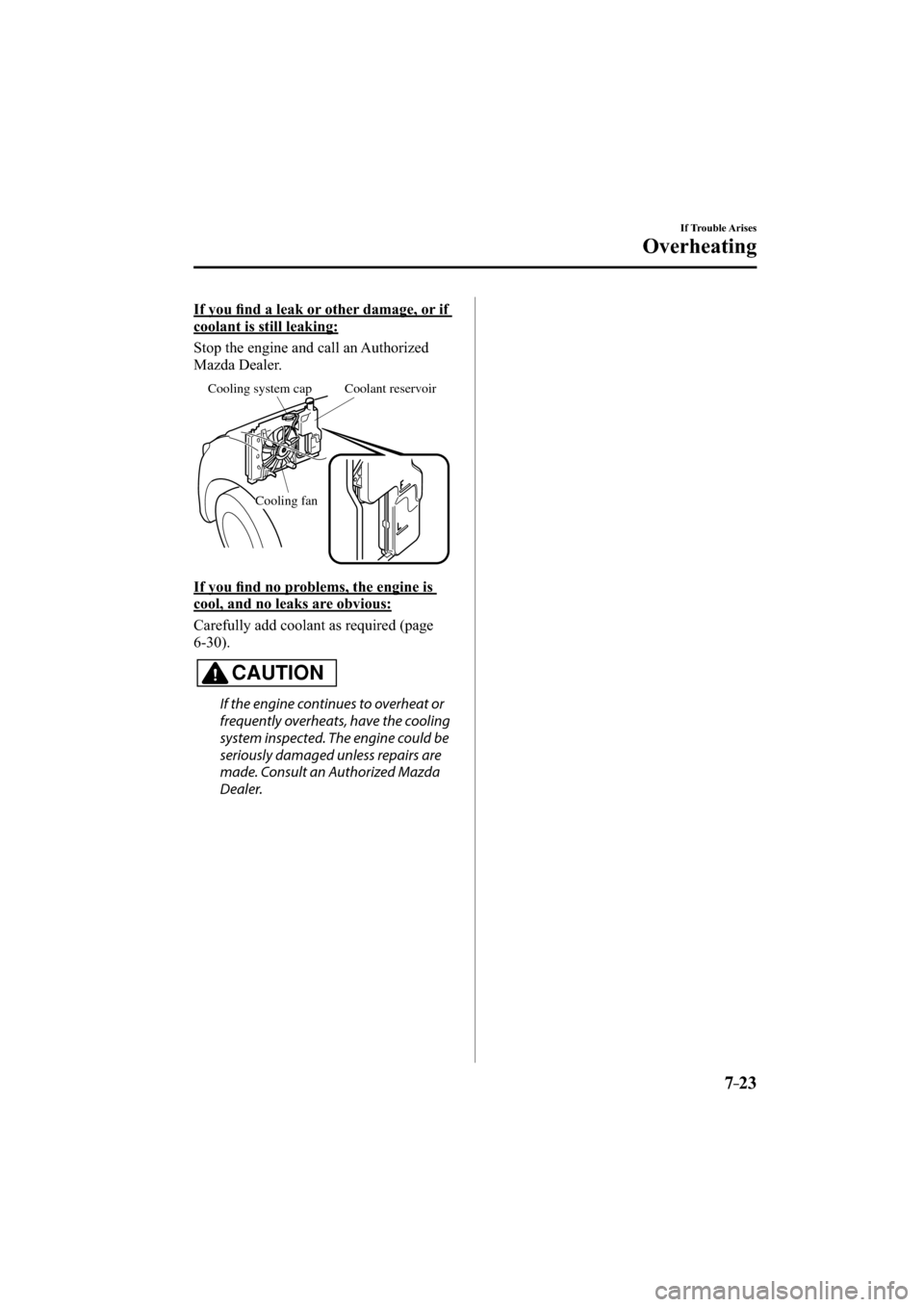

Page 483 of 580
7–23
If Trouble Arises
Overheating
If you fi nd a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
Cooling system cap Coolant reservoir
Cooling fan
If you fi nd no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
6-30 ).
CAUTION
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 488 of 580
7–28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
Electronic Brake Force Distribution System Warning If the electronic brake force distribution control unit determines that \
some components
are operating incorrectly, the control unit may illuminate the brake system warning
light and the ABS warning light simultaneously. The problem is likely to be the
electronic brake force distribution system.WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes
inspected as soon as possible:
Driving when the brake system warning light and ABS warning light are
illuminated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an
emergency stop than under normal circumstances.
Charging System Warning Light If the warning light illuminates while driving, it indicates a malfuncti\
on of the
alternator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.CAUTION
Do not continue driving when the charging system warning light is illuminated
because the engine could stop unexpectedly.
Engine Oil Warning
Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the warning indication is displayed while dr\
iving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil p\
an.
3. Inspect the engine oil level 6-30 . If it's low, add the appropriate amount of engine oil while being careful not to overfi ll.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.
If the light remains illuminated even though the oil level is normal or \
after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 489 of 580
7–29
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
(Red)
High Engine Coolant
Temperature Warning
Light
The light fl ashes when the engine coolant temperature is extremely high, and
illuminates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can fi nd a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place
immediately and stop the engine.
Refer to Overheating 7-22 .
CAUTION
Do not drive the vehicle with the high engine coolant temperature warning light
illuminated. Otherwise, it could result in damage to the engine.
Power Steering
Malfunction Indicator
Light The light illuminates/fl ashes if the electric power steering has a malfunction.
If the light illuminates/fl ashes, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the light turns off after a while. Contact an
Authorized Mazda Dealer if the light illuminates/fl ashes continuously.
NOTE
y If the indicator light illuminates/fl ashes, the power steering will not operate normally.
If this happens, the steering wheel can still be operated, however, the operation may
feel heavy compared to normal, or the steering wheel could vibrate when turning.
y Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem. If
this occurs, park the vehicle safely and wait several minutes for the system to return
to normal.
Contact Authorized Mazda Dealer and Have Vehicle Inspected
If any of the following warning lights turns on/fl ashes, the system may have a malfunction.
Contact an Authorized Mazda Dealer to have your vehicle inspected.
Signal Warning
Master Warning
Light(Vehicles with type B audio)
The light turns on when the system has a malfunction.
Operate the center display and verify the content.
Refer to If a Warning Light Turns On or Flashes on page 7-27 .
(Vehicles without type B audio)
The light illuminates continuously if any one of the following occurs. Consult an
Authorized Mazda Dealer.
y There is a malfunction in the battery management system. y There is a malfunction in the brake switch.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 490 of 580
*Some models.7–30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an Authorized Mazda Dealer as soon as possible. NOTE
y When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
y The brake assist system does not operate while the ABS warning light is illuminated.
Check Engine Light If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases: y The fuel tank level being very low or approaching empty. y The engine's electrical system has a problem. y The emission control system has a problem. y The fuel-fi ller cap is missing or not tightened securely.
If the check engine light remains on, or it fl ashes continuously , do not drive at high speeds
and consult an Authorized Mazda Dealer as soon as possible.
Automatic
Transaxle Warning
Light The light illuminates when the transaxle has a problem.CAUTION
If the automatic transaxle warning light illuminates, the transaxle has an electrical
problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
AWD Warning
Light*
When the light is turned on
If the AWD warning light illuminates, contact an Authorized Mazda Dealer.
y Illuminates when there is an abnormality with the AWD system. y Illuminates if there is too much difference in tire radius between the front and rear wheels.
When the light is fl ashing
Park the vehicle in a safe place. After a few moments, if the warning light stops fl ashing,
you can resume driving. If the light does not stop fl ashing, contact an Authorized Mazda
Dealer.
y Flashes when the differential oil temperature is abnormally high. y Flashes when there is a continuous large difference between front and rear wheel rotation,
such as when trying to pull away from an icy surface or when trying to remove the vehicle
from mud, sand or similar conditions.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
