Page 198 of 580
4–82
When Driving
i-ACTIVSENSE
y In the following cases, the activation of the Blind Spot Monitoring (BSM) warning lights
and the warning beep may not occur or they may be delayed.
y A vehicle makes a lane change from a driving lane two lanes over to an adjacent lane.
y Driving on steep slopes.
y Crossing the summit of a hill or mountain pass.
y The turning radius is small (making a sharp curve, turning at intersections).
y When there is a difference in the height between your driving lane and the adjacent
lane.
y Directly after pressing the Blind Spot Monitoring (BSM) switch and the system
becomes operable.
y If the road width is extremely narrow, vehicles two lanes over may be detected.
The detection area of the radar sensors (rear) is set according to the road width of
expressways.
y The Blind Spot Monitoring (BSM) warning lights may turn on in reaction to stationary
objects on the road or the roadside such as guardrails, tunnels, sidewalls, and parked
vehicles.
Objects such as guardrails and concrete walls
running alongside the vehicle.Places where the width between guardrails or
walls on each side of the vehicle narrows.
The walls at the entrance and exits of tunnels,
turnouts.
y A Blind Spot Monitoring (BSM) warning light may fl ash or the warning beep may be
activated several times when making a turn at a city intersection.
y Turn off the Blind Spot Monitoring (BSM) system while pulling a trailer or while an
accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise, the
radar’s radio waves will be blocked causing the system to not operate normally.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 203 of 580
*Some models.4–87
When Driving
i-ACTIVSENSE
Distance Recognition Support System (DRSS) *
The Distance Recognition Support System (DRSS) measures the distance between your
vehicle and a vehicle ahead using a radar sensor (front) while the vehicle speed is 30 km/h
or faster (19 mph or faster), and indicates a recommended distance to maintain between the
vehicles. Furthermore, if your vehicle approaches a vehicle ahead more closely than the
appropriate distance to maintain between the vehicles, the vehicle-ahead indication in the
active driving display is fl ashed to advise the driver to keep a safer distance from the vehicle
ahead.
WARNING
Do not rely completely on the Distance Recognition Support System (DRSS) and always
drive carefully:
The Distance Recognition Support System (DRSS) provides advice for safer driving and
notifi es the driver of a recommended, safer distance to maintain with a vehicle ahead.
The ability to detect a vehicle ahead is limited depending on the type of vehicle ahead,
the weather conditions, and the traffi c conditions. Therefore, if the accelerator and brake
pedals are not operated correctly it could lead to an accident. Always verify the safety of
the surrounding area and depress the brake pedal or accelerator pedal while keeping a
safer distance from vehicles ahead or on-coming vehicles.
NOTE
y The Distance Recognition Support System (DRSS) operates when all of the following
conditions are met:
y The ignition is switched ON.
y The Distance Recognition Support System (DRSS) is on.
y The selector lever is in a position other than reverse (R).
y The vehicle speed is 30 km/h or faster (19 mph or faster).
y The objects which activate the system are 4-wheeled vehicles.
y The Distance Recognition Support System (DRSS) may also operate in the presence of
motorcycles and bicycles.
y The Distance Recognition Support System (DRSS) may not operate normally under the
following conditions:
y The Dynamic Stability Control (DSC) has a malfunction.
y The vehicle ahead is traveling at an extremely slow speed.
y The system does not operate with the following objects:
y Vehicles approaching in the opposite direction.
y Stationary objects (stopped vehicles, obstructions)
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 207 of 580
4–91
When Driving
i-ACTIVSENSE
WARNING
Always check the surrounding area visually before actually putting the vehicle in
reverse:
The system is only designed to assist you in checking for vehicles at the rear when putting
the vehicle in reverse. Due to certain limitations with the operation of this system, the
Blind Spot Monitoring (BSM) warning light may not fl ash or it might be delayed even
though a vehicle is behind your vehicle. Always make it your responsibility as a driver to
check the rear.
NOTE
y In the following cases, the Blind Spot Monitoring (BSM) OFF indicator light turns on and
operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF indicator
light remains illuminated, have the vehicle inspected at an Authorized Mazda Dealer as
soon as possible.
y Some problem with the system including the Blind Spot Monitoring (BSM) warning
lights has occurred.
y A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
y There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).
y Driving on snow-covered roads for long periods.
y The temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.
y The battery voltage has decreased.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 208 of 580
4–92
When Driving
i-ACTIVSENSE
y Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be diffi cult to detect them.
y The vehicle speed when reversing is about 10 km/h (6 mph) or faster.
y The radar sensor (rear) detection area is obstructed by a nearby wall or parked
vehicle. Reverse the vehicle to a position where the radar sensor detection area is no
longer obstructed.)
Your vehicle
y A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
y The vehicle is parked on a slant.
Your vehicle
y Directly after pressing the Blind Spot Monitoring (BSM) switch and the system
becomes operable.
y In the following cases, it may be diffi cult to view the illumination/fl ashing of the Blind
Spot Monitoring (BSM) warning lights equipped on the door mirrors.
y Snow or ice adheres to the door mirrors.
y The front door glass is fogged or covered in snow, frost or dirt.
y Turn off the Rear Cross Traffi c Alert (RCTA) system while pulling a trailer or while an
accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise,
the radio waves emitted by the radar will be blocked causing the system to not operate
normally.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 209 of 580
*Some models.4–93
When Driving
i-ACTIVSENSE
Mazda Radar Cruise Control (MRCC) *
The Mazda Radar Cruise Control (MRCC) system is designed to maintain headway control *1
according to the vehicle speed using a radar sensor (front) to detect the distance to a vehicle
ahead, and by presetting the vehicle speed between 30 km/h (19 mph) and 145 km/h (90
mph), the driver is freed from having to constantly use the accelerator or brake pedals.
*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the Mazda Radar Cruise Control (MRCC) system.
Additionally, if your vehicle starts closing in on the vehicle ahead because, for example, the
vehicle ahead brakes suddenly, a warning sound and a warning indication in the display are
activated simultaneously to alert you to maintain a suffi cient distance between the vehicles.
Use the Mazda Radar Cruise Control (MRCC) system on expressways and other highways
which do not require a lot of repeated acceleration and deceleration.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 220 of 580
*Some models.4–104
When Driving
i-ACTIVSENSE

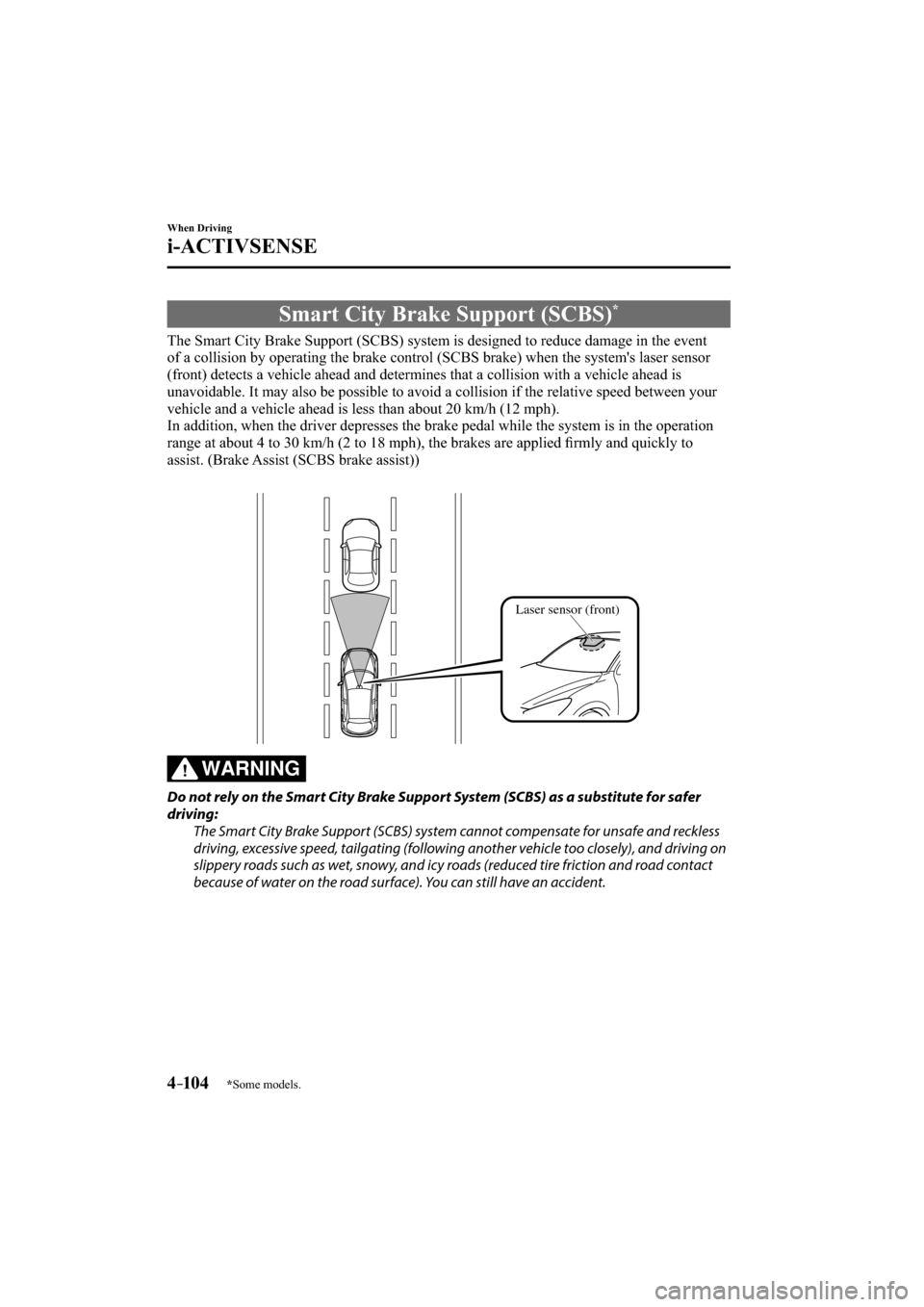

Smart City Brake Support (SCBS) *
The Smart City Brake Support (SCBS) system is designed to reduce damage in the event
of a collision by operating the brake control (SCBS brake) when the system's laser sensor
(front) detects a vehicle ahead and determines that a collision with a vehicle ahead is
unavoidable. It may also be possible to avoid a collision if the relative speed between your
vehicle and a vehicle ahead is less than about 20 km/h (12 mph).
In addition, when the driver depresses the brake pedal while the system is in the operation
range at about 4 to 30 km/h (2 to 18 mph), the brakes are applied fi rmly and quickly to
assist. (Brake Assist (SCBS brake assist))
Laser sensor (front)
WARNING
Do not rely on the Smart City Brake Support System (SCBS) as a substitute for safer
driving:
The Smart City Brake Support (SCBS) system cannot compensate for unsafe and reckless
driving, excessive speed, tailgating (following another vehicle too closely), and driving on
slippery roads such as wet, snowy, and icy roads (reduced tire friction and road contact
because of water on the road surface). You can still have an accident.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 221 of 580
4–105
When Driving
i-ACTIVSENSE
Do not rely completely on the Smart City Brake Support (SCBS) system:
¾ The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.
¾ The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to two-wheeled vehicles
or pedestrians.
¾ The laser sensor (front) for the Smart City Brake Support (SCBS) system is installed near
the rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.
¾
Do not apply stickers to the surface of the windshield near the laser sensor (front)
(including transparent stickers). Otherwise, the laser sensor (front) may not be able
to detect vehicles ahead which could result in an accident.
¾
Do not apply coating agent to the windshield. Otherwise, the laser sensor (front)
may not be able to detect vehicles or obstructions in front which could result in an
accident.
¾
Do not disassemble the laser sensor (front) .
¾
If cracks or damage caused by fl ying gravel or debris is visible near the laser sensor
(front) , stop using the Smart City Brake Support (SCBS) system immediately and
have your vehicle inspected by an Authorized Mazda Dealer. If the vehicle continues
to be driven with cracks or scratch marks left on the windshield near the laser sensor
(front) , the system may operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-108 .
¾
When replacing the windshield wipers or windshield, consult an Authorized Mazda
Dealer.
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS) system not
operating normally or mistakenly operating, which could cause a serious accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation when
the vehicle is running on a chassis roller or being towed. See the next page on how to turn
off the Smart City Brake Support (SCBS).
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page 4-108 .
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 222 of 580
4–106
When Driving
i-ACTIVSENSE
CAUTION
¾ When driving off -road in areas where there is grass or forage, it is recommended that the
Smart City Brake Support (SCBS) system be turned off .
¾ Always use tires for all wheels that are of the specifi ed size, and the same manufacturer,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle as the Smart City Brake Support (SCBS) system may not
operate normally.
¾ The laser sensor (front) includes a function for detecting a soiled windshield and informing
the driver, however, depending on the conditions, it may not detect plastic shopping bags,
ice or snow on the windshield. In such cases, the system cannot accurately determine a
vehicle ahead and may not be able to operate normally. Always drive carefully and pay
attention to the road ahead.
NOTE
y The Smart City Brake Support (SCBS) system will not operate if the driver is deliberately
performing driving operations (accelerator pedal and steering wheel).
y The Smart City Brake Support (SCBS) system will operate under the following conditions.
y The engine is running.
y The Smart City Brake Support (SCBS) warning light (amber) does not illuminate.
y The vehicle speed is between about 4 to 30 km/h (2 to 18 mph).
y The Smart City Brake Support (SCBS) system is not turned off.
y The DSC is not malfunctioning.
y The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-infrared
laser beam and receiving the beam refl ected off the refl ector of the vehicle ahead, and
then using it for the measurement. Consequently, the Smart City Brake Support (SCBS)
may not operate under the following conditions:
y Refl ection of the laser is poor due to the shape of the vehicle ahead.
y The vehicle ahead is signifi cantly dirty.
y Under bad weather condition, such as rain, fog and snow.
y The window washer is being used or the windshield wipers are not used when it's
raining.
y The windshield is dirty.
y The steering wheel is turned completely left or right, or the vehicle is accelerated
rapidly and comes close to the vehicle ahead.
y Trucks with low loading platforms and vehicles with an extremely low or high profi le.
y Vehicles with certain shapes such as a vehicle carrier.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 223 of 580
*Some models.4–107
When Driving
i-ACTIVSENSE
y Under the following conditions, the Smart City Brake Support (SCBS) system may not
operate normally.
y Heavy luggage is loaded in the luggage compartment or on the rear seat.
y If there is the possibility of partial contact with a vehicle ahead.
y When driving on continuously curving roads, and entering and exiting exits.
y Elongated luggage or cargo is loaded onto installed roof rails and covers the laser
sensor (front) .
y Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
y When towing a malfunctioning vehicle.
y When driving with tires having signifi cantly different wear.
y In the following cases, the laser sensor (front) may inadvertently determine that there is a
vehicle ahead and the Smart City Brake Support (SCBS) system may operate.
y Objects on the road at the entrance to a curve.
y Vehicles passing in the opposite lane while making a curve.
y Metal objects, bumps, or protruding objects on the road.
y When passing through a toll gate equipped with a bar.
y When passing under a vinyl curtain or fl ag.
y Plastic objects such as pylons.
y Two-wheeled vehicles, pedestrians, animals or standing trees.
y When the system operates, the user is notifi ed by the fl ashing Smart City Brake Support
(SCBS) indicator light (red) and the active driving display * .
y The Smart City Brake Support (SCBS) warning light (amber) turns on when the system
has a malfunction.
Refer to Warning Lights on page 4-25 .
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 225 of 580
*Some models.4–109
When Driving
i-ACTIVSENSE
Smart Brake Support (SBS) *
Smart Brake Support (SBS) is a system which alerts the driver of a possible collision using
an indicator and warning sound in the instrument cluster while the vehicle is being driven at
about 15 km/h or faster (10 mph or faster) and the system's radar sensor (front) determines
that your vehicle may hit a vehicle ahead. Furthermore, if the radar sensor (front) determines
that a collision is unavoidable, the automatic brake control is performed to reduce damage in
the event of a collision.
In addition, when the driver depresses the brake pedal, the brakes operate more quickly to
assist the driver (vehicles with brake fl uid pre-fi ll).
WARNING
Do not rely completely on the Smart Brake Support (SBS) system and always drive
carefully:
The Smart Brake Support (SBS) is designed to reduce damage in the event of a collision,
not avoid an accident. The ability to detect an obstruction is limited depending on the
obstruction, weather conditions, or traffi c conditions. Therefore, if the accelerator pedal
or brake pedal is mistakenly operated it could result in an accident. Always verify the
safety of the surrounding area and depress the brake pedal or accelerator pedal while
keeping a safer distance from vehicles ahead or on-coming vehicles.
CAUTION
If the vehicle is towed or you are towing something, switch the Smart Brake Support (SBS)
system off to prevent a mistaken operation.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
