Manual Climate Control
TEMPERATURE
CONTROL DIAL
Rotate the dial for
temperature control.
NOTE:
When set
to MA X A /C with
dashboard vents
or dashboard and
floor vents, the A /C
will turn on, and
recirculated air will
be selected for
maximum cooling.
MODE SELECTOR DIAL
Rotate the dial to
select airflow mode.
Dashboard
vents
Dashboard
and floor vents
Floor vents
Defroster and
floor vents
Windshield defrosterFAN CONTROL DIAL
Rotate the dial to set
desired fan speed.
Push to recirculate
cabin air to reduce
outside odors and
improve cooling.
Push for fresh
air circulation.
Push to manually
turn air conditioning
on or off.
Push to defrost the
rear window.
Best Cooling Settings
Indicator ON (automatically)
DEFROSTER NOTE:
• When selecting either defroster mode ( or ), the air conditioner and fresh
air mode are automatically turned on by the system. This helps defrost the
windows more efficiently by dehumidifying the air. Manually set the fan control
and temperature control dials as desired.
• In either defroster mode (
or ), air will blow from the side dashboard vents.
To defrost the side windows faster, point the vents toward the side windows.
Best Heating Settings
1880737_16a_Mazda_CX-3_061615.indd 296/16/15 2:28 PM

30
Automatic Climate Control
FAN CONTROL DIAL
• Rotate the dial
to set desired
fan speed.
• Rotate dial
to OFF to turn
system of f.
Push to recirculate
cabin air to reduce
outside odors and
improve cooling
(indicator on) or
receive fresh air
(indicator off).
MODE SELECTOR DIAL
Rotate the dial to select
airflow mode.
Dashboard vents
Dashboard
and floor vents
Floor vents
Defroster
and floor vents
Defroster vents
Rear defroster
NOTE: Automatic
temperature control
is always on, even if
the AUTO indicator
light is turned off when
changing the fan speed
or air flow mode.
TEMPERATURE
CONTROL DIAL
Rotate the dial for
temperature control.
Push to
manually turn
air conditioning
on or off.
AUTO: Set the Fan Control and Mode Selector
Dials in the AUTO position. The airflow mode
and amount will be automatically controlled in
accordance with the set temperature.
1880737_16a_Mazda_CX-3_061615.indd 306/16/15 2:29 PM
www.MazdaUSA.com

31
Audio Controls (with Mazda Connect)
AUDIO OPERATION
The following icons are displayed on the screen:

SOURCES
: Displays Audio menu
to change audio source (FM / AM
/ XM / Aha / Pandora / Stitcher /
Bluetooth / USB / CD / AUX).

AUTO MEMORY:
Displays a
list of 10 strongest radio stations.
Because station strength
changes as you drive, select
Update Station List icon to
re-scan for strong stations.

FAVORITES:
Displays list of
your favorite AM, FM, and XM
radio stations.

HD RADIO:
Switches HD Radio
On /O f f.

SCAN:
Scans radio stations or
songs (scanning stops at each one
for 5 seconds). Select again to stop.

TUNER:
Displays manual radio tuner.

TAG :
Saves artist and title
and sends them to your Apple
device (for Apple devices
with USB use only).

SEEK PREVIOUS/NEXT:


Selects previous or next
receivable radio station or song.
Press and hold to change radio
station continually.

SETTINGS:
Adjusts the audio
quality level (bass, treble, etc.).
The following icons are displayed
on the CD screen only:

TRACK LIST
: Displays the track
list of the CD.

R E P E AT
: Repeats the current
song. Select again to stop.

SHUFFLE
: Plays the songs on
the CD in random order. Select
again to stop.

P L AY/ PAU S E
: Plays and Pauses
the CD.
Playing Bluetooth® (BT) Audio
1 Make sure BT audio device is paired to
your vehicle.
2 Turn on BT audio device.
3 Select Bluetooth from Sources.
See your Owner’s Manual for further information on:
· Pandora · Aha · Stitcher
BLUETOOTH® AUDIO
Bluetooth® enabled phones and audio players
provide an opportunity to play music through the
audio system with no wires attached.
Some phone models do not support all features.
Go to http://infotainment.mazdahandsfree.com
or contact (800) 430-0153 for further assistance or to report a phone /MP3 device concern.
NOTE:• New Mazda
vehicles equipped
with SiriusXM
® Satellite Radio will
receive an introductory subscription with a limited term trial offer to over 150
channels of SiriusXM Satellite Radio. Enjoy commercial-free music, plus
sports, news, entertainment, and ever y premium channel in your vehicle. Call 877-447-0011 to activate. See the
Owner’s Manual and/or dealer for details.
• In order to use Aha, Pandora and
Stitcher as audio sources, the App must be installed on your phone. These Apps
stream music using your data plan and listening to them counts towards your
monthly cellular data usage.
1880737_16a_Mazda_CX-3_061615.indd 316/16/15 2:29 PM

32
AUDIO OPERATION USING VOICE
Audio operation and media selection
can be done using voice. Push the
“TALK” button on the steering wheel, wait for a beep, then say a command in
a clear, natural voice (not too fast or too slow). Some common commands are listed below.
Play (and any of the following):
AM, FM, XM, CD, Bluetooth, Aha, Pandora, Stitcher, USB, AUX
Play or Resume / Pause or
Stop / Next or Previous
Play (and any of the following):
Song, Playlist ,
Artist , Album
, Genre , Folder
Tune to Station
Tune to Channel Number (XM)
HD RADIO
HD radio has a special
receiver which allows it to
receive digital broadcasts (where available) in addition to the analog broadcasts it already receives. Digital broadcasts have better
sound quality than analog broadcasts as digital
broadcasts provide free,
crystal clear audio.
When the HD radio button is ON (red), there could be
a noticeable difference in sound quality and volume when a change from digital to analog signals occurs.
If the sound quality and
volume becomes noticeably
diminished or cuts off, select the HD button to turn OFF HD radio (not red).
Audio Controls (with Mazda Connect)
GRACENOTE
The Gracenote media database is used to improve voice recognition of artist and album names with the Mazda Hands Free system. To make best use of the
voice recognition, install the most recent database.
1 Load the Gracenote update on a memory stick
from www.MazdaUSA.com/USB. Insert the
memory stick into the USB port.
2 Go to System Settings in the infotainment system.
3 Select Music Database Update.
NOTE: To use BT audio, make sure the musical
icon is displayed by going to Bluetooth in Device
settings. Some Bluetooth® audio devices need a
certain amount of time before the icon is displayed.
NOTE: Push the TALK button and say “Help” at any time to hear a list of
available commands.
www.MazdaUSA.com
1880737_16a_Mazda_CX-3_061615.indd 326/16/15 2:29 PM
www.MazdaUSA.com

33
NOTE: You will need an audio cable with an 1/8 inch (3.5 mm)
mini stereo plug (available as a Genuine Mazda accessory) to
connect your portable audio player into the AUX jack.
I M P O R TA N T: • Set the volume level on your portable audio player to the highest level before
distortion starts, then use the vehicle’s audio system to adjust the volume.
• Unplug any device from the USB port and accessory socket before turning off
the vehicle. Leaving devices plugged in can drain the battery and cause issues
during the Bluetooth pairing process at startup. Wait about 15 seconds after
starting the vehicle before plugging anything into the USB port.
1 Locate the USB port or AUX jack.
2 Connect the device plug into the portable audio player and into the
USB port or AUX jack.
3 Turn the vehicle audio system on.
4 • Audio Controls: Select AUX or USB from the Sources menu.
5 • USB Port: Use the vehicle’s audio system or steering wheel controls
to control the connected USB device.
• AUX Jack: Use the portable audio player controls to play music.
Refer to the Owner’s Manual for additional information.
PORTABLE AUDIO PLAYER
INTEGRATION USING THE
USB PORT OR AUX JACK
Your vehicle is equipped with a USB port
and auxiliary AUX jack, conveniently located
below the climate controls, that allows you
to play your iPod, USB device, or portable
audio player through the vehicle’s audio
system. Learn the system when parked and
do not let it distract you while driving.
12 VOLT ACCESSORY SOCKETS
The accessory socket below the climate controls is on with ignition in ACC or ON.
Audio USB and AUX Inputs
NOTE: When using a USB memory stick, the system plays the first audio file when
restarting the vehicle. It does not start where it left off when turning off the engine.
NOTE: When using the accessory socket in the center console, make sure to
disconnect any device from it when turning off the ignition, otherwise the vehicle’s
battery could go dead.
USB AUX 12V
1880737_16a_Mazda_CX-3_061615.indd 336/16/15 2:29 PM

34
NOTE: • If the vehicle is jump started, leave the jumper cables connected until the
warning message is no longer displayed.
• If the vehicle is driven while the warning screen is displayed, a warning sound
will be heard and power steering assist will be limited.
i-ELOOP
i-ELOOP (if equipped)
The Mazda-unique regenerative braking system (i-ELOOP) generates
and stores electrical energy in a capacitor during deceleration. Through
efficient energy regeneration, storage, and usage, fuel economy is
improved. To view i-ELOOP information, select Applications from
the Home screen, then scroll down to Fuel Economy Monitor.
i-ELOOP Pre-Charge Mode
If the capacitor is discharged because of vehicle storage (the vehicle \
is
parked for long periods of time), the i-ELOOP indicator in the instrume\
nt
cluster will flash and a
warning screen appears
on the screen of the
infotainment system.
When this warning screen appears, do not drive the
vehicle. Allow the engine to idle until the warning
screen disappears. This time is needed for normal
generator operation.
In Pre-charge modeDriving in Pre-charge mode
Capacitor charge level
Regeneration level
Capacitor discharge
Average fuel consumption since reset
60-minute Fuel Economy
0-10 min.: Every 1 min.
10-60 min.: Every 10 min.
Average Current Fuel Histor y:
Average since reset 2nd to 6th history Average fuel consumption for this drive
1880737_16a_Mazda_CX-3_061615.indd 346/16/15 2:29 PM
www.MazdaUSA.com

35

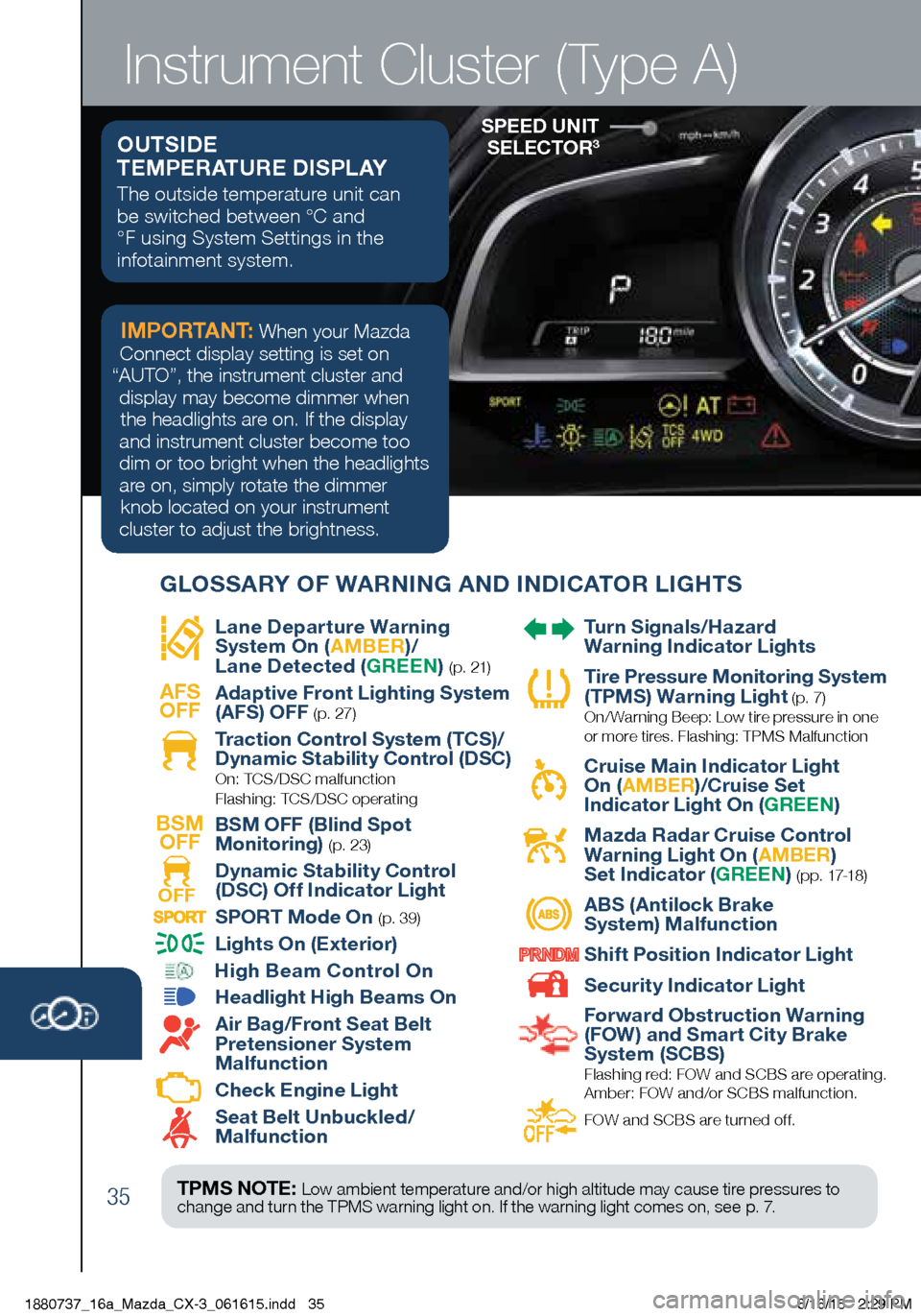

Instrument Cluster (Type A)
SPEED UNIT SELECTOR3
Lane Departure Warning
System On (
AMBER)/
Lane Detected ( GREEN) ( p. 21)
AFS
OFF
Adaptive Front Lighting System
(AFS) OFF (p. 27)

Traction Control System (TCS)/
Dynamic Stability Control (DSC)
On: TCS/DSC malfunction
Flashing: TCS/DSC operating
BSM OFF
BSM OFF (Blind Spot
Monitoring)
(p. 23)
OFF Dynamic Stability Control

(DSC) Off Indicator Light SPORT Mode On (p. 39)
Lights On (Exterior)
High Beam Control On
Headlight High Beams On
Air Bag/Front Seat Belt
Pretensioner System
Malfunction
Check Engine Light
Seat Belt Unbuckled/
Malfunction
Turn Signals/Hazard

Warning Indicator Lights
Tire Pressure Monitoring System
(TPMS) Warning Light (p. 7) On/ Warning Beep: Low tire pressure in one
or more tires. Flashing: TPMS Malfunction
Cruise Main Indicator Light

On ( AMBER )/Cruise Set
Indicator Light On ( GREEN)

Mazda Radar Cruise Control
Warning Light On ( AMBER)
Set Indicator ( GREEN)
( p p . 17-18 )
ABS (Antilock Brake
System) Malfunction
Shift Position Indicator Light
Security Indicator Light
Forward Obstruction Warning
(FOW ) and Smart City Brake
System (SCBS)

Flashing red: FOW and SCBS are operating.
Amber: FOW and/or SCBS malfunction.
FOW and SCBS are turned of f.
TPMS NOTE:
Low ambient temperature and/or high altitude may cause tire pressures to
change and turn the TPMS warning light on. If the warning light comes on, see p. 7.
OUTSIDE
TEMPERATURE DISPLAY
The outside temperature unit can
be switched between °C and
°F using System Settings in the
infotainment system.
IMPORTANT: When your Mazda
Connect display setting is set on
“AUTO”, the instrument cluster and display may become dimmer when the headlights are on. If the display
and instrument cluster become too
dim or too bright when the headlights are on, simply rotate the dimmer knob located on your instrument
cluster to adjust the brightness.
GLOSSARY OF WARNING AND INDICATOR LIGHTS
1880737_16a_Mazda_CX-3_061615.indd 356/16/15 2:29 PM

36
TRIP COMPUTER
The following information
can be selected by pushing
the
or of the INFO
button on the steering wheel.
• Approximate distance you
can travel on the available
fuel (RANGE)
• Average fuel economy
• Current fuel economy
• Average vehicle speed
• To reset, push and hold
the INFO button for more
than 1.5 seconds.
1 • Rotate the knob to adjust the brightness of the
instrument cluster and other dashboard illuminations.
2 • Push to toggle between trip meter (A & B).
• When a trip meter is selected, push and hold to
reset to zero.
3 • Push the knob for 1.5 seconds or more to change
the speed units between km/h and mph.
Brake Warning Light
Parking brake on/low brake
fluid/malfunction
Master Warning Light
Low Fuel Level
Low Engine Oil Pressure
Power Steering Malfunction
Automatic Transaxle

Warning Light
Charging System Malfunction
Door/Trunk/Tailgate Ajar
Low Washer Fluid Level
Warning Light
KEY Warning Light RED
KEY Indicator Light GREEN
Check Fuel Cap
Perform Maintenance
i-ELOOP Status (p. 34)

On : Power generation
Flashing : Pre-Charge Mode
www.MazdaUSA.com
ENGINE COOLANT TEMP LIGHTS Since this vehicle does not use an engine
coolant temperature gauge, red and blue
engine coolant temperature lights are used to
indicate high and low coolant temperature.
Red Coolant Temp Light
Flashing: Engine is starting to run hot.
Drive slowly to reduce engine load.
On: Engine is overheating. Safely pull
over to the side of the road and turn
the engine off. Refer to the Owner’s
Manual for more information.
Blue Coolant Temp Light
On: Engine coolant is cold and no warm
air is available for heater/defroster.
Off: Engine coolant is warm and warm air
is available for heater/defroster. The light
may stay on for a few minutes after start-
up when the engine is cold, but the vehicle
can be driven with the light on or off.
NOTE: When your Mazda Connect display
setting is set on “auto”, the instrument
cluster and display may become dimmer
when the headlights are on. If the display
and instrument cluster become too dim or
too bright when the headlights are on, simply
rotate the dimmer knob located on your
instrument cluster to adjust the brightness.
DASHBOARD
ILLUMINATION/
DIMMER
1/
TRIP METER2
NOTE: See Owner’s Manual for
more details and explanations.
1880737_16a_Mazda_CX-3_061615.indd 366/16/15 2:29 PM
www.MazdaUSA.com

37
Instrument Cluster (Type B)
TCSOFF Traction Control System (TCS)
Off Indicator Light
Traction Control System (TCS)/
Dynamic Stability Control (DSC)
On: TCS/DSC malfunction
Flashing: TCS/DSC operating
BSM OFF
BSM OFF (Blind Spot
Monitoring)
(p. 23)
SPORT Mode On (p. 39)
Lights On (Exterior)
High Beam Control On
Headlight High Beams On
Air Bag/Front Seat Belt
Pretensioner System
Malfunction
4WD
AWD Warning Indication
On:
Flashing: Stop vehicle/tow to
Mazda dealer.
Check Engine Light
Seat Belt Unbuckled/
Malfunction
Turn Signals/Hazard

Warning Indicator Lights
Tire Pressure Monitoring System
(TPMS) Warning Light (p. 7) On/ Warning Beep: Low tire pressure in one
or more tires. Flashing: TPMS Malfunction
Cruise Main Indicator Light

On ( AMBER )/Cruise Set
Indicator Light On ( GREEN)
ABS (Antilock Brake
System) Malfunction
Shift Position Indicator Light
Security Indicator Light
Brake Warning Light
Parking brake on/low brake
fluid/malfunction
Smart City Brake Support
(SCBS) OFF Indicator
Smart Brake Support (SBS)
Warning Indication
Master Warning Light
Low Fuel Level
TPMS NOTE: Low ambient temperature and/or high altitude may cause tire pressures to
change and turn the TPMS warning light on. If the warning light comes on, see p. 7.
OUTSIDE
TEMPERATURE DISPLAY
The outside temperature unit can
be switched between °C and °F
using the following procedure:
Without Mazda Connect:
1 Push the INFO button with
the ignition OFF and continue
pushing the INFO button for
5 seconds or longer after
switching the ignition ON.
The outside temperature
display flashes.
2 Push the up or down part of
the INFO switch to change
the temperature unit.
3 Push and hold the INFO
button for 3 seconds or
longer until it stops flashing.
With Mazda Connect:
1 Go to System Settings.
IMPORTANT: When your Mazda Connect display
setting is set on “AUTO”, the instrument cluster and
display may become dimmer when the headlights are on. If the display and instrument cluster become too dim or too bright when the headlights
are on, simply rotate the dimmer knob located on your instrument cluster to adjust the brightness. SPEED UNIT
SELECTOR
3
1880737_16a_Mazda_CX-3_061615.indd 376/16/15 2:29 PM

38
TRIP COMPUTER
The following information
can be selected by pushing
the
or of the INFO
button on the steering wheel.
• Approximate distance you
can travel on the available
fuel (RANGE)
• Average fuel economy
• Current fuel economy
• Average vehicle speed
• To reset, push and hold
the INFO button for more
than 1.5 seconds.
1 • Rotate the knob to adjust the brightness of the
instrument cluster and other dashboard illuminations.
2 • Push to toggle between trip meter (A & B).
• When a trip meter is selected, push and hold to
reset to zero.
3 • Indicator is also displayed in Type A Cluster
Information Display.
Low Engine Oil Pressure
Power Steering Malfunction
Automatic Transaxle
Warning Light
Charging System Malfunction
Door/Trunk/Tailgate Ajar
Low Washer Fluid Level
Warning Light
KEY Warning Light RED
KEY Indicator Light GREEN
Mazda Radar Cruise Control
Warning ON ( AMBER)
Set Indicator ( GREEN)

LED Headlight Warning
Check Fuel Cap
Perform Maintenance
Lane Departure Warning
System (LDWS) ON ( AMBER)
Lane Detected ( GREEN)
3 ( p. 21)
Lane Departure Warning
System (LDWS) OFF ( AMBER)
3
NOTE: See Owner’s Manual for
more details and explanations.
ENGINE COOLANT TEMP LIGHTS Since this vehicle does not use an engine
coolant temperature gauge, red and blue
engine coolant temperature lights are used to
indicate high and low coolant temperature.
Red Coolant Temp Light
Flashing: Engine is starting to run hot.
Drive slowly to reduce engine load.
On: Engine is overheating. Safely pull
over to the side of the road and turn
the engine off. Refer to the Owner’s
Manual for more information.
Blue Coolant Temp Light
On: Engine coolant is cold and no warm
air is available for heater/defroster.
Off: Engine coolant is warm and warm air
is available for heater/defroster. The light
may stay on for a few minutes after start-
up when the engine is cold, but the vehicle
can be driven with the light on or off.
NOTE: When your Mazda Connect display
setting is set on “auto”, the instrument
cluster and display may become dimmer
when the headlights are on. If the display
and instrument cluster become too dim or
too bright when the headlights are on, simply
rotate the dimmer knob located on your
instrument cluster to adjust the brightness.
DASHBOARD
ILLUMINATION/
DIMMER
1/
TRIP METER2
TACHOMETER
1880737_16a_Mazda_CX-3_061615.indd 386/16/15 2:29 PM
www.MazdaUSA.com
